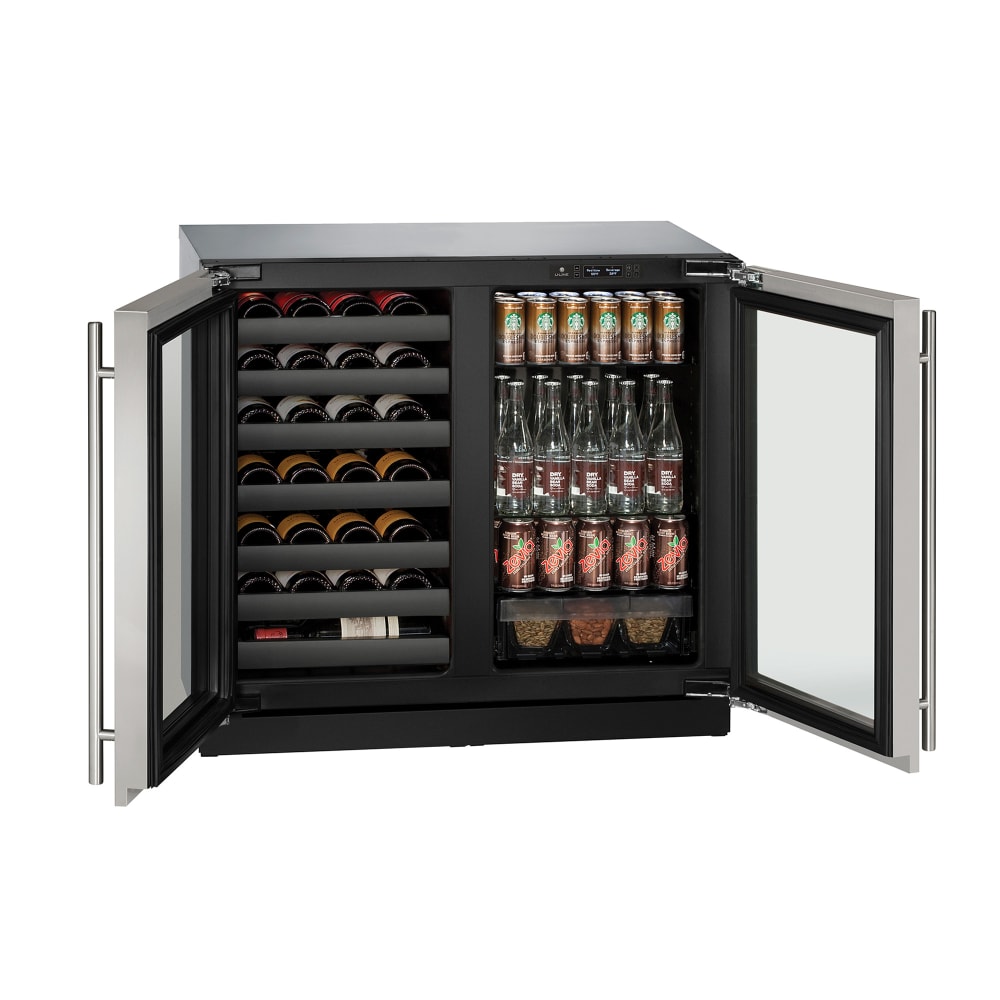

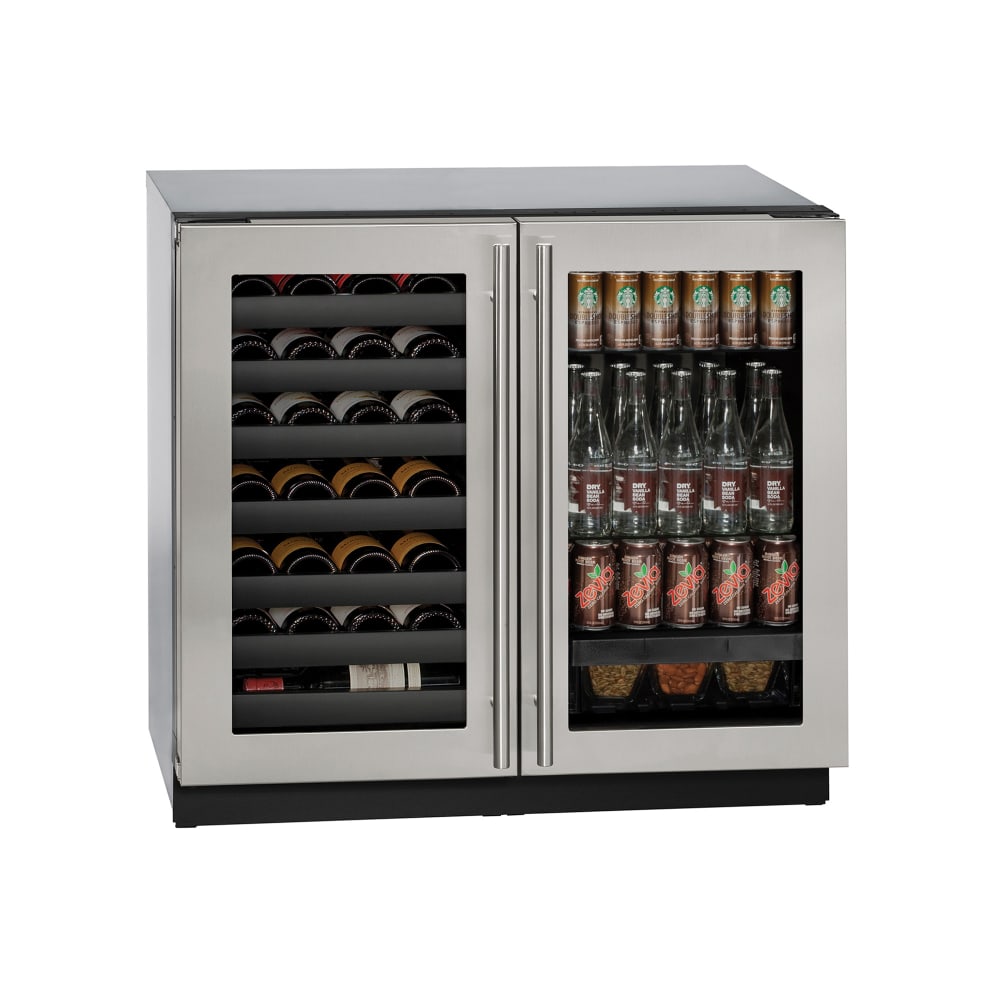

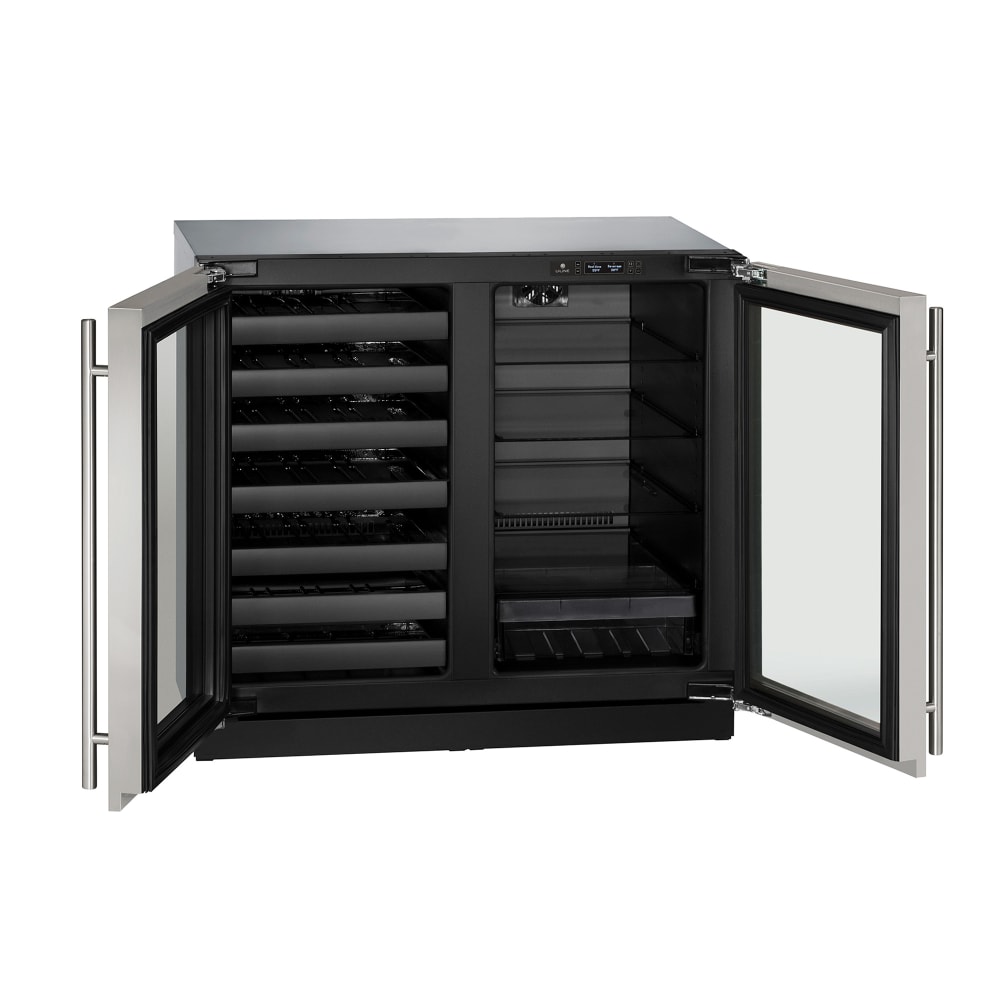

U-Line U-3036BVWCS-00B 36"W Undercounter Wine Refrigerator w/ 2 Sections & 2 Glass Doors - Stainless, 115v
$6,089.00 /Each
Attention: Order by 11-15-2026 to save before the price increases!
U-Line U-3036BVWCS-00B Description
The U-Line U-3036BVWCS-00B undercounter refrigerator's left zone features seven wine racks, and the right zone's three adjustable shelves create tailored storage for bottles and beverages. Each full-extension rack accommodates multiple bottle shapes, and tempered glass shelves adjust through 11 positions. A full-extension crisper drawer completes the design, offering flexible space for produce and packaged ingredients.
Balanced cooling is maintained by the U-Line U-3036BVWCS-00B undercounter refrigerator's dual-zone refrigeration system. Using R600a refrigerant, the sealed circuit ensures efficiency and reliability. Dual convection fans circulate air evenly to stabilize internal temperature, while front ventilation supports built-in installations for quiet operation in modern kitchens.
- From the 3000 Series
- Built-in installation
- Undercounter design
- 7-cu.-ft. total capacity
- Stores up to (79) 12-oz. bottles, (123) 12-oz. cans, or 31 wine bottles
- Black exterior and interior
- 2 LowE-coated, argon-filled double thermopane glass doors
- Stainless steel door frames
- 7⁄8-in.-diameter handles
- Concealed hinge system with door stop and closer
- 7 full-extension, black-coated wine racks in left zone
- 3 adjustable tempered glass shelves in right zone
- Full-extension crisper drawer
- LED theater lighting
- Adjustable grille
- 4 adjustable leveling legs
- Dual-zone design
- Front-vented airflow
- R600a hydrocarbon refrigerant
- Rubber-mounted compressor
- Convection fans
- U-Select® OLED control system
- 8 preset storage modes for wine, beverages, and pantry items
- Independently controlled temperature zones
- Temperature range (left zone): 38-65 degrees F
- Temperature range (right zone): 34-70 degrees F
- 35 7⁄16 in. W × 23 7⁄16 in. D × 33 11⁄16-34 11⁄16 in. H
- 1.2 A, 320 kWh
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on U-Line U-3036BVWCS-00B within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
U-Line U-3036BVWCS-00B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | U-Line |
| Access | Door |
| Bottle Capacity | 31 |
| Color | Silver |
| Cubic Feet | 7 |
| Depth (in) | 25.69 |
| Door Type | Glass |
| Doors | 2 |
| Height (in) | 33.69 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| NEMA | 5-15P |
| Number of Shelves | 10 |
| Phase | 1 |
| Product | Compact Refrigerators |
| Product Type | Hotel Supplies |
| Rating | Better |
| Refrigerant | R600a (Hydrocarbon) |
| Refrigeration Type | Refrigerator |
| Sections | 2 |
| Series | 3000 Series |
| Shelving Type | Wire/Glass |
| Special Features | Adjustable Leveling Feet |
| Special Features | Black Interior |
| Special Features | Drawer |
| Special Features | LED Lighting |
| Temperature | Two Zones |
| Thermometer Type | Digital |
| Type | Undercounter |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 1-year Extension with Registration through U-Line; 5-year Sealed System Parts |
| Width (in) | 35.44 |
| Weight | 244.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It has 7 cu. ft. of interior capacity.
It has an undercounter, built-in design.
It has a glass door.
It has left- and right-hinged doors.
It includes 7 full-extension, black-coated wine racks in left zone and 3 adjustable tempered glass shelves in right zone.
It uses black-coated wine racks and adjustable tempered glass shelves.
It has a 38°F to 65°F range in the left zone and a 34°F to 70°F range in the right zone.
Use the U-Select OLED control system to manage the temperature.
It uses R600a hydrocarbon refrigerant.
It requires 115 V, 60 Hz, single-phase power and draws 1.2 A and uses a NEMA 5-15P plug.
It is UL listed.
Yes, the shelves are adjustable.
Yes, it includes interior lighting.
Yes, it has adjustable leveling feet.
Yes. It has one full-extension crisper drawer.
Yes, the door has a closer.
