Kold-Draft KD-50 36.7"H Full Cube Undercounter Ice Maker - 59 lbs/day, Air Cooled

Image may not depict product color, inclusions or accessories.

KaTom #: 657-KD50 • MPN: KD-50
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,369.00
$1,449.59 / Each

Image may not depict product color, inclusions or accessories.

Kold-Draft KD-50 Description

Kold-Draft

Each day, the Kold-Draft KD-50 undercounter ice maker can produce 59 pounds of ice and store 26.5 pounds. It has a self-contained, air-cooled condenser and uses R134A refrigerant. Made of 300 series stainless steel, this unit is a corrosion-resistant mixture of chromium and nickel. It produces ice automatically, and the ice’s thickness can be set to low, medium, or high. Its large cube ice is great for tall drinks, cocktails, bagged ice, and pitchers.

The Kold-Draft KD-50 undercounter ice machine is insulated to keep ice frozen for extended periods. Its cleaning mode leaves one less task for the operator to complete. A horizontal, upside-down evaporator is placed onto a water plate, and each individual evaporator cell is pumped with water to create pure, clear ice. The front should remain unobstructed at all times, and a 4-inch back and 0.6-inch top and side clearances are required.

Product Details

  • 59-lb. daily ice production
  • 43-lb. AHRI-certified daily ice production
  • 26.5-lb. storage capacity
  • 300 series stainless steel construction
  • Produces ice automatically
  • Adjustable ice thickness with 3 settings: low, medium, and high
  • Insulated to retain temperatures
  • Horizontal, upside-down evaporator plate freezes from the outside in
  • Programmable cleaning mode
  • Requires 4-in. back and 0.6-in. top and side clearances
  • Front should be unblocked
  • Uses R134A refrigerant
  • 14-in. water line
  • 34-in. drain line

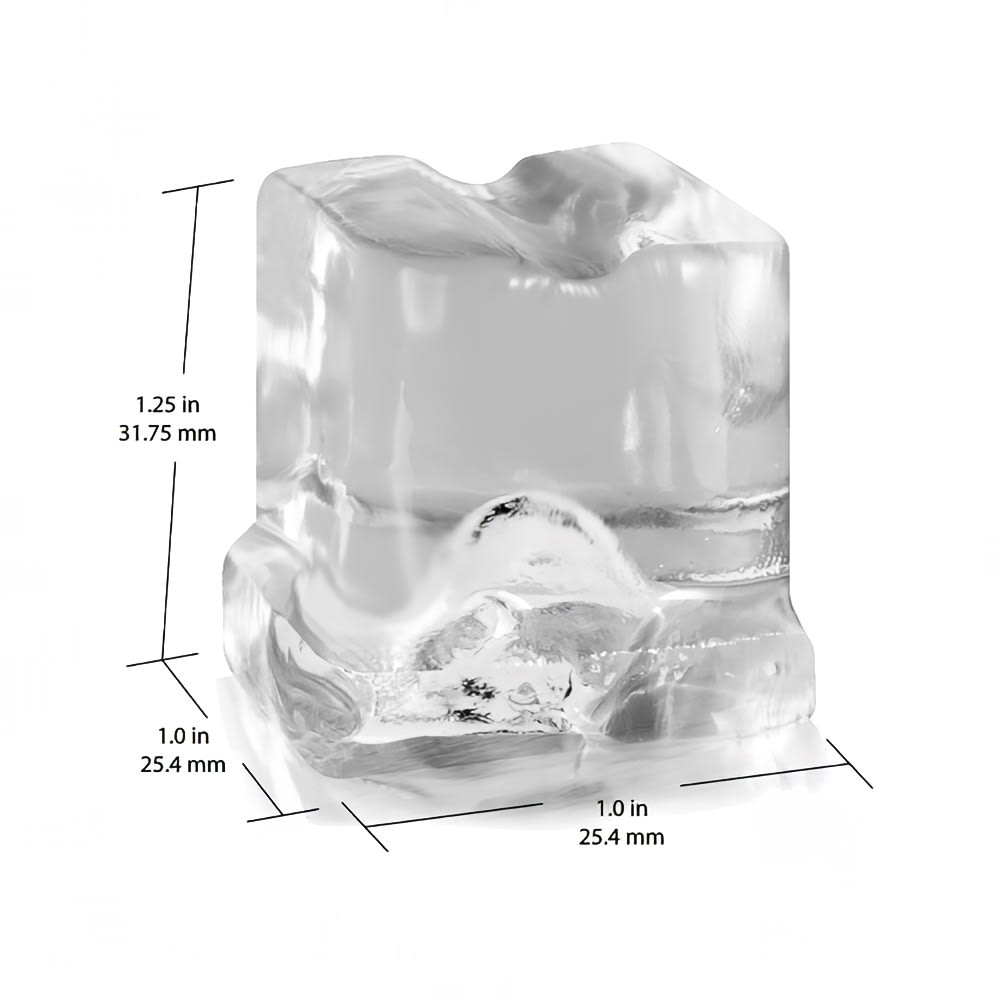

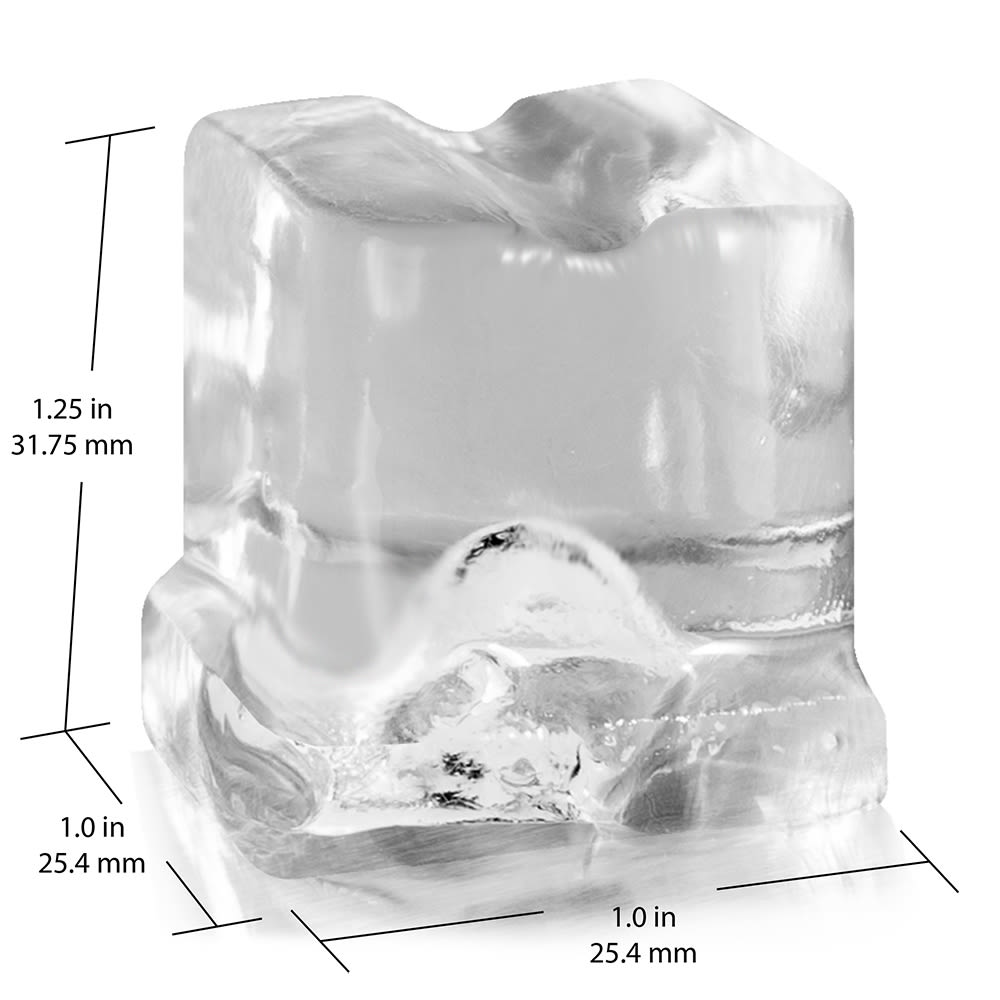

  • Large-cube size: 1 in. x 1 in. x 1.25 in.
  • Condenser is self-contained and air-cooled
  • Incoming water pressure: 5-100 PSI
  • Incoming water temperature: 45-90 degrees F
  • Ambient air temperature: 45-90 degrees F

Dimensions and Utilities

  • 15.5 in. W x 17.7 in. D x 36.7 in. H
  • 5 A, 12.9 kW
  • 115 V/60 Hz/1 ph

Visit our resource article for ice makers to learn more about which unit is right for you.

Cocktail Series Ice Maker with Bin, cube-style, air-cooled self-contained condenser, production capacity up to 59 lbs/24 hours at 70°/50° (43 lbs at 90°/70°), 26-1/2 lb storage bin capacity, adjustable ice thickness, cleaning mode, 300 series stainless steel finish, large-cube size ice, 115v/60/1-ph, 5.0 amps, cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Kold-Draft KD-50 Specifications

PDF Spec Sheet
Manufacturer Kold-Draft
24 Hr. Production (lbs) 59
Height (in) 36.7
Ice Type Full Cube
Width (in) 15.5
Bin Capacity (lb) 26.5
Warranty 1-year Parts & Labor
Compressor Type Air Cooled
Production Range (lbs/day) 1 - 99 lbs
Voltage 115
Phase 1
Suggested Use Commercial
Bin Capacity Range (lbs) 1 - 49
Drain Type Gravity
Product Undercounter Ice Maker
Weight 95.00
Kold-Draft KD-50 Certifications
  • NSF
  • ETL
