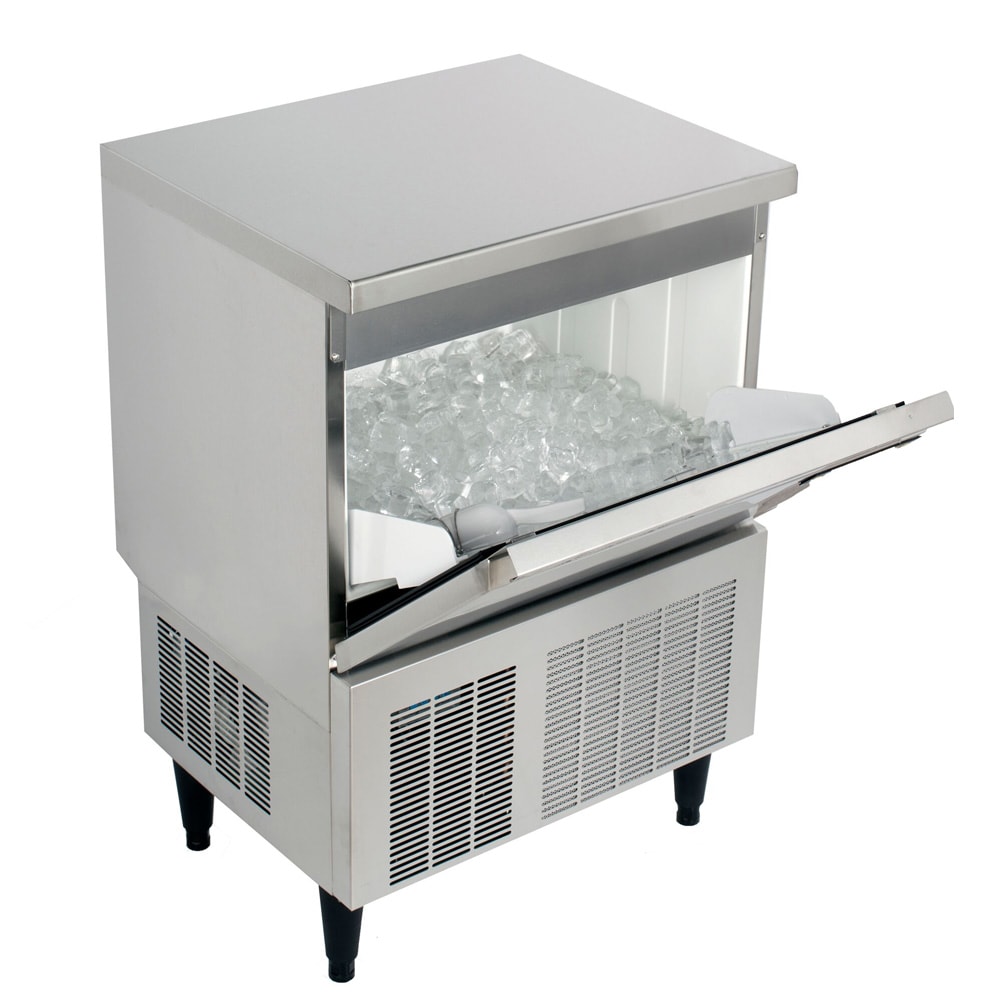

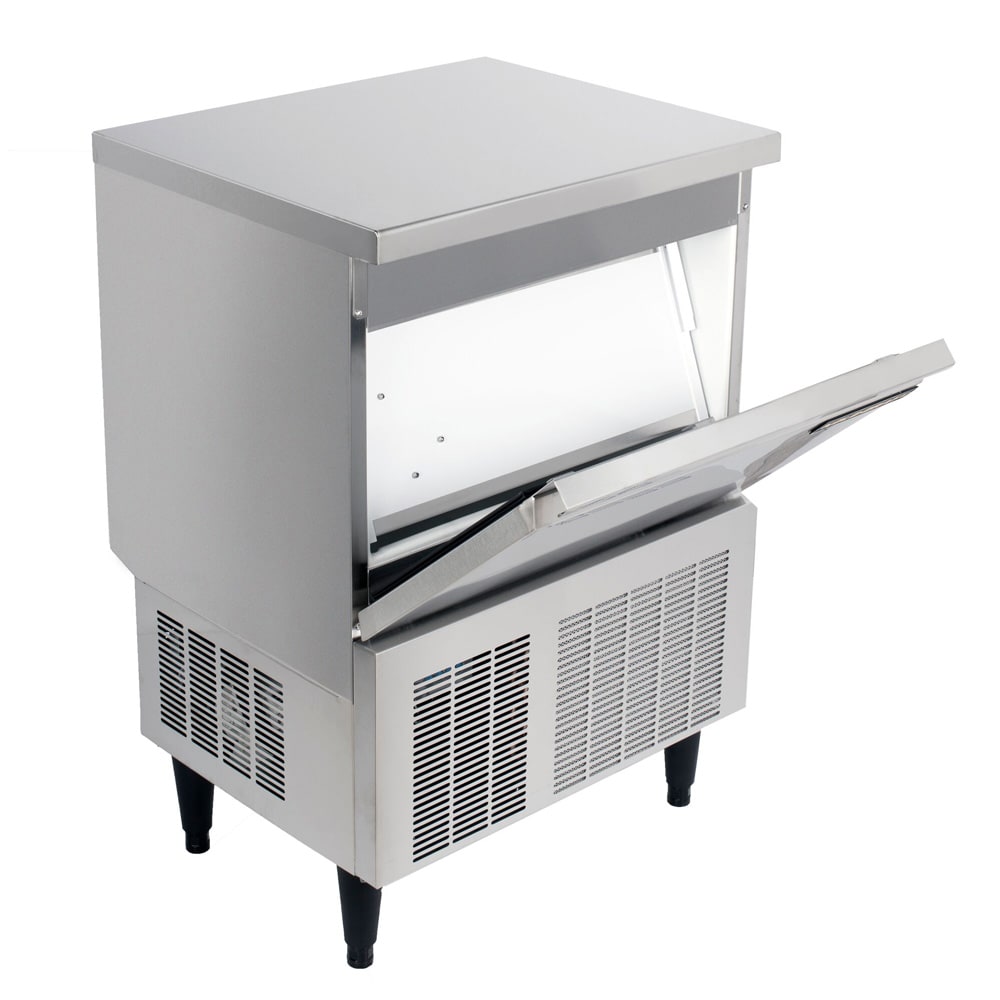

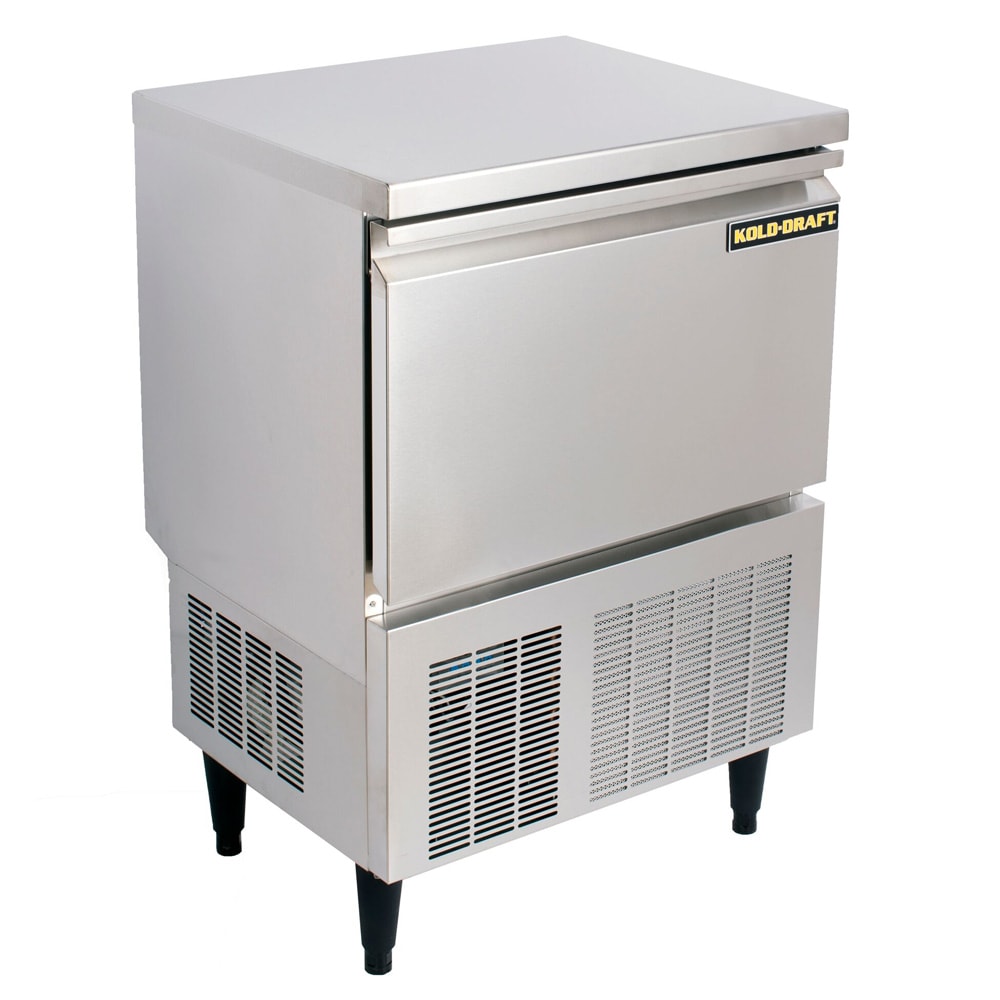

Kold-Draft KD-110 24 4/5"W Large Cube Undercounter Ice Machine - 118 lbs/day, Air Cooled

To resist corrosion and dents, the Kold-Draft KD-110 undercounter ice maker is made of 300 series stainless steel, which is a combination of chromium and nickel. It can produce 118 pounds of large cube ice daily and can store 60 pounds. This ice maker has an air-cooled, self-contained condenser that uses R134A refrigerant to ensure temperatures remain cool. Its automatic ice feature enables the user to carry out other tasks while ice is produced, and its self-cleaning mode minimizes the need for continuous monitoring and maintenance.

The Kold-Draft KD-110 undercounter ice machine has an upside-down evaporator placed on top of a molded water plate. Each evaporator cell is individually pumped with water and then frozen, enabling every cell to act as its own freezing unit. This process reduces impurities and produces clear, pure ice that is kept cold for a long time by insulation. The thickness of the ice can be adjusted to a low, medium, or high setting. For proper functionality, this ice maker requires 4-inch back and 0.6-inch top and side clearances with an unblocked front.

Product Details

• 118-lb. daily ice production
• 107-lb. AHRI-certified daily ice production
• 60-lb. storage capacity
• Air-cooled, self-contained condenser
• 300 series stainless steel maintains its strength and resists corrosion
• Upside-down evaporator freezes water starting from the outside
• Automatic ice production supports multitasking
• Ice thickness can be adjusted
• Cleaning mode reduces maintenance needs
• Insulated to keep ice frozen for hours
• Front must remain unblocked
• Requires 4-in. back and 0.6-in. top and side clearance
• Uses R134A refrigerant
• ¹⁄₄-in. water line
• ³⁄₄-in. drain line
• Incoming water pressure: 5-100 PSI
• Incoming water temperature: 45-90 degrees F
• Ambient air temperature: 45-90 degrees F

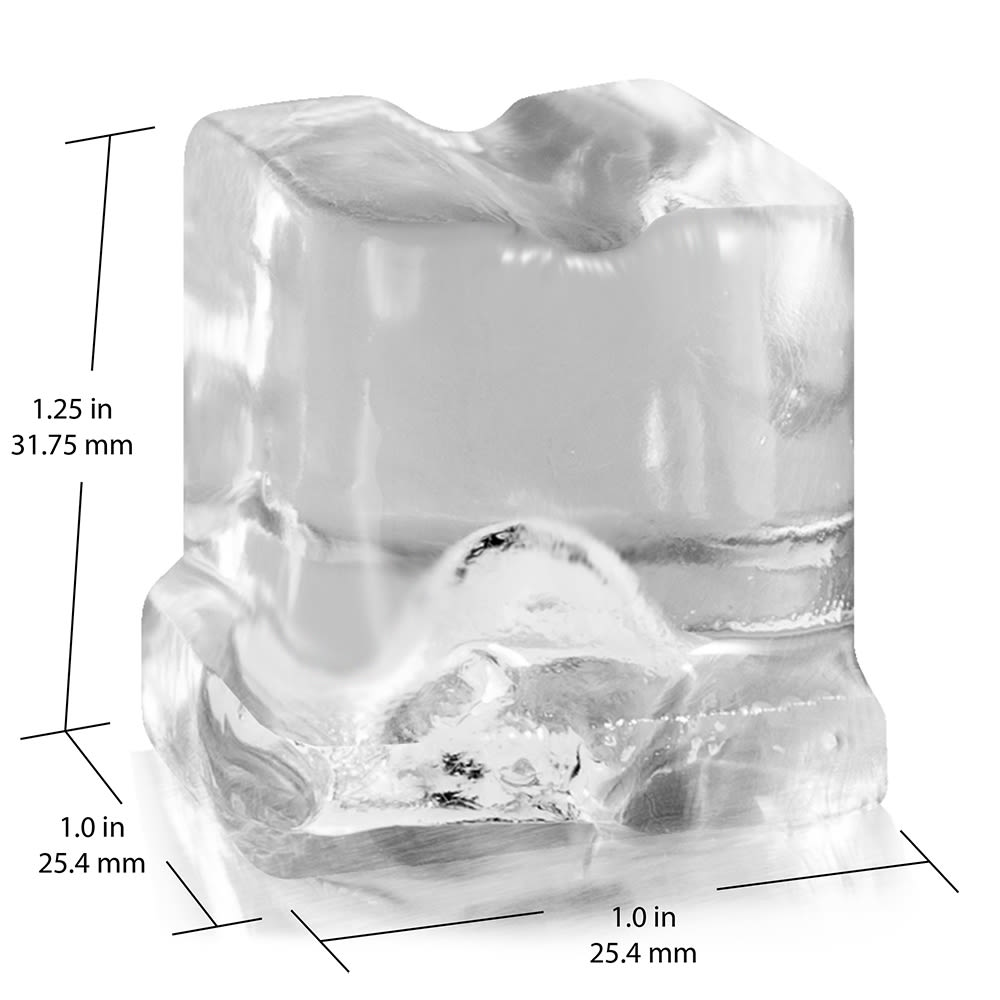

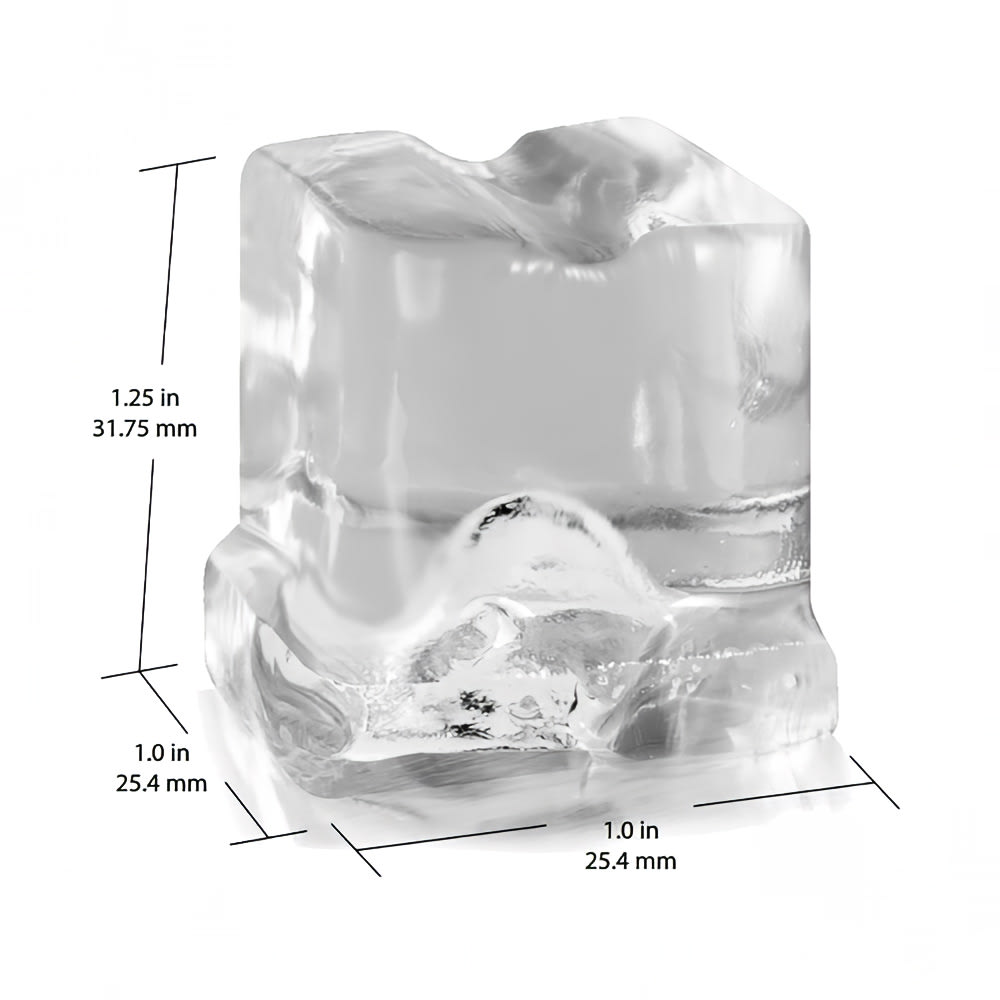

• Large cube size: 1 in. x 1 in. x 1.25 in.

Dimensions and Utilities

• 24.8 in. W x 20.7 in. D x 36.7 in. H
• 7 A, 8.9 kW
• 115 V/60 Hz/1 ph

*Free shipping on Kold-Draft KD-110 within the 48 contiguous states.

From The Manufacturer

Cocktail Series Ice Maker with Bin, cube-style, air-cooled self-contained condenser, production capacity up to 118 lbs/24 hours at 70°/50° (107 lbs at 90°/70°), 60 lb storage bin capacity, adjustable ice thickness, cleaning mode, 300 series stainless steel finish, large-cube size ice, 115v/60/1-ph, 7.0 amps, cETLus

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Kold-Draft KD-110 Specifications

Documents

Spec Sheet

Manual
