Excel Dryer XL-C-ECO-1.1N Automatic Hand Dryer w/ Noise Reduction & 10 Second Dry Time - Chrome, 110 120v

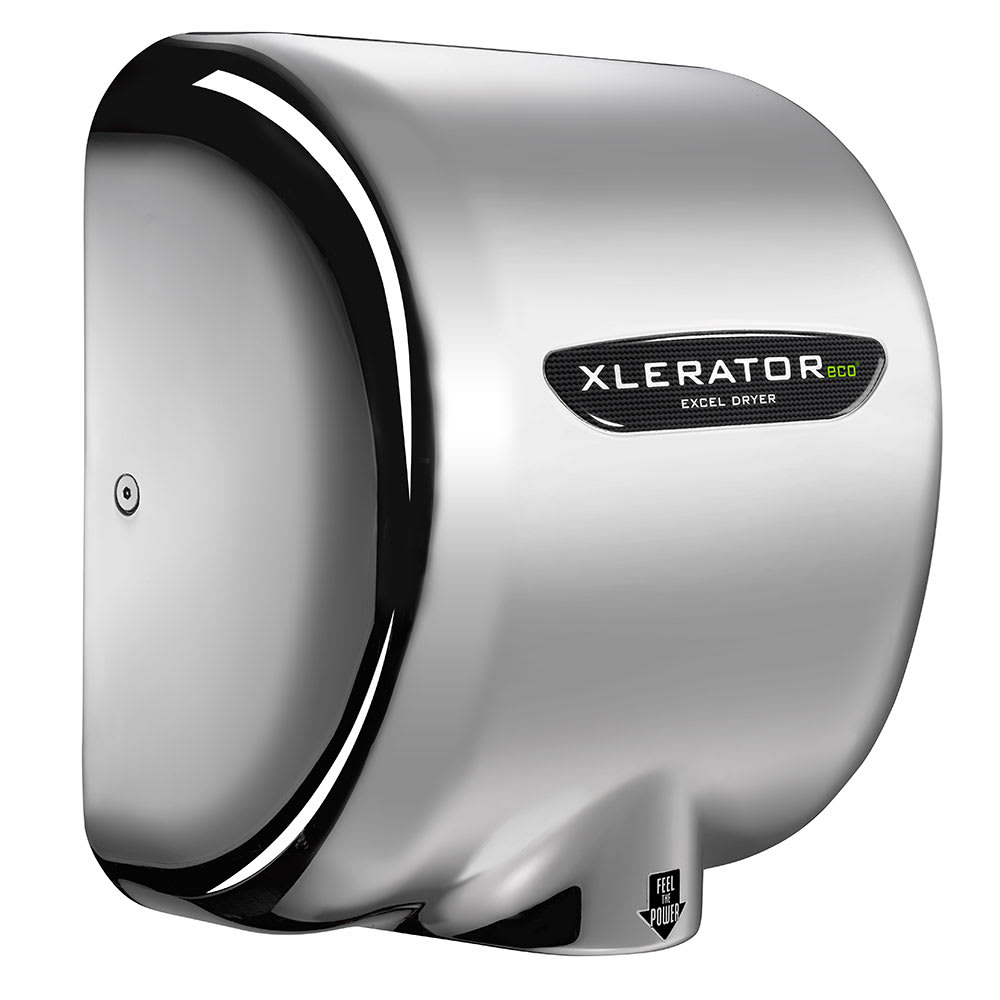

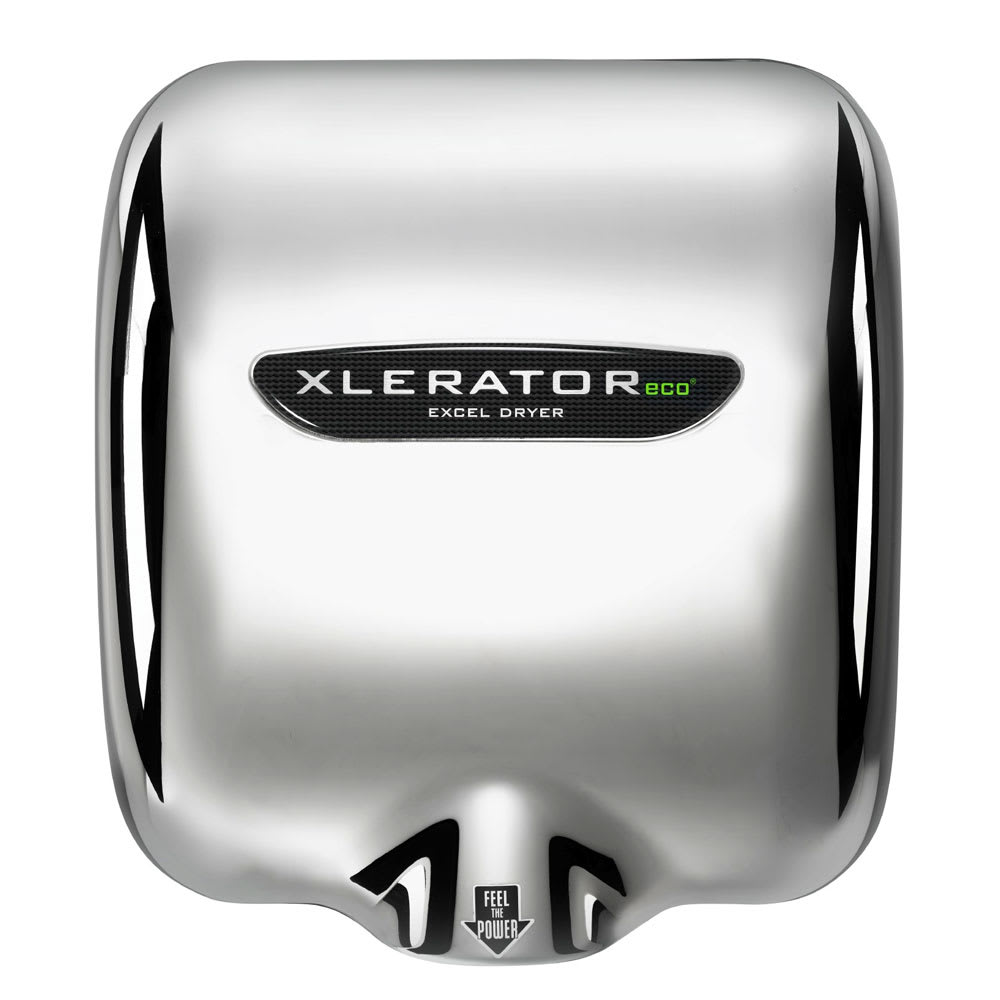

For wall mounting alongside sinks, the Excel Dryer XLERATOReco® XL-C-ECO-1.1N automatic hand dryer's cover is made of chrome-finished, die-cast zinc alloy and is fastened to a base plate with two chrome-plated, tamper-proof bolts. It measures 11³⁄₄ inches wide by 6¹¹⁄₁₆ inches deep by 12¹¹⁄₁₆ inches high. Several XLERATOReco® units can be installed on one circuit to streamline installation and accommodate busy restrooms. To lengthen its service life, its ⁵⁄₈-horsepower motor lasts longer than other motors.

The Excel Dryer XL-C-ECO-1.1N hand dryer is activated by an infrared optical sensor, while the blower spins at 24,000 RPM to create an air velocity of 20,000 LFM that dries hands in 10 seconds. The dryer will stop blowing air after 35 seconds to save energy even if the hands aren't removed. Ideal for noise-sensitive establishments, the nozzle reduces the unit's sound level by 9 decibels. Operators can adjust the dryer's speed and sound as needed with the control system. To simplify maintenance, a filter sensor is activated if the filter is clogged, while a visible LED red light flashes error codes for troubleshooting.

Product Details

• Surface-mount design
• Infrared optical sensor for touchless operation
• Dries hands in 10 seconds
• 35-second lockout feature
• Air isn’t heated
• Thermally protected, through-flow discharge vacuum motor/blower spins at 24,000 RPM
• Adjustable speed and sound
• 1.1-in. noise-reduction nozzle reduces sound level by 9 decibels
• Filter sensor and visible LED light for troubleshooting assistance
• Die-cast zinc alloy cover is lightweight and chrome plated
• Base plate with (3) ⁷⁄₈-in.-diameter holes

Dimensions & Utilities

• 11³⁄₄ in. W x 6¹¹⁄₁₆ in. D x 12¹¹⁄₁₆ in. H
• 4.3-4.5 A, 460-530 W, ⁵⁄₈ HP
• 110-120 V/50-60 Hz/1 ph

Product Features

*Excel Dryer XL-C-ECO-1.1N is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

XLERATOReco® Hand Dryer, surface-mounted, 10 seconds dry time, automatic sensor activated, adjustable speed & sound controller, 35 second lockout feature, red LED light, chrome painted, OSHA Approved, Building Green Approved, cULus, CE, RoHs, Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Limited Against Manufacturer Defects; 1-year HEPA Filter & Pre-Filter
