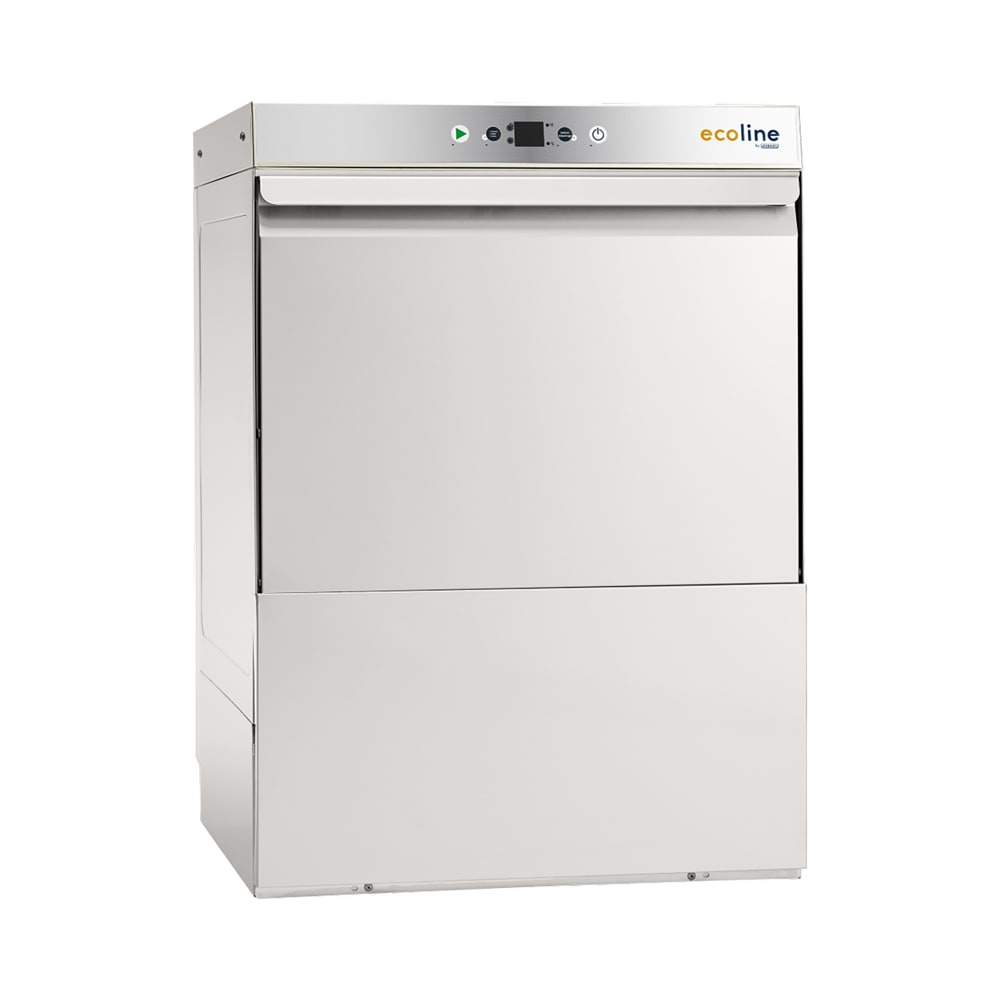

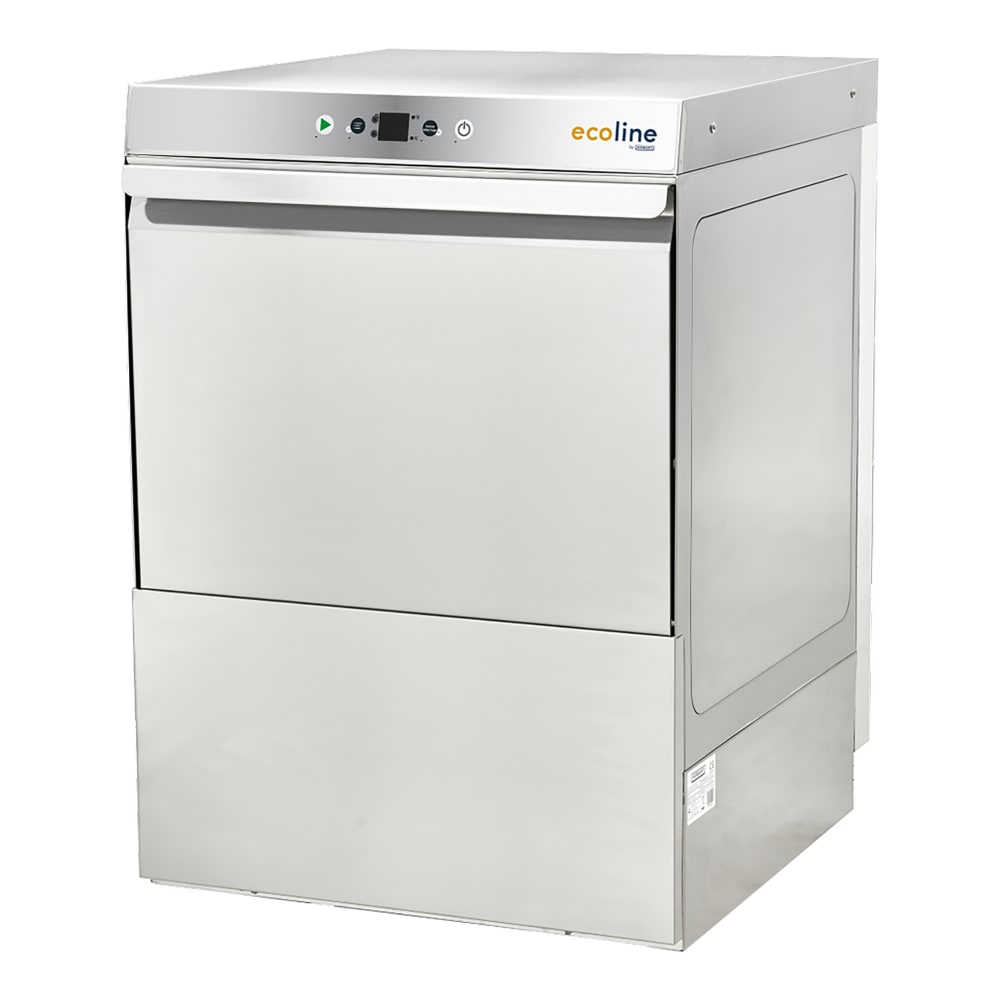

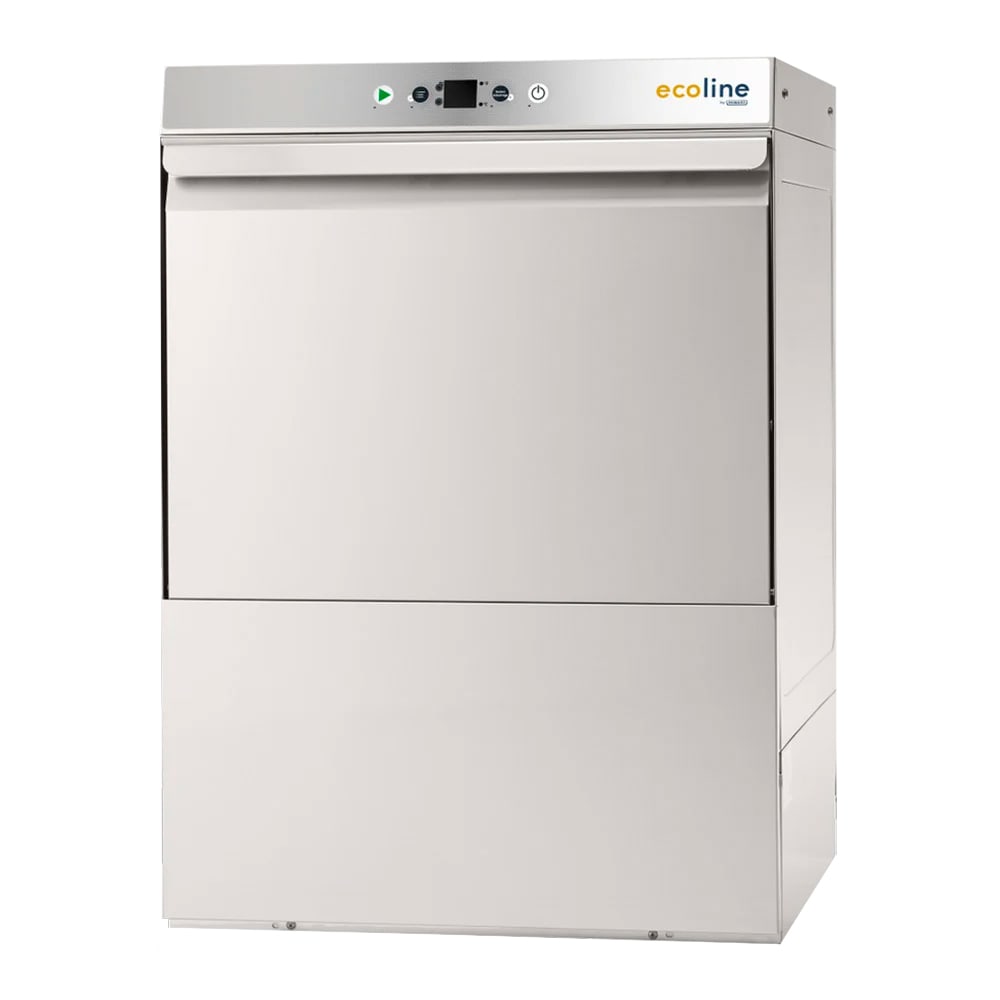

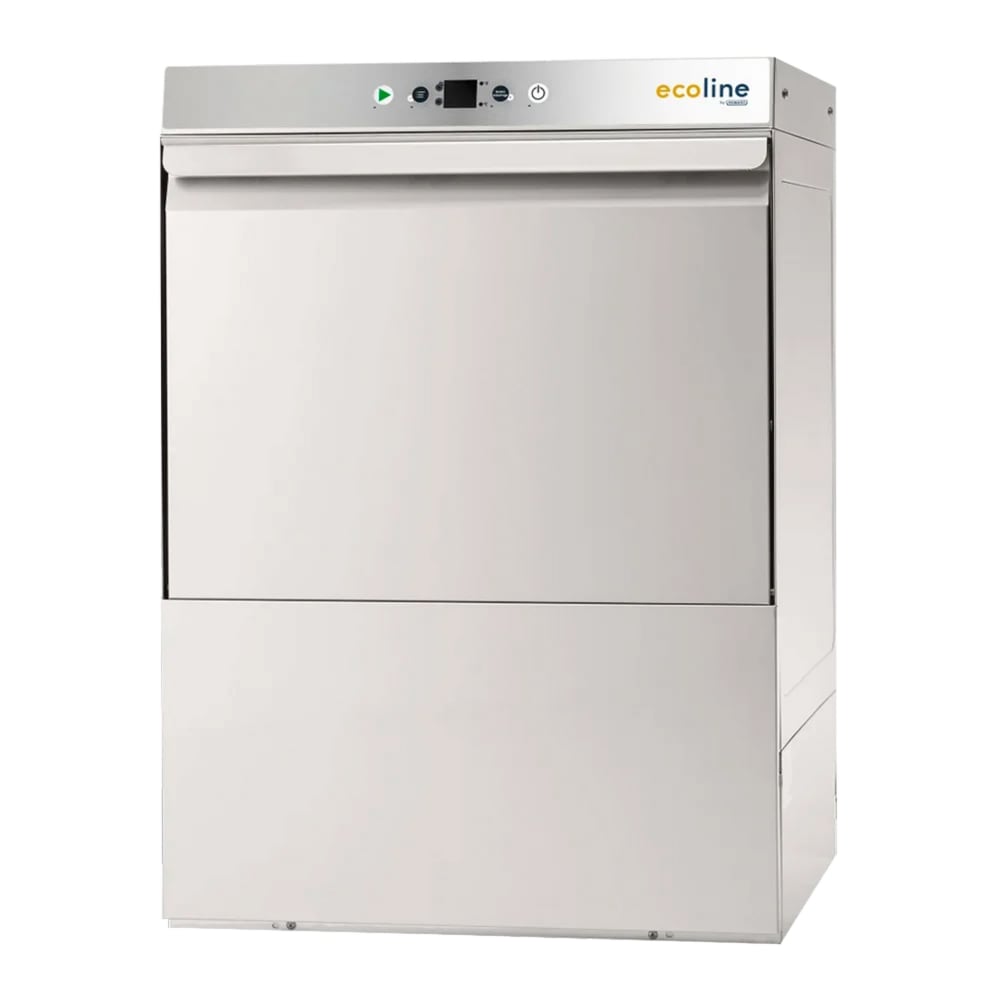

Ecoline by Hobart EUH-1 High Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, 208-240v/1ph

The Ecoline by Hobart EUH-1 undercounter dishmachine is equipped with a built-in booster heater that can raise incoming 110-degree-Fahrenheit water by 70 degrees Fahrenheit, enabling the unit to wash dishes with 150-degree-Fahrenheit water and rinse dishes with 180-degree-Fahrenheit water. To ensure the final rinse water is 180 degrees Fahrenheit for proper sanitization, it features Sense-a-Temp™ technology that raises incoming water temperature as needed. Operators can double-check water temperature with the top-mounted user interface, which provides a digital temperature readout. In an hour, this unit can sanitize 24 racks of dishes using 21⁹⁄₁₀ gallons of water. For simple operation, it features a single 2-minute cycle, automatic pumped drain, automatic fill, and soft start. Its snap-in revolving lower and upper clogging wash and rinse arm sport a single-arm, low-profile design that reduces the chance of clogging during repeated use.

To ensure the Ecoline by Hobart EUH-1 commercial dishwasher is operating properly, users can initiate a delime cycle and manage error notifications with the service diagnostics. After a cycle is complete, the three-part stainless steel scrap screen can be removed and emptied to prepare the unit for the next wash cycle. This dishmachine features a 20-inch-wide by 20-inch-deep combination-type rack and a 20-inch-wide by 20-inch-deep peg rack to accommodate a variety of dishware. Overall, it measures 22¹¹⁄₁₆ inches wide by 24 inches deep by 32⁵⁄₁₆ inches tall to fit beneath a counter, and its stainless steel construction provides long-lasting rust, wear, and scratch resistance.

Product Details

• Can sanitize 24 racks per hour
• 5³⁄₁₀-gal. wash tank
• Undercounter unit with high-temperature sanitization system
• 2-minute cycle time
• Uses ⁹¹⁄₁₀₀ gal. of water per rack (21⁹⁄₁₀ gal. per hour)
• Electric heating unit for tank
• Built-in booster heater with Sense-a-Temp technology
• Soft start
• Snap-in revolving upper and lower anti-clogging wash and rinse arm
• Removable 3-part stainless steel scrap screen
• Automatic pumped drain
• Automatic fill
• Delime cycle
• Chemical pumps
• User interface with digital temperature display
• Service diagnostics with error notifications
• Minimum wash and rinse operating temperature: 110 degrees F

Dimensions & Utilities

• Flat rack: 20 in. W x 20 in. D
• Peg rack: 20 in. W x 20 in. D
• Overall: 22¹¹⁄₁₆ in. W x 24 in. D (39⁹⁄₁₆ in. D when door is open) x 32⁵⁄₁₆ in. H
• 24.2-27.5 A, 5.5 kW, ⁴¹⁄₅₀ HP
• 208-240 V/60 Hz/1 ph
• 1³⁄₈-in.-diameter hole for 1-in. trade-size conduit
• ³⁄₄-in. female garden hosing fitting on 6-ft.-long hose supplied with unit

Product Features

*Free shipping on Ecoline by Hobart EUH-1 within the 48 contiguous states.

From The Manufacturer

Dishwasher, undercounter, 22 11/16"W x 24"D x 32 5/16"H, high temperature sanitizing, 208-240/60/1, (24) racks/hr., .91 gal/rack, delime cycle, service diagnostics with error notifications, soft start, chemical pumps, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year parts & labor

Ecoline by Hobart EUH-1 Specifications

Documents

Spec Sheet
