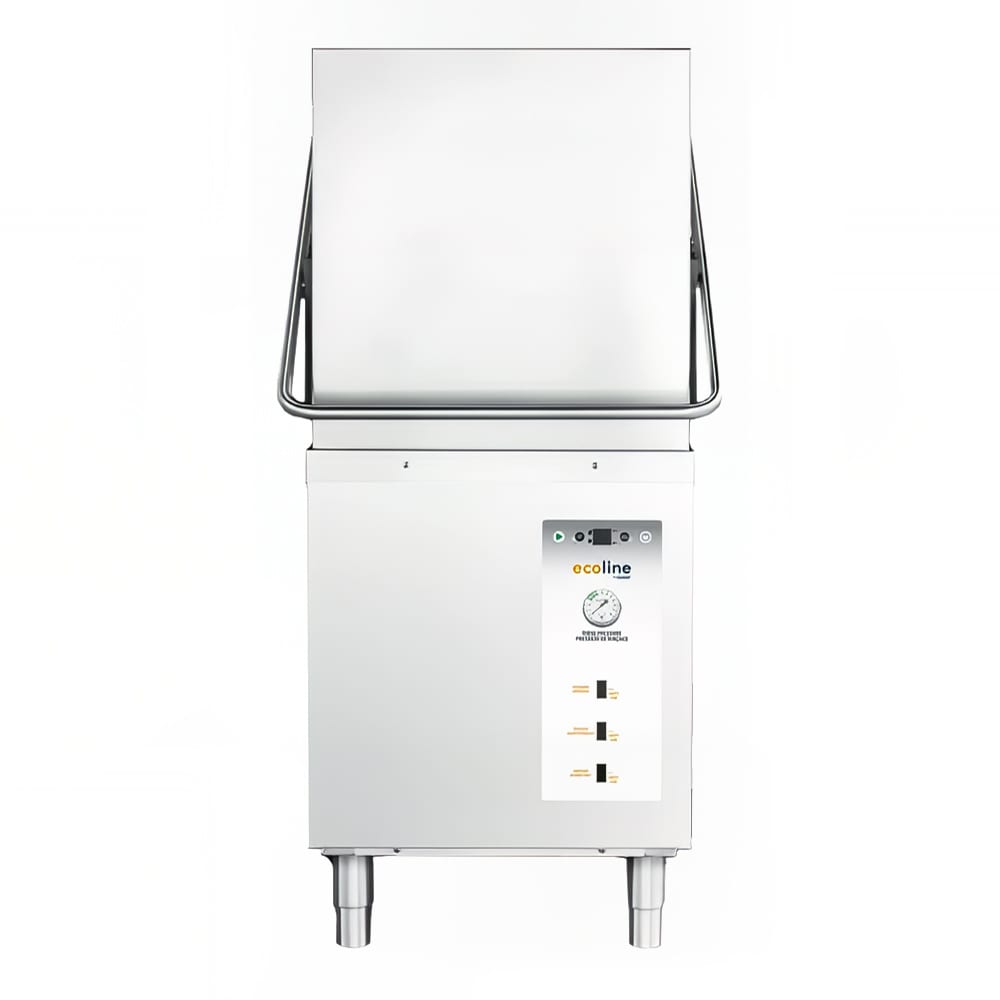

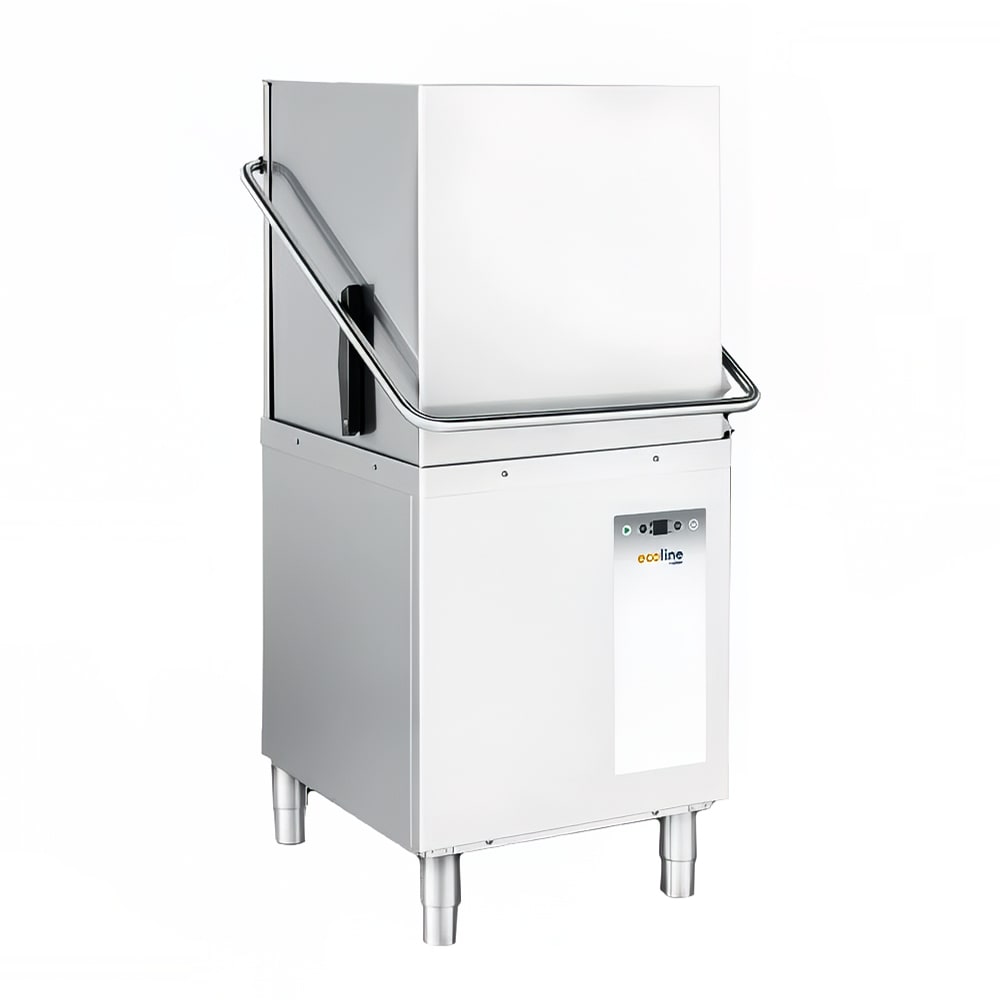

Hobart EDL-1 Low Temp Door Type Ecoline Dishwasher w/ 42 Racks/hr Capacity, 120v

The Ecoline™ by Hobart EDL-1 door-type dishmachine uses chemicals and ²³⁄₂₅ of a gallon of water per rack to sanitize 42 racks in one hour, or 1,050 dishes per hour when the average load is 25 dishes per rack. Incoming water must be between 120 and 140 degrees Fahrenheit, and a 2-kilowatt electric heating unit warms the water to reach proper sanitization temperatures. Its intuitive user interface provides a digital temperature display, and to ease operation, it features one standard cycle option. Once the door is shut, the unit automatically initiates a soft start to minimize the risk of damaging dishes. Because it has a recirculating design, it filters and reuses hot water to save energy for continuous cycles. For thorough, effective cleaning and rinsing, it's built with a snap-in revolving upper and lower anti-clogging wash and rinse arm.

The Ecoline by Hobart EDL-1 dishwasher features an automatic fill and an automatic pumped drain, and staff can remove food debris from the two-part stainless steel scrap screen. To minimize limescale buildup for smooth operation, employees can initiate the deliming cycle, which circulates deliming chemicals throughout the unit. Chemical visual indicators provide a view of sanitizing chemical levels so users can gauge when the chemicals need to be refilled. Service diagnostics provide error notifications so staff can quickly pinpoint and address operational issues. Compatible with straight-through or corner installation, this dishmachine measures 24¹⁄₈ inches wide by 24⁷⁄₁₆ inches deep by 60⁹⁄₁₆ inches tall. To accommodate variously sized dishes, the door provides a 17⁷/₁₆-inch-tall clearance when open. Its stainless steel construction resists corrosion, dents, and scratches to withstand high-volume use in dishrooms, and it's simple to wipe clean between uses.

Product Details

• Sanitizes 42 racks per hour
• 4-gal. wash tank
• Low-temperature, door-type unit
• Uses chemical sanitization
• Uses ²³⁄₂₅ gal. of water per rack (38⁷⁄₁₀ gal. per hour)
• Electric heating unit
• Recirculating design
• User interface with digital temperature display and service diagnostics with error notifications
• 4-sided door provides 17⁷/₁₆-in.-tall pillarless door opening
• Door-actuated soft start
• Snap-in revolving upper and lower anti-clogging wash and rinse arm
• Removable, 2-part stainless steel scrap screen
• Automatic pumped drain
• Automatic fill
• Delime cycle
• Chemical pumps with chemical visual indicators
• Compatible with straight-through or corner installation
• Minimum wash and rinse operating temperature: 120 degrees F (140 degrees F recommended)
• Recommended building flowing water pressure: 20-25 PSI
• Recommended water hardness: 3 grains or less
• Peak drain flow rate: 3¹⁄₂ GPM

Dimensions & Utilities

• Racks: 19³⁄₄ in. W x 19³⁄₄ in. D
• Overall: 24¹⁄₈ in. W x 24⁷⁄₁₆ in. D x 60⁹⁄₁₆ in. H (79¹¹⁄₁₆ in. H when door is fully opened)
• 17.1 A, 2 kW, ¹⁴⁄₂₅ HP
• 120 V/60 Hz/1 ph
• 1¹⁄₈-in.-diameter hole for 1-in. trade-size conduit
• ³⁄₄-in. female garden hosing fitting on 9-ft.-long hose supplied with unit

Product Features

From The Manufacturer

Ecoline Dishwasher, door type, chemical sanitizing, 120/60/1, single-point standard, (42) racks/hr, 0.92 gal/rack, integrated chemical pumps with chemical visual indicators, delime cycle, service diagnostics with error notifications, recirculating design, pumped drain, soft start, 17-inch pillarless vertical door opening, straight-thru or corner installation, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year parts & labor
