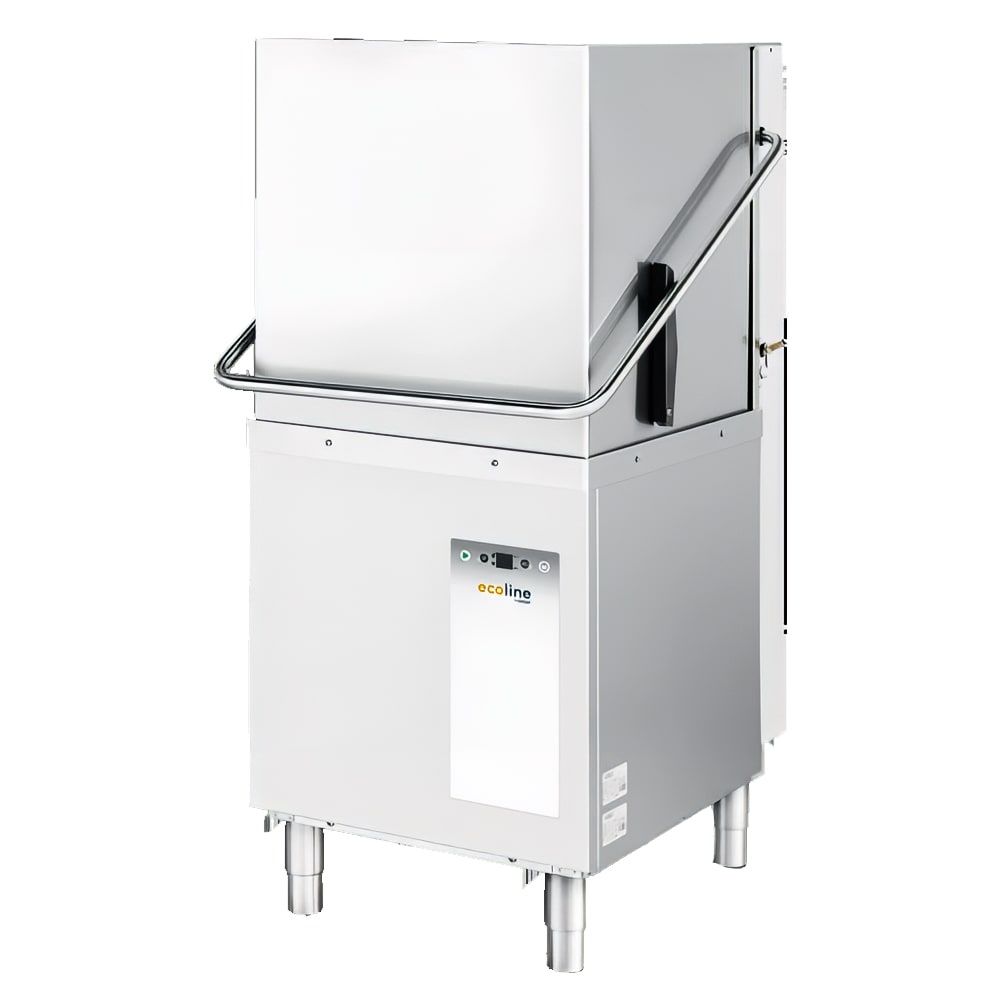

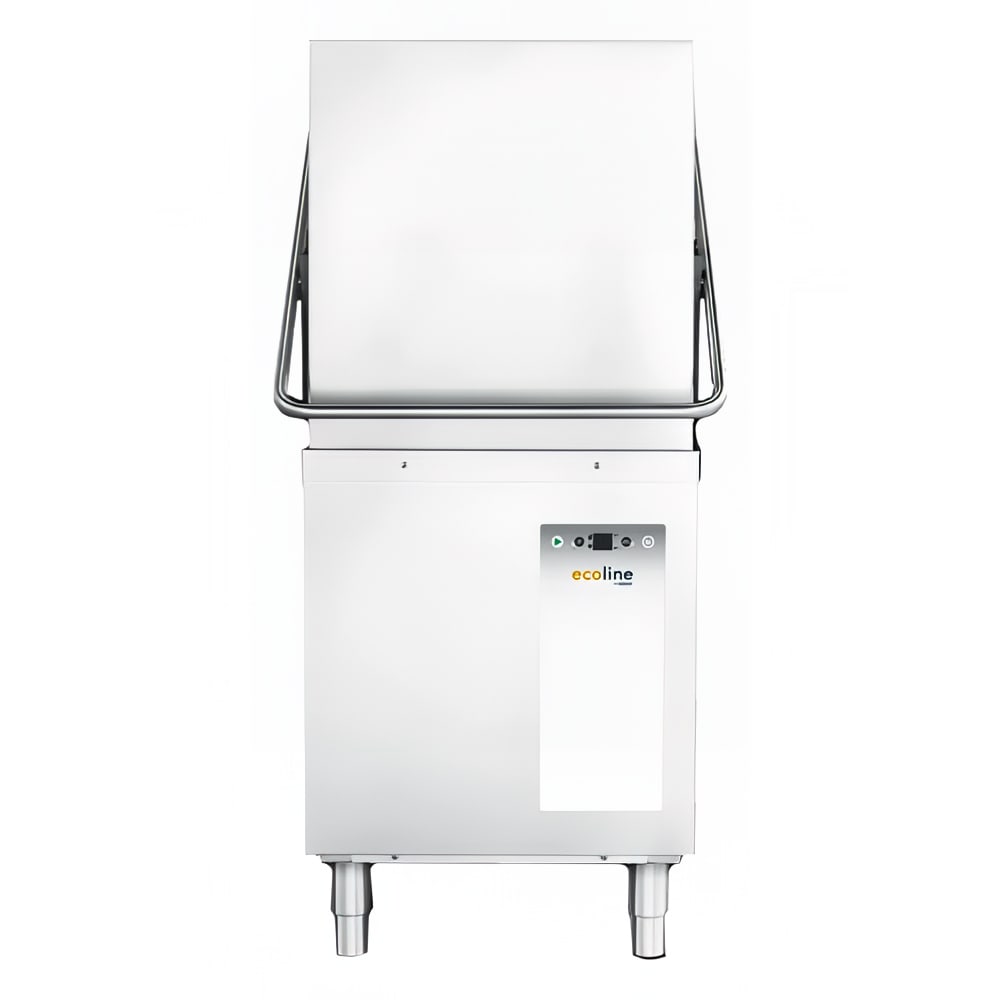

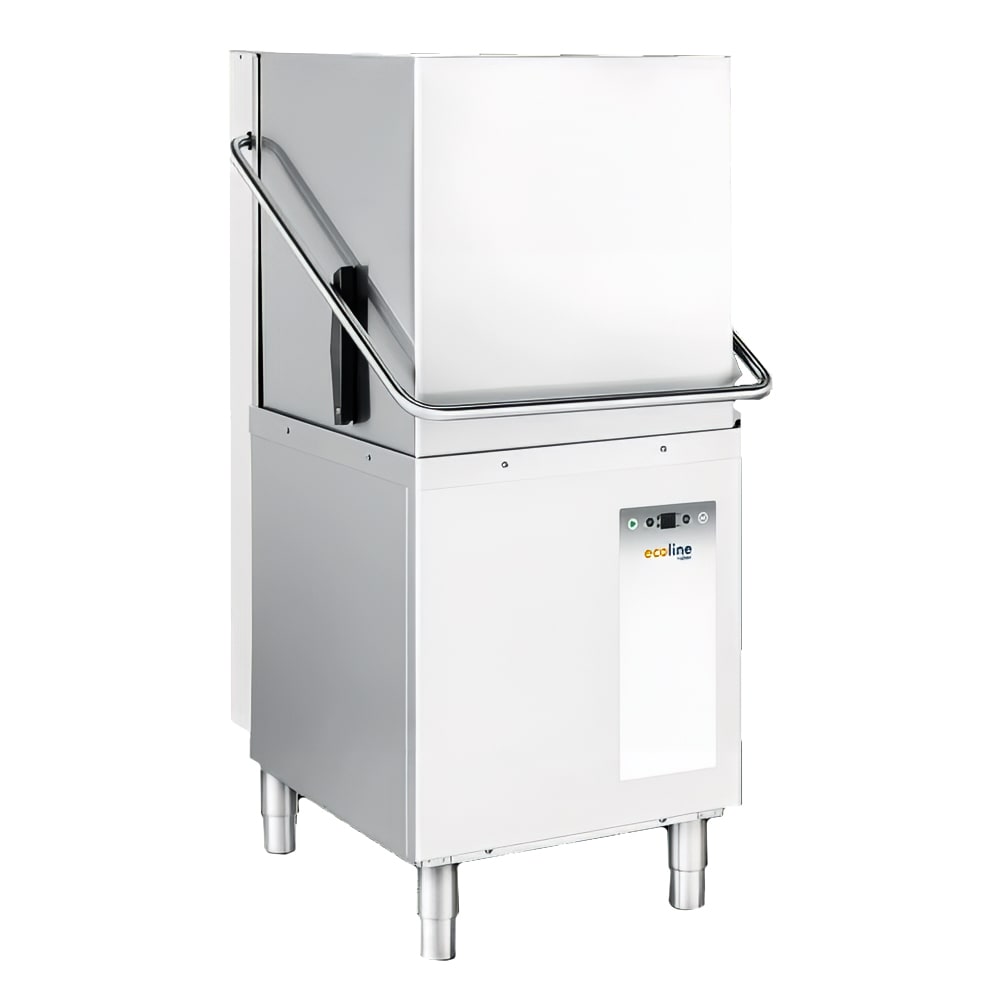

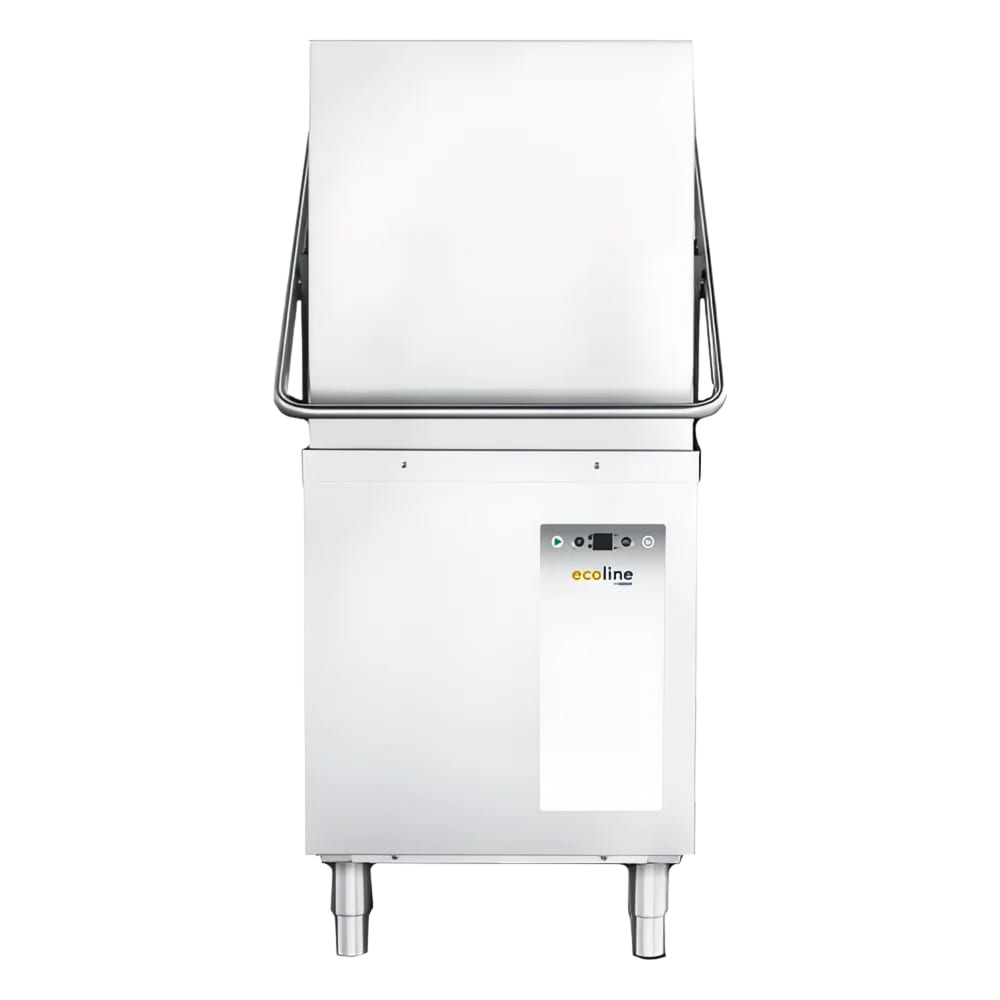

Ecoline by Hobart EDH-1 High Temp Door Type Dishwasher w/ 51 Racks/hr Capacity, Built-in Booster, 208-240v/3ph

When incoming water is at least 120 degrees Fahrenheit, the Ecoline by Hobart EDH-1 door-type dishwasher's electric heating unit and built-in booster raise water to an NSF-approved safe sanitizing temperature, eliminating the need for costly chemicals. To save energy, its recirculating design filters and reuses hot water from previous cycles. This unit can wash a maximum of 51 racks per hour, using ⁴⁷⁄₅₀ of a gallon of water per rack, or 47⁷⁄₁₀ gallons of water per hour. For simple operation, it features one standard cycle and automatically soft starts when the door is closed. The revolving upper and lower wash and rinse arm thoroughly remove buildup and minimize the chance of clogging during operation.

Staff can gauge the Ecoline by Hobart dishmachine's operational status with the easy-to-navigate user interface, which displays water temperature and error notifications. To minimize user oversight, it features an automatic pumped drain, pumped rinse, and automatic fill. For smooth operation over time, users can manage limescale buildup with the delime cycle. This 28¹⁄₂-inch-wide by 24⁷⁄₁₆-inch-deep by 60⁹⁄₁₆-inch-tall unit is compatible with corner or straight-through installation. Although it ships as a 3-phase unit, it can be converted in the field to a 1-phase unit for additional flexibility. Made of simple-to-clean, corrosion- and wear-resistant stainless steel, it complements other dishroom equipment and is durable enough to endure high-volume use.

Product Details

• Sanitizes maximum of 51 racks per hour
• 7⁹⁄₁₀-gal. wash tank
• High-temperature sanitization
• Door-type unit
• Uses ⁴⁷⁄₅₀ gal. of water per rack (47⁷⁄₁₀ gal. per hour)
• Built-in booster heater
• Electric heating unit
• Recirculating design
• 4-sided door with 17-in.-tall pillarless door opening
• Door-actuated start
• Soft start
• Snap-in revolving upper and lower anti-clogging wash and rinse arm
• Removable stainless steel scrap screen
• Automatic pumped drain
• Automatic fill
• Delime cycle
• Compatible with straight-through or corner installation
• User interface with digital temperature display
• Service diagnostics with error notifications
• Minimum wash and rinse operating temperature: 120 degrees F
• Minimum recommended building flowing water pressure: 20 PSI
• Recommended water hardness: 3 grains or less
• Peak drain flow rate: 15 GPM

Dimensions & Utilities

• Racks: 19³⁄₄ in. W x 19³⁄₄ in. D
• Overall: 28¹⁄₂ in. W x 24⁷⁄₁₆ in. D x 60⁹⁄₁₆ in. H (79¹¹⁄₁₆ in. H when door is fully opened)
• 35 A, 11.5 kW, 1⁹⁄₁₀₀ HP
• 208-240 V/60 Hz/3 ph (field convertible to 1 ph)
• 1¹⁄₈-in.-diameter hole for 1-in. trade-size conduit
• ³⁄₄-in. female garden hosing fitting on 9-ft.-long hose supplied with unit

Product Features

*Free shipping on Ecoline by Hobart EDH-1 within the 48 contiguous states.

From The Manufacturer

Dishwasher, door type, high temperature sanitizing, 208-240/60/3 (field convertible to single phase), single-point standard, (51) racks/hr, pumped-rinse, 0.94 gal/rack, with booster, delime cycle, service diagnostics with error notifications, recirculating design, pumped drain, soft start, 17-inch pillarless vertical door opening, straight-thru or corner installation, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year parts & labor
