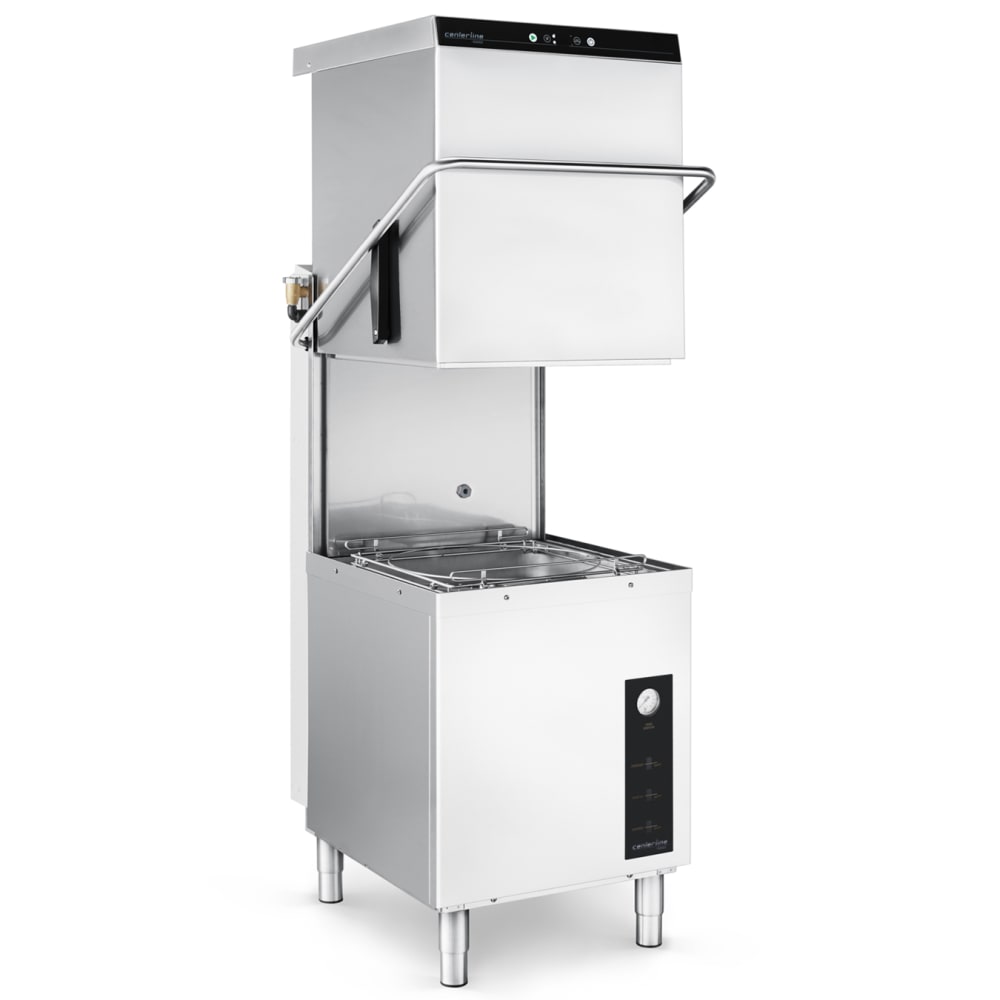

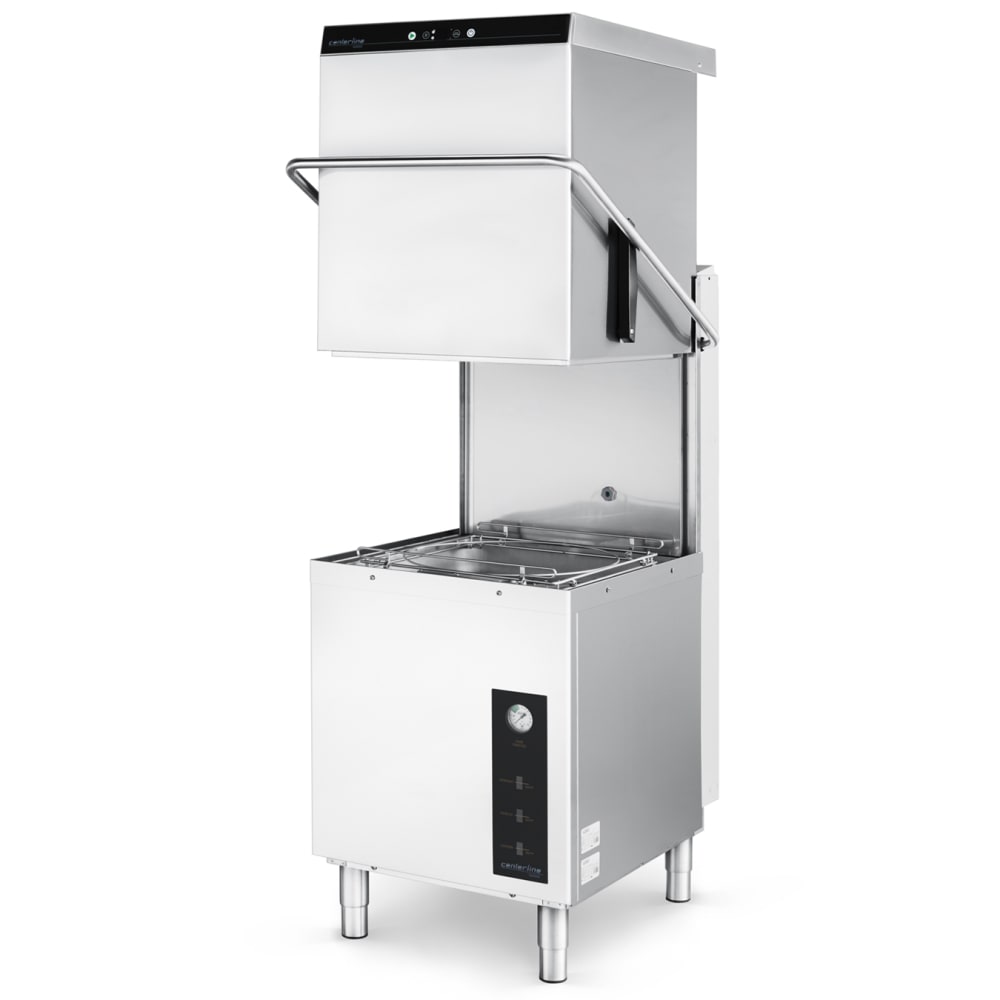

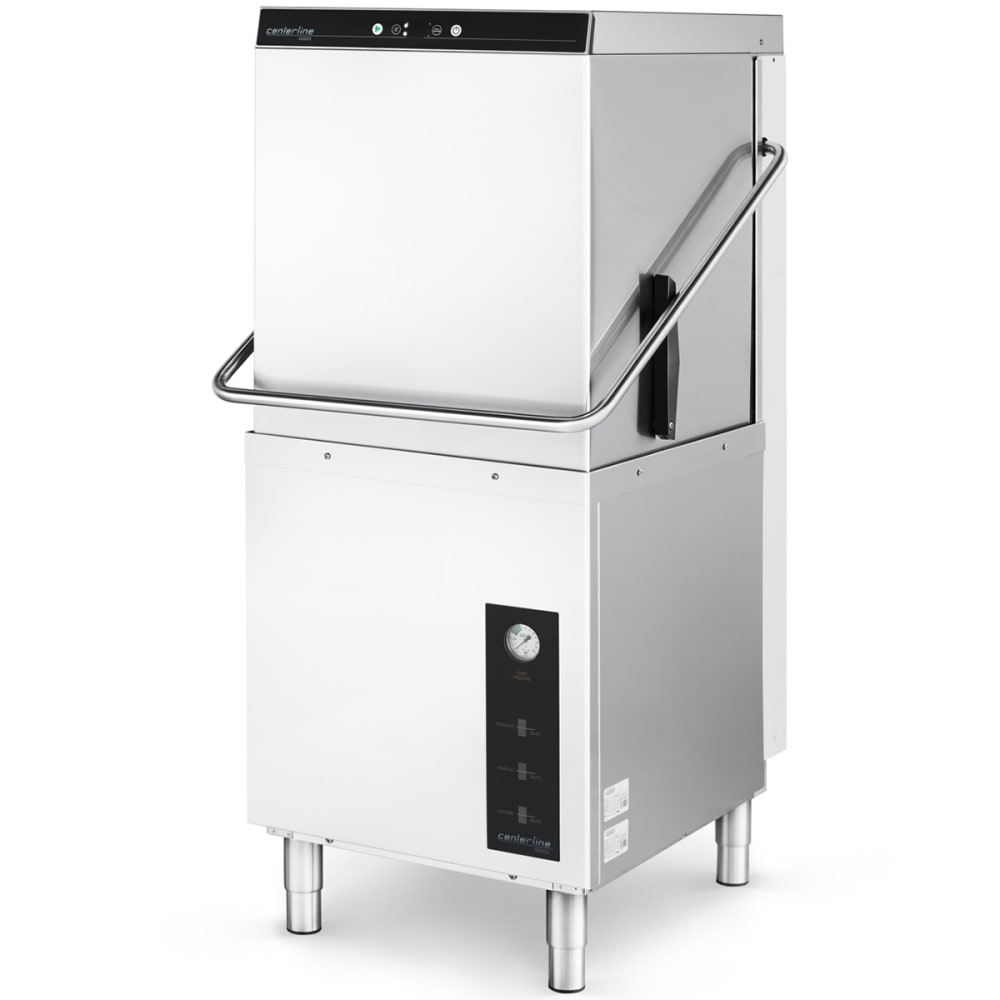

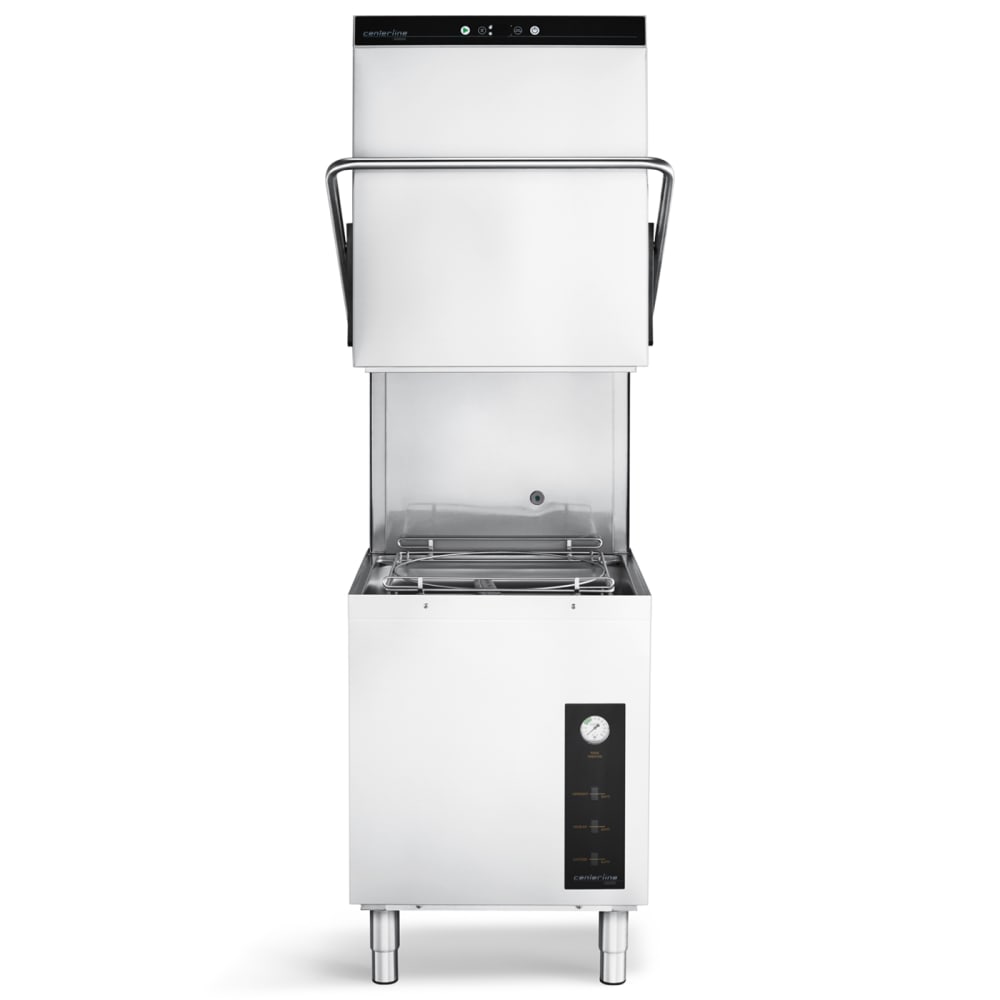

Centerline by Hobart CDL-1 Low Temp Door Type Dishwasher w/ 51 Racks/hr Capacity, 120v

The Centerline by Hobart CDL-1 commercial dishwasher is a door-type model with a 4-gallon wash tank; it uses 0.86 gallons of water per rack for each cycle. Depending on soil levels and time requirements, operators can choose between a standard or extended cycle, and for streamlined operation in fast-paced environments, it fills automatically and has an automatic pumped drain. It features a top-mounted user interface with a digital temperature display, and this unit includes one peg rack and one combination rack.

To extend its service life in busy commercial kitchens, the Centerline by Hobart CDL-1 dishmachine is made of strong, rust-resistant stainless steel and features a stainless steel scrap basket that can be removed for cleaning. For thorough washing and rinsing, it's built with tri-prong, snap-in revolving upper and lower anti-clogging wash and rinse arms. This unit sanitizes chemically, so it doesn't require a temperature booster. Overall, it measures 24¹⁄₈ inches wide by 25¹³⁄₁₆ inches deep by 62¹⁵⁄₁₆ inches high.

Product Details

• Washes 51 racks per hour
• Door-type model
• 4-gal. wash tank
• Uses 0.86 gal. of water per rack (43.90 gallons per hour)

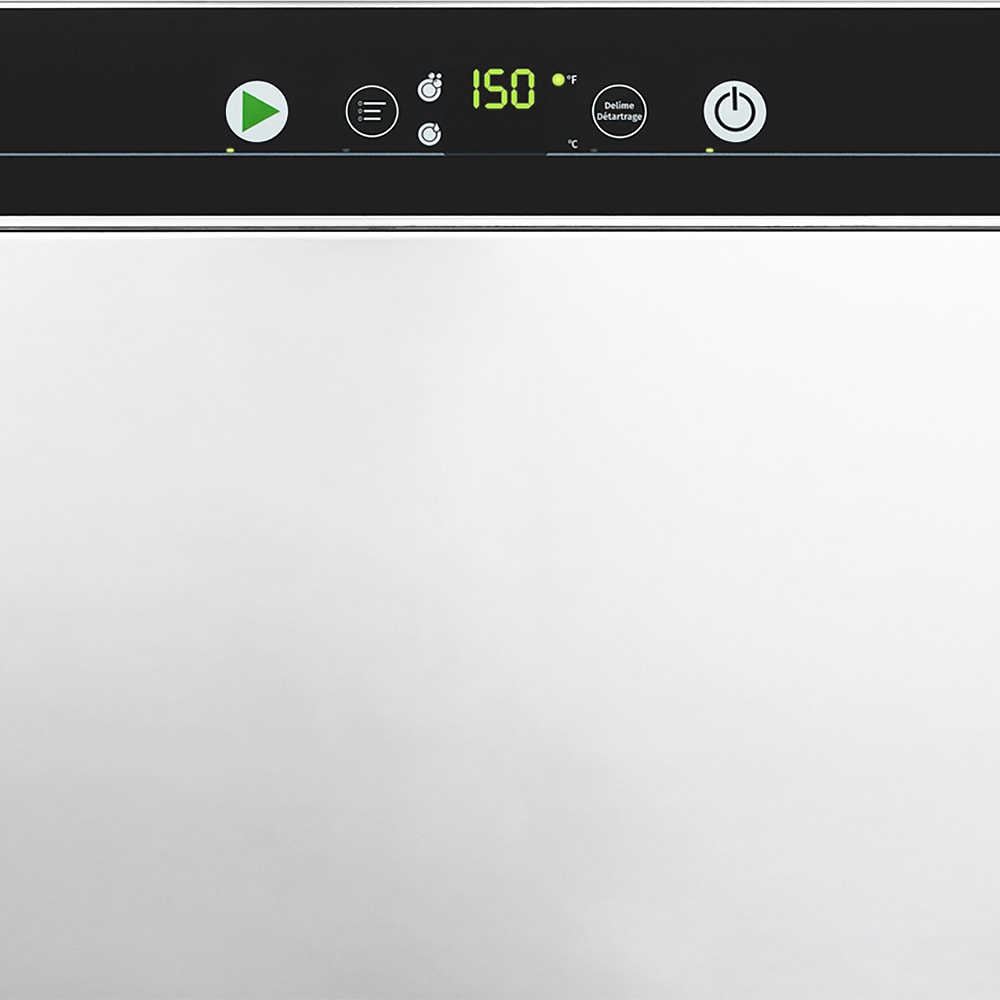

• Top-mounted user interface with digital temperature display
• Durable stainless steel construction
• Door-actuated start
• Chemical sanitization
• 1 standard cycle and 1 extended cycle option
• Automatic fill
• Automatic pumped drain
• Recirculating design
• Delime notification and cycle
• Removable 2-part stainless steel scrap screen
• 4-sided door
• 18-in. pillarless door opening
• Service diagnostics with error notifications

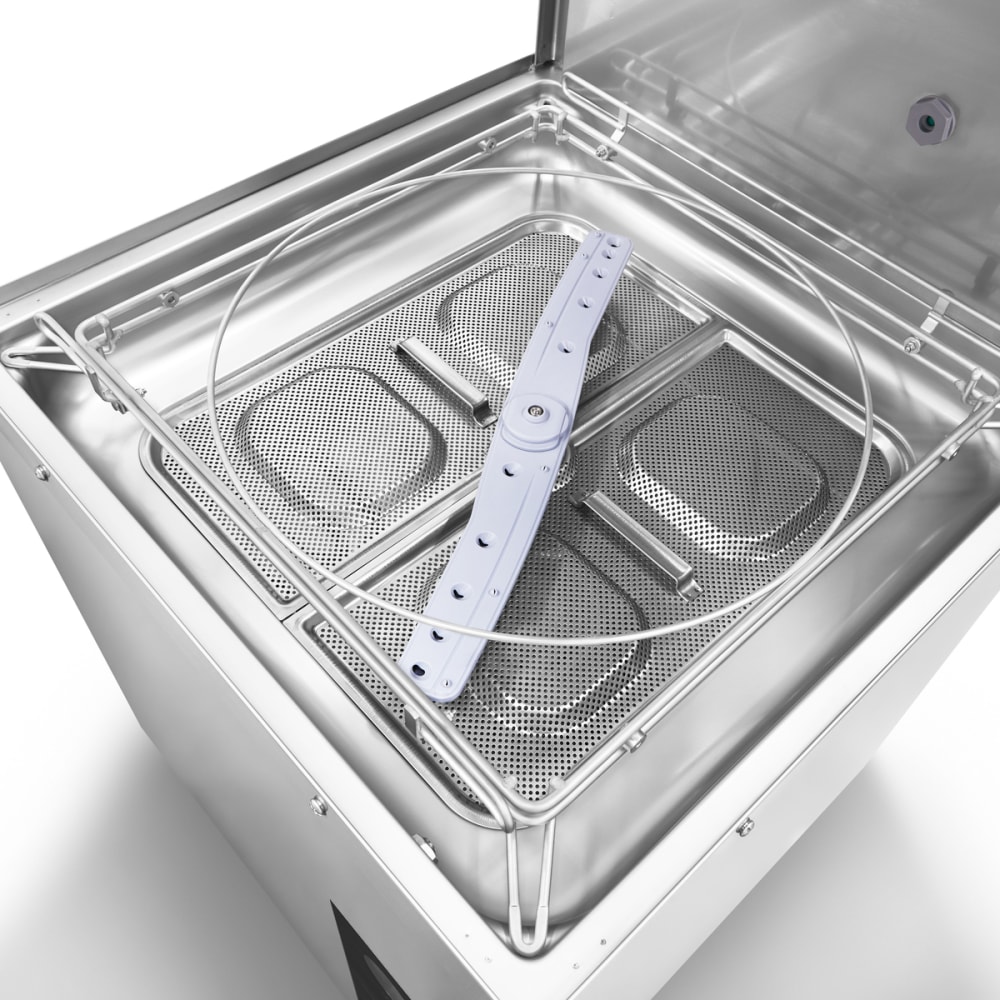

• Tri-prong, snap-in revolving upper and lower anti-clogging wash and rinse arms
• Includes 1 peg rack and 1 combination rack
• Recommended incoming flow pressure: 20 PSI

Dimensions & Utilities

• 24¹⁄₈ in. W x 25¹³⁄₁₆ in. D x 62¹⁵⁄₁₆ in. H
• 17.1 A, 2 kW, 0.56 HP
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Centerline by Hobart CDL-1 within the 48 contiguous states.

From The Manufacturer

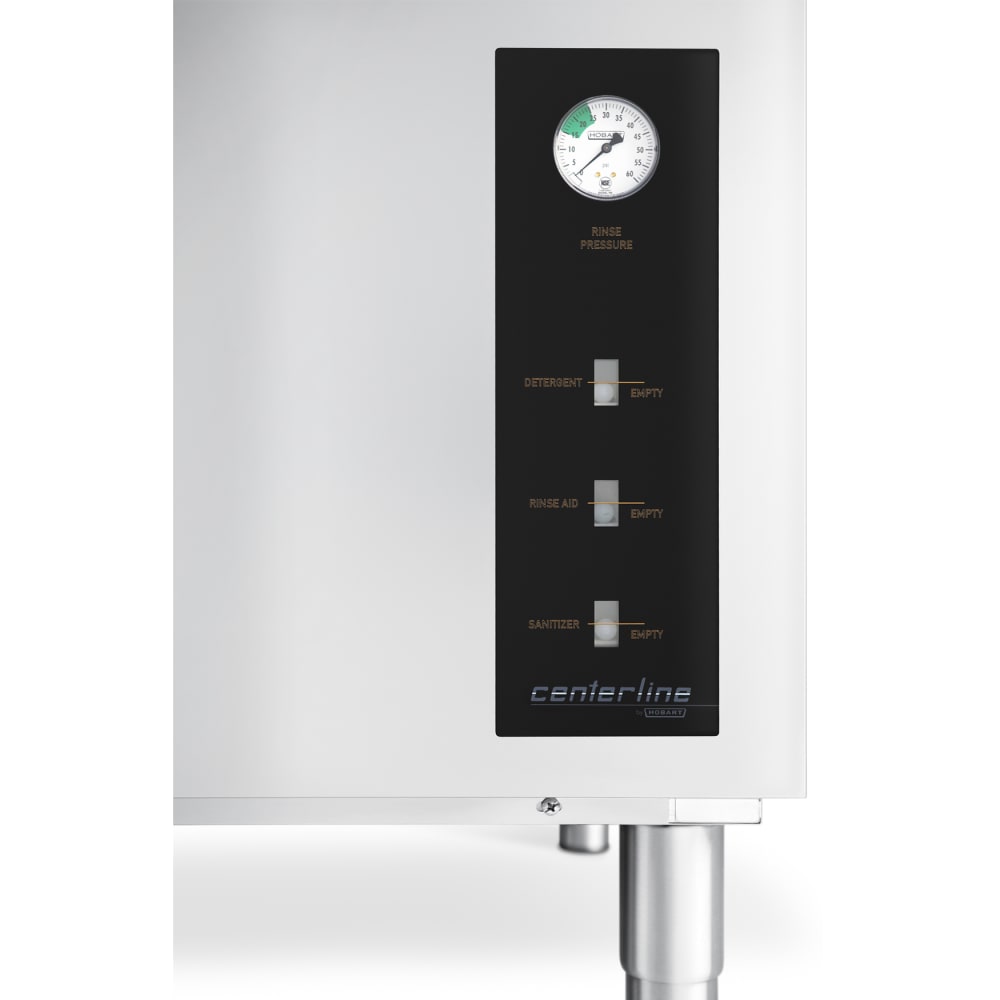

Dishwasher, door type, chemical sanitizing, 120/60/1, single-point standard, (51) racks/hr, 0.86 gal/rack, standard or extended cycle options, combination wash/rinse arms, integrated chemical pumps with chemical-float indicators, delime notification and cycle, service diagnostics with error notifications, recirculating design, pumped drain, soft start, 18-inch pillarless vertical door opening, straight-thru or corner installation, door-actuated start. Ships with (1) peg rack and (1) combination rack, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
