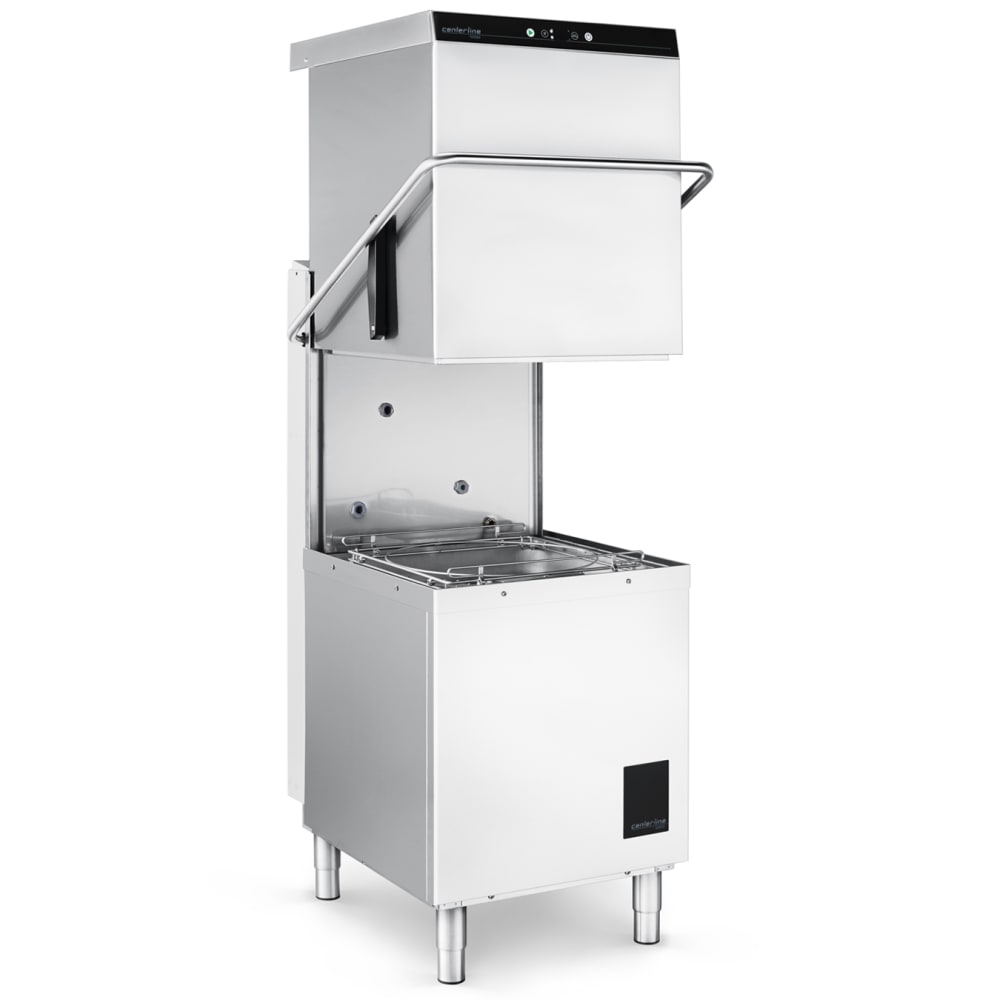

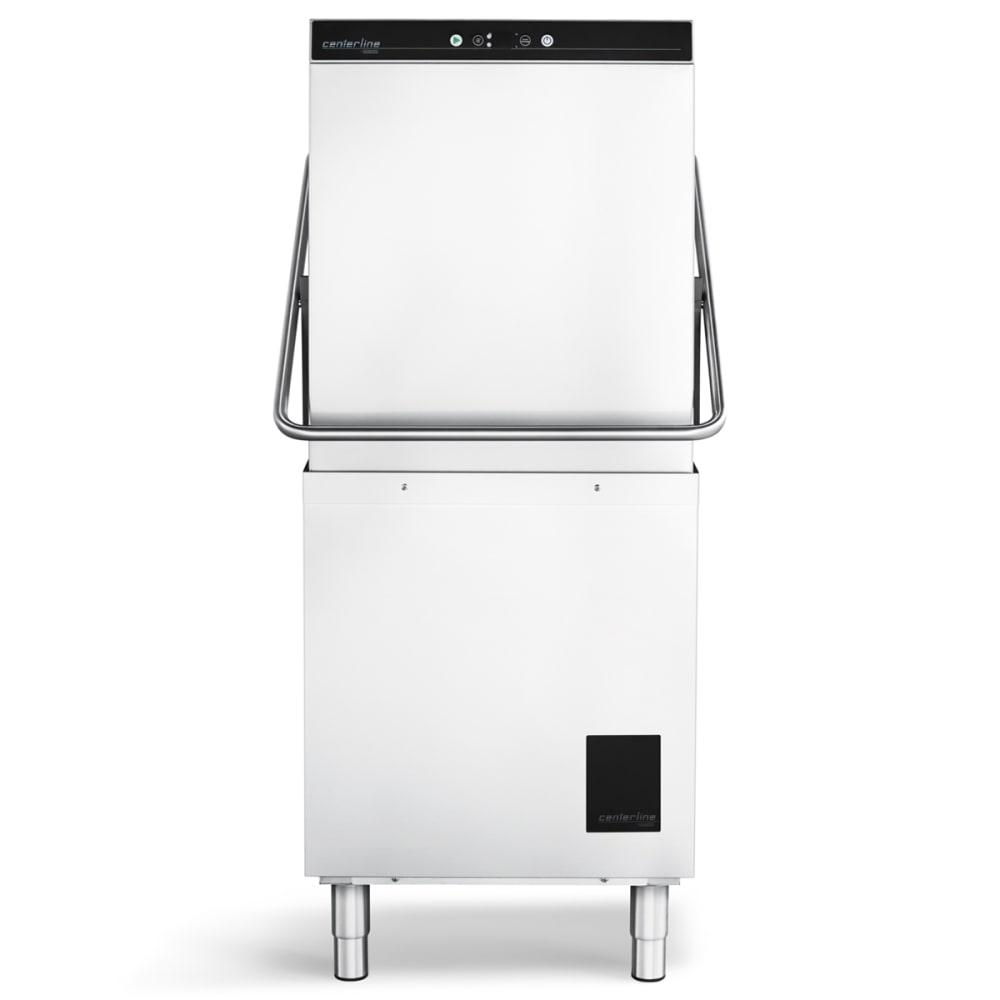

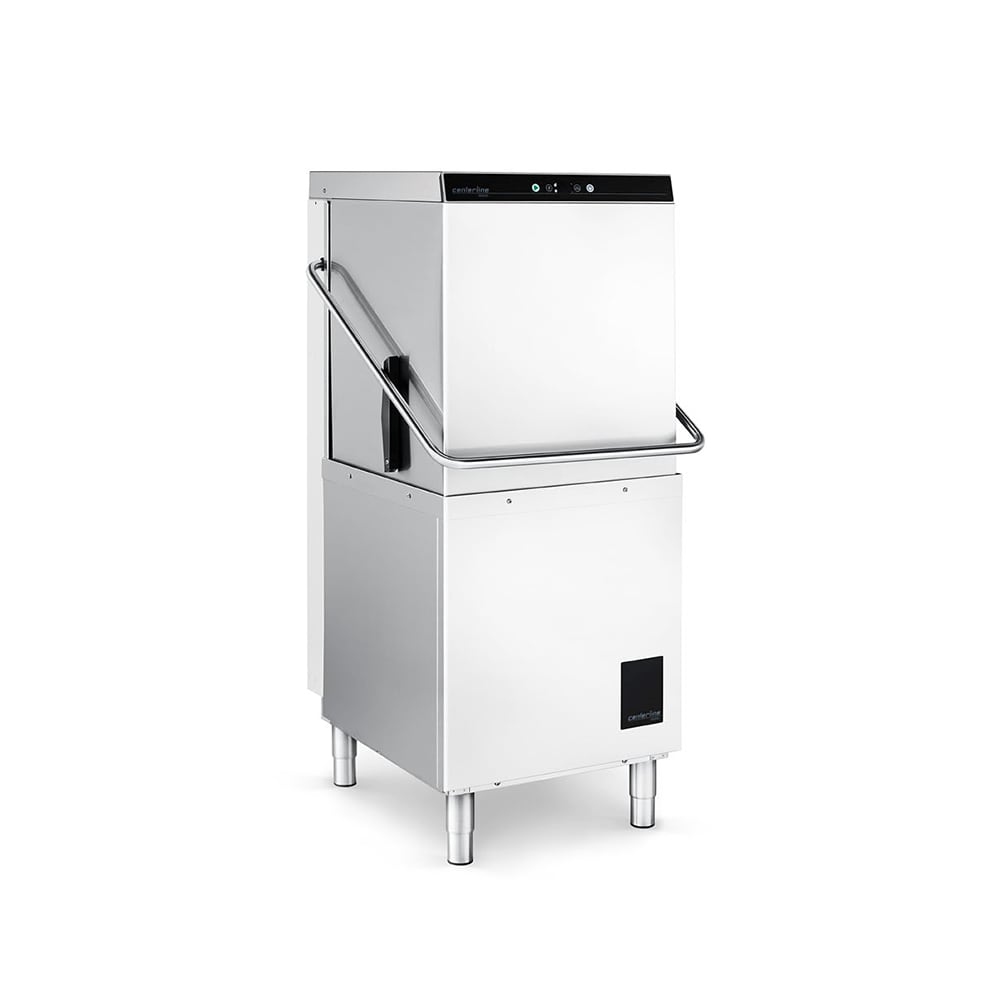

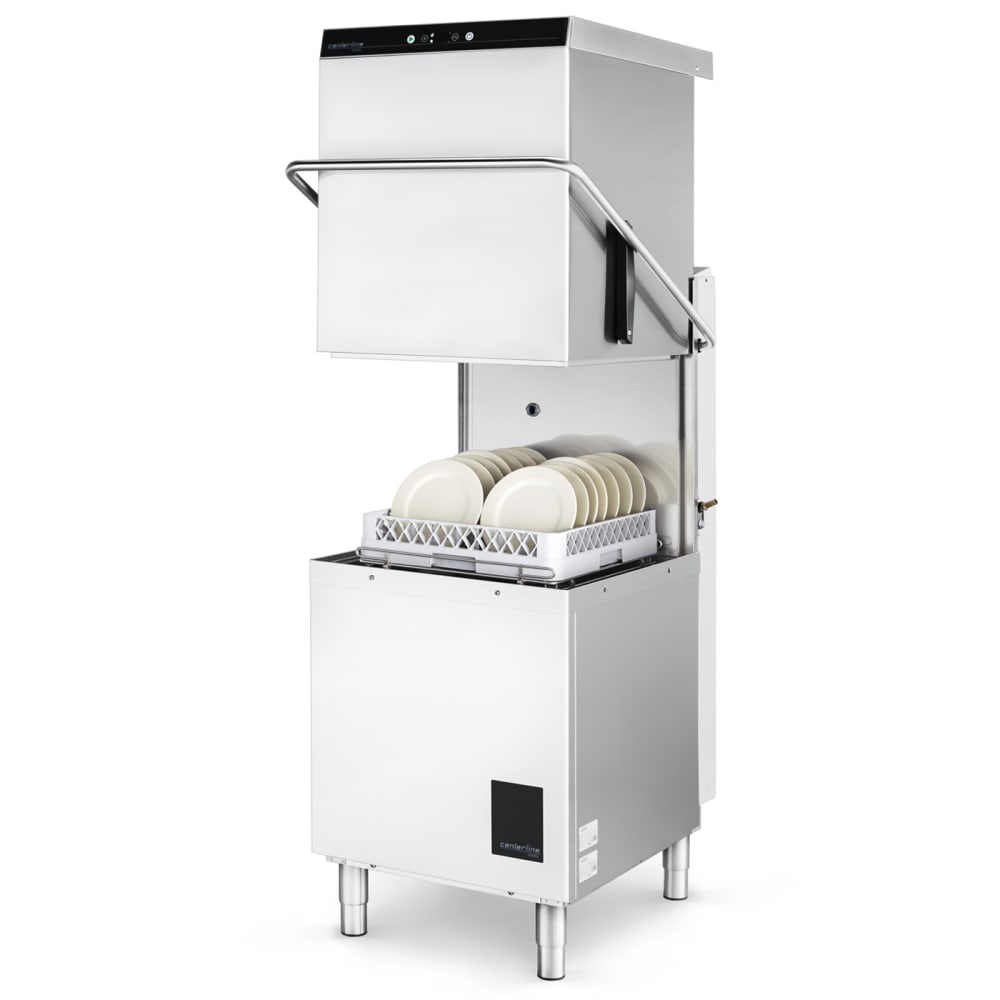

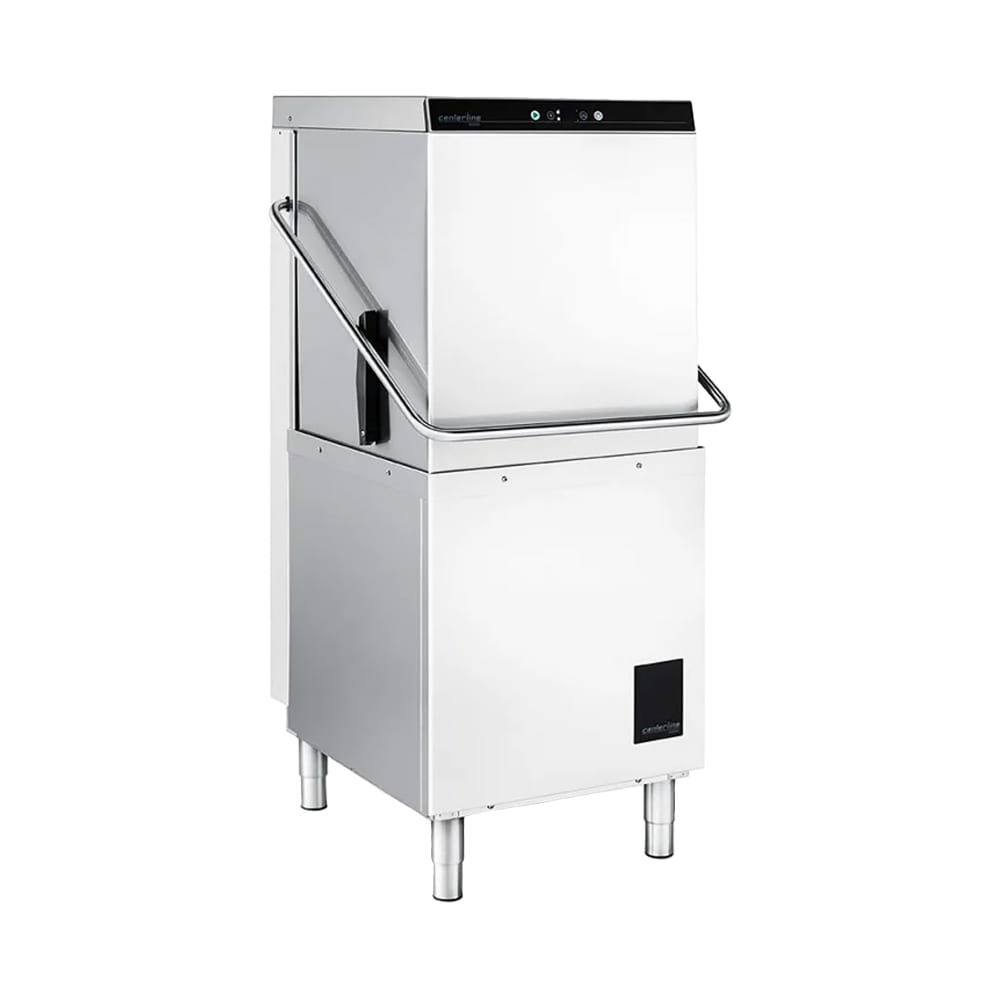

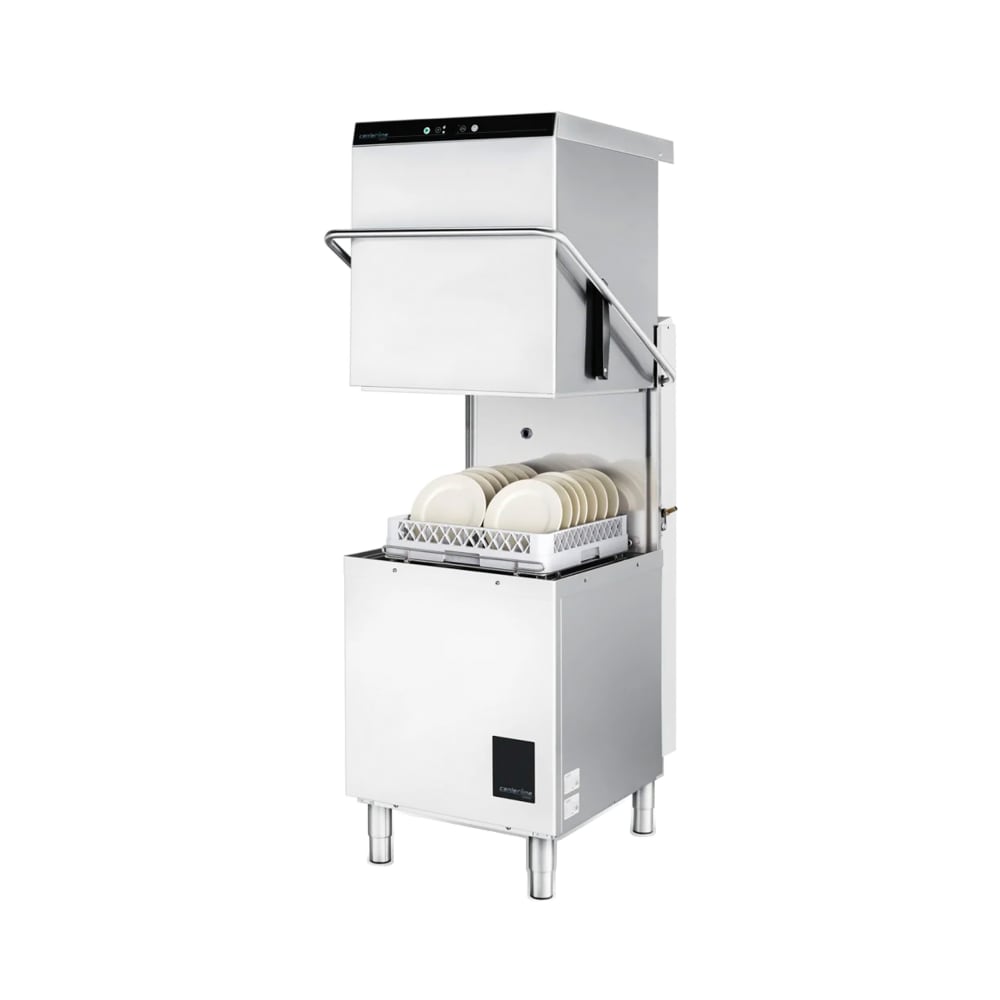

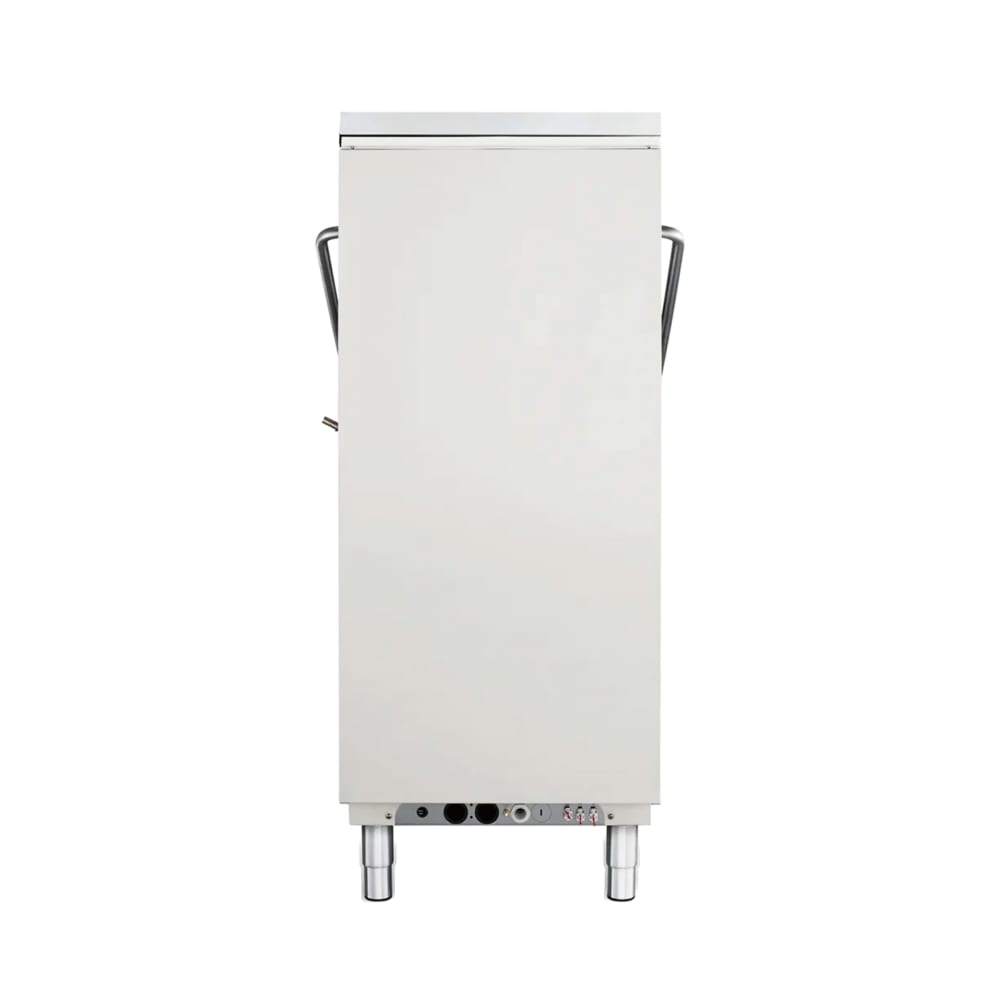

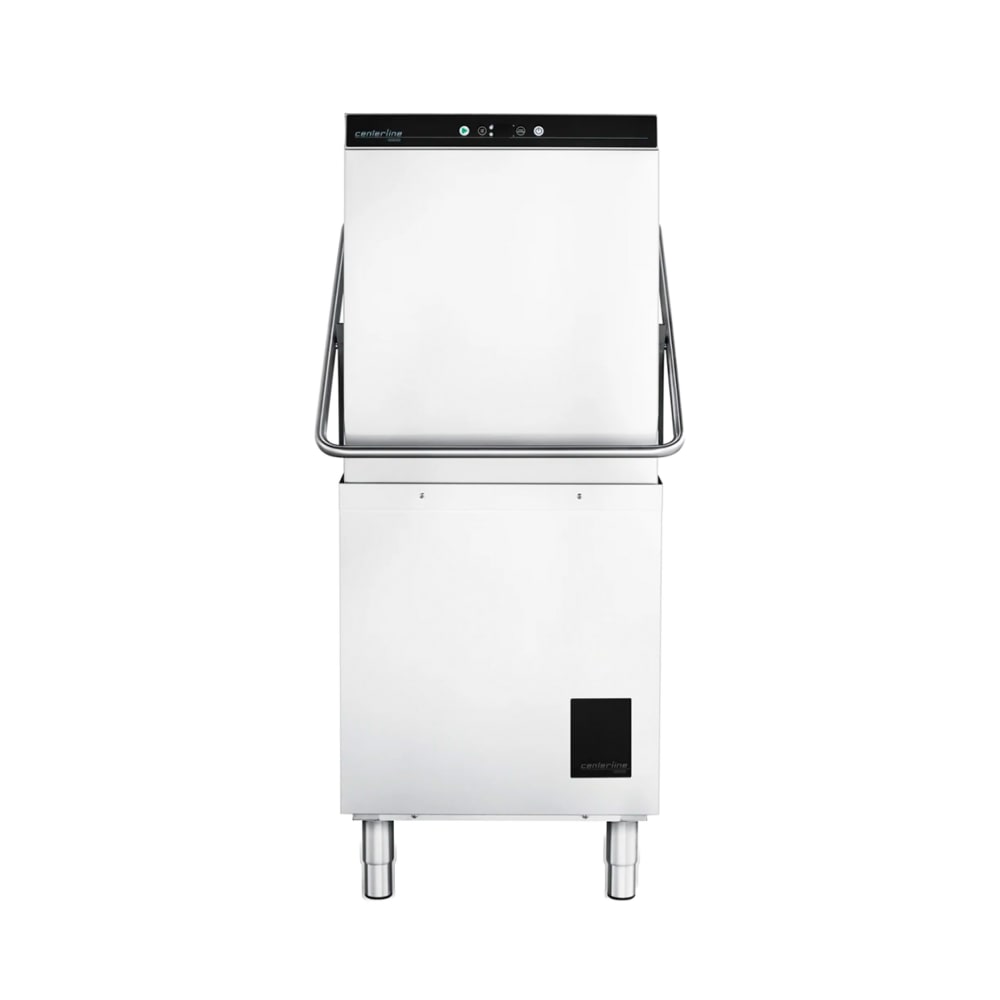

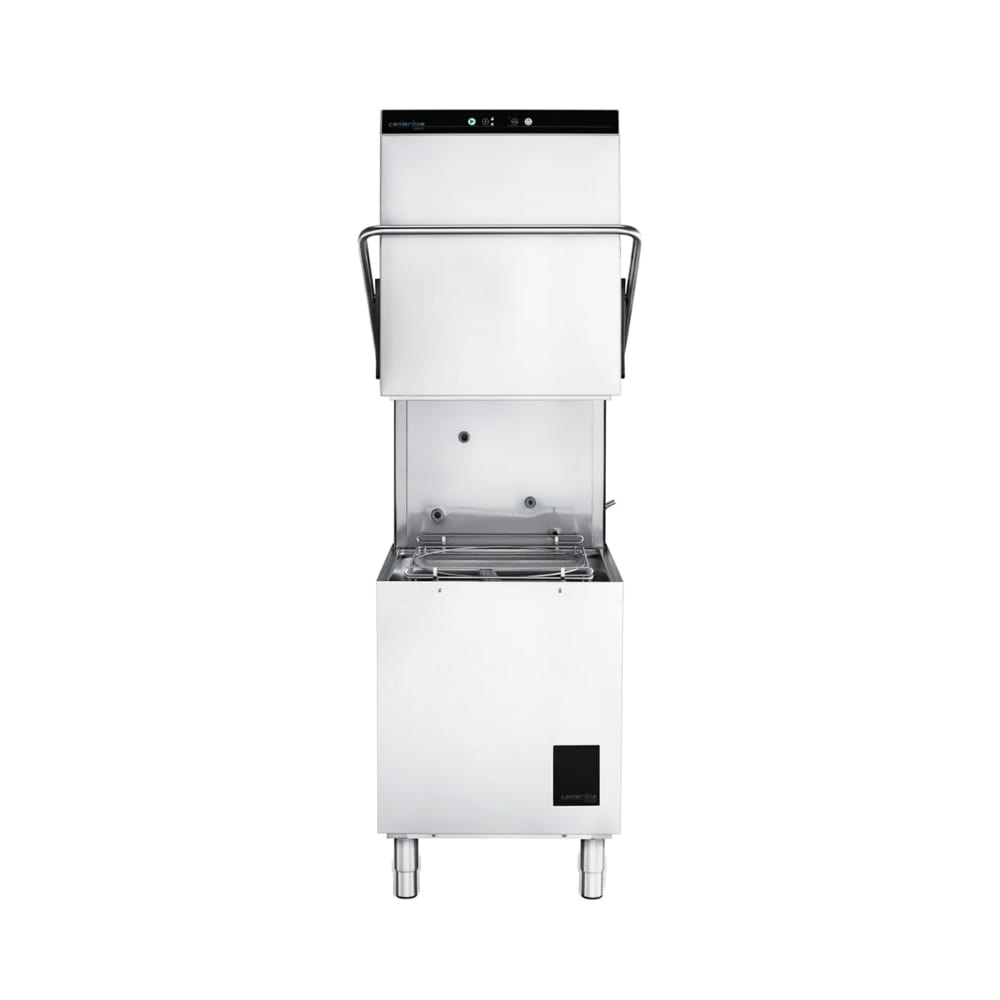

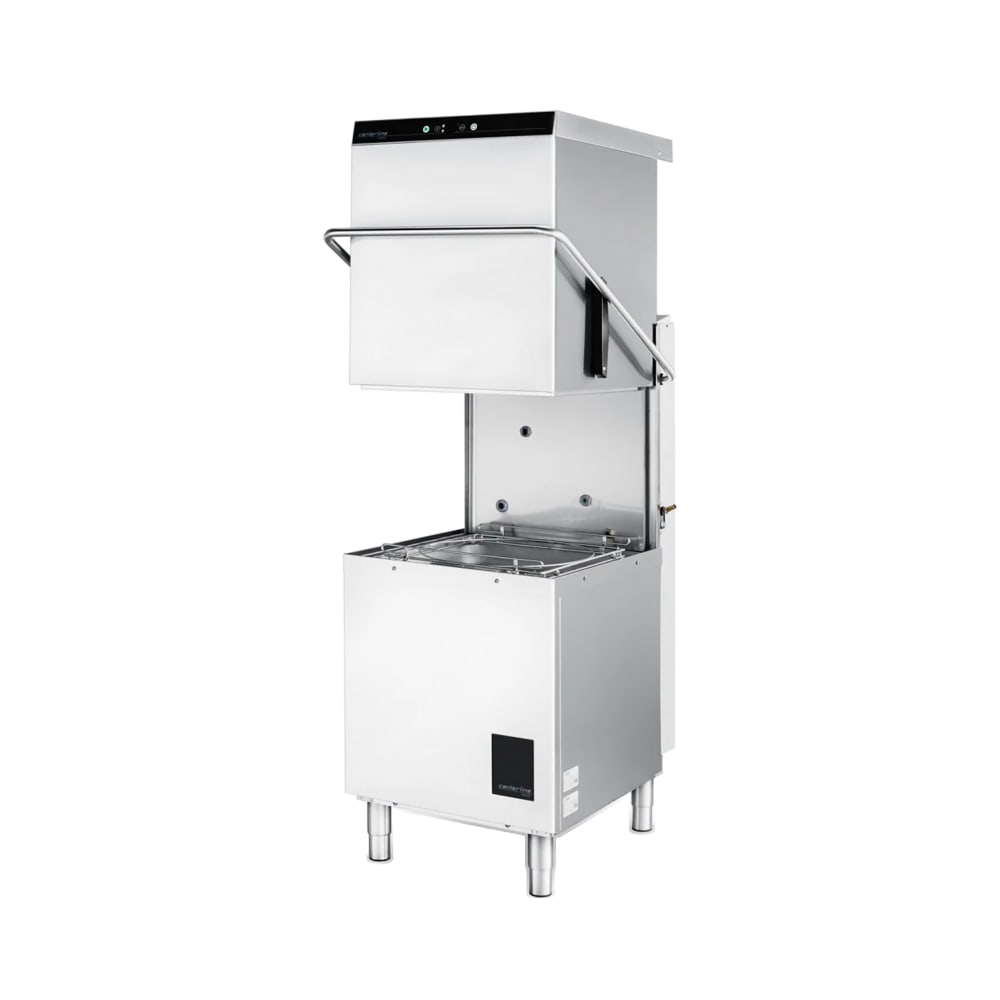

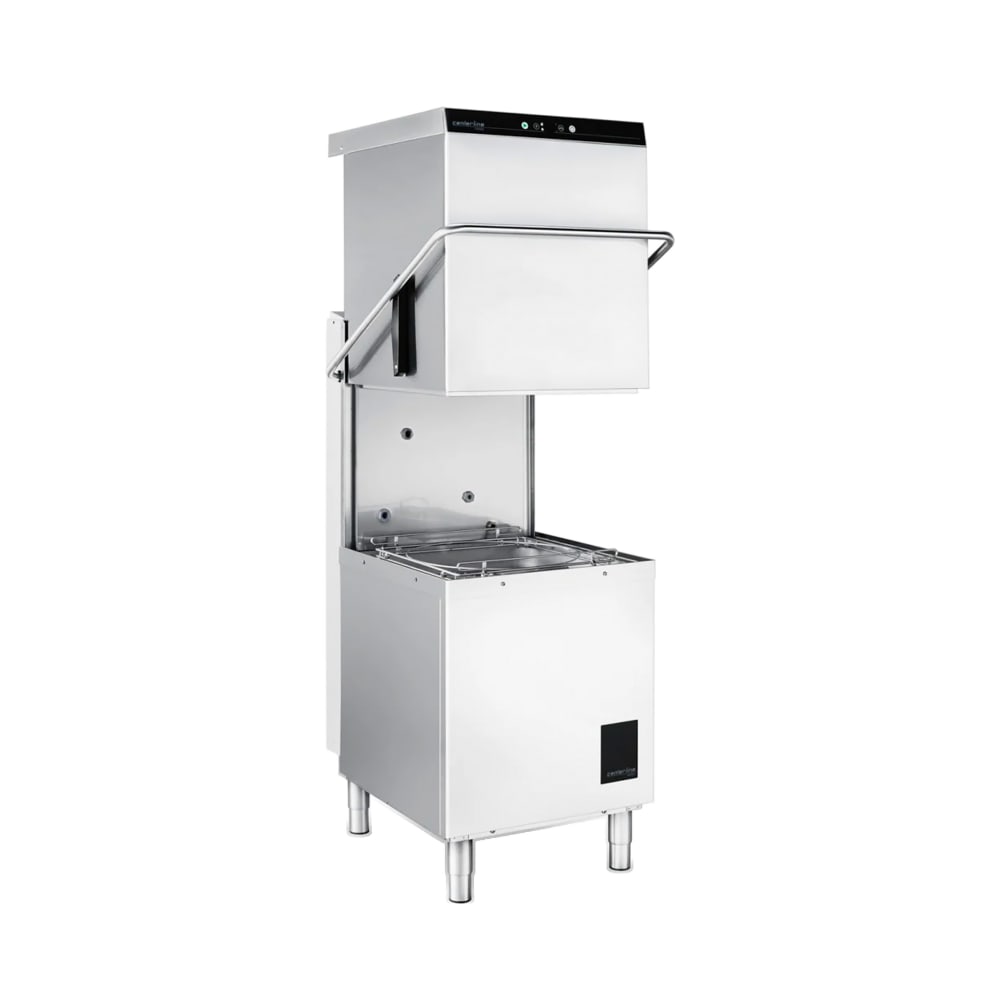

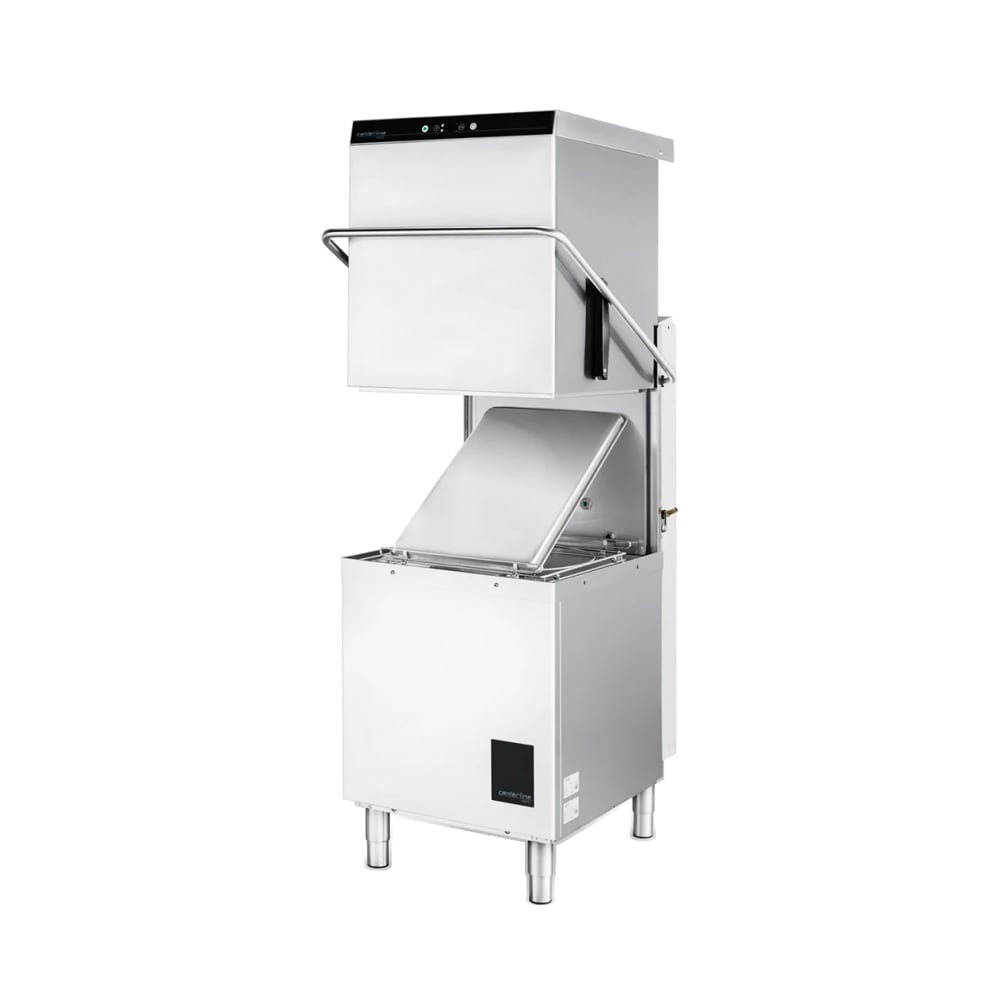

Centerline by Hobart CDH-1 High Temp Door Type Dishwasher w/ 51 Racks/hr Capacity, Built-in Booster, 208-240v/3ph

To simplify operation, the Centerline by Hobart CDH-1 door-type dishwasher features a top-mounted user interface with a digital temperature display. Its built-in booster enables high-temperature sanitizing, while its automatic pumped drain streamlines water removal. This unit uses 0.73 gallons of water per rack and can wash a maximum of 51 racks per hour. Based on the time requirements and soul levels, operators can choose between a standard cycle and extended cycle.

Built to endure heavy use, the Centerline by Hobart CDH-1 commercial dishmachine is constructed of rust- and corrosion-resistant stainless steel. It features tri-prong, snap-in revolving upper and lower anti-clogging wash and rinse arms for improved performance, and these can be removed for cleaning. This unit is designed with a four-sided door and 18-inch pillarless door opening, and it measures 28¹⁄₂ inches wide by 25¹³⁄₁₆ inches deep by 62¹⁵⁄₁₆ inches high.

Product Details

• Washes 51 racks per hour
• Door-type model with built-in booster
• 7.9-gal. wash tank
• Uses 0.73 gal. of water per rack

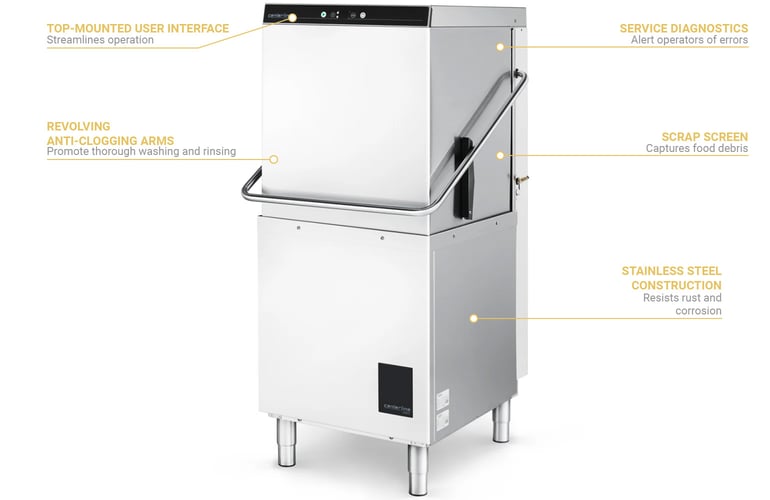

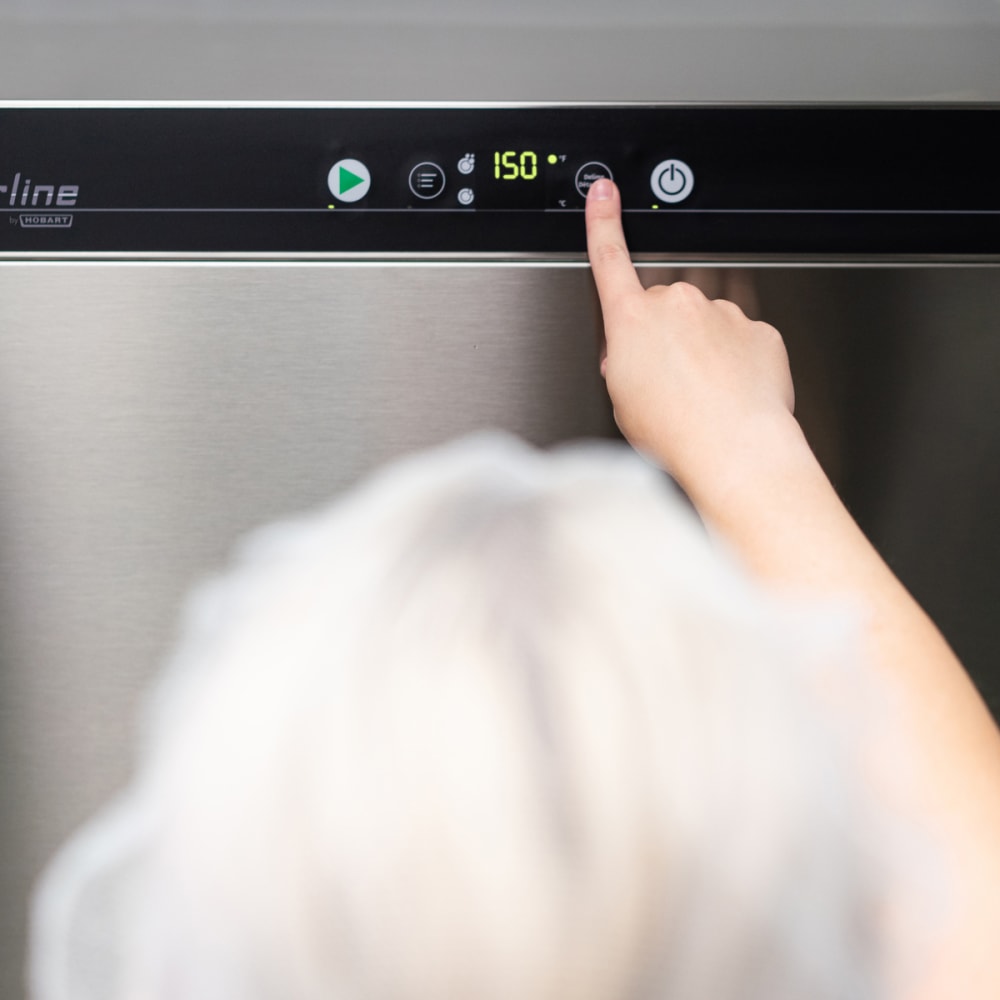

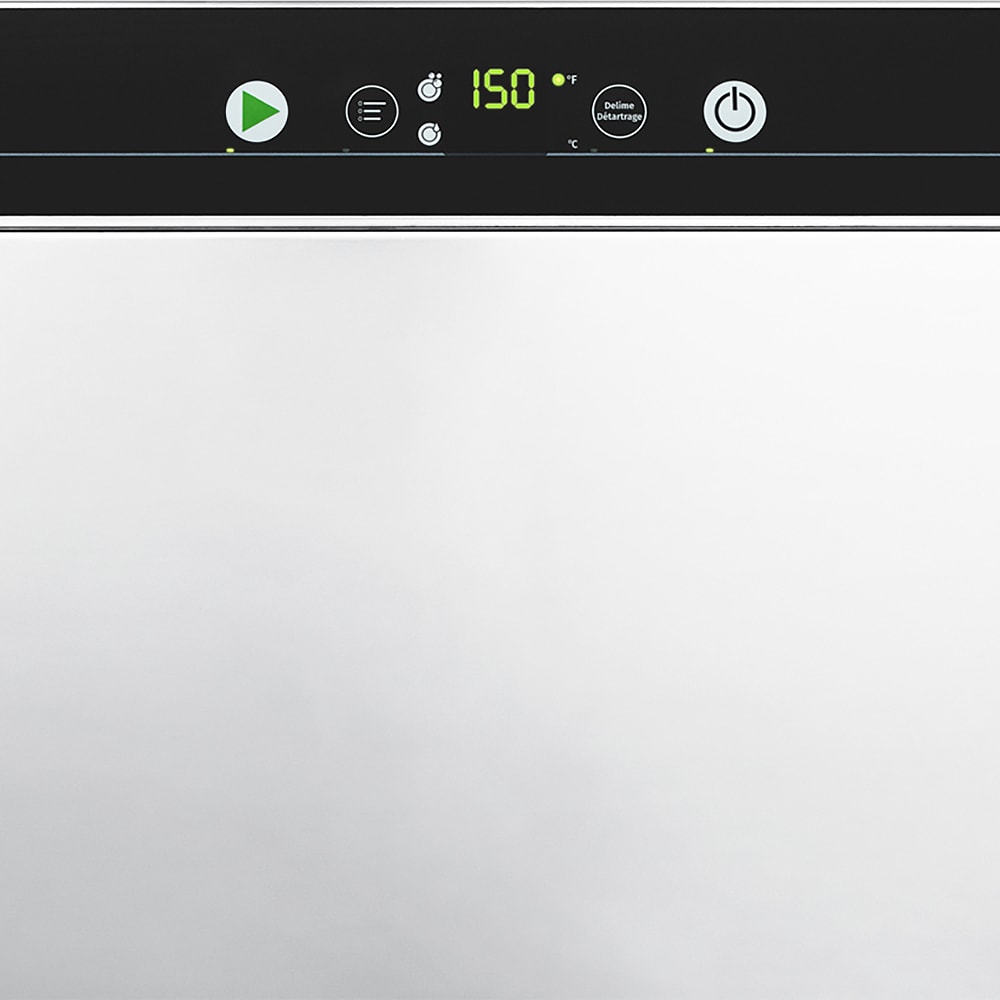

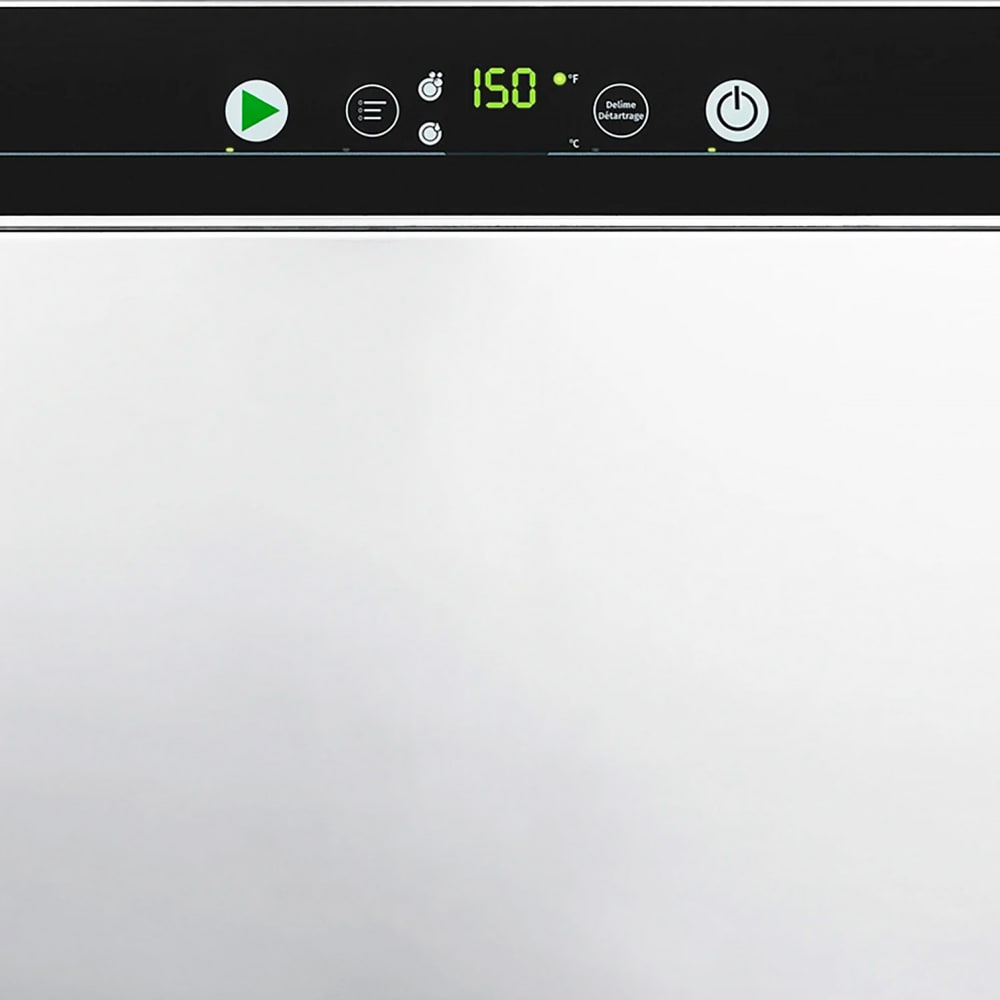

• Top-mounted user interface with digital temperature display
• Door-actuated start
• High-temperature sanitizing
• Automatic fill
• Automatic pumped drain
• 1 standard cycle and 1 extended cycle option
• Recirculating design
• Delime notification and cycle
• Stainless steel construction
• Removable stainless steel scrap screen
• 4-sided door

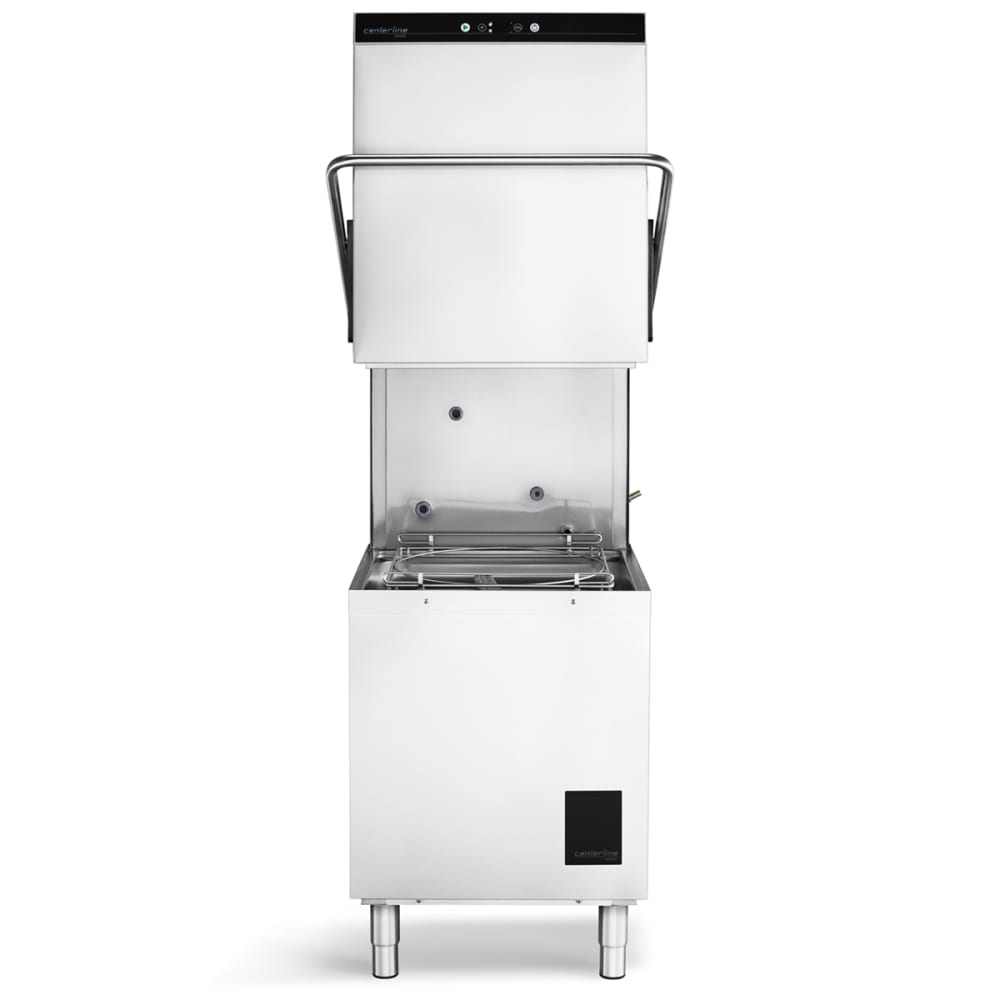

• 18-in. pillarless door opening
• Service diagnostics with error notifications

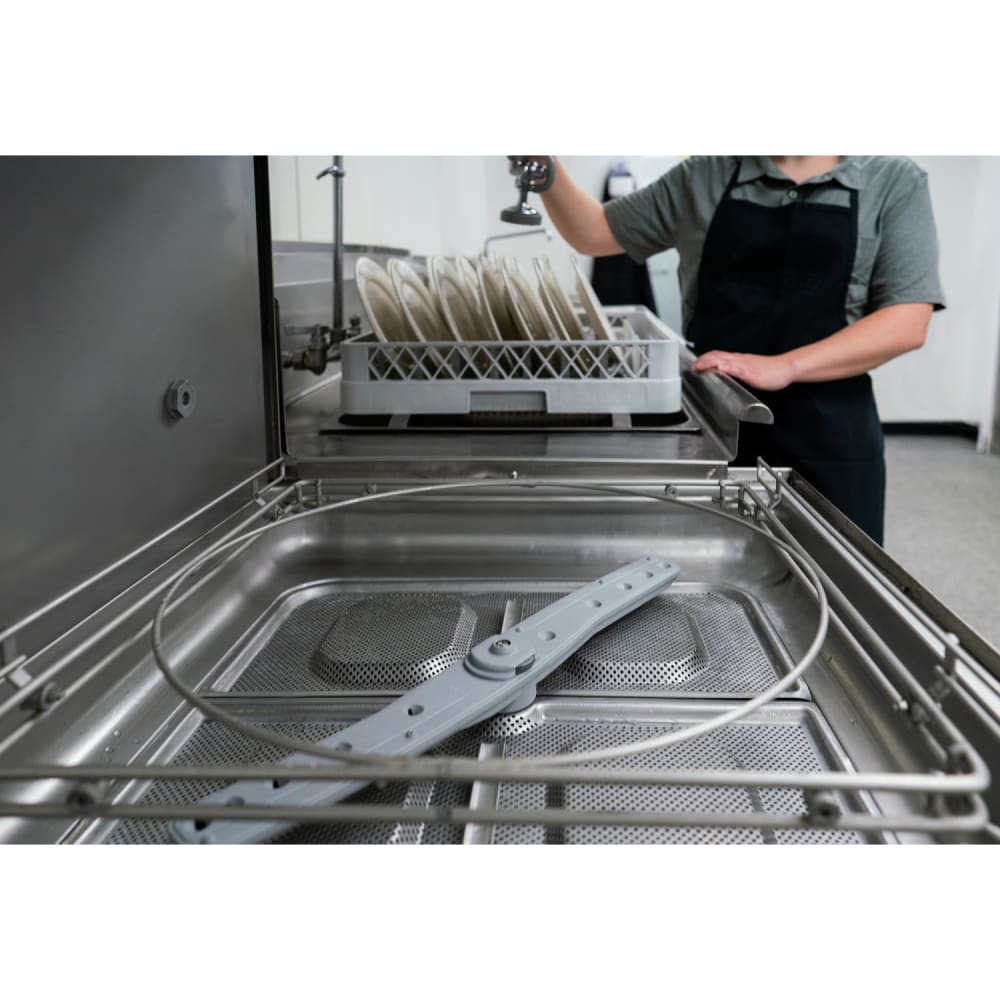

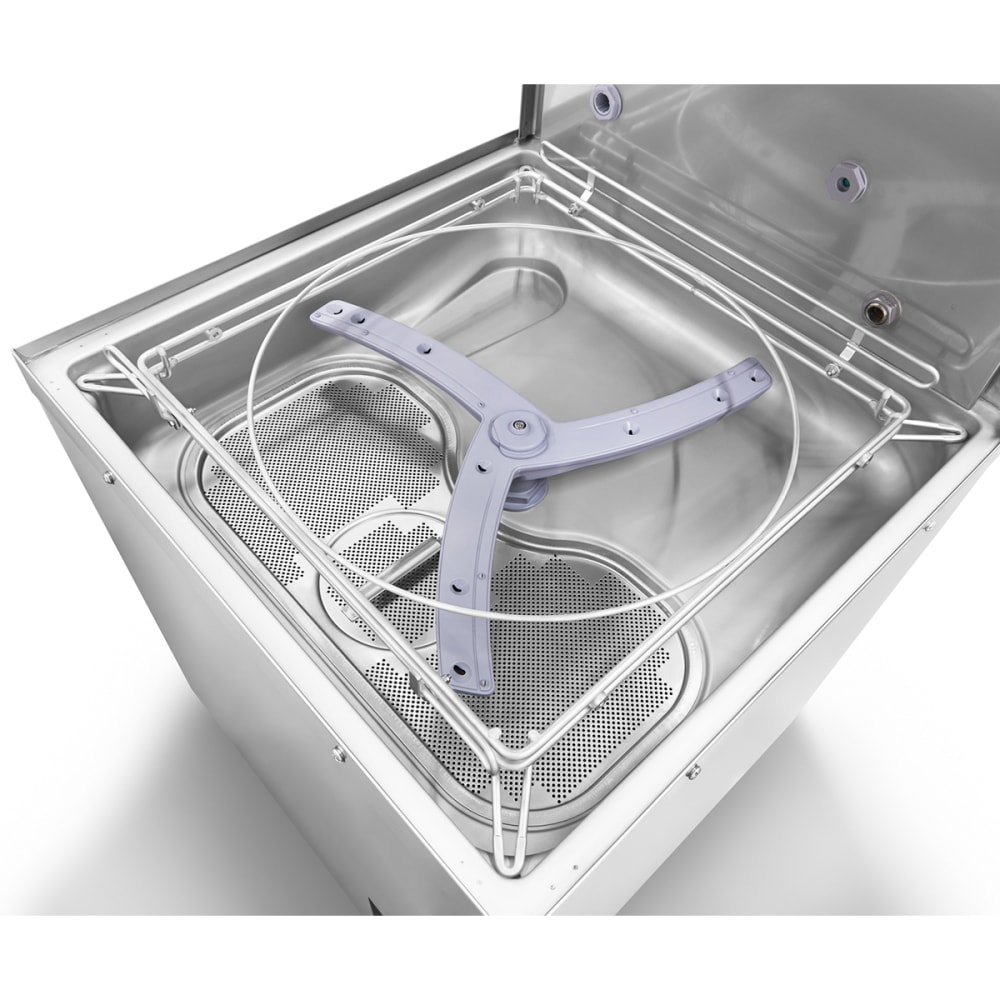

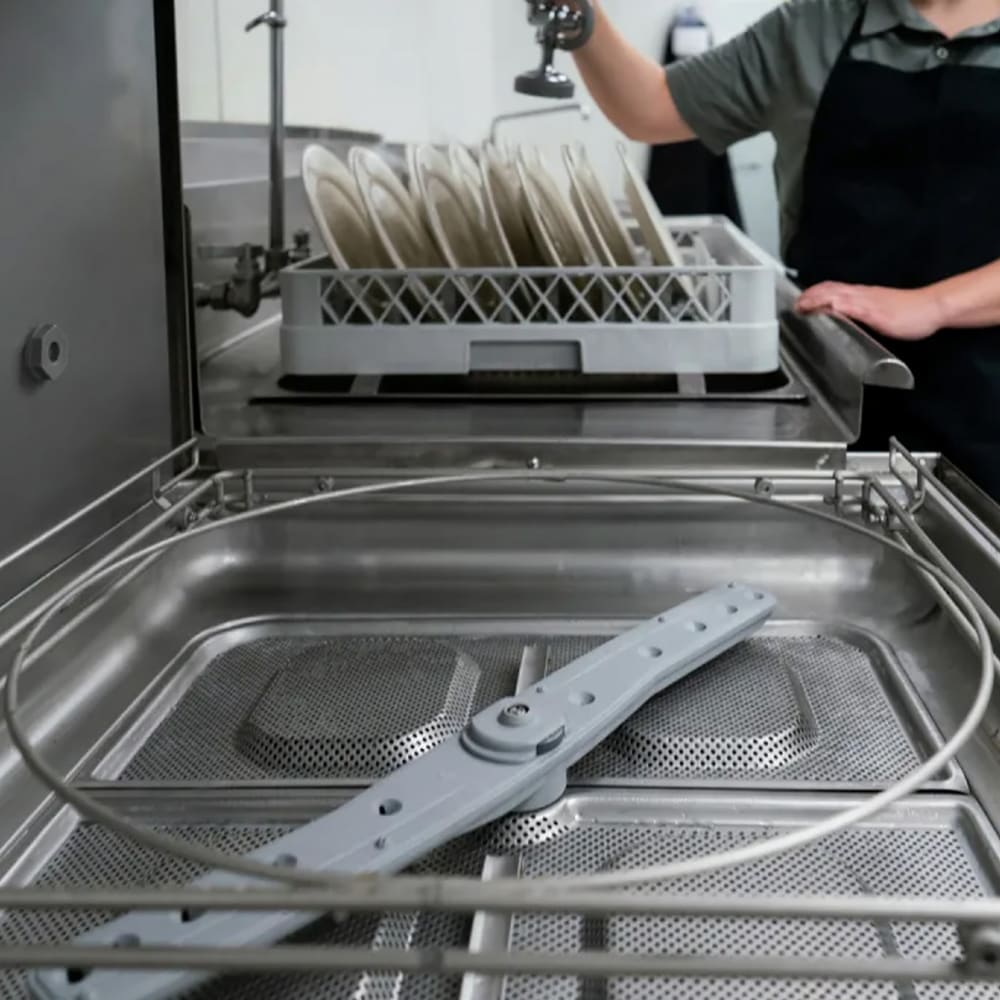

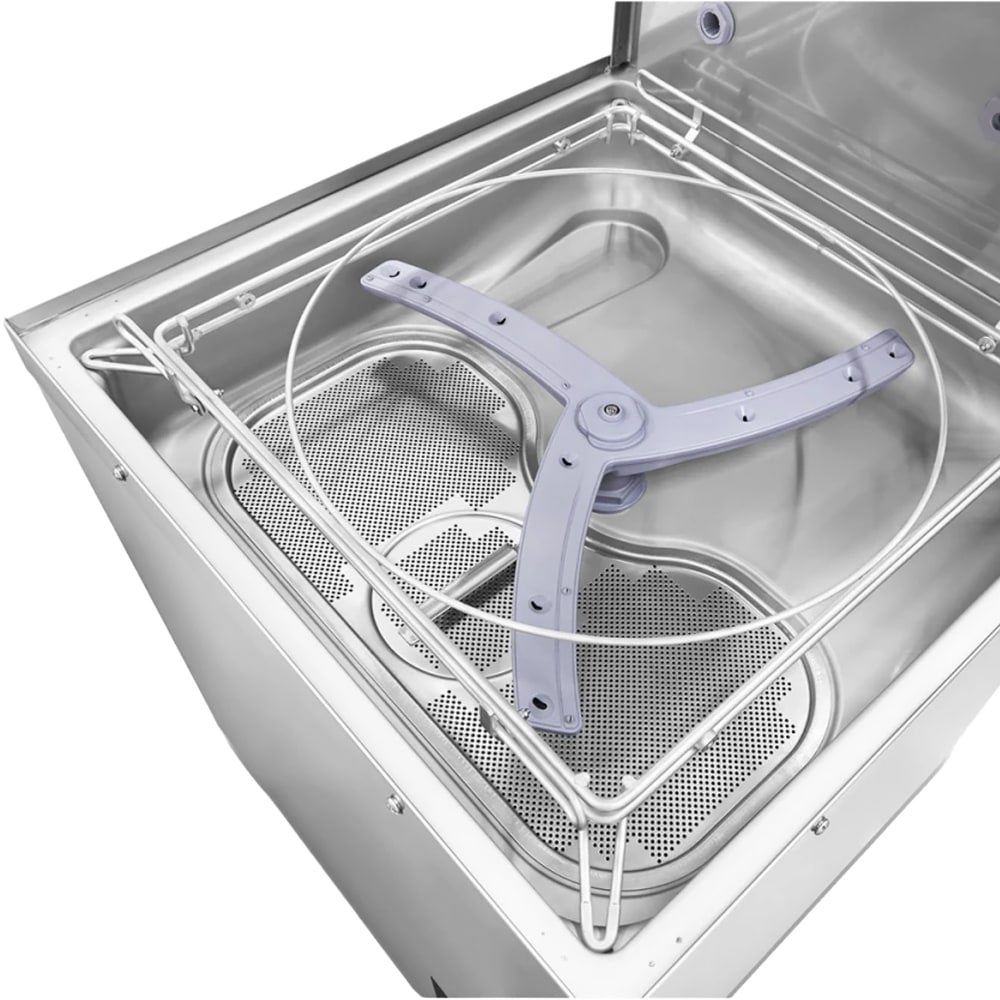

• Tri-prong, snap-in revolving upper and lower anti-clogging wash and rinse arms
• 1 peg rack and 1 combination rack included
• Recommended incoming flow pressure: 20 PSI

Dimensions & Utilities

• 28¹⁄₂ in. W x 25¹³⁄₁₆ in. D x 62¹⁵⁄₁₆ in. H
• 35 A, 11.5 kW, 1.09 HP
• 208-240 V/60 Hz/3 ph

Product Features

*Free shipping on Centerline by Hobart CDH-1 within the 48 contiguous states.

From The Manufacturer

Dishwasher, door type, high temperature sanitizing, 208-240/60/3 (field convertible to single phase), single-point standard, (51) racks/hr, pumped-rinse, 0.73 gal/rack, with booster, standard or extended cycle options, tri-prong combination wash/rinse arms, delime notification and cycle, service diagnostics with error notifications, recirculating design, pumped drain, soft start, 18-inch pillarless vertical door opening, straight-thru or corner installation, door-actuated start. Ships with (1) peg rack and (1) combination rack, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
