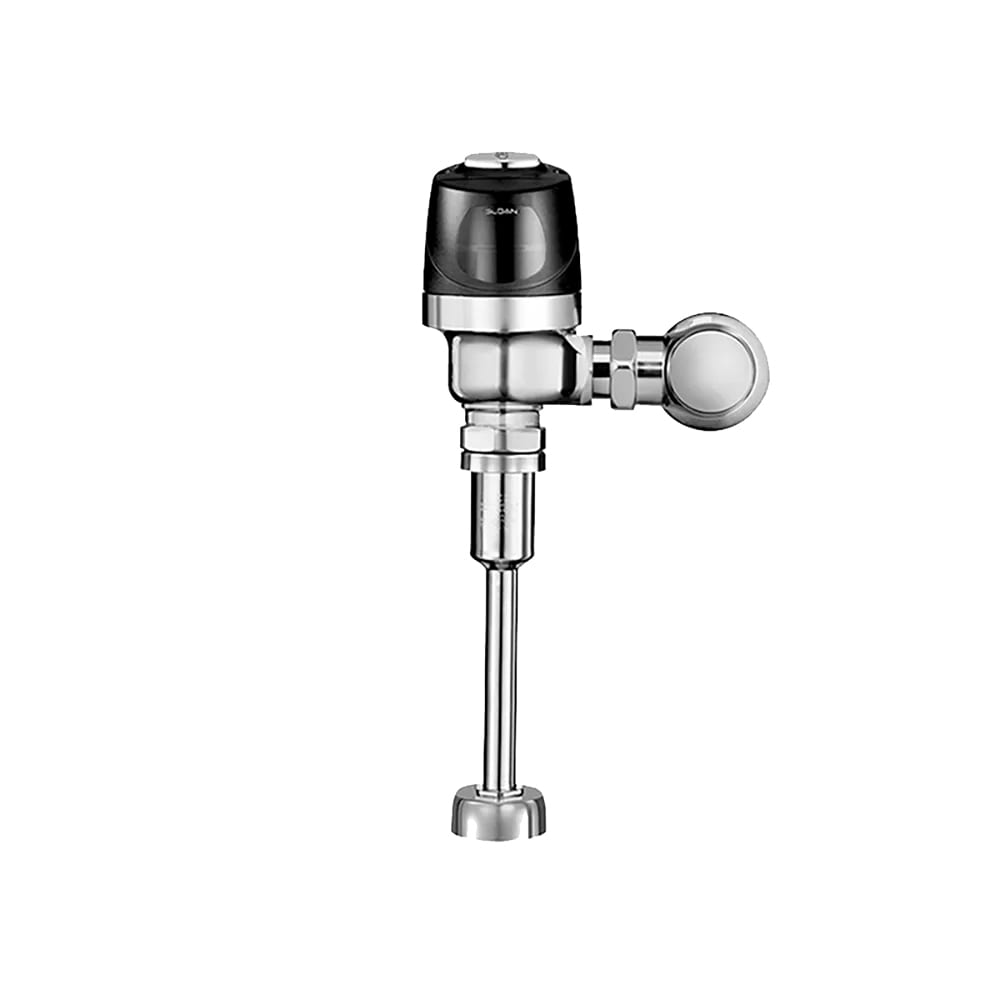

Sloan Exposed Battery Powered Diaphragm Flush Valve for Urinals - 1.0 gpf, 11 1/2" Rough In (3790013)
Typically ships in 9 - 13 Business Days
$557.99 /Each
Sloan 3790013 Description
The Sloan 3790013 Sloan® exposed sensor urinal flushometer, also known as the SLOAN 8186-1.0, delivers touch-free flushing through a battery-powered electronic system. An infrared sensor with focused sensing fields manages activation, while a PERMEX® synthetic rubber diaphragm supports chloramine resistance and controlled flow. Designed to deliver 1 gallon per flush, this unit includes a courtesy flush override button and a polished-chrome finish suited for commercial restroom environments.
Product Details
- Sensor-activated electronic flushing
- Battery-powered operation
- Infrared sensor with multiple focused lobular sensing fields
- High chloramine-resistant PERMEX synthetic rubber diaphragm
- Linear filtered bypass with vortex-cleansing action
- Courtesy flush-override button
- Includes 4 size-AA batteries
- Polished-chrome finish
- 1-GPF flush volume
*Image may not depict product color, inclusions or accessories.
*Free shipping on Sloan 3790013 within the 48 contiguous states.
From The Manufacturer
Exposed Sensor Urinal Flushometer, 1.0 gpf, 11-1/2" rough-in, fixture connection top spud, single flush, battery powered, high chloramine resistant PERMEX® synthetic rubber diaphragm, linear filtered bypass, vortex cleansing action, sweat solder adapter with cover tube, cast wall flange, Vandal resistant stop cap, spud coupling, spud flange, "low battery" flashing LED, no external volume adjustment, infrared sensor with multiple focused lobular sensing fields, courtesy flush override button, (4) size AA batteries included, polished chrome finish, ADA Compliant, cUPC Certified, BAA Compliant
Sloan 3790013 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Sloan |
| Also Known As | SLOAN 8186-1.0 |
| Finish | Chrome |
| Flush Mode | Single Flush |
| Flush Valve Design | Diaphragm |
| Flush Valve Location | Exposed |
| For Use With | Urinals |
| GPF | 1 |
| Power | Batteries |
| Product | Automatic Toilet Flushers |
| Product Type | Bathroom Supplies |
| Spud Size | 1" x 1/2" |
| Spud Type | Top |
| Warranty | 3-year Limited Electrical & Mechanical Components; 1-year Special Finish & Markings |
| Weight | 7.75 |
