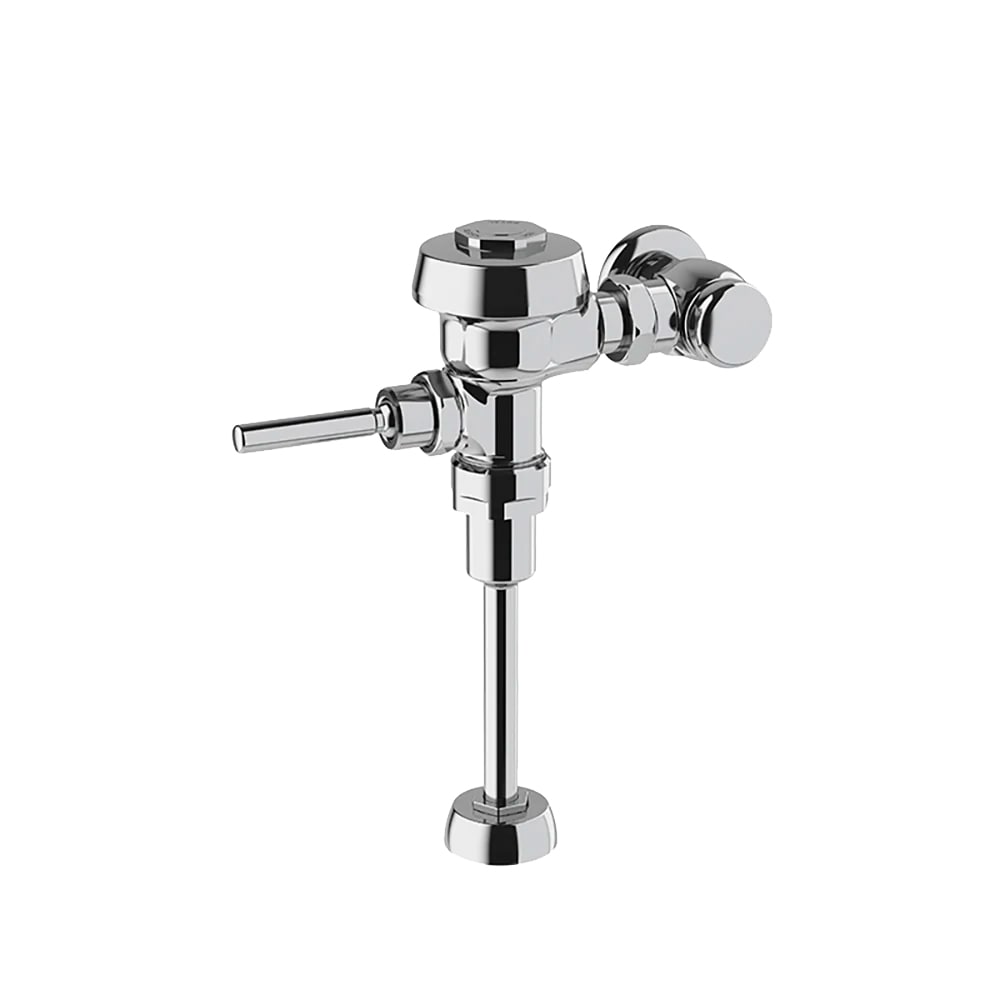

Sloan Exposed Manual Diaphragm Flush Valve for Urinals - 1.0 gpf, 11 1/2" Rough-In, Chrome (3012636)
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$191.75 /Each
* Only 1 available in this delivery window. Please contact our Sales Team if you need a larger quantity in a specified time frame.
Sloan 3012636 Description
The Sloan 3012636 Royal® exposed manual urinal flushometer regulates flushing through a diaphragm valve system designed for dependable operation. Also identified as the ROYAL 186-1.0, this model delivers a single-flush volume of 1 gallon per flush and installs with an 11 1⁄2-inch rough-in. A PERMEX® synthetic rubber diaphragm and non-hold-open handle help control water delivery, while the polished-chrome finish complements commercial restroom installations.
Product Details
- Part of the Royal series
- Single-flush operation
- PERMEX synthetic rubber diaphragm with dual-filtered fixed bypass
- Diaphragm-valve design
- Top-spud fixture connection
- Adjustable tailpiece
- Polished-chrome finish
- 1-GPF flush volume
- 11 1⁄2-in. rough-in
*Image may not depict product color, inclusions or accessories.
*Free shipping on Sloan 3012636 within the 48 contiguous states.
From The Manufacturer
Royal® Exposed Manual Urinal Flushometer, 1.0gpf, 11-1/2" rough-in, fixture connection top spud, single flush, PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass, sweat solder adapter with cover tube & cast wall flange with set screw, non-hold-open handle, fixed metering bypass, no external volume adjustment, adjustable tailpiece, polished chrome finish, ADA compliant, cUPC certified, BAA compliant
Sloan 3012636 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Sloan |
| Also Known As | ROYAL 186-1.0, ROYAL 186-1.0-CP |
| Finish | Chrome |
| Flush Mode | Single Flush |
| Flush Valve Design | Diaphragm |
| Flush Valve Location | Exposed |
| For Use With | Urinals |
| GPF | 1.0 |
| Power | Manual |
| Product | Manual Toilet Flushers |
| Product Type | Bathroom Supplies |
| Series | Royal® |
| Spud Size | 3/4" |
| Weight | 6.57 |
