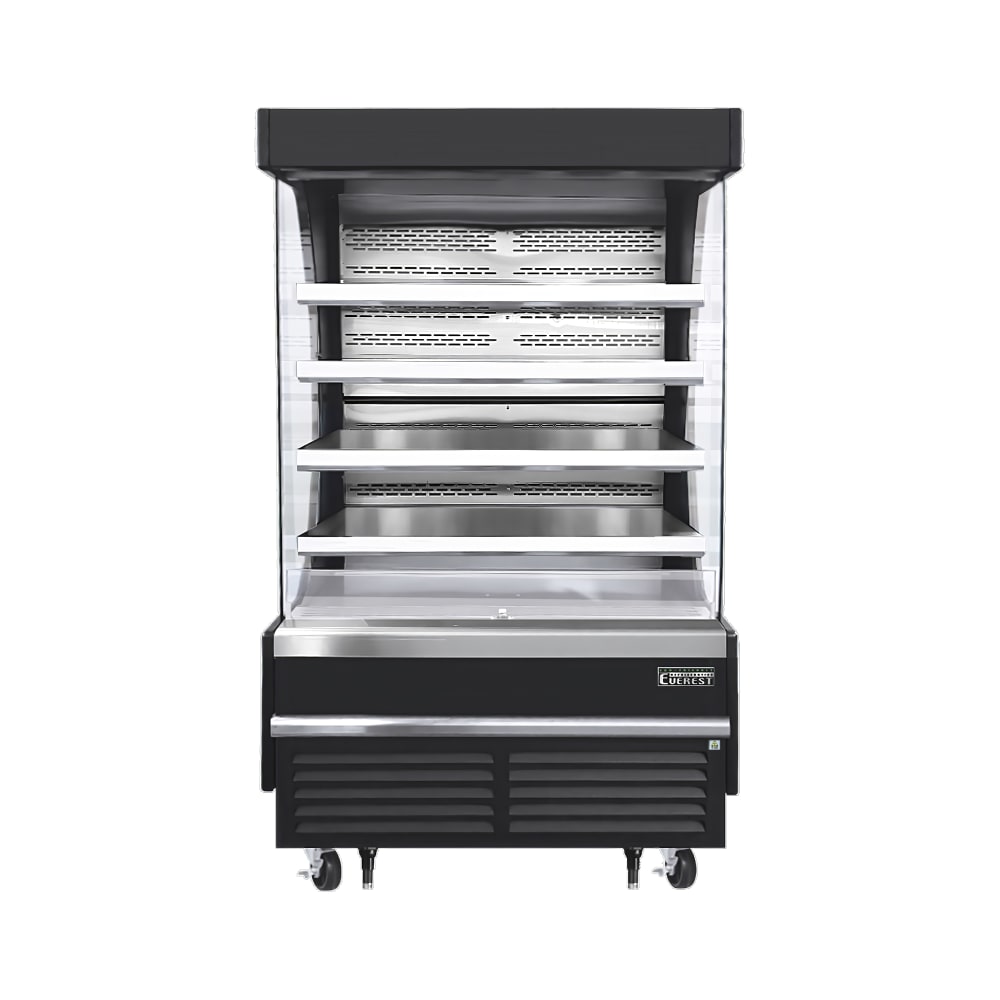

Everest Refrigeration EOMV-48-B-35-T 48" Vertical Open Air Cooler w/ (5) Levels, Black, 115v

The Everest Refrigeration EOMV-48-B-35-T vertical open-air merchandiser measures 48 inches wide by 34¹/₄ inches deep by 78 inches high and has a self-contained, bottom-mounted refrigeration system that simplifies installation and lessens staff intervention. This unit has a black exterior to hide wear and complement nearby equipment. To enable side-by-side installation, this merchandiser has a front air intake and rear air discharge configuration. A good choice for locations desiring a more environmentally friendly footprint, this item utilizes R290 hydrocarbon refrigerant and electronically commutated fan motors to streamline cooling with minimal energy consumption.

With an interior spanning 24 cubic feet and four stainless steel shelves offering five storage levels, the Everest Refrigeration EOMV-48-B-35-T vertical open-air cooler can be a valuable addition to grocery stores, cafeterias, vending stations, or other locations requiring open-air cold storage. The shelves can sit flat or at a slight 10-degree downward angle to enhance item presentation. The interior can withstand wear and tear overtime with its durable stainless steel construction, and to help retain cool conditions, this unit is encased with 2 inches of polyurethane insulation. The back wall in the interior is perforated to facilitate consistent airflow around shelf items.

Product Details

• EOMV series
• 24-cu.-ft. interior capacity
• 5 levels
• Black exterior
• Field-replaceable and moisture-resistant side panels made of tempered glass
• Heavy-duty stainless steel interior
• Perforated interior back wall
• Top, bottom, and rear made of galvanized steel
• Front stainless steel bumper belt
• 2¹/₂-in. polyurethane foam insulation
• 4 stainless steel shelves with price tag moldings
• Shelves positioned as flat or 10-degree downward angle
• Shielded LED bar lighting with on/off switch under shelves and canopy
• Retractable night curtain
• 5-in. swivel casters with locks on front set
• Leg stabilizers

Refrigeration System

• Self-contained and bottom mounted
• R290 refrigerant
• Average product temperature: 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity doesn't exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 48 in. W x 34¹/₄ in. D x 78 in. H
• 14 A, (2) ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMV-48-B-35-T within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 48"W x 34-1/4"D x 78"H, 24 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (4) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 115v/60/1-ph, 14 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
