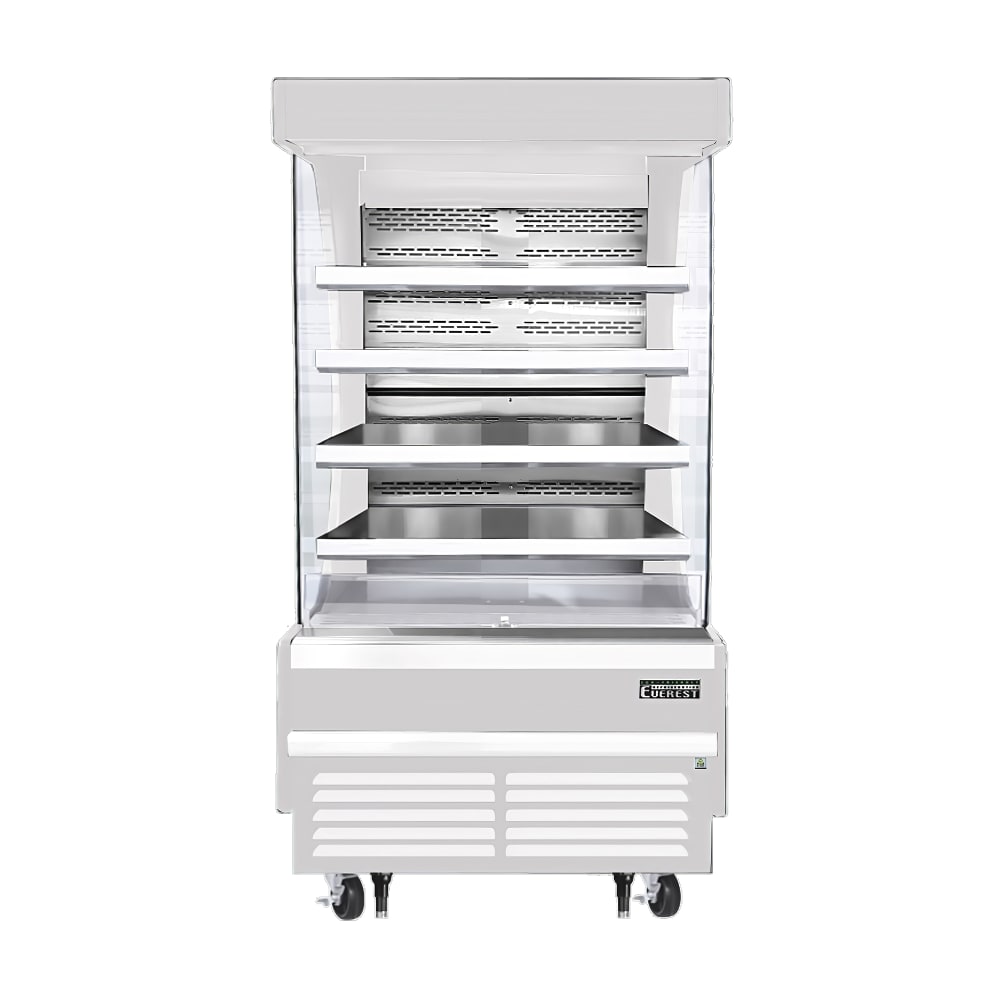

Everest Refrigeration EOMV-36-W-28-T 37 1/4" Vertical Open Air Cooler w/ (5) Levels, White, 115v

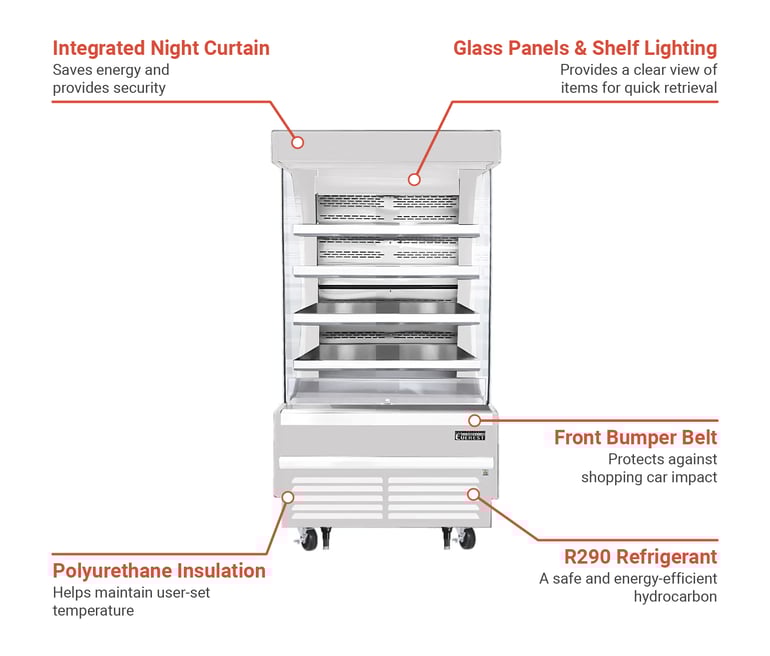

To streamline installation and optimize interior space, the Everest Refrigeration EOMV-36-W-28-T vertical open-air merchandiser’s refrigeration system is self-contained and bottom mounted. This merchandiser can provide an eco-friendly alternative to other units, as it relies on R290 hydrocarbon refrigerant. The factory preset temperature is 35 degrees Fahrenheit, and the average product temperature is 40 degrees Fahrenheit or less. This unit can be installed in a line-up of units with its front air intake and rear air discharge system. To prevent impact damage, this unit has a stainless steel front bumper belt.

To provide a clear view of stored items, the Everest Refrigeration EOMV-36-W-28-T vertical display merchandiser has field-replaceable tempered glass side panels and shielded LED lighting under the shelves and canopy. For efficient operation, these lights have an on/off switch. The unit offers staff four stainless steel shelves for a total of five levels for storing food items, and to provide an efficient presentation, each shelf has a price tag molding. To provide maneuverability around a kitchen workspace, this unit sits atop four 5-inch swivel caster which have locks on the front set; additionally, the casters are supported with leg stabilizers.

Product Details

• EOMV series
• 12.8-cu.-ft. internal capacity
• White-coated interior and exterior with moisture-resistant panels
• Field-replaceable tempered glass sides
• Stainless steel interior with perforated back wall
• Floor drains included
• Stainless steel front bumper belt
• Top, bottom, and rear made of galvanized steel
• Shielded LED interior bar lighting under shelves and canopy with on/off switch
• 2¹/₂-in. polyurethane insulation
• 4 stainless steel shelves with price tag moldings
• Shelves can be positioned as flat or slanted downward at 10 degrees F
• Integrated retractable night curtain
• (4) 5-in. swivel casters with locks on front set
• 2 leg stabilizers

Refrigeration System

• Self-contained, bottom-mounted design
• Eco-friendly R290 refrigerant
• Average product temperature of 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan included
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 37¹/₄ in. W x 28³/₈ in. D x 78 in. H
• 8 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P

Product Features

*Free shipping on Everest Refrigeration EOMV-36-W-28-T within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 37-1/4"W x 28-3/8"D x 78"H, 12.8 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (4) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, white exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 8.0 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
