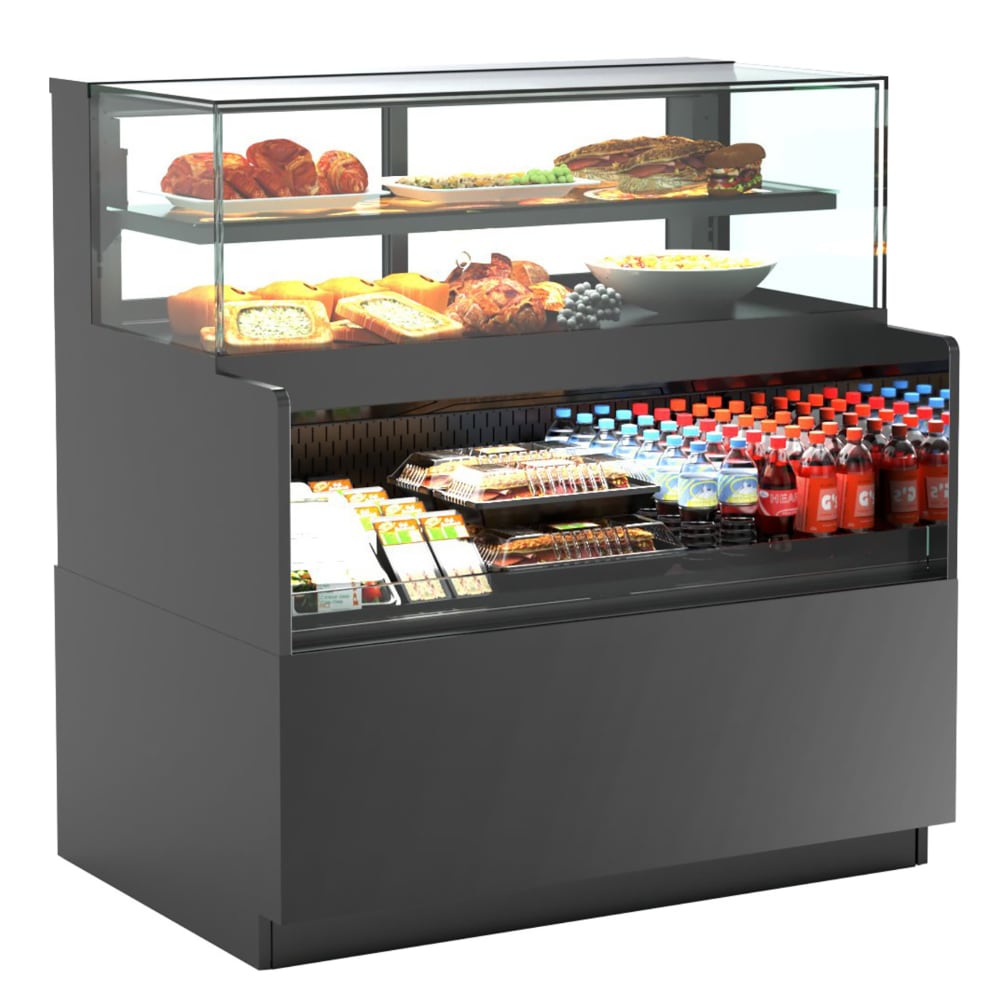

Structural Concepts NR4851RRSSV 47 3/4" Reveal® Horizontal Open Air Cooler w/ (3) Levels, 208-240v
Typically ships in 4 - 6 weeks
$19,415.00 /Each
Login or call us for your price
Attention: Order by 07-01-2026 to save before the price increases!
Structural Concepts NR4851RRSSV Description
Created for modular layouts, this Structural Concepts NR4851RRSSVBLK Reveal® horizontal open air cooler offers a convertible full or self-service configuration. The dual-zone function adapts to assisted or grab-and-go use, and its 51-inch height enhances visibility. The upper baffle controls airflow across products, and the solid rear panel provides long-term stability.
The Structural Concepts NR4851RRSSVBLK Reveal horizontal open air cooler includes rear sliding glass doors that blend convenience with precision. Tempered safety glass adds durability for frequent use, and smooth-glide tracks reduce friction for steady motion. Ergonomic handles support a secure grip, while the sealed frame maintains a 40-degree Fahrenheit temperature balance.
- Reveal Series
- Horizontal convertible service configuration
- For packaged or unpackaged refrigerated products
- 3 clear glass display levels
- Freestanding design with upper convertible display
- Adjustable on 1-in. centers removable glass shelves
- One-piece ABS plastic tub interior
- Fixed vertical front and side UV-bonded frameless glass panels
- Upper rear clear glass sliding doors
- LED top lighting (3500 K frosted lens)
- Black powder-coated Silversan finish
- Adjustable locking casters installed
- 3 1⁄2-in. deep, 4-in. tall recessed base section
- 32 1⁄2-in. counter depth
- 31 1⁄2-in. front-to-back case span
- 7 1⁄2-in. minimum rear access clearance
- Breeze-E (Type II) self-contained refrigeration system
- R290 hydrocarbon
- Fin-tube evaporator ensures uniform temperature control
- Front exhaust airflow with rear air intake
- Built-in condensate pan
- Coated evaporator coil resists corrosion
- Maintains 40 degrees F average product temperature
- Operates under 80 degrees F / 55% RH conditions
- Overall: 47 3⁄4 in. W × 33 in. D × 51 in. H
- 16 A, 2.81 kW
- 208–240 V / 60 Hz / 1 ph, 10-ft straight-blade cord with NEMA 6-20P or L6-20P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Structural Concepts NR4851RRSSV within the 48 contiguous states.
From The Manufacturer
Reveal® Combination Convertible Service Above Refrigerated Self-Service Case, freestanding, 47-3/4'W, 51"H, Breeze-E (Type II) with EnergyWise self-contained refrigeration, LED top light, fixed vertical glass, black front panel, upper rear clear glass sliding doors, coated coil, condensate pan, cETLus, ETL-Sanitation
Structural Concepts NR4851RRSSV Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Structural Concepts |
| Color | Black |
| Compressor Type | Self Contained |
| Depth (in) | 33 |
| Design | Horizontal |
| Height (in) | 51 |
| Hertz | 60 |
| NEMA | 6-20P |
| NEMA | L6-20P |
| Number of Levels | 3 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Reveal® |
| Special Features | Black Interior |
| Special Features | Casters Included - Installed |
| Special Features | Glass Sides |
| Special Features | LED Lighting |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 47.75 |
| Weight | 950.00 |
