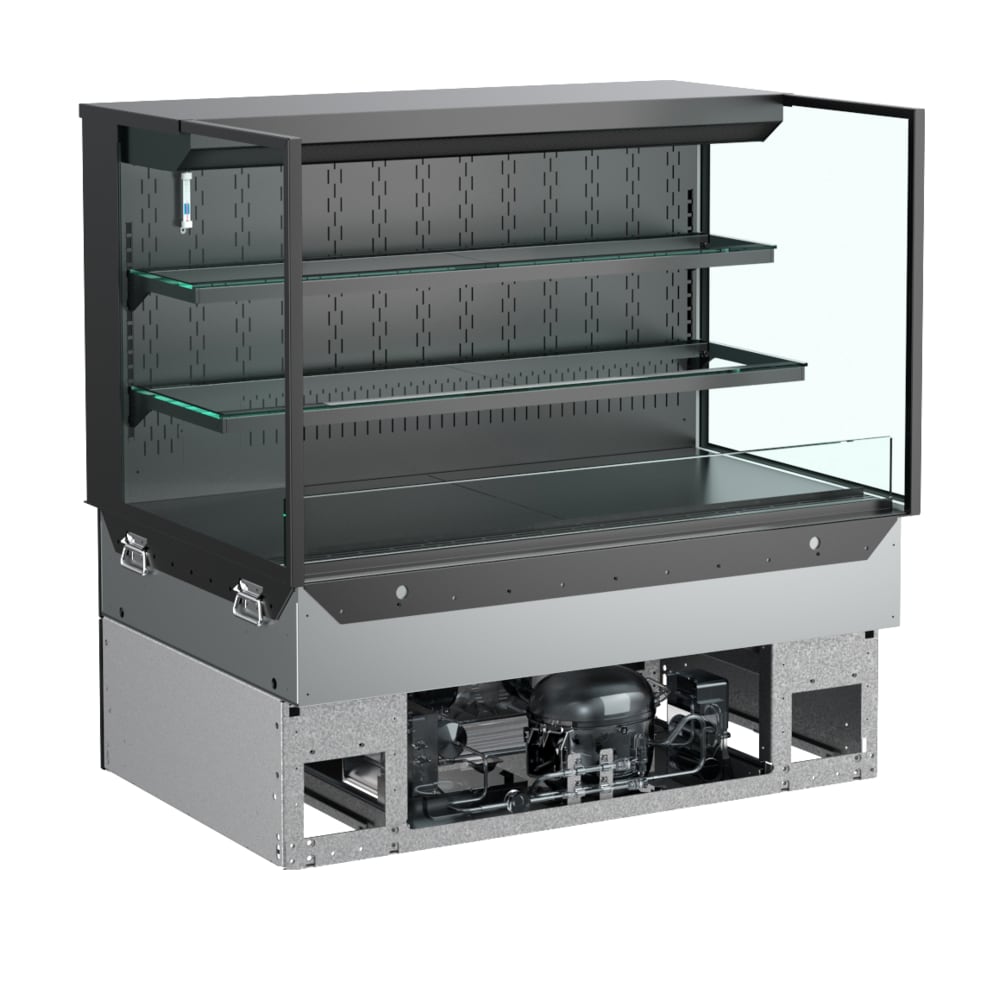

Structural Concepts NE6027RSSV 59 3/4" Reveal® Drop-In Vertical Open Air Cooler w/ (3) Levels, 208-240v
$18,197.50 /Each
Login or call us for your price
Structural Concepts NE6027RSSV Description

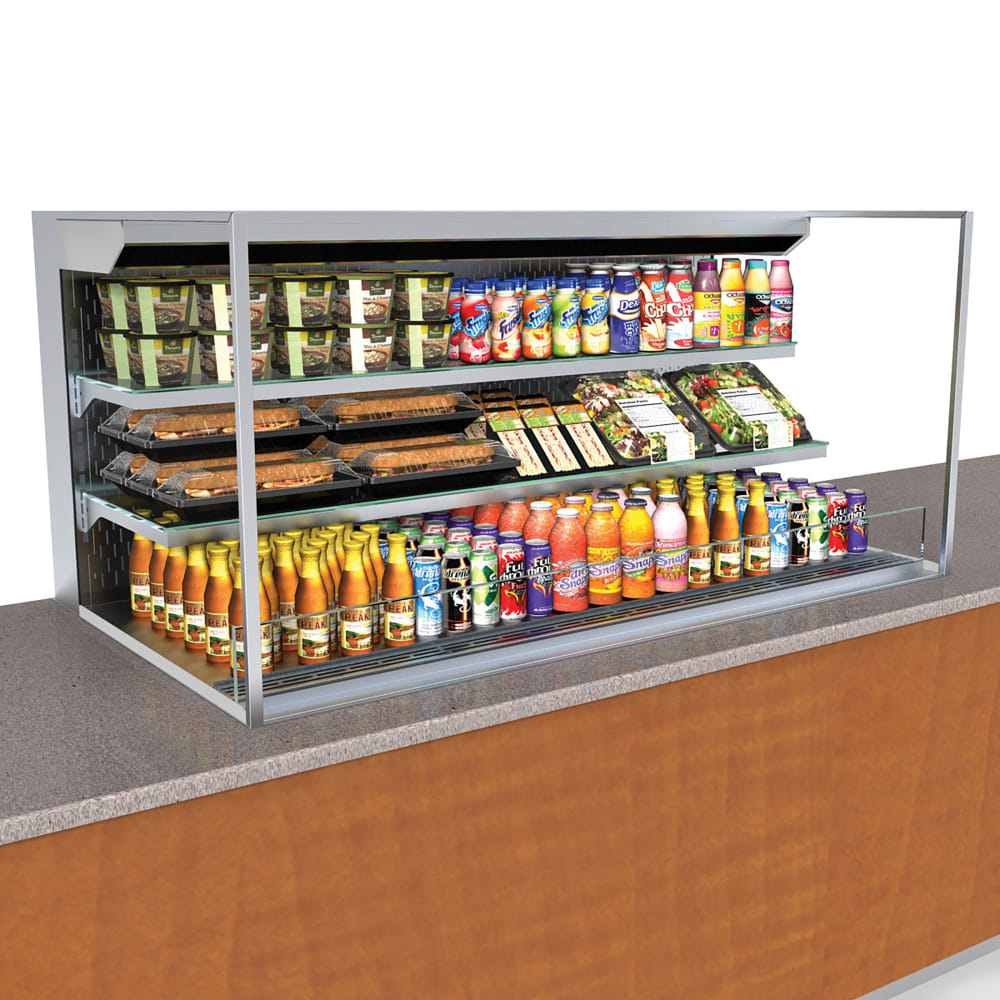

Combining a coated coil with a built-in condensate pan, the Structural Concepts NE6027RSSV Reveal® drop-in open air cooler maintains internal balance and limits moisture accumulation during peak hours. The self-contained, rear-mounted system is fueled by R290 refrigerant to hold food at or below 40 degrees Fahrenheit for consistent results. With glass end panels and layered LED illumination, the cooler showcases products from the front and sides.
The Structural Concepts NE6027RSSV self-service cooler features a black powder-coated exterior and matching rear panel that suit neutral counter layouts. Two removable glass shelves adjust for varied merchandising needs, while the molded ABS plastic tub forms a single-piece basin that endures repeated use without warping. This unit measures 59 3⁄4 inches wide by 33 inches deep by 27 7⁄8 inches high above the counter and has an overall height of 47 1⁄4 inches.
- Reveal series
- Drop-in, self-service design
- Glass end panels
- Upper rear solid back panel
- 1-piece ABS plastic tub
- 2 removable and adjustable glass shelves
- LED top and shelf lighting
- Black powder-coated finish
- Self-contained, rear-mounted refrigeration
- Coated coil
- Condensate pan
- Maintains temperature at or below 40 degrees F
- Uses R290 refrigerant
- 59 3⁄4 in. W x 33 in. D x 27 7⁄8 in. H (above counter), 47 1⁄4 in. H (overall)
- 16 A, 2,806 W
- 208/240 V/60 Hz/1 ph, 10-ft. cord with NEMA 6-20P or L6-20P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Structural Concepts NE6027RSSV within the 48 contiguous states.
From The Manufacturer
Reveal® Self-Service Refrigerated Slide In Counter Case, 59-3/4"W, 27-7/8"H (above counter) 47-1/4"H (overall), Breeze-E (Type II) with EnergyWise self-contained refrigeration, (2) removable & adjustable clear glass shelving, LED top & shelf lights, slide in base, glass ends, upper rear solid back panel, coated coil, condensate pan, cETLus, ETL-Sanitation
Structural Concepts NE6027RSSV Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Structural Concepts |
| Color | Black |
| Compressor Type | Self Contained |
| Depth (in) | 33 |
| Design | Vertical |
| Height (in) | 27.88 |
| Hertz | 60 |
| NEMA | 6-20P |
| NEMA | L6-20P |
| Number of Levels | 3 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Reveal® |
| Special Features | Black Interior |
| Special Features | Glass Sides |
| Special Features | LED Lighting |
| Use | Packaged Goods |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 59.75 |
| Weight | 900.00 |
