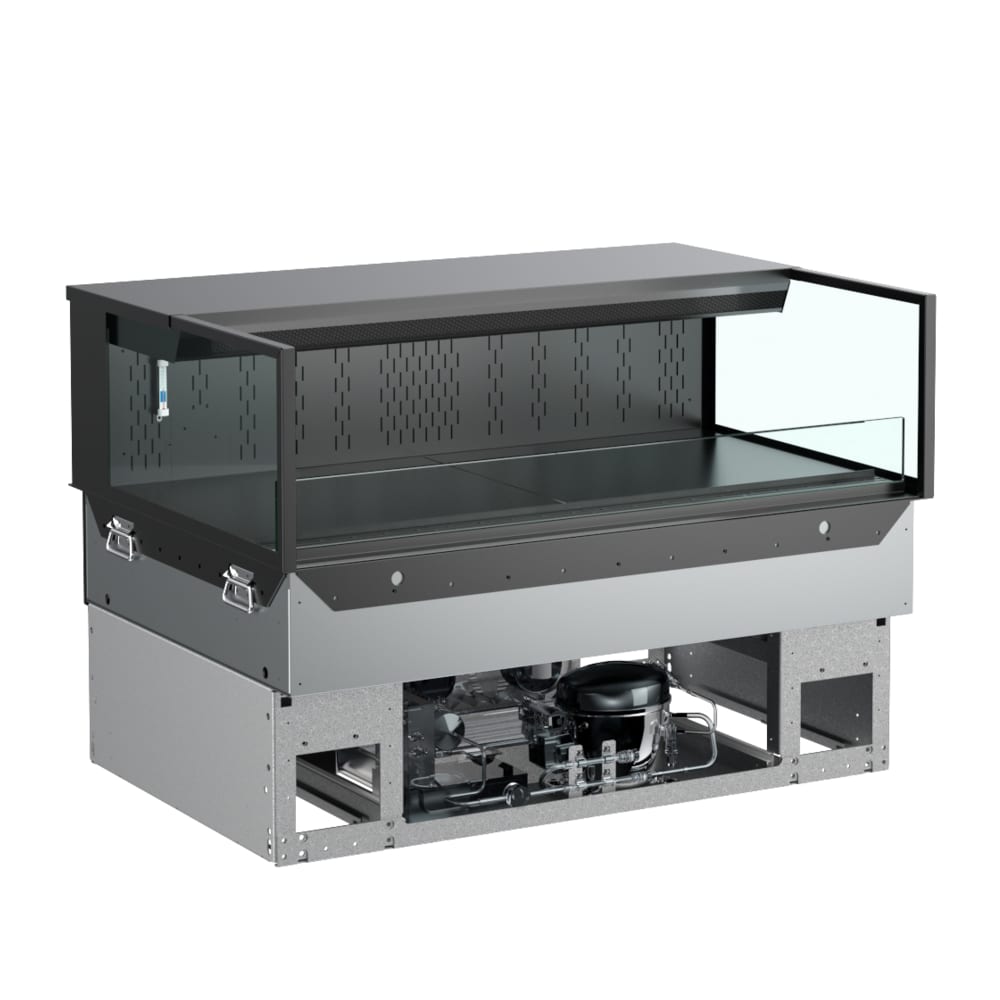

Structural Concepts NE4813RSSV 47 3/4" Reveal® Drop-In Horizontal Open Air Cooler w/ (1) Level, 110-120v

Constructed to hold refreshments at 40 degrees Fahrenheit or colder, the Structural Concepts NE4813RSSV open-air cooler intakes air from the rear and discharges it out the front. Its Breeze-E system utilizes an EnergyWise design to cut down on operational costs. To reduce the risk of mechanical failure from rust and debris, its evaporator coil is coated in durable polymer, and it comes with a condensate pan designed to prevent water from dripping into the unit's base. These mechanics are hidden beneath the countertop, keeping it out of sight of customers.

The Structural Concepts NE4813RSSV drop-in refrigerated display case measures 47³/₄ inches wide by 33 inches deep by 32⁷/₈ inches high; 13⁵/₈ inches are visible above the countertop. It's brightened by LED lights, and its glass side panels make contents visible and appealing. In contrast, its metal frame is completely black, as well as its backing panel, which serves as a solid neutral background to its single row of products.

Product Details

• Part of the Reveal® series
• Self-contained refrigeration system with EnergyWise and Breeze-E technology
• LED-lighted interior
• Mechanical components hidden beneath countertop
• Glass side panels with black interior and frame
• Evaporator coil protected with Blue Fin polymer coating
• Keeps products at or below 40 degrees F
• Condensate pan

Dimensions and Utilities

• Overall: 47³/₄ in. W x 33 in. D x 32⁷/₈ in. H
• 13⁵/₈ in. visible above countertop
• 110/120 V/60 hz/1 ph
• 9.74 A, 770 W
• 10-ft. straight blade power cord with 5-15P plug

*Free shipping on Structural Concepts NE4813RSSV within the 48 contiguous states.

From The Manufacturer

Reveal® Self-Service Refrigerated Slide In Counter Case, 47-3/4"W, 13-5/8"H (above counter), 33"H (overall), Breeze-E (Type II) with EnergyWise self-contained refrigeration, LED top light, slide in base, glass ends, upper rear solid back panel, coated coil, condensate pan, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Structural Concepts NE4813RSSV Specifications
