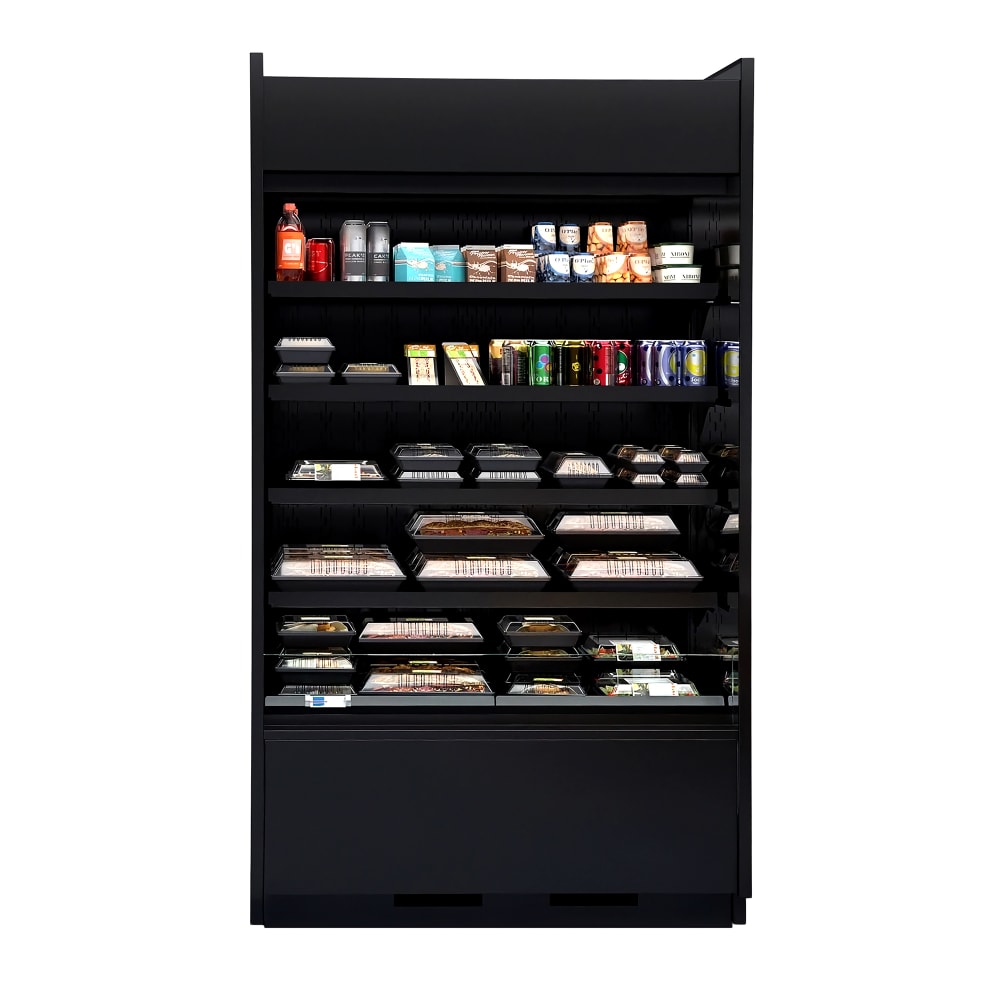

Structural Concepts B47R-E3 47 5/8" Oasis® Vertical Open Air Cooler w/ (5) Levels, 208-240v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,615.00 /Each
Login or call us for your price
Non Returnable Item
Attention: Order by 07-01-2026 to save before the price increases!
Structural Concepts B47R-E3 Description

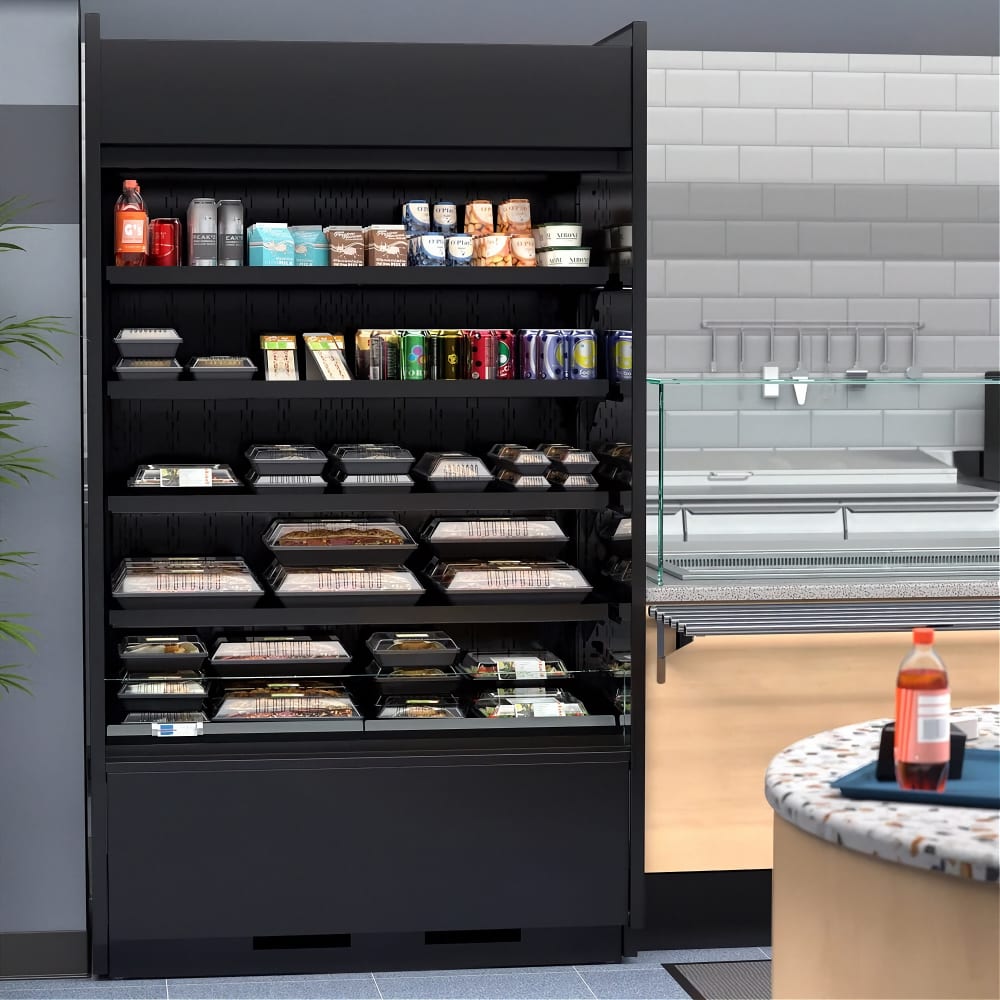

Featuring LED lighting, the Structural Concepts B47R-E3 Oasis® vertical open-air cooler casts consistent illumination across four metal shelves for improved visibility. Its powder-coated black finish contrasts the mirrored end panels, delivering an attractive presentation with expanded visual depth. Driven by R290-fueled, self-contained refrigeration, it stores items at 40 degrees Fahrenheit or less. A magnetic filter maintains continuous airflow, while a condensate pan collects excess moisture during operation. The built-in night curtain reduces energy draw after hours. Measuring 47 5⁄8 inches wide by 34 1⁄4 inches deep by 82 1⁄4 inches high, this unit integrates casters with levelers for balanced footing.
- Oasis series
- Powder-coated black exterior
- End panels with mirrored interior
- 4 metal shelves
- Night curtain
- LED top light
- Casters with levelers
- Breeze-E self-contained refrigeration
- Uses R290 refrigerant
- Magnetic air filter
- Condensate pan
- Warmest average product temperature: 40 degrees F or less
- 47 5⁄8 in. W x 34 1⁄4 in. D x 82 1⁄4 in. H
- 16 A, 2,807 W
- 208-240 V/60 Hz/1 ph, 6-ft. cord with NEMA 6-20P or L6-20P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Structural Concepts B47R-E3 within the 48 contiguous states.
From The Manufacturer
Oasis® Refrigerated Self-Service Case, 47-5/8"W x 34-1/4"D x 82-1/4"H, Warmest average product temperature of 40°F or less, LED top light, (4) metal shelves, Breeze with self-contained refrigeration, condensate pan, magnetic air filter, non-locking casters with levelers, end panels with mirrored stainless interior, black exterior, R290 Hydrocarbon refrigerant, cETLus, ETL-Sanitation
Structural Concepts B47R-E3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Structural Concepts |
| Color | Black |
| Compressor Type | Self Contained |
| Depth (in) | 34.5 |
| Design | Vertical |
| Height (in) | 82.25 |
| Hertz | 60 |
| Includes | Casters |
| Includes | Night Curtain |
| NEMA | 6-20P |
| Number of Levels | 5 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Oasis® |
| Special Features | Black Interior |
| Special Features | Casters Included - Installed |
| Special Features | LED Lighting |
| Special Features | Night Curtain |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 47.63 |
| Weight | 900.00 |
