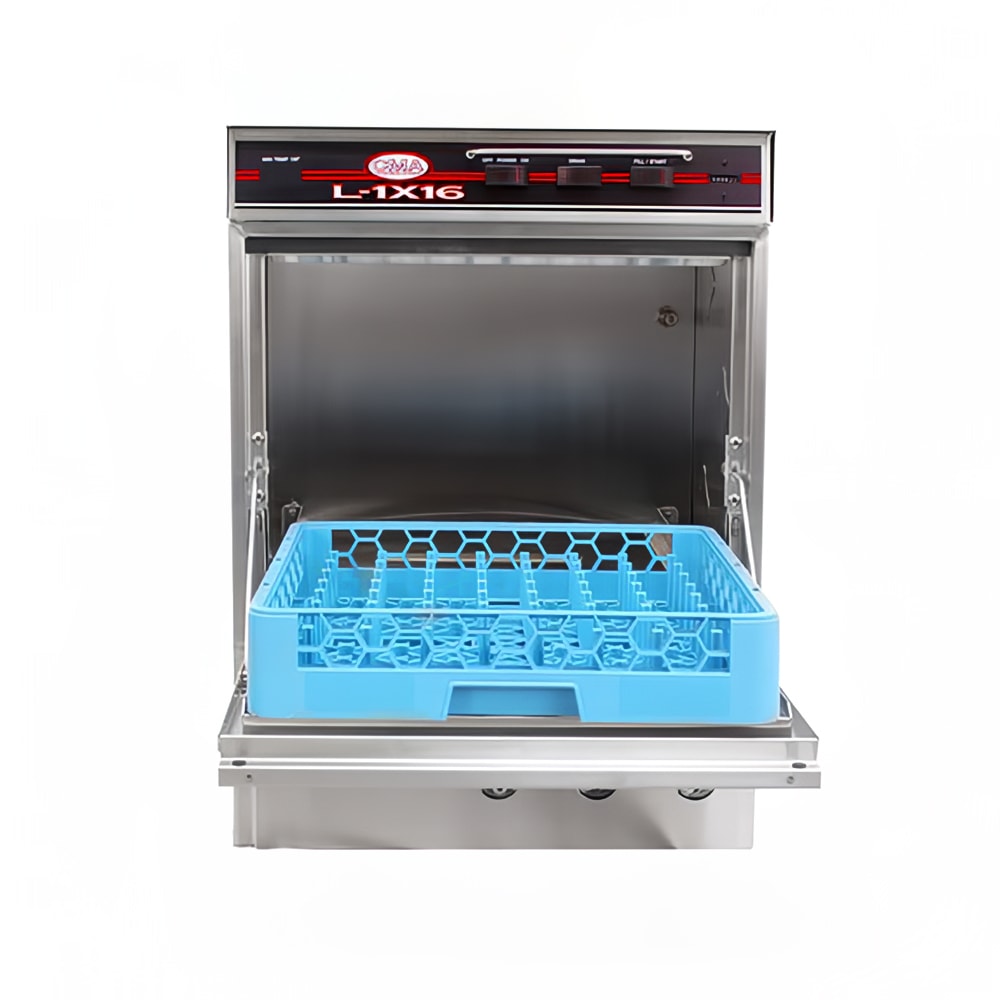

CMA Dishmachines L-1X16 W/HTR Low Temp Rack Undercounter Dishwasher w/ 30 Racks/hr Capacity, 115v
Retail Price: $9,948.00
$5,969.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
CMA Dishmachines L-1X16 W/HTR Description
Each cycle in the CMA Dishmachines L-1X16 W/HTR low-temperature undercounter dishmachine is 2 minutes long, so in an hour, it can wash 30 racks. Meaning the operator must add chemicals to sanitize dishes instead of using a hot-water rinse cycle, it's a low-temperature model. Between cycles, the sustainer heater keeps the wash tank temperature warm, and the pump purging system eliminates soil and chemical carryover to the rinse cycle.
This CMA Dishmachines L-1X16 W/HTR rack undercounter dishwasher has a 16-inch dish clearance to accommodate tall platters and glassware. It comes with an open rack for utensils and flatware and a peg rack that steadies dishes and drinkware. After loading the dishwasher and starting the cycle, the cycle automatically pauses if the door is opened to prevent spills. In the removable electrical drawer, operators can access all the electrical components, while the entire unit is made of stainless steel—a durable material that resists corrosion and eases cleaning.
- Washes 30 racks per hr.
- 120-sec. total wash cycle
- Low-temperature sanitization uses chemicals instead of hot water
- Built-in chemical pumps and deliming system provide the correct amount of chemicals
- Built-in primer switches
- Instant start
- Sustainer heater stabilizes the wash tank temperature between cycles
- Unique upper and lower stainless steel wash arm system has reinforced end caps
- 1-HP wash pump
- Each cycle uses 1.7 gal. of water
- Pumped drain
- Pump purging system prevents chemical and debris carryover into rinse
- Built-in water inlet strainer reduces the risk of valve clogging
- 16-in. dish clearance
- Door safety switch stops the cycle when door is opened
- Removable stainless steel drawer houses the electrical parts
- Reliable, long-lasting stainless steel construction
- 4-in. stainless steel legs are adjustable to maintain stability
- 1 open rack
- 1 peg rack
- 24 in. W x 23 1⁄2 in. D x 34 1⁄4 in. H
- 16 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on CMA Dishmachines L-1X16 W/HTR within the 48 contiguous states.
From The Manufacturer
Dishwasher, undercounter, 24-1/4"W x 23-1/2"D x 34-1/4"H, with sustainer heater, low temperature chemical sanitizing, (30) racks/hour, 16"H dish clearance, built-in chemical pumps & deliming system, built-in primer switches & instant start, upper & lower stainless steel wash arms with reinforced end caps, pumped drain, pump purging system, built-in strainer for water inlet, door safety switch, electrical components housed in stainless steel drawer, stainless steel construction, includes (1) open & (1) peg rack, 1 HP wash pump, NSF, UL, cUL, 115v/60/1ph
CMA Dishmachines L-1X16 W/HTR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | CMA Dishmachines |
| Cycle Period | 2 min |
| Depth (in) | 23.5 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 1080 |
| Height (in) | 34.25 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 30 |
| Rating | Better |
| Special Features | Dual Wash Arms |
| Special Features | Low Water Usage |
| Type | Low Temp |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Water Inlet (in) | 1/2 |
| Width (in) | 24.25 |
| Weight | 196.00 |
- CMA Dishmachines L1X16
Compare to Similar Items
| Attributes |
CMA Dishmachines L-1X16 W/HTR CMA Dishmachines L-1X16 W/HTR Low Temp Rack Undercounter Dishwasher w/ 30 Racks/hr Capacity, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $5,969.00 / Each | $6,035.70 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 6 - 8 weeks | Typically ships in 4 - 8 Business Days |
| For Use With | Dish and Glass | Dish and Glass |
| Type | Low Temp | High Temp |
| Rating | Better | Better |
| Height (in) | 34.25 | 33.5 |
| Width (in) | 24.25 | 23.63 |
| Racks per Hour | 30 | 30 |
| Glasses per hour | 1080 | 750 |
| Voltage | 115 | 208 |
| Special Features | Dual Wash Arms | |
| Warranty | 1-year Limited Parts & Labor | 1-year Limited Against Defects in Material & Workmanship |
