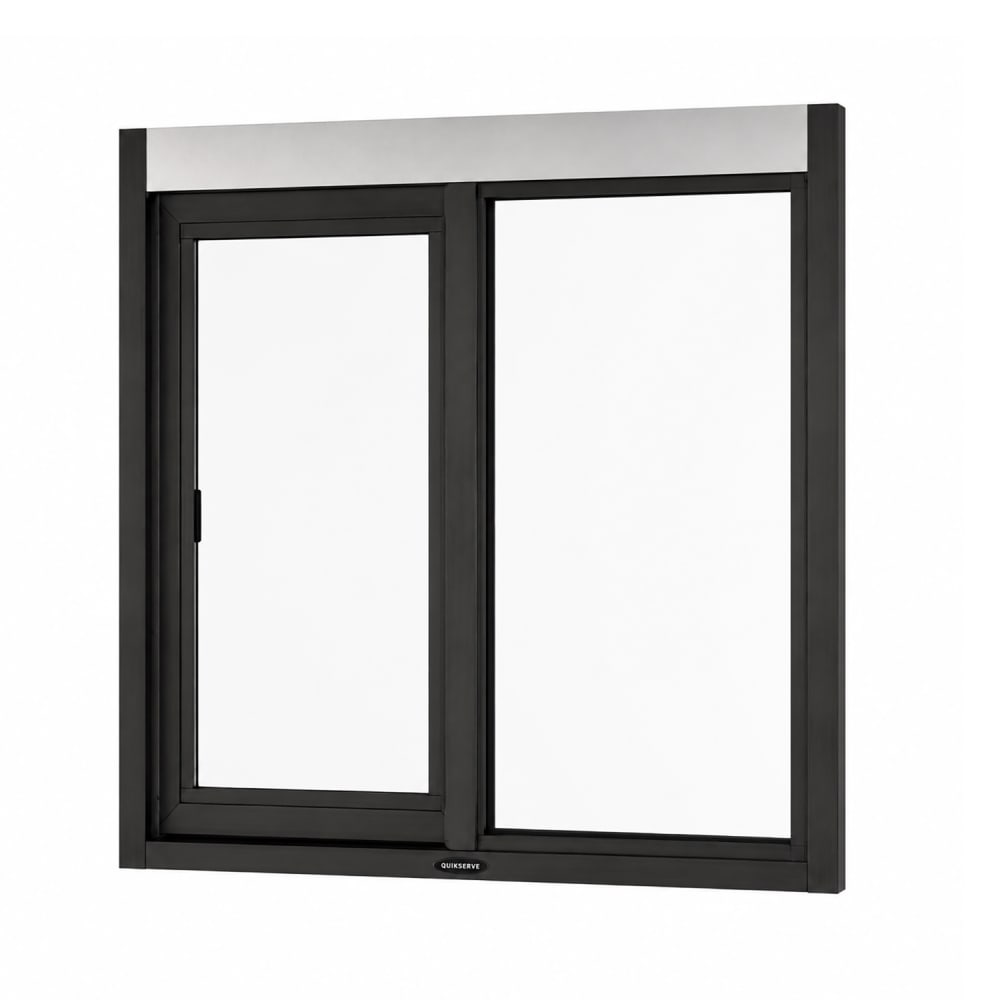

QuikServ IFSC-4040 48"W x 48"H Dark Bronze Left-to-Right Manual Drive-Thru Window
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $3,050.00
$1,899.00 /Each
Selected Window Opening Direction from Exterior: Left to Right
| Left to Right |
| Right to Left |
Selected Color: Dark Bronze
QuikServ IFSC-4040 Description
The QuikServ IFSC-4040 manual drive-thru window uses a top-hung ball bearing system for smooth movement across long shifts. Its self-closing design draws the panel back into place to help conserve energy and maintain security, while an offset base channels water away from the service line and discourages intrusion. Insulated glass options support indoor comfort by limiting heat transfer and softening exterior noise, and the anodized aluminum frame delivers a durable, professional finish.
Product Details
- Manual open with self-closing function
- Left-to-right sliding direction (from exterior)
- 5⁄8-in. fully glazed insulated glass
- 1-in. clear insulated sealed glass unit
- Anodized aluminum frame
- Built-in microswitch
- Maximum-security hook-bolt lock; automatic locking when closed
- Flush-mounted exterior installation
- Top-hung ball bearing system
- Weather resistant and sealed
- Service opening: 20 1⁄4 in. W x 41 in. H
- Overall dimensions: 48 in. W x 4 1⁄2 in. D x 48 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Manual Open/Self-Closing Single Slider Drive-Thru Window, left to right (from exterior), 1" clear insulated glass, pre-installed microswitch, dark bronze, 48"W x 4-1/2"D x 48"H
QuikServ IFSC-4040 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | QuikServ |
| Color | Bronze |
| Direction | Left to Right |
| Operation | Manual Open w/ Self Close |
| Overall Depth (in) | 4.5 |
| Overall Height (in) | 48 |
| Overall Width (in) | 48 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 48.38 |
| Rough Opening Width (in) | 48.38 |
| Service Opening Height (in) | 41 |
| Service Opening Width (in) | 20.25 |
| Special Features | Lockable |
| Warranty | 1-year Limited |
| Weight | 131.00 |
