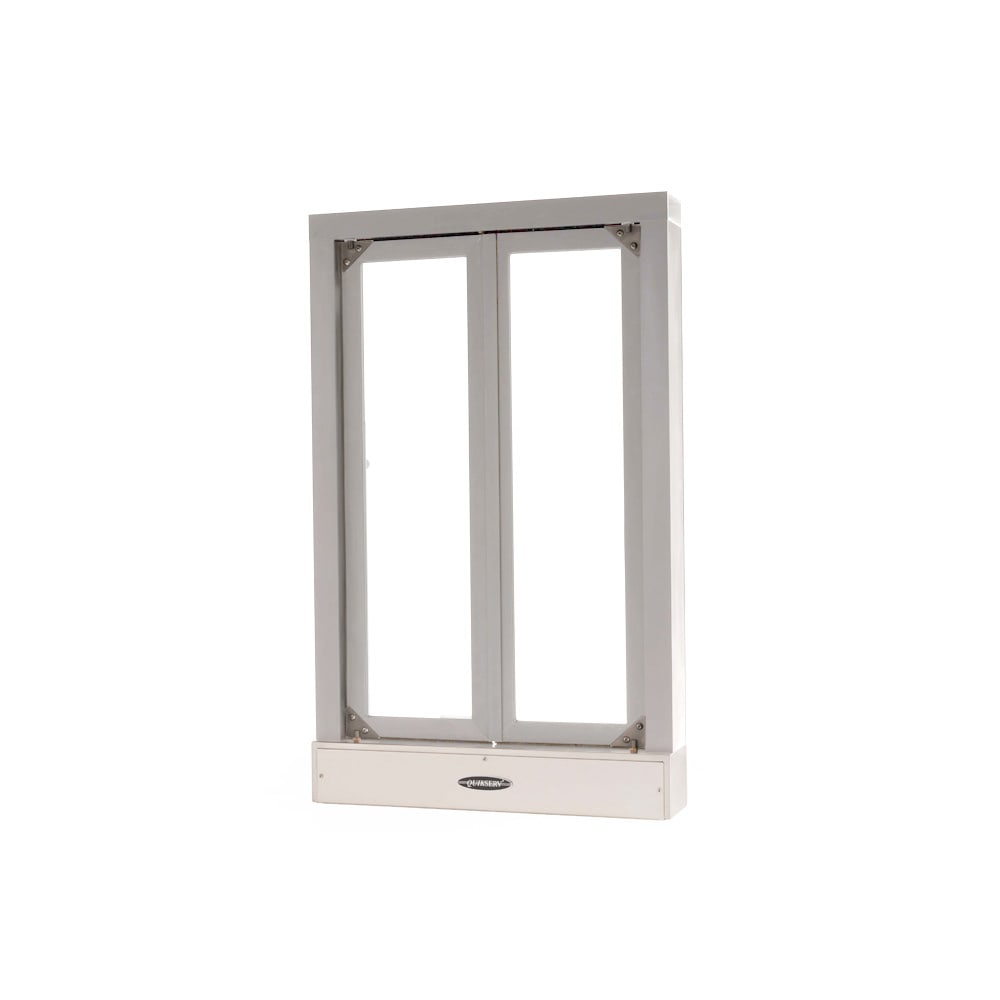

QuikServ CM-1 24"W x 38 1/2"H Clear Aluminum Bi-Folding Manual Drive-Thru Window
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $2,636.00
$1,647.50 /Each
Selected Color: Clear Aluminum
QuikServ CM-1 Description
The QuikServ CM-1 bi-folding manual drive-thru window pairs a silver anodized aluminum frame with weather-resistant sealing to protect the service area from drafts and moisture. Clear 1⁄4-inch tempered safety glass preserves sightlines during exchanges, while simultaneously operating doors open wide to ease pass-through of trays and beverages. A locking bar with slide-bolt locks secures the unit after hours.
Product Details
- Manual open, self-closing bi-folding window
- 1⁄4-in. clear tempered safety glass
- Anodized aluminum frame
- Locking bar and slide-bolt locks
- Security locking system
- Weather resistant and sealed
- Simultaneously operating doors
- Flush-mounted exterior installation
- Silver
- Service opening: 16 in. W x 32 in. H
- Overall dimensions: 24 in. W x 4 3⁄4 in. D x 38 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Flush-Mount Manual Bi-Folding Drive-Thru Window, 1/4" tempered glass, clear aluminum, 24"W x 4 3/4"D x 38-1/2"H
QuikServ CM-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | QuikServ |
| Color | Silver |
| Direction | Bi-Folding |
| Operation | Manual Open & Close |
| Overall Depth (in) | 4.75 |
| Overall Height (in) | 38.5 |
| Overall Width (in) | 24 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 38.88 |
| Rough Opening Width (in) | 24.38 |
| Service Opening Height (in) | 32 |
| Service Opening Width (in) | 16 |
| Warranty | 1-year Limited |
| Weight | 48.00 |
