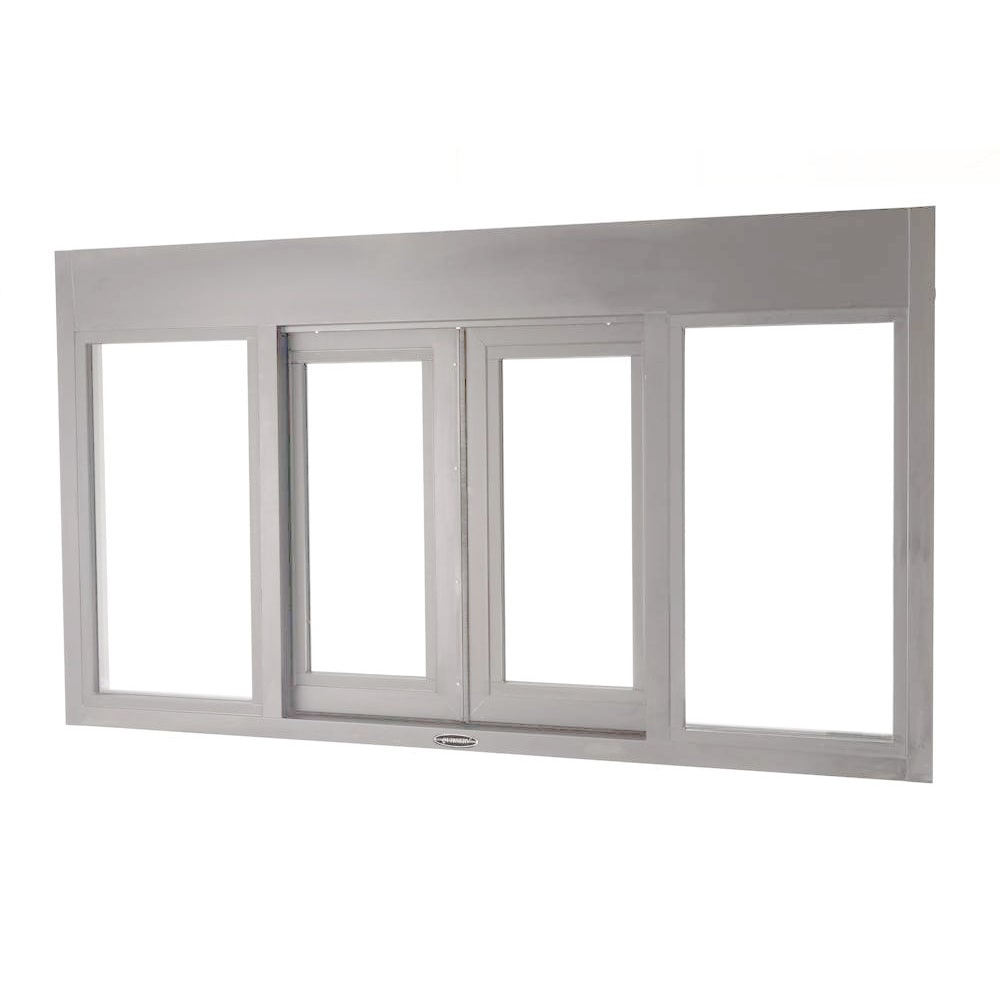

QuikServ BP-7241E 72"W x 41"H Clear Aluminum Bi-Parting Electric Drive-Thru Window
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $6,670.00
$3,877.91 /Each
Selected Color: Clear Aluminum
QuikServ BP-7241E Description
The QuikServ BP-7241E drive-thru window is constructed with a clear anodized aluminum frame and 1⁄4-inch tempered glass. Bi-parting, sliding doors activate automatically through a built-in thru-beam sensor for touchless service. Measuring 72 inches wide by 4 1⁄2 inches deep by 41 inches high, this unit incorporates a locking mechanism to limit access when not in use, while its 29 1⁄2-inch-wide by 31-inch-high opening supports efficient handoff.
- 1⁄4-in. tempered glass
- Clear anodized aluminum frame
- Fully automatic operation with thru-beam sensor
- Bi-parting, sliding doors
- Locking mechanism
- Service opening: 29 1⁄2 in. W x 31 in. H
- Overall: 72 in. W x 4 1⁄2 in. D x 41 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Fully-Automatic Bi-Parting Drive-Thru Window, sliding, 1/4" tempered glass, electric thru-beam operation, clear aluminum, 72"W x 4-1/2"D x 41"H
QuikServ BP-7241E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | QuikServ |
| Amps | 15 |
| Color | Silver |
| Direction | Bi-Parting |
| Hertz | 60 |
| Operation | Fully Automatic Electric |
| Overall Depth (in) | 4.5 |
| Overall Height (in) | 41 |
| Overall Width (in) | 72 |
| Phase | 1 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 41.38 |
| Rough Opening Width (in) | 72.38 |
| Service Opening Height (in) | 31 |
| Service Opening Width (in) | 29.5 |
| Voltage | 115 |
| Warranty | 1-year Limited |
| Weight | 170.00 |
