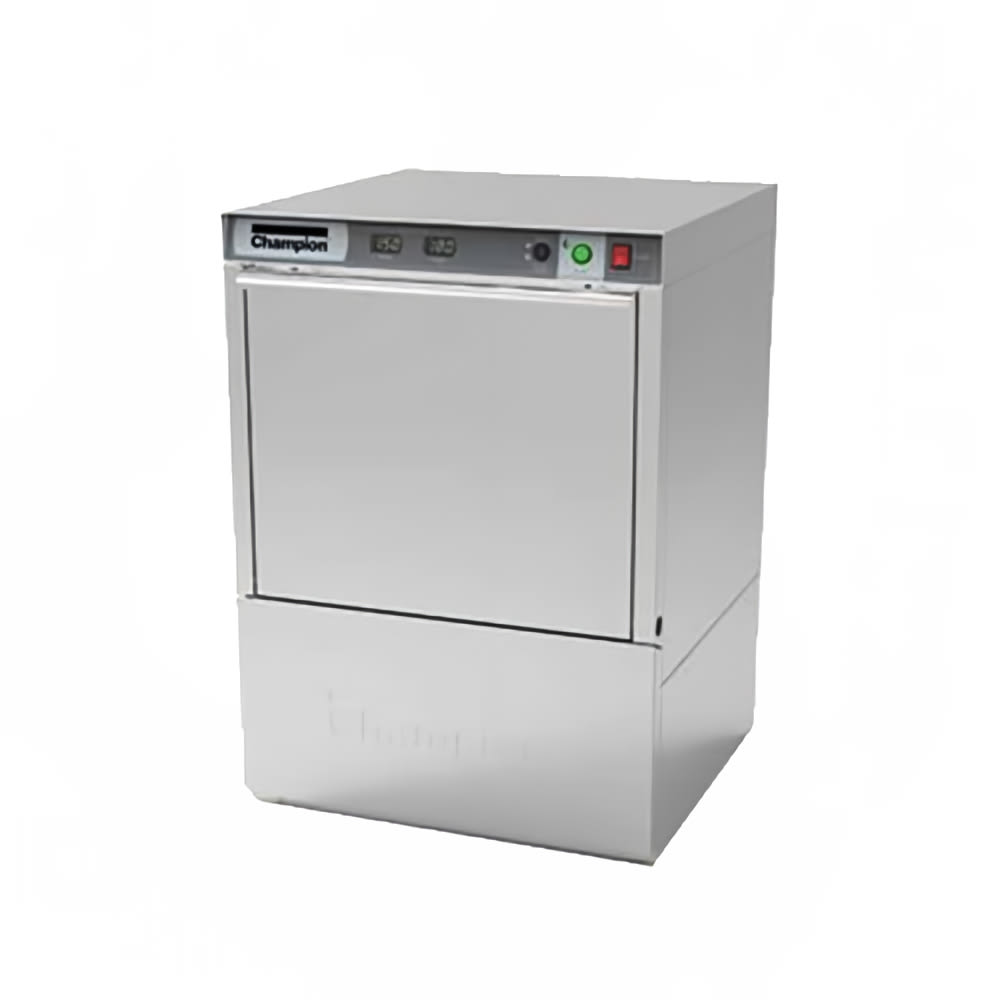

Champion UH130B High Temp Rack Undercounter Dishwasher w/ 25 Racks/hr, Built-in Booster, 208v/1ph
The Champion UH130B commercial dishwasher cleans 25 racks an hour at 2 minutes and 21 seconds per cycle. It features a delime cycle to remove mineral deposits from the chamber, as well as Wash Refresh...
Champion UH130B High Temp Rack Undercounter Dishwasher w/ 25 Racks/hr, Built-in Booster,240v/1ph
Champion UH130B Description

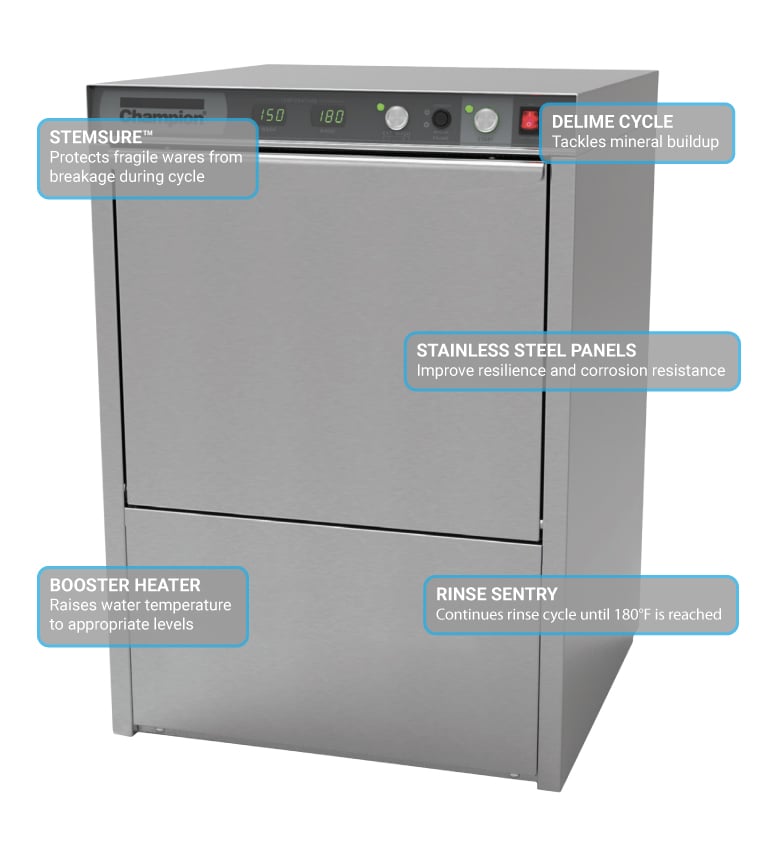

The Champion UH130B commercial dishmachine uses a delime cycle to break down mineral residue in the chamber. It is a high-temperature unit, so rather than using a chemical bath like low-temperature units, this one uses its built-in booster to heat water to 180 degrees Fahrenheit, killing bacteria and sanitizing the load. Able to wash 25 racks an hour, this unit has a WashRefresh™ feature that drains soiled water and runs fresh water in for each cycle.
To protect fragile wares from chipping or breaking, the Champion UH130B undercounter dishwasher has a StemSure™ soft start for each cycle. Rinse Sentry keeps the rinse cycle going until it hits 180 degrees Fahrenheit, ensuring proper sanitization. The machine's double-wall construction lowers noise and is great for use in front-end operations. Because its sides and top are stainless steel, this dishwasher is durable and resists corrosion and rust.
Product Details
- High-temperature dishwasher
- Uses 38 gal. of water per hr.
- Can clean 25 racks per hr.
- Low-water protection for tank heat
- Detergent and rinse aid pumps
- StemSure for delicate object protection
- 15.75-in. door opening enables users to load sizable items
- Stainless steel side panels and top increase resilience
- Delime cycle deals with mineral deposits
- 2 min. 21 sec. cycle
- Booster heater warms incoming water to sanitary levels
- Rinse Sentry extends rinse cycle until water temperature is 180 degrees F
- Digital temperature monitoring
- Door safety switch
- Wash Refresh automatically empties chamber of used wash water
- Double-wall construction improves unit quietness
- Minimum incoming water temperature: 110 degrees F
- Ideal incoming water pressure: 25-95 PSI
Product Features
Dimensions & Utilities
- 24 in. W x 25 in. D x 33.75 in. H
- 36 A, 8 kW, 1 HP
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Champion UH130B within the 48 contiguous states.
From The Manufacturer
Dishwasher, undercounter, 24"W x 25"D x 33-3/4"H, high temperature sanitizing, with StemsSure™ soft start to protect glasses & dishes from chipping & breaking, (25) racks per hour capacity, 141 second cycle, top mounted controls with prime switch, 15-3/4"H door opening, door safety switch, advanced digital thermometer monitoring, stainless steel top & side panels, quiet double-wall construction, detergent & rinse aid pumps, pumped drain, built-in electric booster for 180°F final rinse water (standard 70°F/39°C rise), rinse sentry – extends the cycle time to ensure 180°F final rinse, low-water tank heat protection, automatic tank fill, (1) peg rack, (1) flat rack, 1 HP wash pump motor, fill & dump operation, Shear Energy – a reduction in energy requirements while maximizing performance, Multi-Power – includes: Multi-Volt & Multi-Phase (Allows for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus, 240v/60/1ph
Champion UH130B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Champion |
| Also Known As | UH-100B(70), UH-130B(70) |
| Cycle Period | 2 min 21 sec |
| Depth (in) | 25 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 900 |
| Height (in) | 33.75 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 25 |
| Rating | Better |
| Special Features | Built In Booster |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 1/2 |
| Width (in) | 24 |
| Weight | 215.00 |
Important Prop 65 information for California residents.
- Champion UH130B (Replacement)
Compare to Similar Items
| Attributes |
Champion UH130B Champion UH130B High Temp Rack Undercounter Dishwasher w/ 25 Racks/hr, Built-in Booster,240v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $6,892.73 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | |
| For Use With | Dish and Glass | Dish and Glass |
| Type | High Temp | High Temp |
| Rating | Better | Better |
| Height (in) | 33.75 | 33.75 |
| Width (in) | 24 | 24 |
| Racks per Hour | 25 | 25 |
| Glasses per hour | 900 | 900 |
| Voltage | 240 | 208 |
| Special Features | Built In Booster | Built In Booster |
| Warranty | 1-year Parts & Labor | 1-year Parts & Labor |
