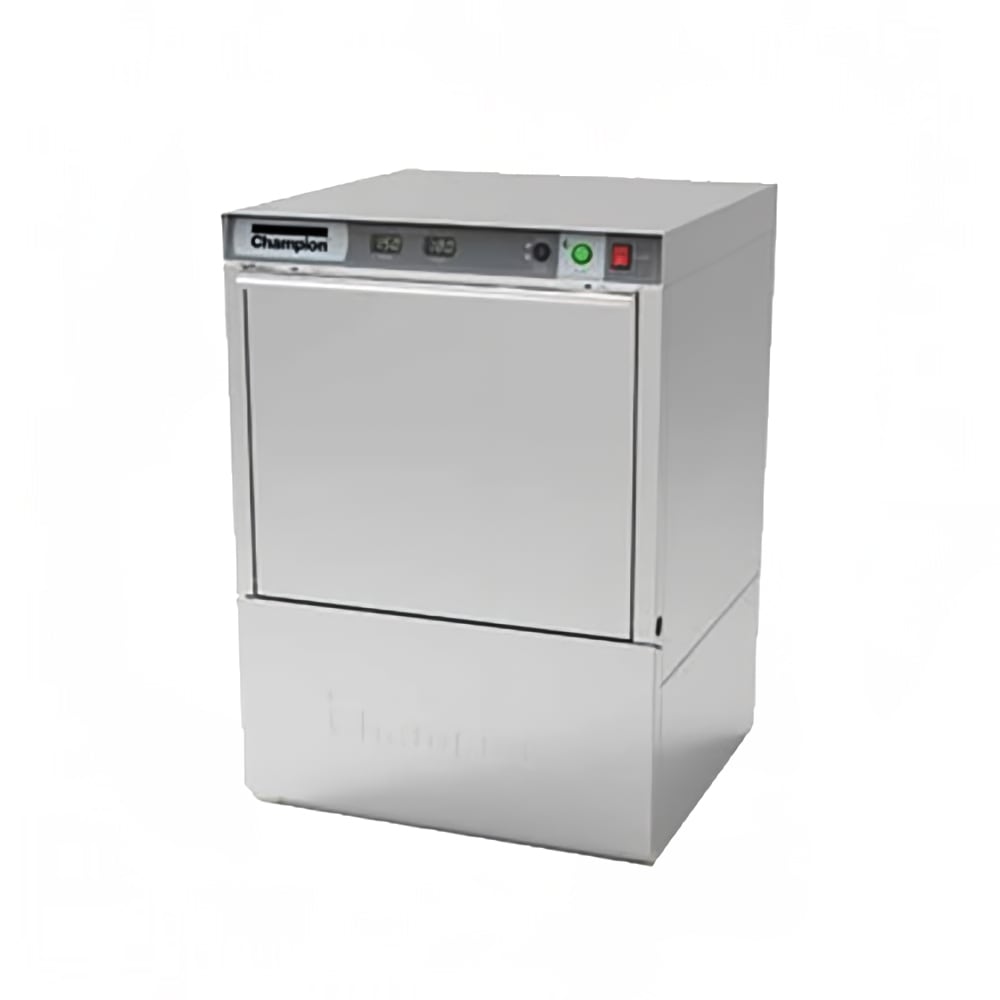

Champion UH-130B High Temp Rack Undercounter Dishwasher - (25) Racks/hr, 208v/3ph

KaTom #: 462-UH130B702083 • MPN: UH-130B(70) 2083

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $6,390.00
$4,473.00 / Each

Champion UH-130B Description

Champion's UH-130B (70) 25-rack undercounter dishwasher features a StemSure™ soft-start feature, which protects glasses and dishes from chipping and breaking. This unit, with a stainless steel top and side panels, also has a Wash Refresh™ program, where water is automatically drained for the next cycle, assuring heavily-stained items are sanitized consistently with new wash water. Detergent and rinse aid pumps are included, along with a Multi-Power operation featuring Multi-Volt and Multi-Phase mechanisms, which allows infield conversion to 208 to 240 volts or single to three phase easily.

Product Details:

  • StemSure™ feature protects glasses and dishes from chipping and breaking
  • Stainless steel top and side panels
  • Wash Refresh™ program automatically drains water for the next cycle assuring heavily-stained items are sanitized consistently with new wash water
  • Detergent and rinse aid pumps
  • Multi-Power operation features Multi-Volt and Multi-Phase mechanisms that allows infield conversion to 208-240 V or 1 to 3-ph
  • Features Shear Energy, reducing energy requirements while assuring reliable performance
  • Extended wash for difficult ware cleaning and de-liming
  • Independent stainless steel interchangeable upper and lower wash and rinse arms
  • Rinse Sentry feature extends the cycle time to ensure final rinse at 180 degrees F
  • Built-in 70 degree F rise electric booster for 180 degree F final rinse water
  • Pumped drain
  • Low-water tank heat protection keeps components safe from low water conditions
  • Quiet double-wall construction reduces ambient noise in the dish room
  • Door safety switch protects from accidental opening
  • 141 sec. cycle
  • Independent stainless steel interchangeable upper and lower wash and rinse arms
  • Top mounted slide-out controls for simpler maintenance and servicing
  • Automatic tank fill
  • 1-hp motor
  • Includes advanced digital temperature monitoring
  • 208 V/60 hz/1-ph
  • Overall Dimensions: 24-in. W x 25-in. D x 33-3/4 in. H
  • cETLus Listed, NSF Certified

Dishwasher, undercounter, 24"W x 25"D x 33-3/4"H, high temperature sanitizing, with StemsSure™ soft start to protect glasses & dishes from chipping & breaking, (25) racks per hour capacity, 141 second cycle, top mounted controls with prime switch, 15-3/4"H door opening, door safety switch, advanced digital thermometer monitoring, stainless steel top & side panels, quiet double-wall construction, detergent & rinse aid pumps, pumped drain, built-in electric booster for 180°F final rinse water (standard 70°F/39°C rise), rinse sentry – extends the cycle time to ensure 180°F final rinse, low-water tank heat protection, automatic tank fill, (1) peg rack, (1) flat rack, 1 HP wash pump motor, fill & dump operation, Shear Energy – a reduction in energy requirements while maximizing performance, Multi-Power – includes: Multi-Volt & Multi-Phase (Allows for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Champion UH-130B Specifications

PDF Spec Sheet
Manufacturer Champion
Depth (in) 26
Height (in) 33.75
Racks per Hour 25
Width (in) 24
Design Rack
For Use With Dish and Glass
Voltage 208/60/3
Specialty Options Booster Heater Included
Specialty Options Rack Included
Type High Temp
Also Known As UH-100B(70), UH-130B(70)
Specialty Options Dual Wash Arms
Weight 215.00
Champion UH-130B Certifications
  • NSF
  • ETL
