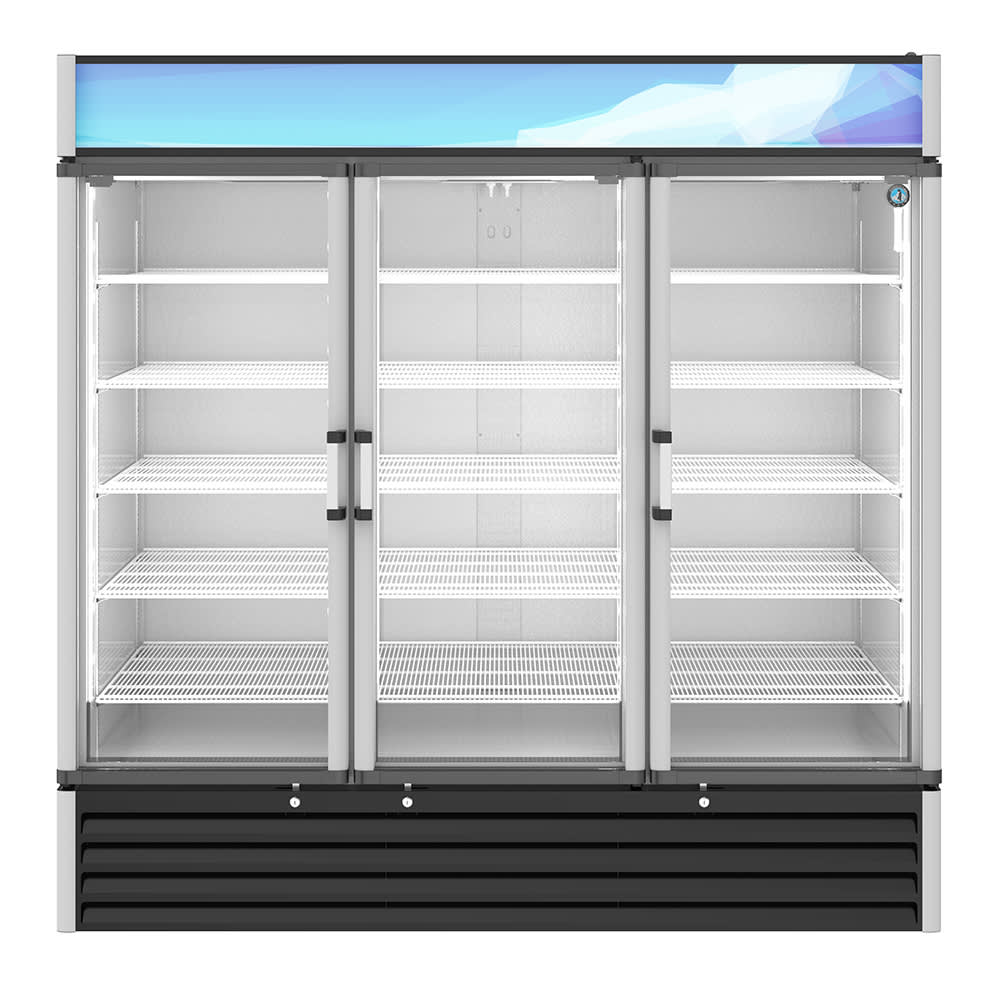

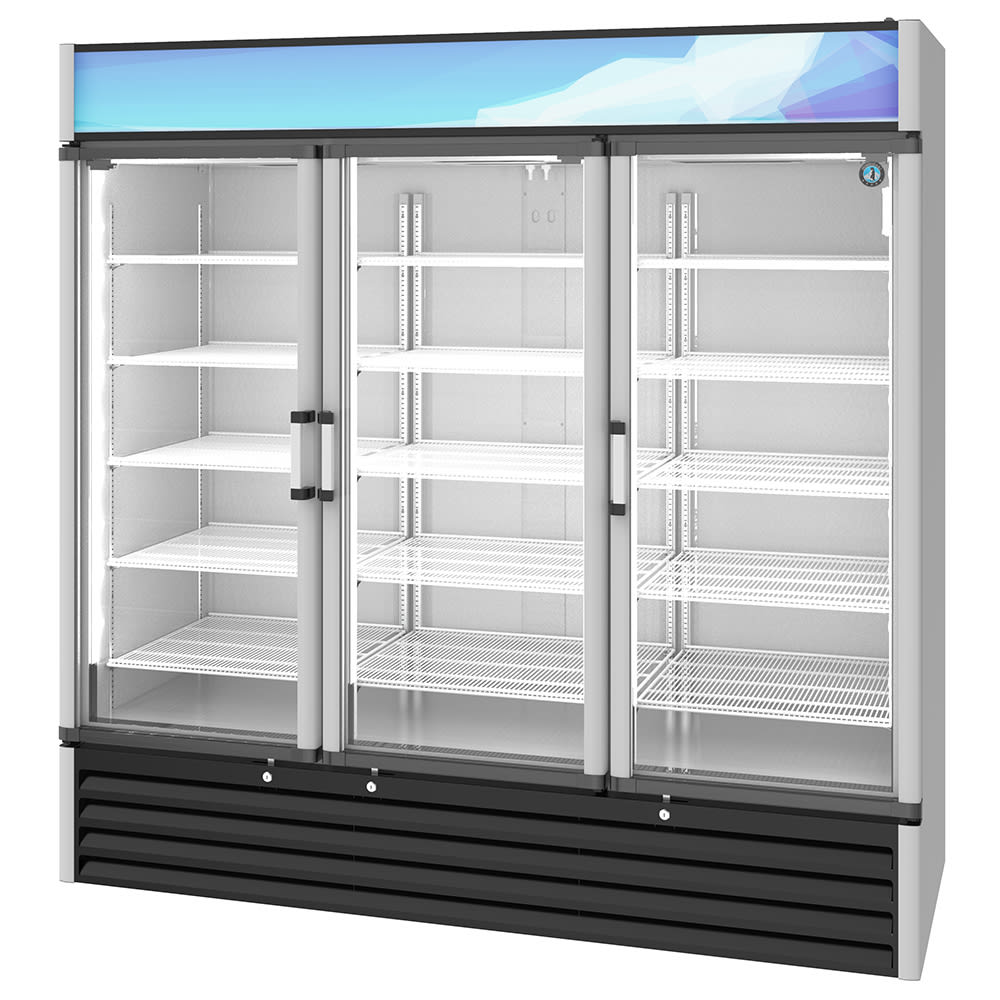

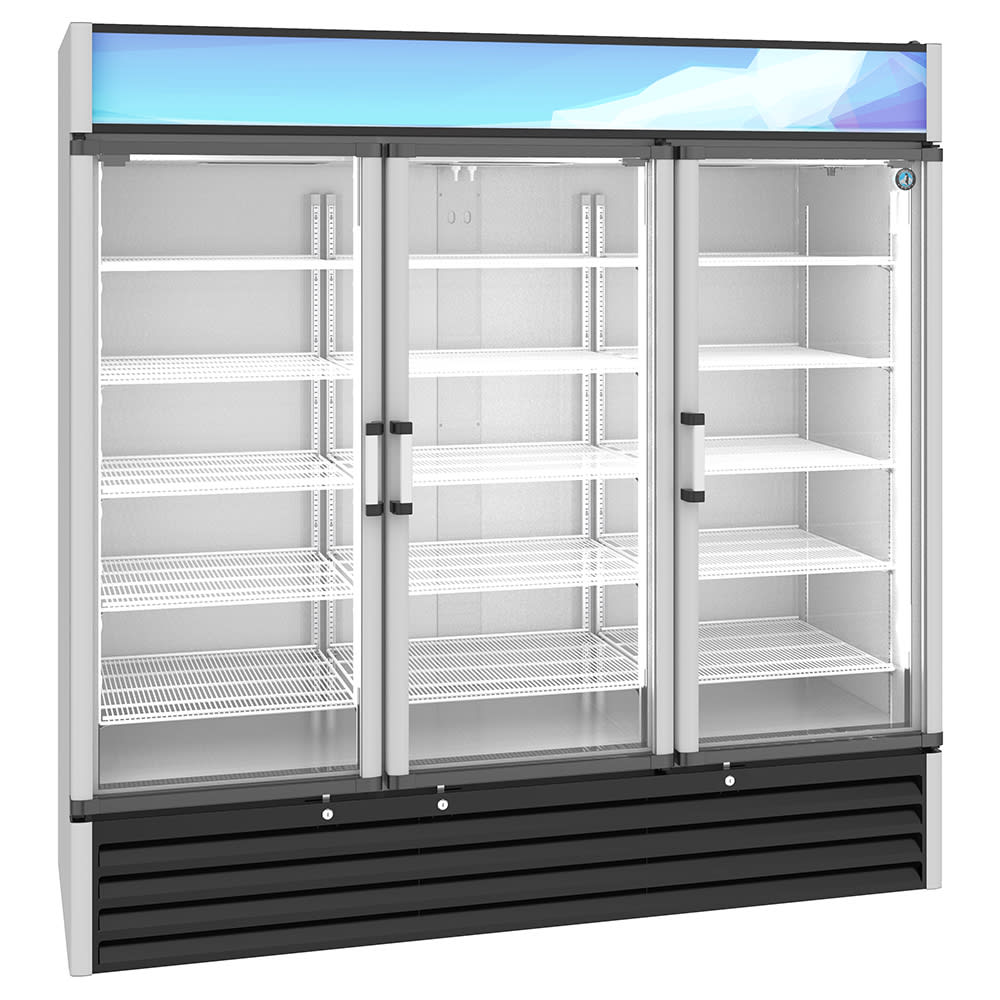

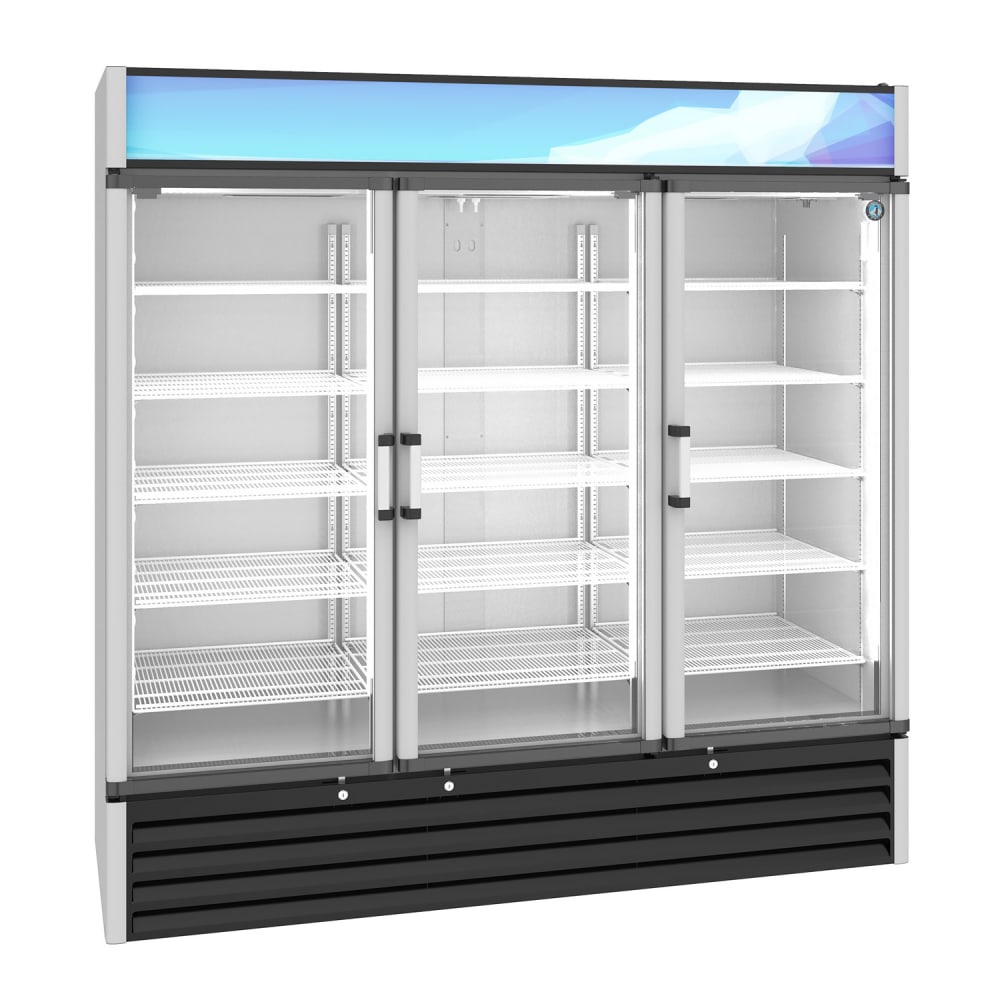

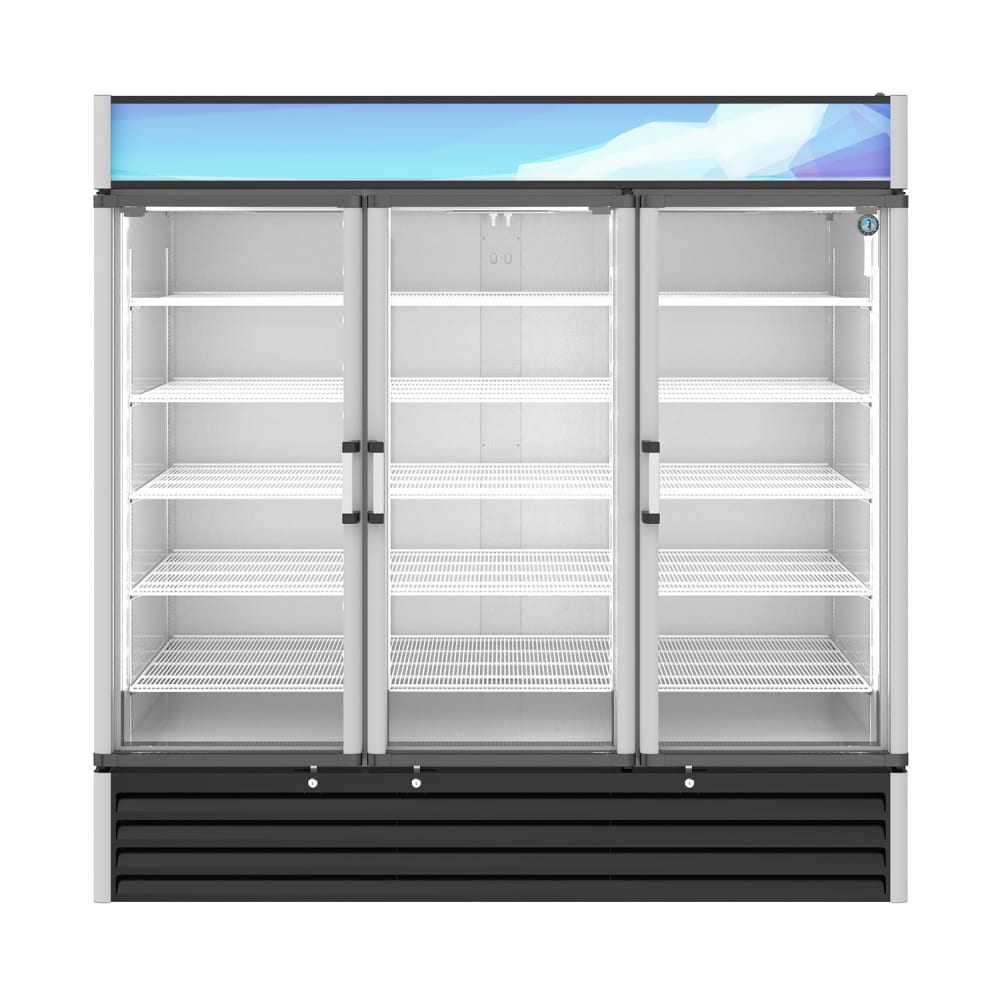

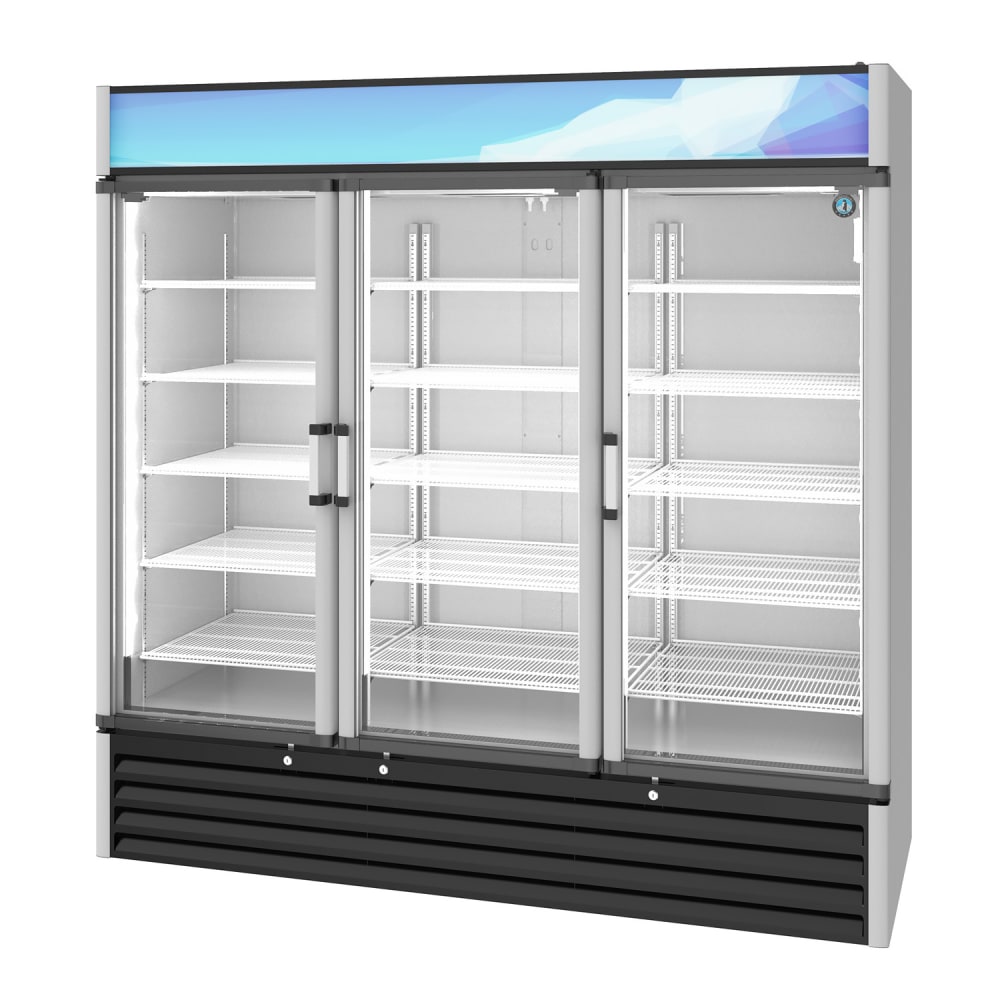

Hoshizaki RM-65-HC 78" RM Series Three Section Glass Door Merchandiser - (3) Left/Right Hinge Doors, Silver, 115v

The Hoshizaki RM-65-HC refrigerated merchandiser, part of the RM Series, is built for high-volume product display with a three-section reach-in design and a 56.04-cubic-foot refrigerated capacity. It has three glass doors with left- and right-hinge configurations, each equipped with locks for security. The LED-illuminated canopy and vertical LED lighting enhance product visibility, while 15 adjustable white epoxy-coated shelves can be positioned in ¹/₂-inch increments. The exterior is constructed of silver-painted aluminum, and the interior features a white steel finish with a stainless steel floor.

The Hoshizaki RM-65-HC glass merchandiser operates with a bottom-mounted, self-contained refrigeration system that circulates cold air evenly through forced-air cooling. A digital controller with a temperature display and high/low alarms ensures precise monitoring, while an automatic electric defrost system prevents ice buildup. The hot gas loop minimizes condensation on the cabinet’s front edge, and heavy-duty self-closing hinges help maintain internal temperatures.

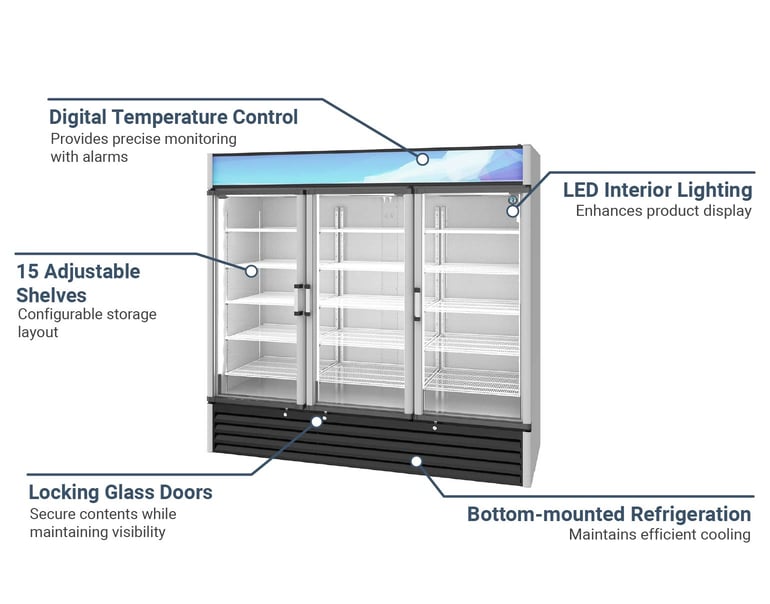

Product Details

• RM Series
• 56.04-cu.-ft. overall capacity
• 3 sections
• Constructed of silver-painted aluminum
• Reach-in design
• 3 locking glass doors with left- and right-hinge configurations
• White steel interior with stainless steel floor
• 15 adjustable white epoxy-coated shelves (5 per section)
• ¹/₂-in. increment adjustments
• LED interior lighting and LED-illuminated canopy
• Hot gas loop minimizes condensation
• Self-closing door hinges
• 2-in. leveling legs

Refrigeration System

• Bottom-mounted, self-contained refrigeration system
• Forced-air cooling
• Front-breathing design
• R290 hydrocarbon refrigerant
• Electronic controller with digital display
• High/low temperature alarm
• Automatic condensate evaporator
• Evaporator coil
• Time-initiated automatic defrost system
• Automatic electric defrost
• Temperature holding range: 28-40 degrees F

Dimensions & Utilities

• Interior: 73¹/₄ in. W x 22⁵/₈ in. D x 60⁷/₁₆ in. H
• Shelf dimensions:
• Center shelf: 27³/₁₀ in. W x 21⁷/₁₀ in. D
• Left and right shelves: 22²/₅ in. W x 21⁷/₁₀ in. D
• Overall: 78 in. W x 29³/₄ in. D x 78¹⁵/₁₆ in. H
• (2)¹/₃ HP compressors
• 8.2 A, 5.67 kW
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki RM-65-HC within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, reach-in, three-section, 56.04 cu. ft., bottom mount self-contained refrigeration system, (3) glass hinged doors (locking), (15) adjustable shelves, LED interior lighting, digital controller with temperature alarms & display, LED illuminated canopy, forced-air cooling, silver painted aluminum exterior, white steel interior & stainless steel floor, R290 Hydrocarbon refrigerant, (2) 1/3 HP, NEMA 5-15P, cULus, UL EPH

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts

Hoshizaki RM-65-HC Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual
