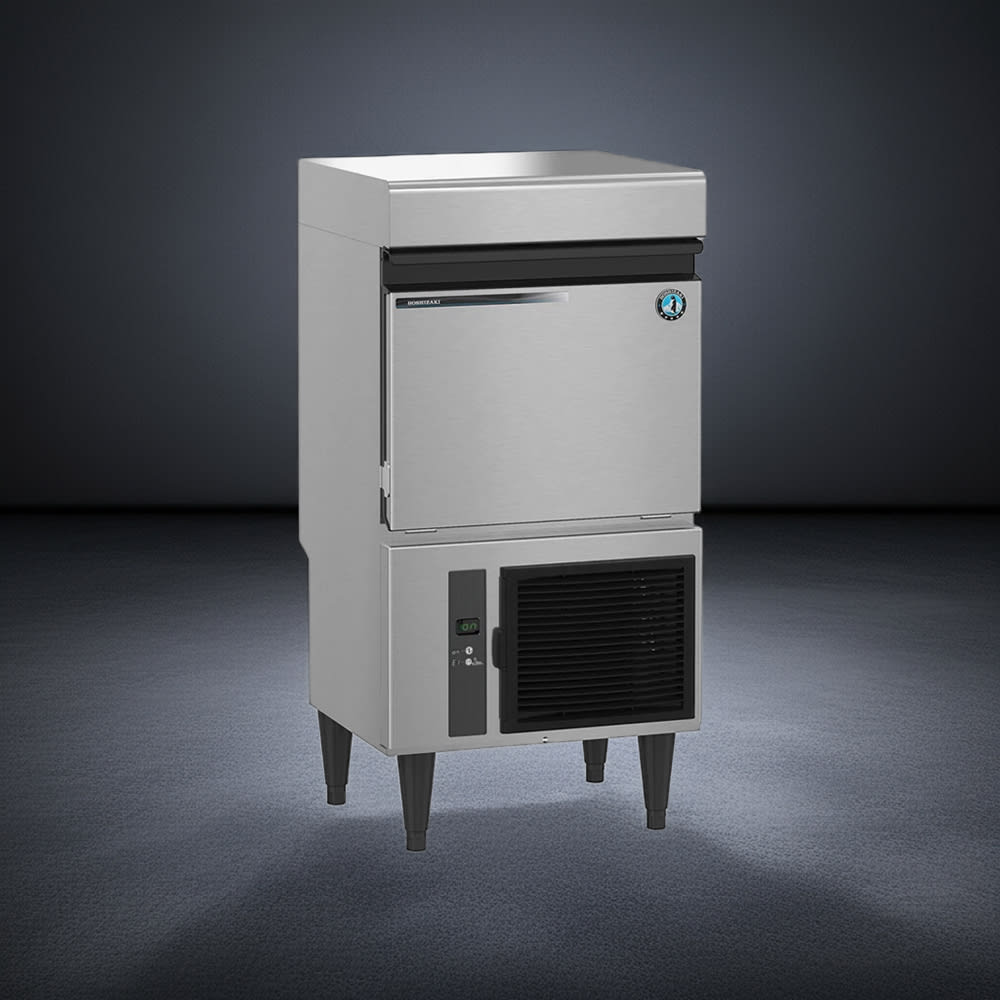

Hoshizaki IM-50BAA-LM 19 3/4"W Undercounter Full Cube Ice Machine - 50 lbs/day, Air Cooled
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,205.00 /Each
Contact us for details!
Hoshizaki IM-50BAA-LM Description
When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees, the Hoshizaki IM-50BAA-LM undercounter ice machine produces 50 pounds of full-cube ice over a 24-hour period. This ice is large enough to cool cocktails or mocktails. This ice maker features a self-contained, air-cooled condenser that utilizes R134a hydrocarbon refrigerant. The interior is insulated with foamed-in-place polyurethane to reduce the rate at which melting occurs, and to retrieve this ice, this unit includes a scoop.
Overall, the Hoshizaki IM-50BAA-LM undercounter ice machine measures 19 3⁄4 inches wide by 17 3⁄4 inches deep by 39 1⁄2 inches high, and for installation, it requires a minimum clearance of 6 inches on all sides. It sits on level, 6-inch legs to minimize debris or dust that may circulate inside the condenser. Because it's constructed of stainless steel, it resists corrosion and is durable enough for frequent use.
- Produces 50 lbs. per day
- 22-lb. built-in bin storage
- Cube dimensions: 1 9⁄10 in. x 1 9⁄10 in. x 2 3⁄10 in.
- Air-cooled, self-contained condenser
- Removable filter
- R134a refrigerant
- Foamed-in polyurethane insulation
- Stainless steel exterior
- Includes ice scoop
- 6-in. adjustable legs
- Ambient temperature range: 45-100 degrees F
- Water temperature range: 45-90 degrees F
- Pressure range: 10-113 PSIG
- 19 3⁄4 in. W x 17 3⁄4 in. D x 39 1⁄2 in. H
- 5.0 A, 15.7 kW
- 115 V/60 Hz/ 1 ph, 6 1⁄2-in. power cord with NEMA 5-15 P
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki IM-50BAA-LM within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki IM-50BAA-LM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 50 |
| Bin Capacity (lb) | 22 |
| Compressor Type | Air Cooled |
| Depth (in) | 17.75 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Stainless Door |
| Height (in) | 39.5 |
| Hertz | 60 |
| Ice Type | Extra-large Cube |
| Kitchen Innovations Awards | 2021 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | IM Series |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 19.75 |
| Weight | 137.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 50 lbs. of ice daily.
Yes. The bin holds 22 lbs. of ice.
It makes cubes measuring 1 ⁹⁄₁₀ in. x 1 ⁹⁄₁₀ in. x 2 ³⁄₁₀ in.
Yes. The unit requires 6-in. clearance.
A closed water circuit reduces contamination.
Yes. The air filter is removable.
A polyurethane insulation layer reduces melting.
The exterior is made of stainless steel.
