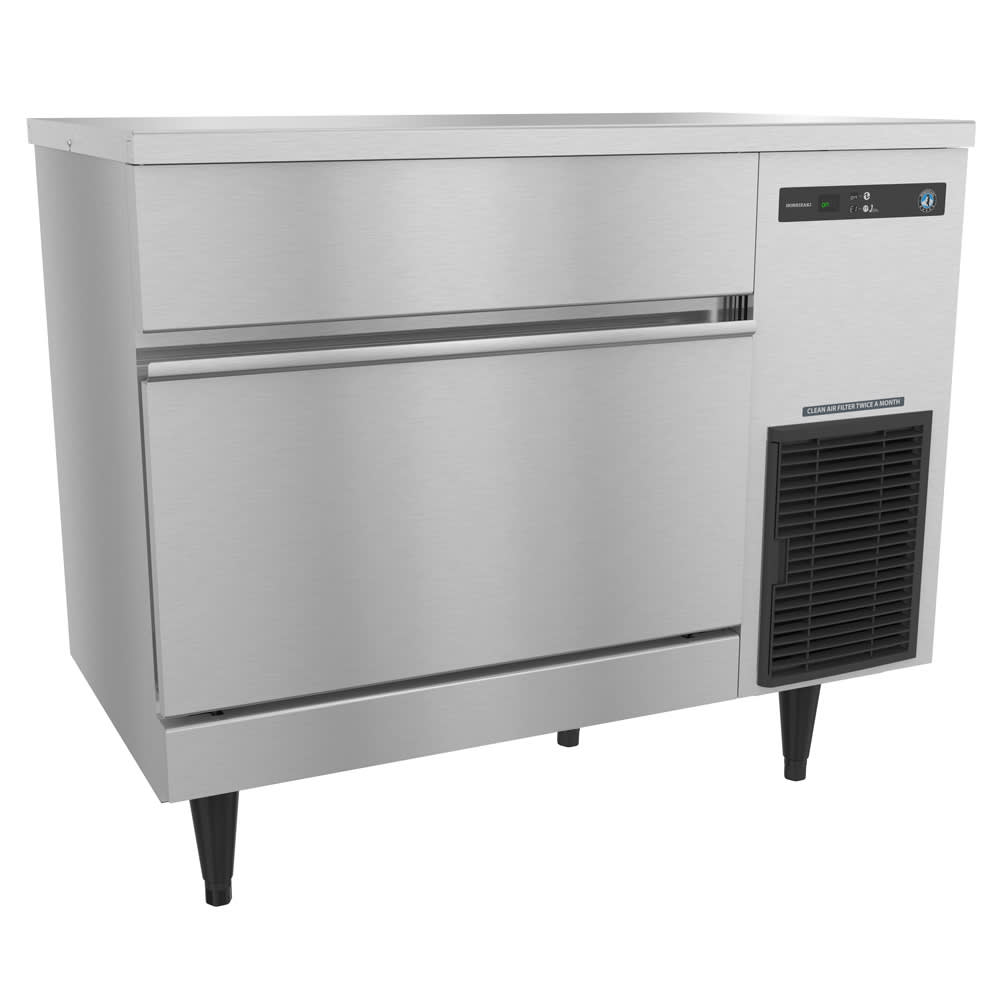

Hoshizaki IM-200BAK 39 1/2" Full Cube Undercounter Ice Machine - 186 lbs/day, Air Cooled
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,250.00 /Each
Contact us for details!
Hoshizaki IM-200BAK Description
The Hoshizaki IM-200BAK undercounter ice maker creates large, individual cubes of ice that are ideal for sodas or cocktails. It makes a maximum of 186 pounds of ice per day when operated in ideal conditions and can hold 75 pounds of ice in its built-in storage compartment.
The Hoshizaki IM-200BAK undercounter ice maker has a self-contained condenser that uses R404A refrigerant. It’s cooled by air, so it can be installed in most applications. The unit’s control system uses EverCheck™ alerts that tell nearby users when it requires maintenance.

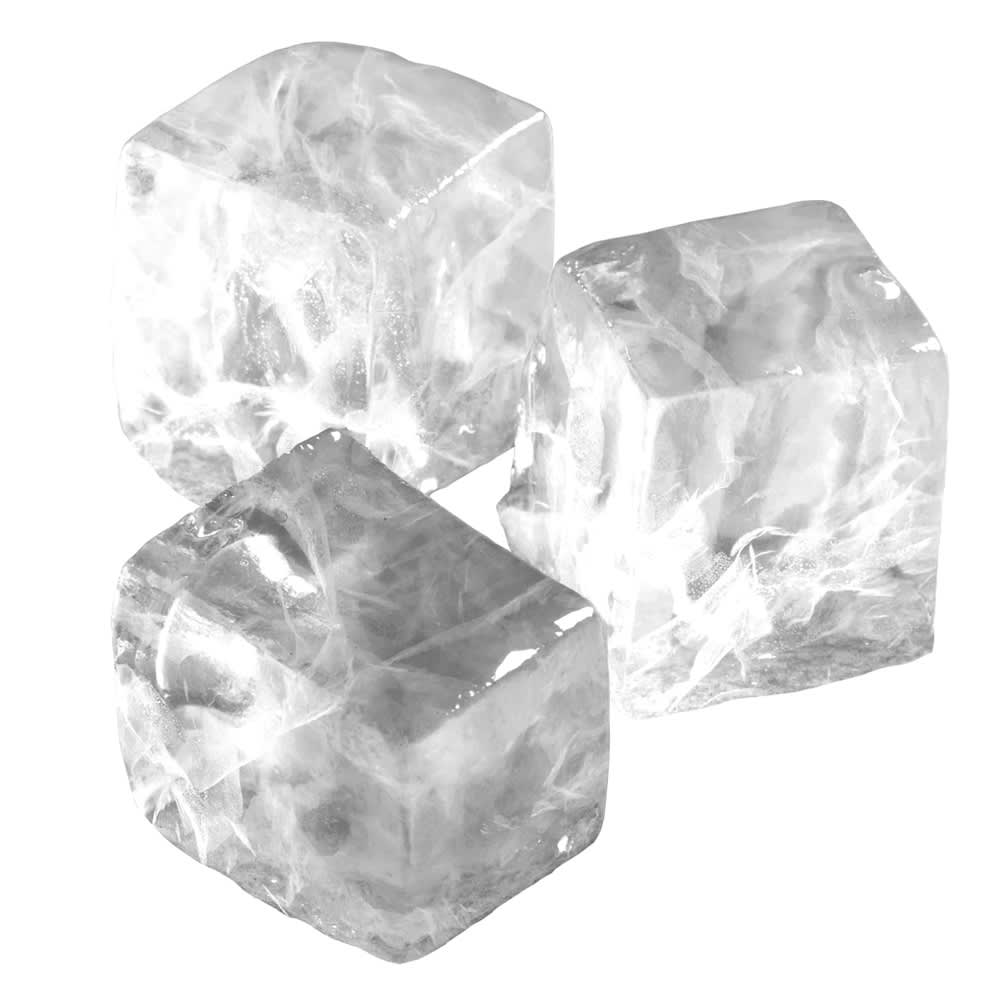

- Makes individual cube-style ice

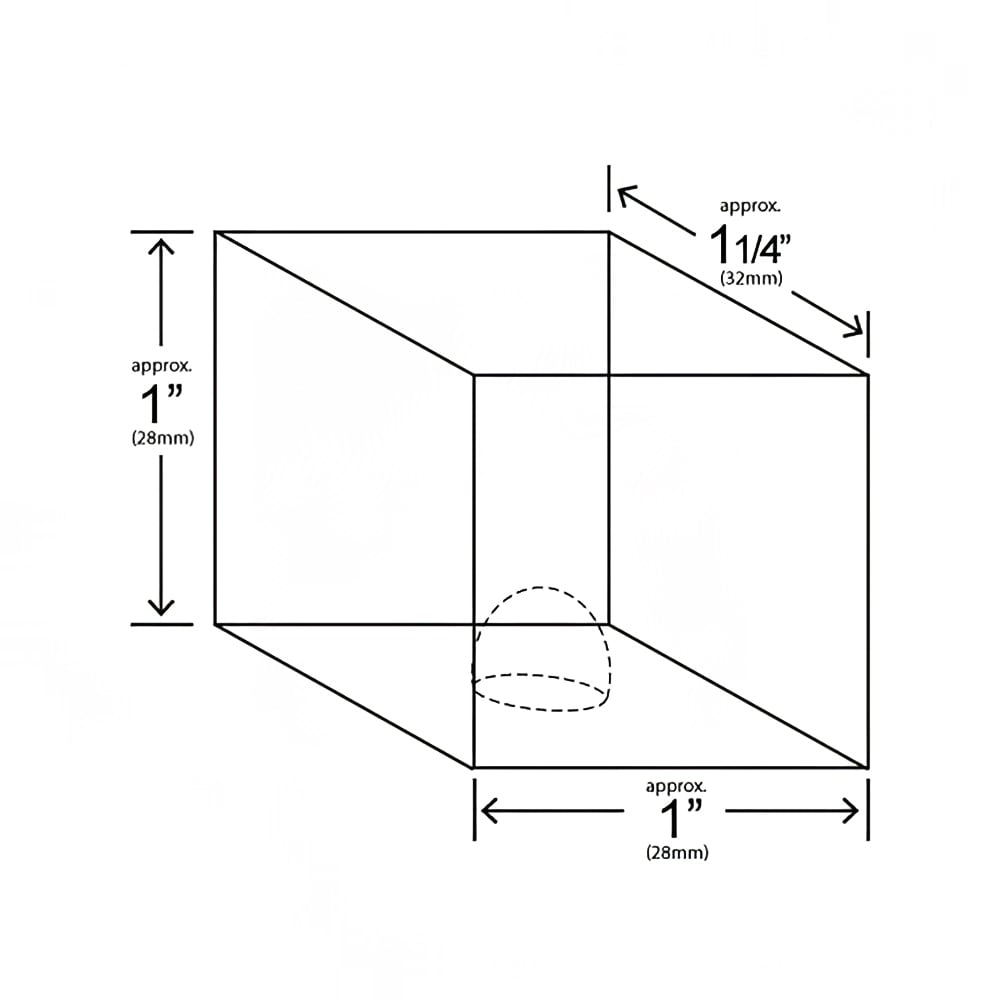

- Ice dimensions: 1 in. x 1 1⁄4 in. x 1 in.
- Condenser is self-contained and air cooled
- Uses R290 refrigerant
- Maximum production capacity: 186 lbs./24 hrs. at 70 degrees F
- AHRI certified production capacity: 150 lbs./24 hrs. at 90 degrees F
- 75-lb. built-in storage capacity
- Stainless steel finish
- EverCheck digital control system shows system functions on LED display
- Alert system lets users know of issues
- Removable filter
- Mounted on 6-in. legs
- 3,420-BTU/hr. heat transfer capacity
- Ambient temperature: 45-100 degrees F
- Water temperature: 45-90 degrees F
- Water pressure: 10-113 PSIG
- Requires 6-in. clearance on right side, 2-in. clearance on rear
- 39 1⁄2 in. W x 23 5⁄8 in. D x 33 1⁄2 in. H
- 7.5 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki IM-200BAK within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki IM-200BAK Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 186 |
| Also Known As | IM-200BAC |
| Bin Capacity (lb) | 75 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Stainless Door |
| Height (in) | 33.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | IM Series |
| Special Features | Alert System |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 39.5 |
| Weight | 212.00 |
Important Prop 65 information for California residents.
- Hoshizaki IM200BAA
- 5
- 4
- 3
- 2
- 1
Review this product!
The recommended water pressure range is 10-113 PSIG.
Yes. It has a removable filter for routine cleaning.
The EverCheck™ control provides alerts on an LED display.
Yes. It uses a minimum 3⁄4-in. drain line connection.
Each cube is formed individually by a dedicated jet spray.
It stores 75 lbs. in the built-in bin.
It can produce up to 186 lb. of ice per 24 hours.
Its storage bin holds 75 lb. of ice.
It makes full cube ice.
It measures 39 1/2 in. W x 23 5/8 in. D x 33 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with a 75-lb. capacity.
Its listed certifications include AHRI, cETLus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
It requires 7.5 A.
It uses a NEMA 5-15P plug.
It requires a 1/2-in. water line connection.
Yes, it includes a power cord and plug.
