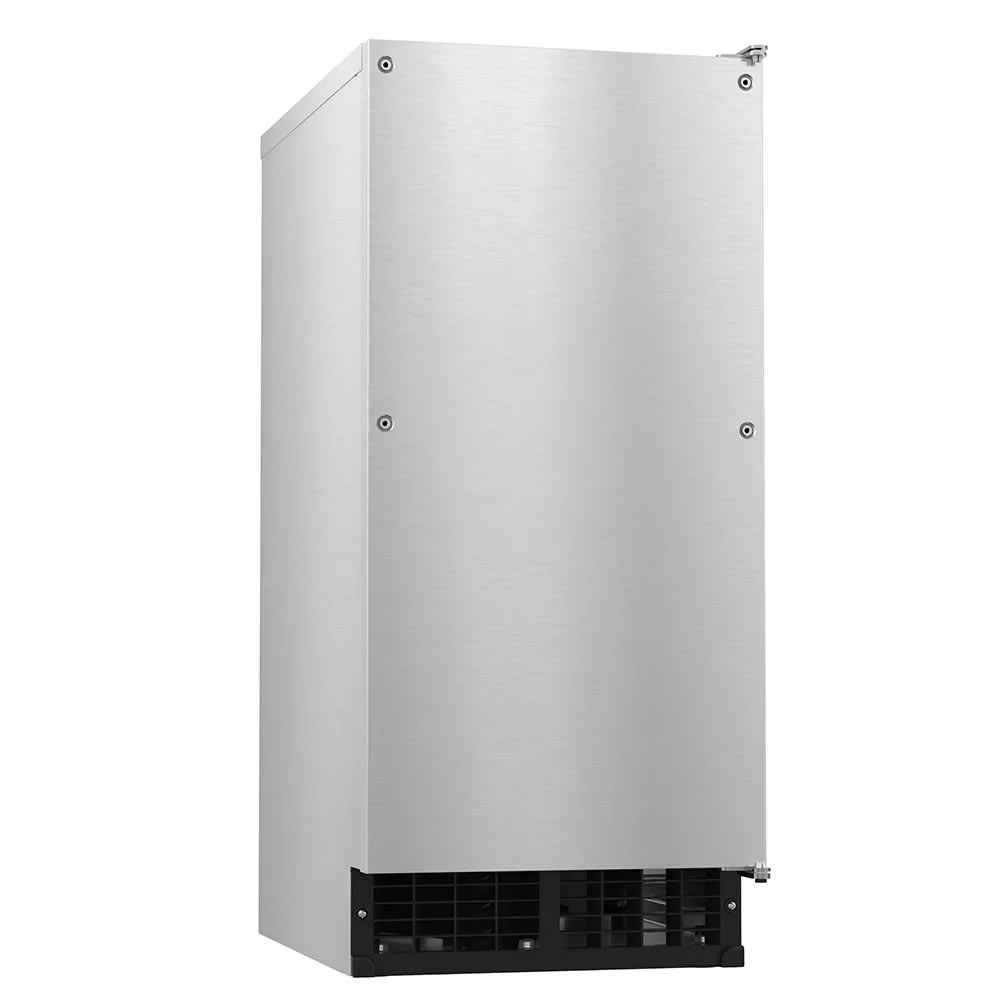

Hoshizaki AM-50BAK-DS 14 7/8"W Top Hat Undercounter Ice Machine - 54 lbs/day, Air Cooled, Gravity Drain, 115v
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$3,220.00 /Each
Contact us for details!
Hoshizaki AM-50BAK-DS Description
The Hoshizaki AM-50BAK-DS undercounter ice maker produces top-hat ice—gourmet cubes that measure 0.875 inches by 1 inch. These cubes are often used in upscale restaurants and bars or banquet halls. The condenser is air cooled, meaning fans move air over the condensing coils where refrigerant runs so that the refrigerant can remove heat from the evaporator. Through this process, ice running over the evaporator plate freezes and forms cubes. In 24 hours, the unit can make 51 pounds, and it has storage space for 22 pounds.
The power switch is accessible without removing the front panel, and because the ice maker has few moving parts, the risk of failure is small. This Hoshizaki AM-50BAK-DS undercounter ice machine takes in and expels air from the front, so it does not require clearances at the sides or rear. Its door accommodates a custom panel, so it is perfect for cabinet installation under a counter.
- 54-lb. daily ice production capacity
- 27-lb. storage capacity
- Makes gourmet ice for upscale restaurants, bars, and banquet halls

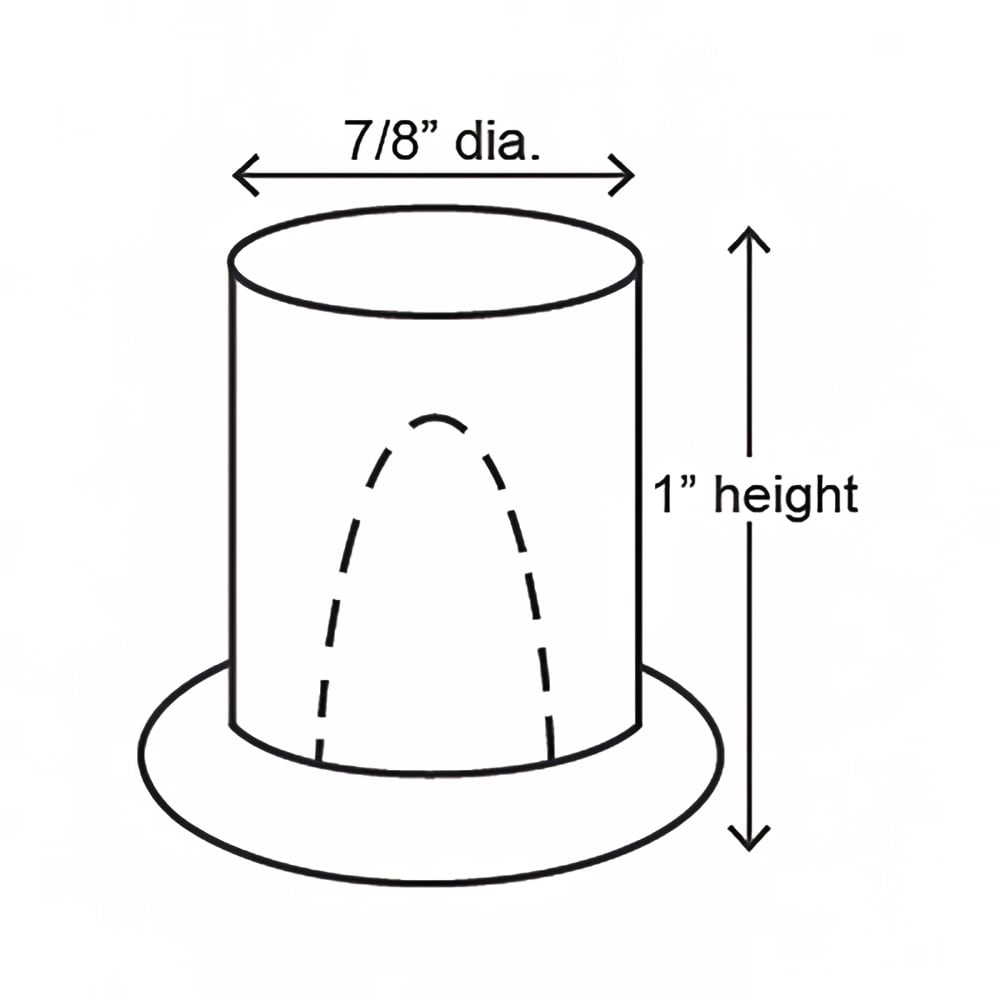

- Top hat ice size: 0.875 in. dia. x 1 in. H
- Air-cooled condenser
- R290 refrigerant
- Power switch is accessible without removing the panel
- Made with few moving components to reduce the risk of part failure
- Water circuit can be disassembled for cleaning
- Air flows in and out the front to eliminate the need for side clearances
- Undercounter design
- Designed to accept a custom cabinet on the door
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-95 degrees F
- Ideal water pressure: 7-113 PSIG
- 14.9 in. W x 22.6 in. D x 33.5 in. H
- 3.8 A, 17 kW
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki AM-50BAK-DS within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki AM-50BAK-DS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 54 |
| Also Known As | AM-50BAJ-DS |
| Bin Capacity (lb) | 27 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.63 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Cabinet Door |
| Height (in) | 33.5 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | AM Series |
| Special Features | Custom Panel Front |
| Special Features | Outdoor Rated |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 2-year Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 14.88 |
| Weight | 97.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki AM-50BAK-DS Hoshizaki AM-50BAK-DS 14 7/8"W Top Hat Undercounter Ice Machine - 54 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,220.00 / Each | $2,255.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Top Hat | Full Cube |
| 24 Hr. Production (lb) | 54 | 60 |
| Bin Capacity (lb) | 27 | 36 |
| Width (in) | 14.88 | 15 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Custom Panel Front | Inline Water Filter Included |
| Series | AM Series | Essential Ice™ |
| Suggested Use | Commercial | Commercial |
| Front Style | Cabinet Door | Lift Door |
| Depth (in) | 22.63 | 24 |
| Height (in) | 33.5 | 38 |
| Design | Standard Height | Standard Height |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | 2-year Parts & Labor | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Works well but very loud...
After months of waiting the ice maker arrived in good condition. Installed and looks ok. We ordered custom cabinet panel for the front and the fit is not great. Lots of space/gap around side and top. Cabinet door doesn't cover flush (even though we ordered the appropriate size door) so the stainless steel is very visible on edges and especially across the top. That I can live with but the noise this appliance makes is VERY loud. Fan runs loud and maker hums even louder. I would never recommend this for a kitchen due to the noise. We have it in a separate bar room so we aren't living in that room and it wasn't worth the trouble returning and the return window was up by the time we finished our project and got it installed. All this being said if you are looking for a kitchen I do not recommend due to the noise!
It produces 54 lbs. of ice every 24 hours.
Yes, it measures under 34 in. tall.
It produces top hat-style full cube ice.
Yes, the front airflow eliminates side clearance needs.
The water circuit disassembles for cleaning access.
Yes, it uses a gravity drain system.
The door accepts a custom cabinet panel.
It can produce up to 54 lb. of ice per 24 hours.
Its storage bin holds 27 lb. of ice.
It makes top hat ice.
It measures 14 7/8 in. W x 22 5/8 in. D x 33 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with a 27-lb. capacity.
Its listed certifications include NSF and UL.
It requires 3.8 A.
It uses a NEMA 5-15P plug.
It requires a 1/2-in. water line connection.
Yes, it includes a power cord and plug.
Yes, it is approved for outdoor installation.
