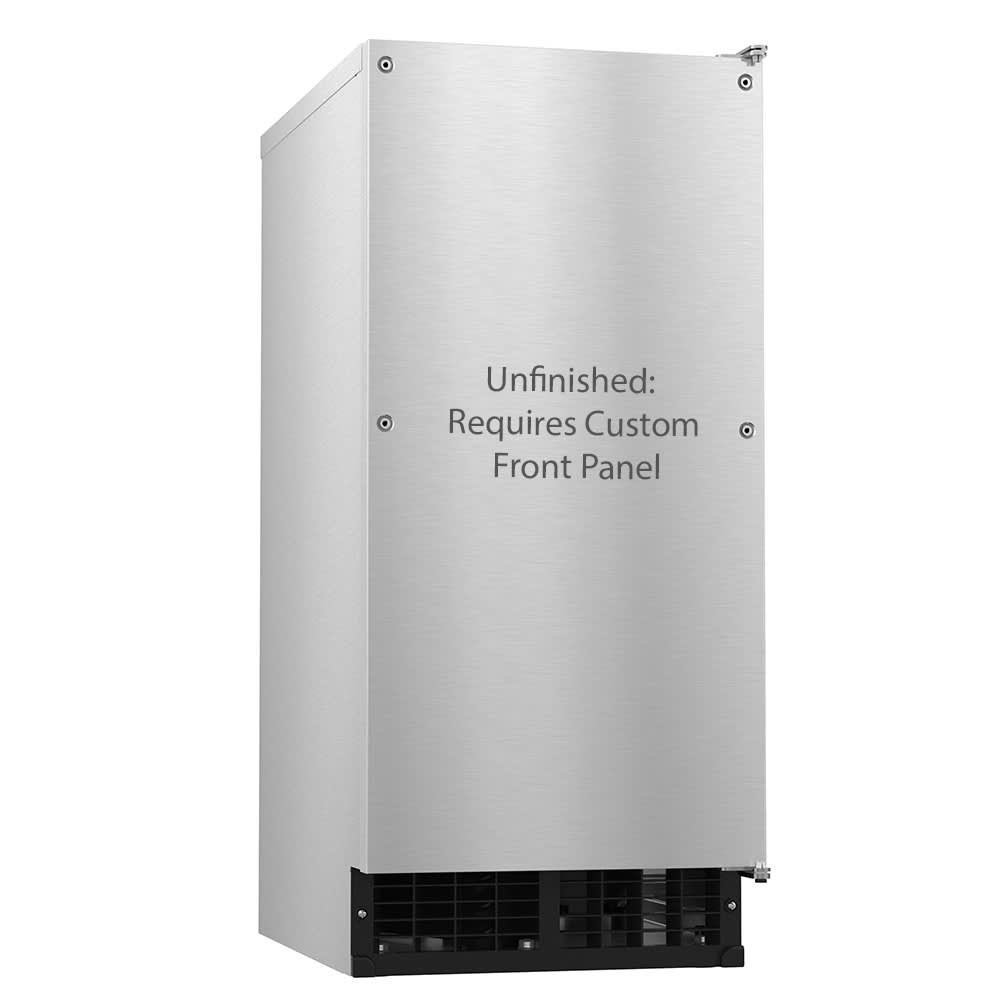

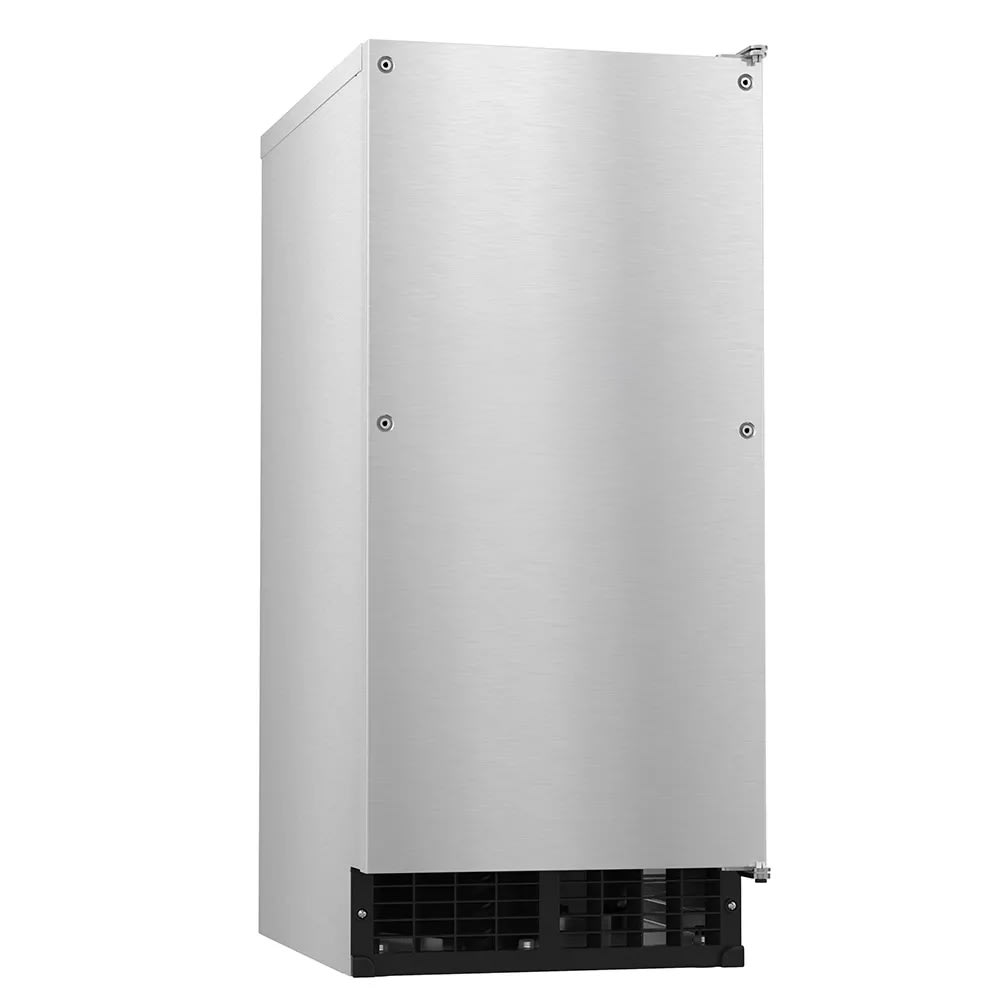

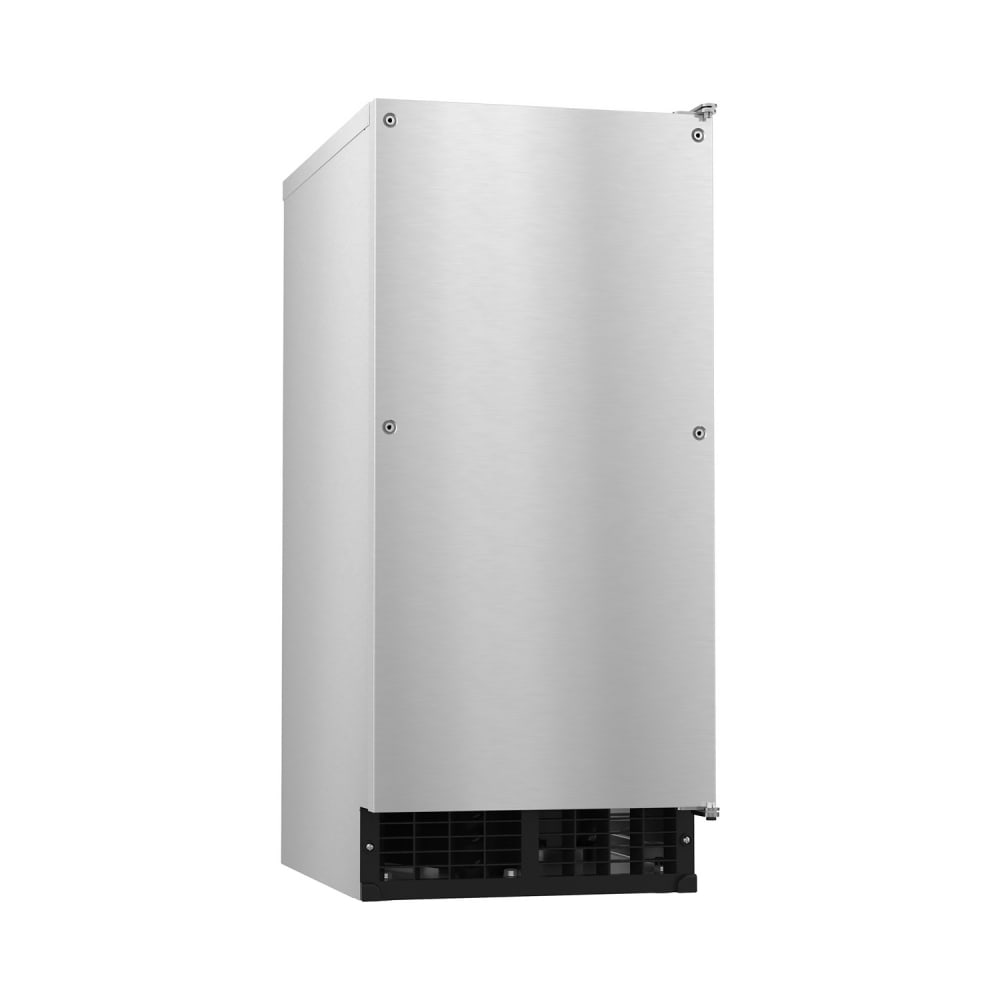

Hoshizaki AM-50BAK-ADDS 14 7/8"W Top Hat Undercounter Ice Machine - 54 lbs/day, Air Cooled, ADA, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,380.00 /Each
Contact us for details!
Hoshizaki AM-50BAK-ADDS Description

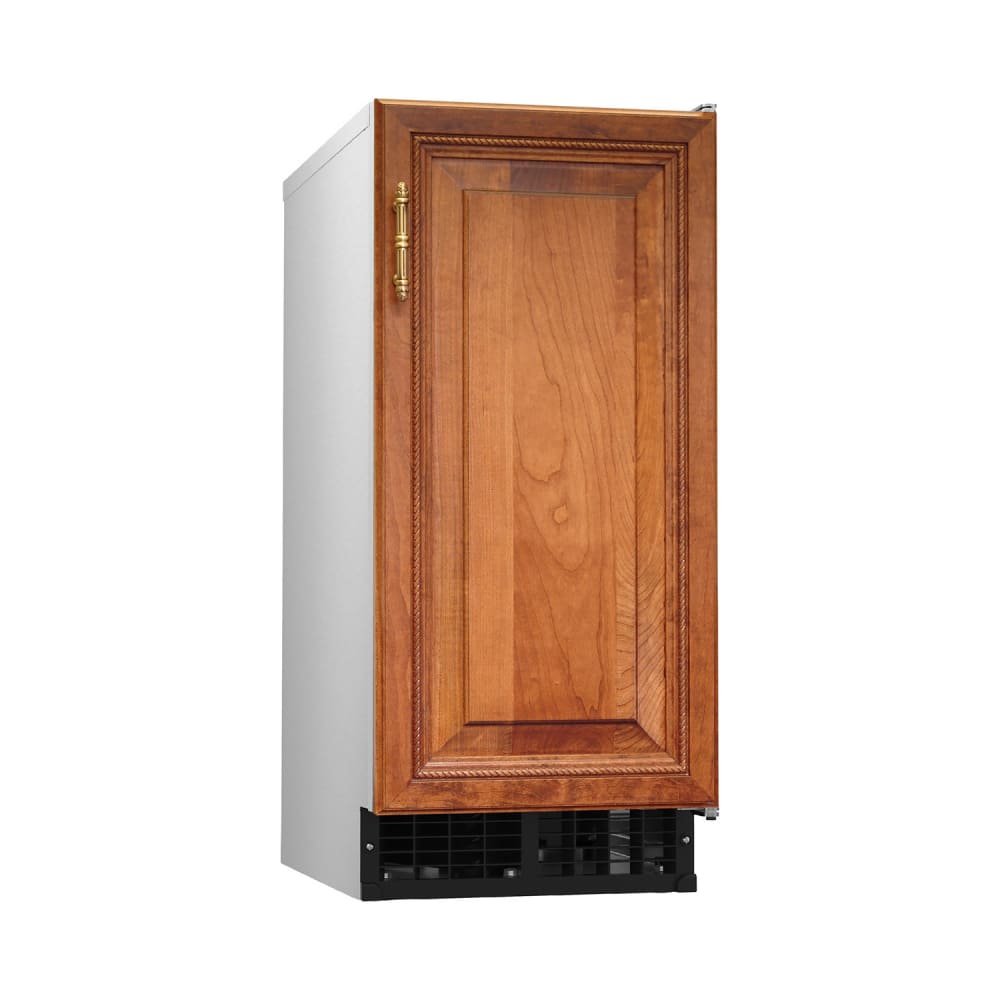

The Hoshizaki AM-50BAK-ADDS undercounter ice maker is optimal for commercial kitchens, hotel suites, and office breakrooms. This unit can produce as much as 54 pounds of top hat ice—the largest ice form—in 24 hours. Because it has a high ice-to-water ratio, it slowly melts in beverages and is optimal for alcohols such as Scotch. The ice maker is a compact and efficient unit with a built-in storage bin that can hold 27 pounds of ice at once. With its front-breathing configuration, the ice maker does require rear or side clearance, and the door can accommodate custom cabinetry to blend with existing themes.
For outdoor use, the Hoshizaki AM-50BAK-ADDS undercounter top-hat ice maker can be placed at poolside bars. This unit measures 14 7⁄8 inches in width by 22 5⁄8 inches in depth by 31 1⁄2 inches in height—this complies with standards for ADA requirements while saving precious floor space. To extend its service life, the ice maker is designed with fewer moving parts than similar models. Facilitating cleaning, operators can easily disassemble the water circuit, and the accessible power switch reduces maintenance requirements.
- Safe for outdoor use
- For undercounter placement
- 54-lb. maximum daily ice production
- 35-lb. AHRI certified daily ice production

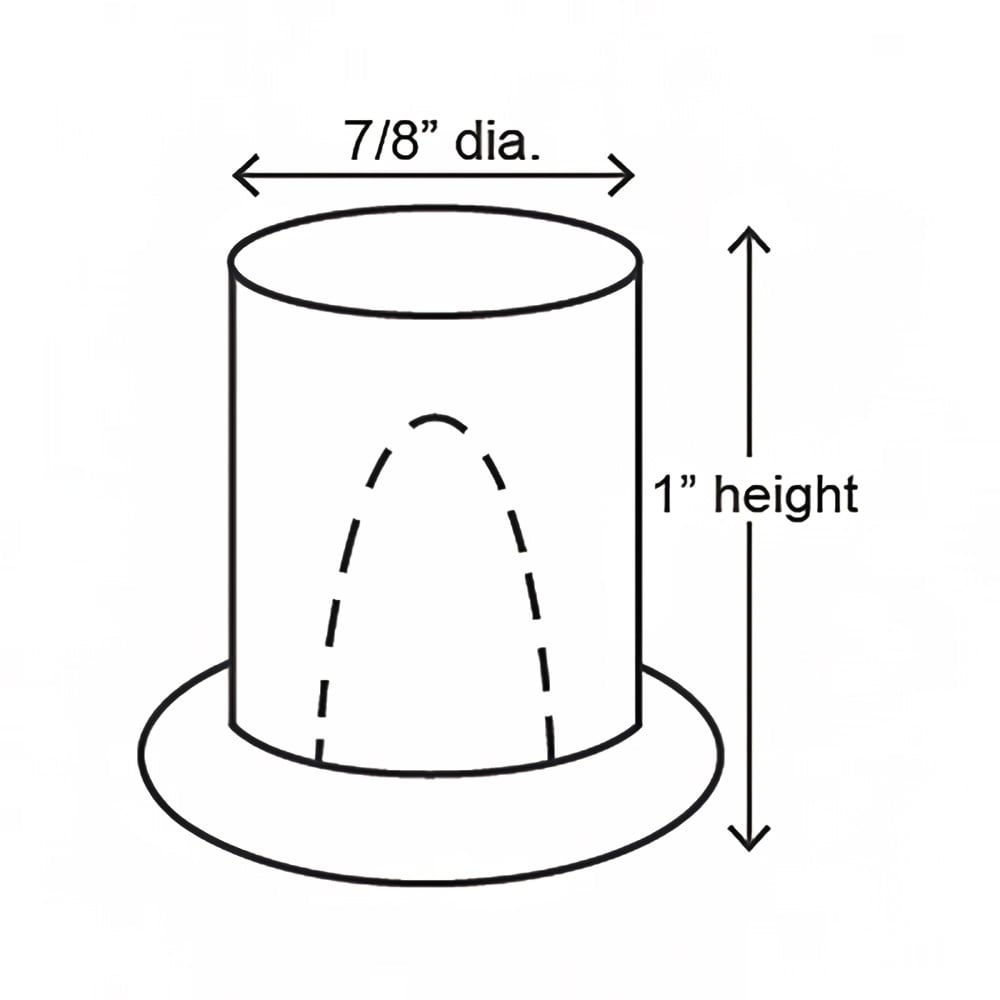

- Produces top hat ice
- Fewer moving parts extends service life
- Power switch can be accessed without removing panel
- 27-lb. maximum ice storage capacity
- Easily disassembled water circuit simplifies cleaning
- Front-breathing configuration doesn't require side clearance
- R290 hydrocarbon refrigerant
- Potable water usage: 63.9 gal. per 100 lbs.
- 1,900-BTU heat transfer capacity
- Ideal incoming air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-95 degrees F
- Ideal incoming water pressure: 7-113 PSIG
- Overall: 14 7⁄8 in. W x 22 5⁄8 in. D x 31 1⁄2 in. H
- 9 kW, 2 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki AM-50BAK-ADDS within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki AM-50BAK-ADDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 54 |
| Also Known As | AM-50BAJ-ADDS |
| Bin Capacity (lb) | 27 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.63 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Cabinet Door |
| Height (in) | 31.5 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | AM Series |
| Special Features | Custom Panel Front |
| Special Features | Outdoor Rated |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 2-year Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 14.88 |
| Weight | 99.00 |
Important Prop 65 information for California residents.
- Hoshizaki AM50BAEADDS
- 5
- 4
- 3
- 2
- 1
Review this product!
The front needs 15 in. of working clearance.
Yes. It uses front in-and-out airflow without side clearance.
It stores 27 lbs. of ice.
Yes. It's designed for outdoor use.
Yes. It has an easily disassembled water circuit.
It has an accessible power switch behind the door.
It can produce up to 54 lb. of ice per 24 hours.
Its storage bin holds 27 lb. of ice.
It makes top hat ice.
It measures 14 7/8 in. W x 22 5/8 in. D x 31 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with a 27-lb. capacity.
Its listed certifications include NSF and UL.
It requires 2 A.
It uses a NEMA 5-15P plug.
It requires a 1/2-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
Yes, it is designed for an ADA-height installation.
Yes, it is approved for outdoor installation.
