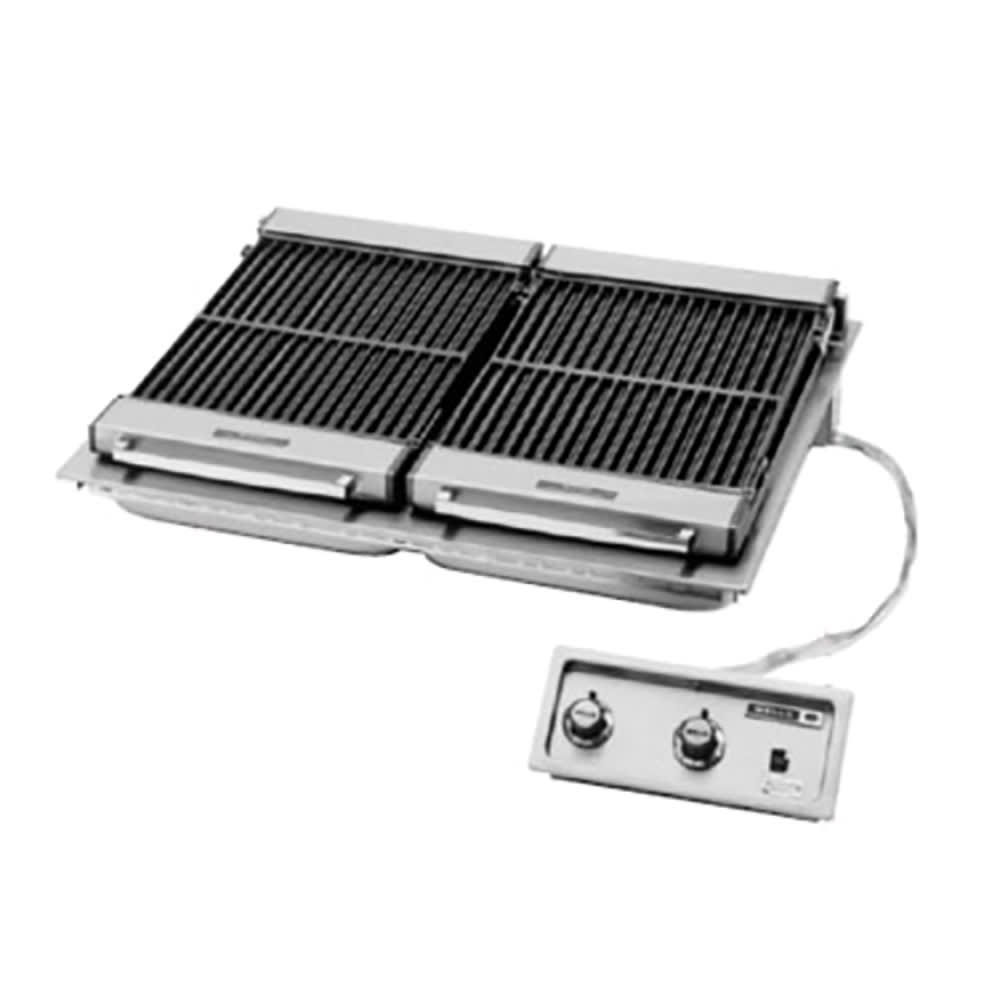

Wells B-506 36" Built In Charbroiler w/ Cast Iron Grate, 208v
$10,240.00 /Each
Call for details!
Wells B-506 Description
The Wells B-506 charbroiler supports smooth installation with its built-in design and measures 36 1⁄2 inches wide by 29 9⁄16 inches deep. This unit utilizes heavy-duty cast iron grates and a stainless steel construction to withstand corrosion, rust, and dents. Equipped with two heat zones, this unit uses conductive and radiant heating elements for versatile cooking, and it can reach 600 degrees Fahrenheit in 10 minutes. This charbroiler includes a lift-out drip pan, grate scraper, and brush to maintain cleanliness during and after a busy shift.
- Built-in design
- 2 heat zones
- Constructed of stainless steel
- Heavy-duty cast iron grates
- Self-cleaning elements (conductive and radiant)
- Element frame assembly
- Spring-loaded support rod
- Lift-out drip pan with handles
- Includes grate scraper and brush
- Recessed controls
- Power-on lights
- 10-min. preheat time to 600 degrees F
- Grid surface: 32 in. W x 20 in. D
- Overall: 36 1⁄2 in. W x 29 9⁄16 in. D
- 30 A
- 208 V/60 Hz/3 ph (convertible to 1 ph)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Wells B-506 within the 48 contiguous states.
From The Manufacturer
Charbroiler, built-in, electric, cast iron grate, 36" wide, stainless steel construction, with grease pan and scraper/brush, RU, CE, 208v/60/1ph/3ph
Wells B-506 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Cooking Surface | Cast Iron |
| Function | Heavy Duty |
| Heat | Electric |
| Height (in) | 15.4 |
| Hertz | 60 |
| Number of Burners | 2 |
| Phase | 1 |
| Phase | 3 |
| Product | Charbroilers |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Type | Radiant |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 1-year Cast Iron Grates, Burners, & Burner Shields |
| Width (in) | 36 |
| Weight | 142.00 |
