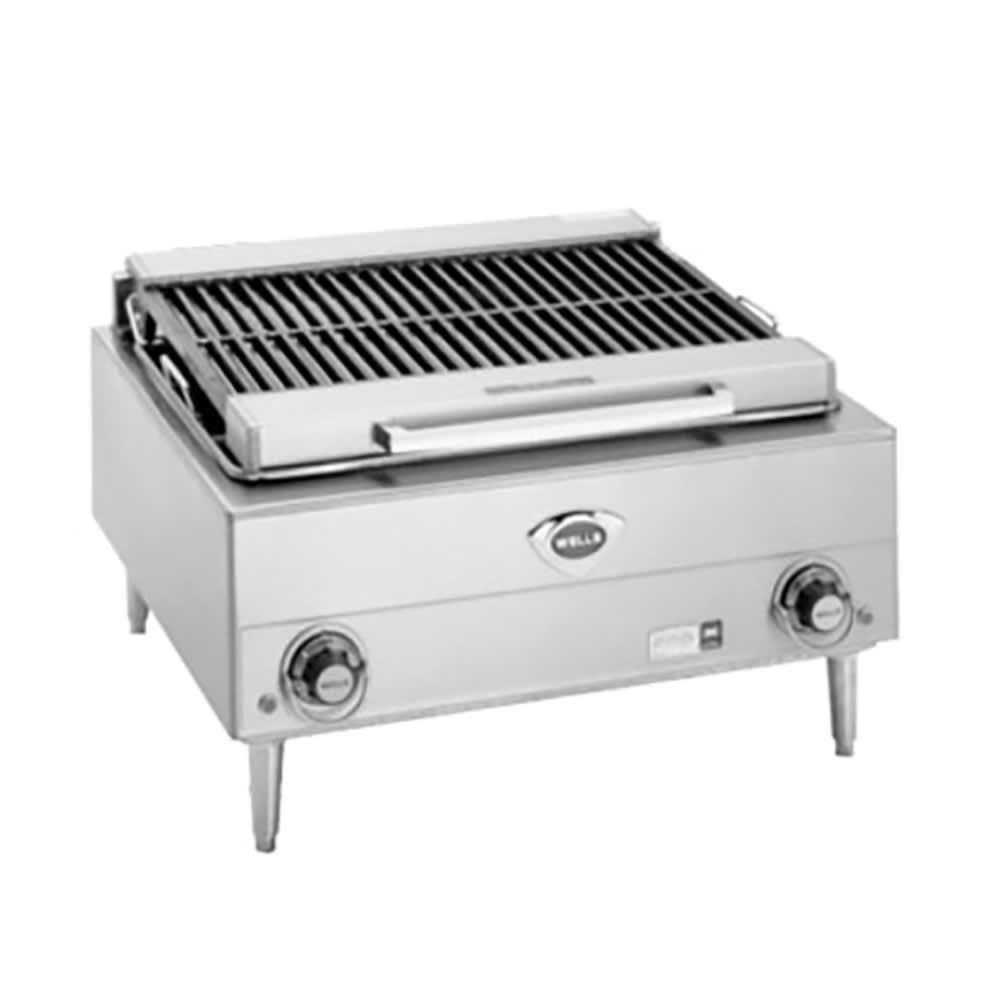

Wells B-40 24" Charbroiler w/ Cast Iron Grates, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 439-B402401 • MPN: B-40 240
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $2,942.00

Image may not depict product color, inclusions or accessories.

Wells B-40 Description

Wells

The Wells B40 countertop charbroiler is made of stainless steel for strength. The broiler grate ribs guard the self-cleaning elements and protect them from direct food contact and spatula abrasion. Separate knobs control half of the grid surface for cooking versatility. Since the controls are protected with a guard ring, unintentional temperature changes can be avoided. The Wells B40 charbroiler can be hardwired into a power supply with the included terminal block. The drawn drip pans with handles and cast iron grate are removable for cleaning.

Product Details

  • Stainless steel construction resists stains and dents
  • Self-cleaning elements are guarded by the broiler grate ribs, preventing direct contact with food and spatula abrasion
  • Regulate temperature with 2 settings: off/lo and hi
  • Each temperature control has a positive-off position and indicator lights to display when the power is on
  • Individual knobs control half of the grid surface area so more than one type of product can be prepared at the same time
  • Spring-loaded support rod in each element frame secures element when raised
  • Heats to 600 degrees F in 10 mins.
  • Drawn drip pans with handles and cast iron grates can be removed for cleaning
  • Controls have a guard ring to protect against unintentional changes in temperature
  • Grate scraper/brush included
  • 4-in. adjustable metal legs
  • Terminal block is included for field connection to the main power supply
  • Can be hardwired into a power supply or used with optional NEMA 6-30P plug and cord (plug and cord sold separately)
  • 22.5 A, 5400 W
  • 240V/60 Hz/3 ph
  • Grid surface dimensions: 2112 in. W x 1412 in. D
  • Overall dimensions: 2434 in. W x 2312 in. D x 1538 in. H
  • cULus listed, NSF certified

Refer to our charbroilers buyers' guide to learn more about different types of charbroilers.

Charbroiler, countertop, electric, 4" high legs, cast iron grate, 24" wide, stainless steel construction, with grease pan and scraper/brush, UL, CE, 240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Wells B-40 Specifications

PDF Spec Sheet
Manufacturer Wells
Cooking Surface Cast Iron
Function Heavy Duty
Heat Electric
Height (in) 15.4
Type Radiant
Width (in) 24
Warranty 1-year Parts & Labor
Phase 3
Hertz 60
Voltage 240
Product Type Countertop Cooking Equipment
Product Charbroiler
Weight 80.00
Wells B-40 Certifications
  • UL
