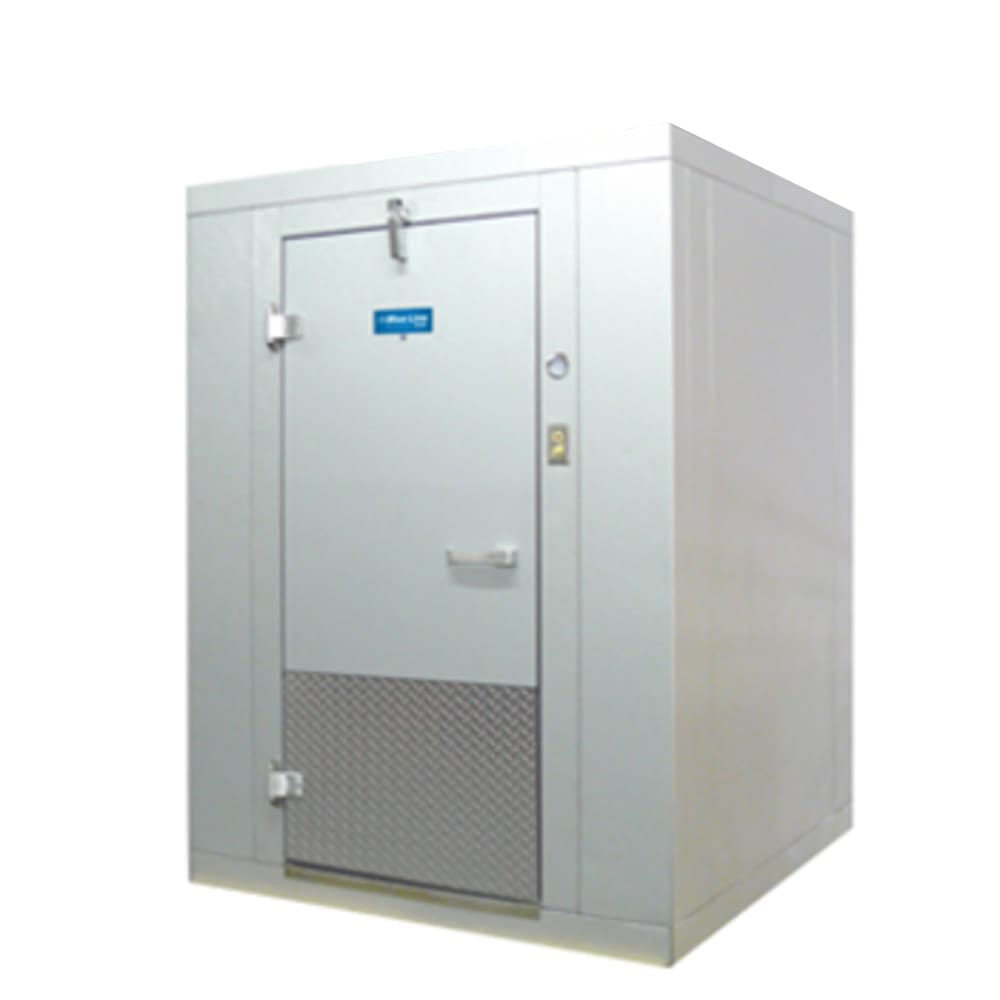

Arctic 6' x 10' Indoor Walk-In Cooler w/ Remote Compressor - Floor (BL1006-CF-R)
$14,080.00 /Each
Call us for pricing
Arctic BL1006-CF-R Description
This Arctic BL1006-CF-R indoor walk-in cooler with remote compressor combines 26-gauge Galvalume steel panels and 4-inch foamed polyurethane insulation to preserve a steady 35 degrees Fahrenheit environment. The corrosion-resistant finish maintains a clean, durable surface, and aluminum diamond-tread kickplates protect high-traffic areas. NSF vinyl screeds form a tight floor seal to keep moisture out.
The Arctic BL1006-CF-R indoor walk-in cooler uses precision interlocking joints that minimize air leakage for consistent temperature control. Seam-sealed corners and insulated ceiling panels reduce heat transfer from above to stabilize internal conditions. Its R-32 insulation rating supports long-term efficiency, helping maintain reliable cooling in 90 degrees Fahrenheit ambient environments.
- Blue Line Series
- Indoor remote walk-in cooler
- Floorless design with NSF vinyl screeds for installation over existing slab
- 4-in. foamed-in-place polyurethane insulation (R-value 32 or higher)
- 26-ga. stucco-embossed Galvalume interior and exterior finish
- Cam-lock tongue-and-groove panel construction with NSF-approved vinyl seals
- (1) 34-in. × 78-in. flush-mounted self-closing door positioned at front center
- Dual 24-in. aluminum diamond-tread kick plates on interior and exterior
- Heavy-duty aluminum threshold and full magnetic gasket seal
- Kason 1229 handle, 1255 cam-rise hinges, and 1094 door closer
- Kason 1804LG over-door light fixture with junction box
- Weiss 24DT thermometer with integrated light switch beside door
- Heated pressure-relief vent positioned above door
- Inside safety release handle and safety night light for safe egress
- Remote pre-assembled refrigeration system
- Factory-installed ceiling-mounted evaporator coil inside cooler
- Field-installed condensing unit located remotely
- A2L-compliant R-454A refrigerant (EPA 2025 standard)
- Automatic off-cycle defrost system
- Holding temperature: 35 degrees F
- 90 degrees F ambient temperature walk-in
- 95 degrees F ambient temperature condensing unit rated
- EcoNet® digital controller
- Remote compressor setup reduces heat and noise in workspace
- Cooler interior: 9 ft. 10 in. W × 6 ft. 0 in. D × 7 ft. 3 in. H
- Overall: 9 ft. 10 in. W × 6 ft. 8 in. D × 7 ft. 8 1⁄2 in. H
- 4.6 A (evaporator), 12.4 A (remote condensing unit)
- 115 V / 60 Hz / 1 ph (evaporator)
- 208–230 V / 60 Hz / 1 ph (remote condensing unit)
- Hardwired connection required between evaporator and condenser
*Image may not depict product color, inclusions or accessories.
*Free shipping on Arctic BL1006-CF-R within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Arctic BL1006-CF-R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Arctic |
| Base | Floor |
| Compressor Location | Remote |
| Height (ft) | 7.71 |
| Hertz | 60 |
| Length (ft) | 6 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Series | Blue Line |
| Special Features | Door Kick Plates |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor, 5-year Compressor; 15-year Panel |
| Width (ft) | 9.83 |
| Weight | 1192.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 6 ft. L x 9 ft. 9 15⁄16 in. W x 7 ft. 8 1⁄2 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
Yes, it includes refrigeration.
It uses a remote refrigeration system.
It is designed to maintain 35°F.
The refrigeration system requires 115 V/60 Hz/1 ph power.
It uses R448 refrigerant.
It has an R-value of R-32.
Yes, the door closes automatically.
Staff can monitor the interior temperature with the digital thermometer.
Yes, it includes interior lighting.
It has a 34 in. W x 78 in. H door opening.
Yes, the door includes a keyed lock.
Yes, the door includes an interior safety release.
The refrigeration system is sized for 95 °F ambient temperatures.
The interior and exterior panels use 26-gauge Galvalume.
Yes, it includes vinyl screeds.
It uses automatic off-cycle defrost system.
