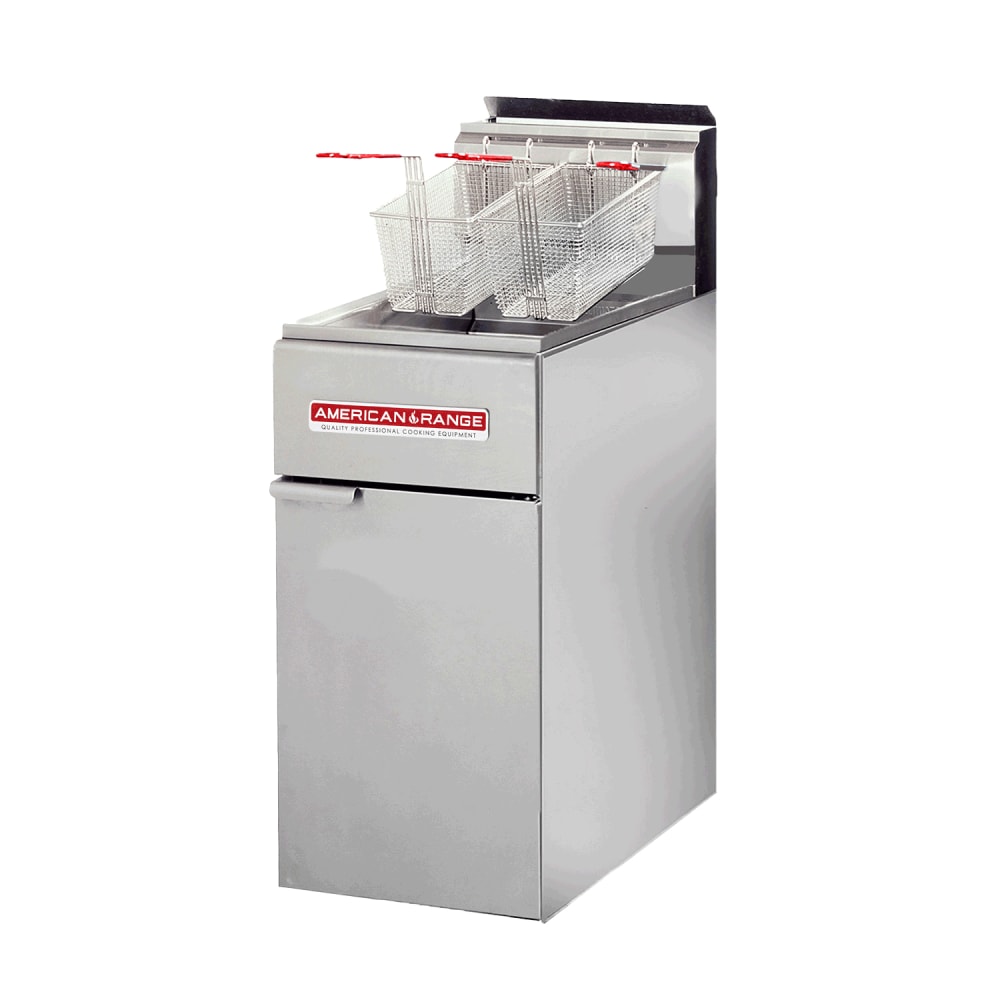

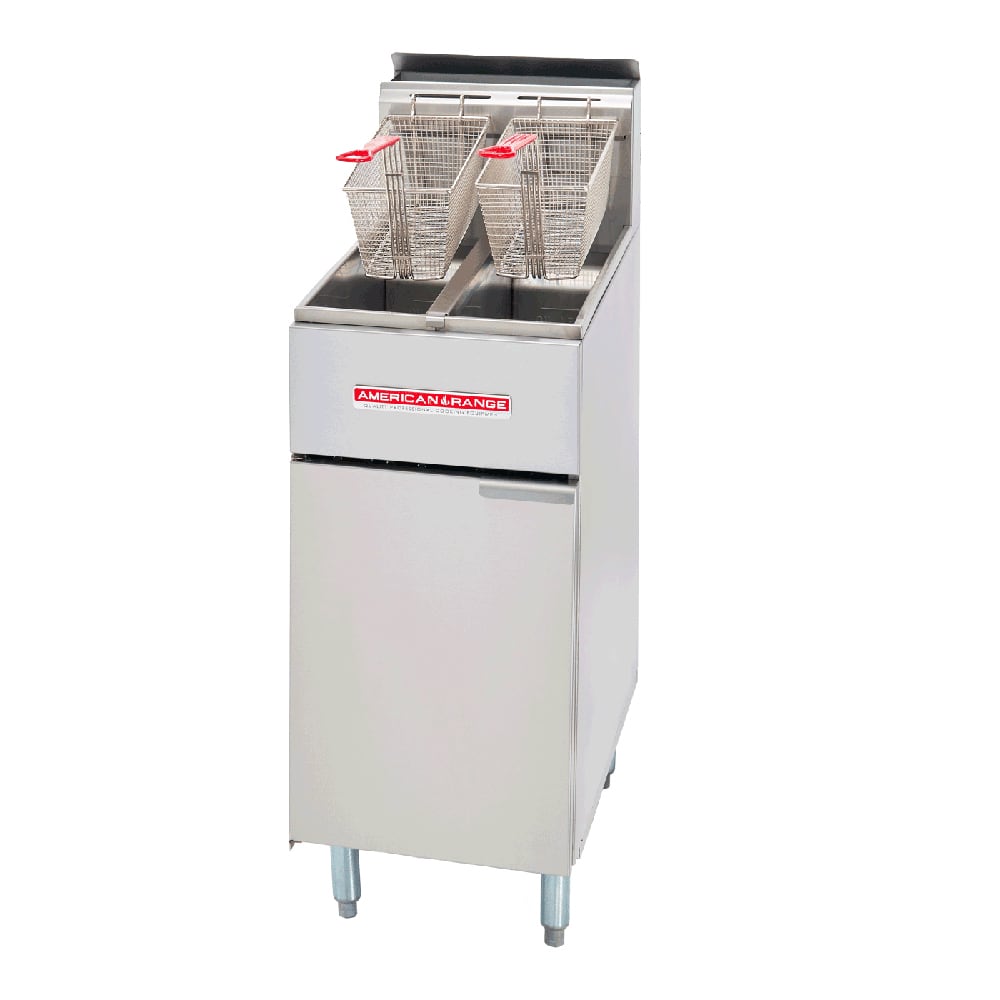

American Range AF3550 Gas Fryer - (1) 50 lb Vat, Floor Model, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 386-AF3550LP • MPN: AF35/50 LP

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $910.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

American Range AF3550 Description

American Range

This American Range fryer has a durable, 35 to 50 gallon, stainless steel tank and two nickel-plated baskets with cool-to-the-touch handles for operator safety. Inside the fryer tank there is a tight mesh, nickel-plated crumb screen which captures food particles to keep frying oil clean and tasting fresh. The fryer's large cool zone keeps food particles from burning, extending the life of the cooking oil.

Product Details

  • Replaces AF-45
  • Heavy duty, stainless steel front, sides, door, and basket hanger are durable and easy to keep clean
  • 3 burners
  • 16-gal., 304 stainless steel, TIG welded tank for durability
  • 30-1/2 in. deep oil container for frying large food products
  • Nickel-plated fryer basket has cool-to-the-touch plastic grip
  • Vessel bottom slants forward for easy draining
  • Large cool zone prevents food particles from carbonizing to extend oil life
  • Tight mesh, nickel-plated crumb screen under basket keeps oil clean
  • Safety feature shuts off gas if fryer overheats
  • Basket hanger holds 2 baskets
  • 1-in. dia. drain valve to easily drain oil
  • Durable, double-layer access door prevents heat from transferring to the outside of the unit
  • Thermostatic temperature control with 200 - 400 degrees F range
  • Millivolt ignition system requires no electricity to ignite burners
  • Gas valve with pressure regulator, pilot ignition system, and 1/2-in. NPT inlet on back (items is shipped for use with LP gas; NG setup is available)
  • 6-in. chrome-plated, adjustable legs
  • 120,000 BTU total output
  • Overall Dimensions: 15-1/2 in. W x 30-1/4 in. D x 45-3/4 in. H (with legs)
  • ETL Sanitation, ANSI, and UL Listed; NSF Certified

Safe and Durable Construction

  • Double layer door prevents heat loss and keeps surface cool
  • Shutoff valve will completely cut off the gas supply if fryer begins to overheat, preventing fires
  • Fryer basket includes a cool grip handle to protect operator from burns
  • Exterior front, sides, doors, and basket hanger are all stainless steel to resist corrosion, scratches, and dents

Fryer, LP gas, full size, 35-50 lb. capacity, (2) baskets, thermostat control, millivolt pilot system, stainless construction, 6" chrome plated adjustable legs, 35.0 kW, 120,000 BTU, ETL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

American Range AF3550 Specifications

PDF Spec Sheet
Manufacturer American Range
Number of Fry Pots 1
Gas Type LP
BTU per Fryer 120,000
Oil Capacity per Fryer 50 lb
Frypot Style Tube Type
Food Type Breaded
Width (in) 15
Warranty 1 year parts & labor
Also Known As AF45
Baskets 2
Product Type Fryers
Product Gas Fryer
Weight 163.00
American Range AF3550 Certifications
  • NSF
  • ETL
