Norlake KODF77812-C 8' x 12' Outdoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$21,102.88 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Left Hinge
Norlake KODF77812-C Description

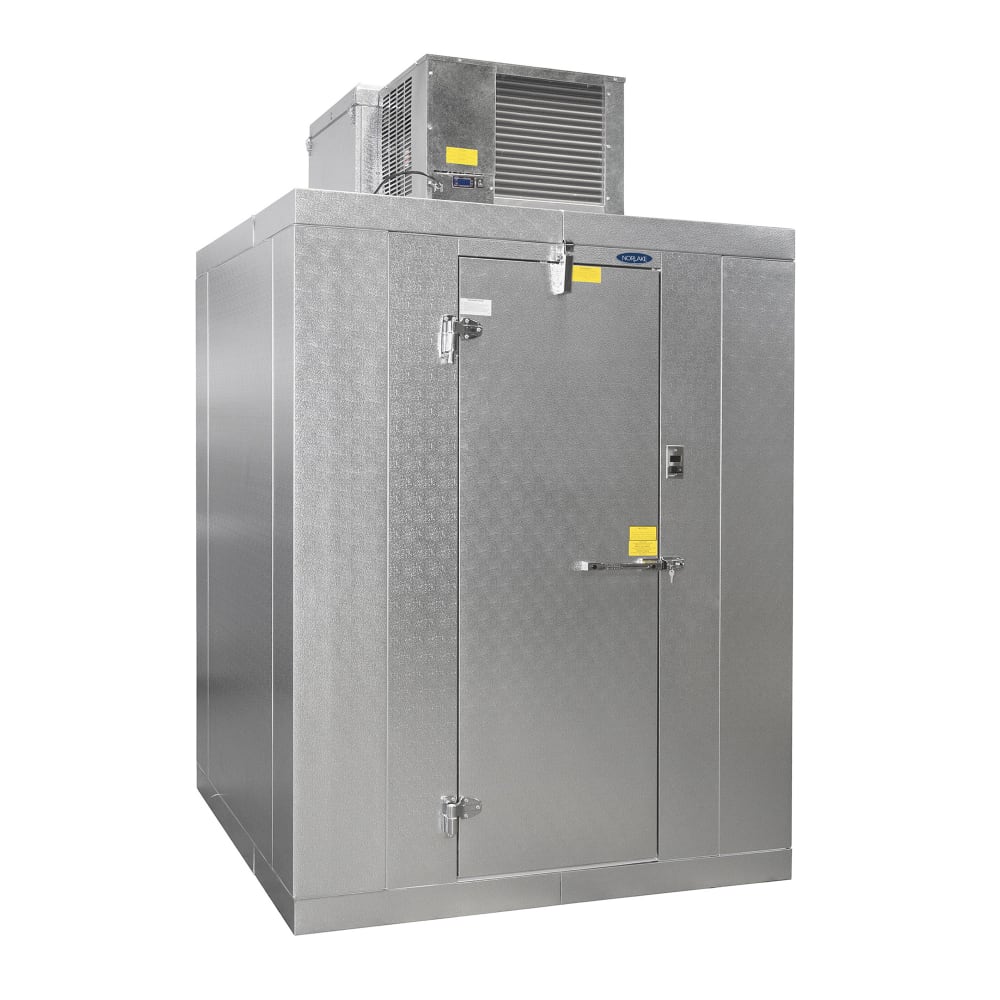

The Norlake KODF77812-C outdoor walk-in freezer with top-mounted compressor offers a mid-size footprint that balances capacity and workflow for busy operations. An 8-foot by 12-foot layout supports organized storage zones, 574 cubic feet of interior space manages inventory volume, a single-section design shortens movement paths, and the 7-foot 7-inch interior height supports vertical shelving strategies.
Built for exterior durability, this Norlake KODF77812-C outdoor walk-in freezer with top-mounted compressor combines material choices that support long-term outdoor use. Purpose-built for demanding conditions, 26-gauge coated steel panels protect interior and exterior surfaces, a smooth aluminum floor manages wheeled loads, 4-inch foamed-in-place insulation stabilizes panel seams, and the membrane roof shields the structure from weather exposure year-round.
- Kold Locker™ Series
- 574-cu.-ft. interior capacity
- Outdoor walk-in freezer
- Insulated floor with smooth aluminum interior surface
- 4-in.-thick foamed-in-place HFO polyurethane insulation (HFC-free)
- Modular metal-clad panel construction with cam-lock fastening system
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- Factory-assembled, pre-hung insulated walk-in door
- Self-closing, flush-mounted infitting door with stepped profile
- NL 9800 deadbolt locking handle with inside safety release
- Magnetic door gasket with perimeter heater wire
- Fiberglass-reinforced plastic heated threshold
- Digital thermometer and light switch integrated into door frame
- Vapor-proof LED interior light with exterior pilot indicator
- Left-hand hinged door configuration
- Membrane roof for outdoor installation
- For outdoor use only
- Capsule Pak ECO™ top-mounted, air-cooled refrigeration system
- One-piece enclosure with integrated compressor, condenser, evaporator, and controls
- Uses R290 hydrocarbon refrigerant
- Designed for -10 degrees Fahrenheit freezer operation
- Air-cooled condenser with outdoor-rated crankcase heaters
- High-efficiency EC evaporator fan motors
- Automatic electronic defrost control
- LogiTemp® digital electronic controller with temperature readout and diagnostics
- Plug-in, factory-matched refrigeration system
- Overall: 8 ft. W × 12 ft. D × 7 ft. 7 in. H
- Single-point electrical connection
- 208–230 V / 60 Hz / 1 ph
- Factory-installed power cord with NEMA plug and amperage matched to CPF175PC-E-4 refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KODF77812-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Outdoor -10°F Freezer, 8' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPF200JC-E-4-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)
Norlake KODF77812-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Left |
| Length (ft) | 12 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Outdoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 2015.00 |
