Norlake KODF77610-C 6' x 10' Outdoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$17,661.00 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Left Hinge
Norlake KODF77610-C Description

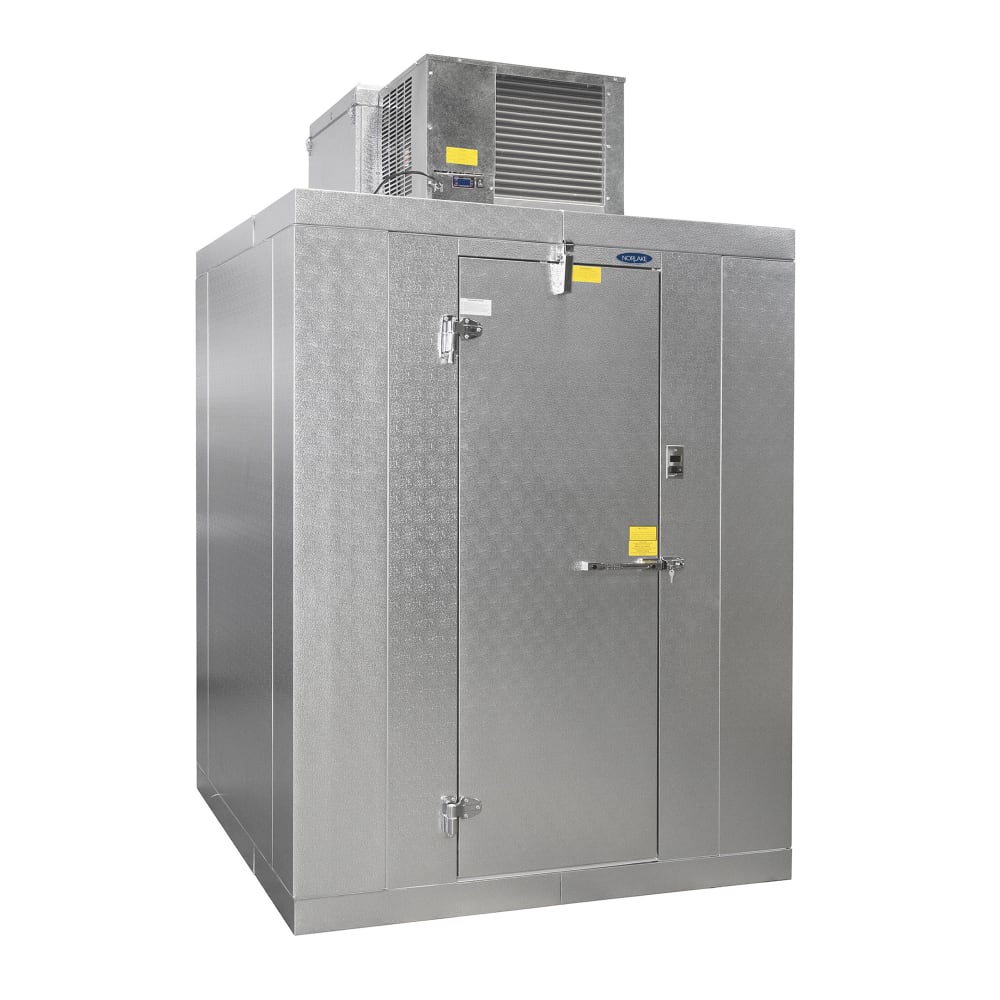

Designed for efficient outdoor storage planning, the compact rectangular layout of The Norlake KODF77610-C outdoor walk-in freezer with top-mounted compressor supports tight installations without wasted space. A 6-foot-wide, 10-foot-long footprint simplifies rack alignment and shortens retrieval paths. Uniform wall spacing improves internal airflow, helping frozen products remain evenly conditioned during routine access.
This Norlake KODF77610-C outdoor walk-in freezer has a top-mounted compressor. A stepped door profile limits air exchange, and the 26-inch-wide, 78-inch-high opening supports controlled access during loading. A magnetic gasket with integrated heater wire maintains a consistent seal, and the flush-mounted frame supports smooth cart movement.
- Kold Locker™ Series
- 473-cu.-ft. interior capacity
- Outdoor walk-in freezer
- Insulated floor with smooth aluminum interior surface
- 4-in.-thick foamed-in-place HFO polyurethane insulation (HFC-free)
- Modular metal-clad panel construction with cam-lock fastening system
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- Factory-assembled, pre-hung insulated walk-in door
- Self-closing, flush-mounted infitting door with stepped profile
- NL 9800 deadbolt locking handle with inside safety release
- Magnetic door gasket with replaceable perimeter heater wire
- Fiberglass-reinforced plastic heated threshold
- Digital thermometer and light switch integrated into door frame
- Vapor-proof LED interior light with exterior pilot indicator
- Left-hand hinged door configuration
- Membrane roof for outdoor installation
- For outdoor use only
- Capsule Pak ECO™ top-mounted, air-cooled refrigeration system
- One-piece enclosure with integrated compressor, condenser, evaporator, and controls
- Uses R290 hydrocarbon refrigerant
- Designed for -10 degrees Fahrenheit freezer operation
- Air-cooled condenser with outdoor-rated crankcase heaters
- High-efficiency EC evaporator fan motors
- Automatic electronic defrost control
- LogiTemp® electronic controller with digital temperature readout and diagnostics
- Plug-in, factory-matched refrigeration system (CPF175PC-E-4)
- Overall: 6 ft. W × 10 ft. D × 7 ft. 7 in. H
- Single-point electrical connection
- 208–230 V / 60 Hz / 1 ph
- Factory-installed 9-ft power cord with NEMA plug and amperage matched to CPF175PC-E-4 refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KODF77610-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Outdoor -10°F Freezer, 6' x 10' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPF100JC-E-4-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)
Norlake KODF77610-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Left |
| Length (ft) | 10 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Outdoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1729.00 |
