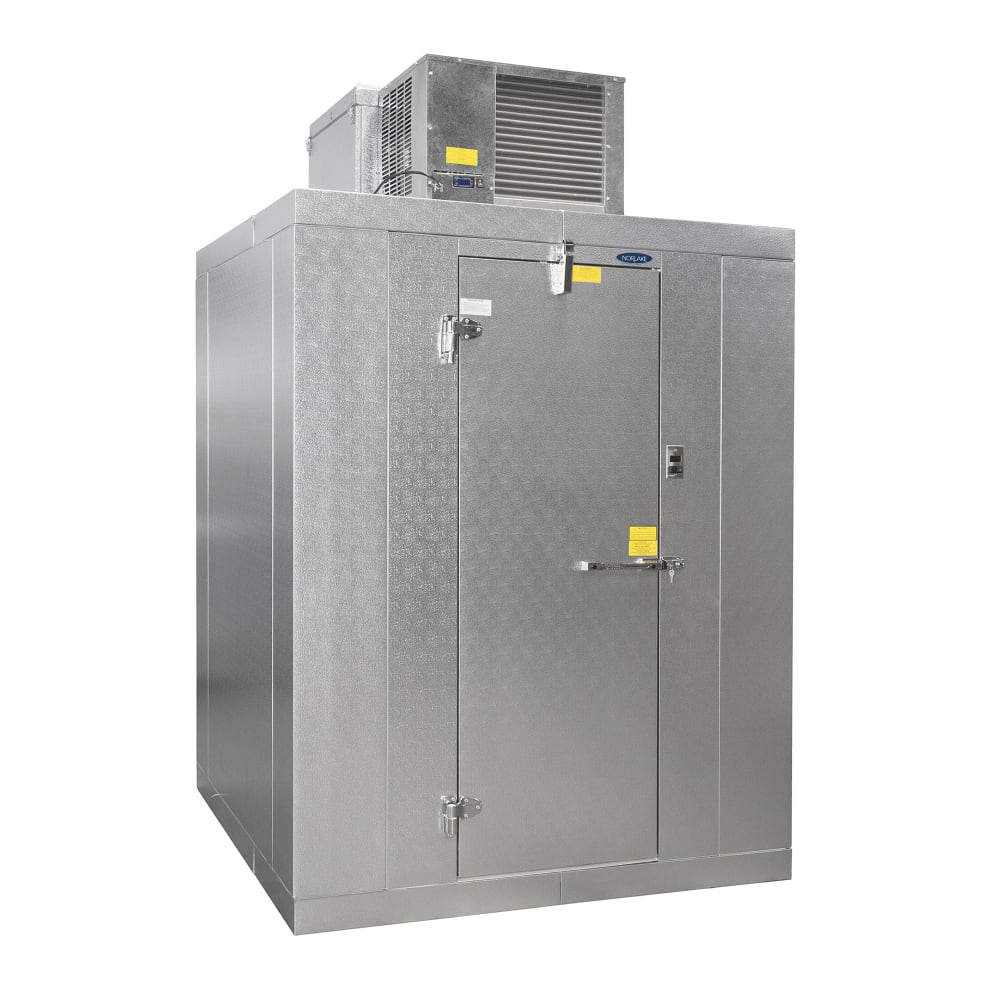

Norlake KODB7766-C 6' x 6' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

KaTom #: 378-KODB7766CR • MPN: KODB7766-C RH
  • 378-KODB7766CR Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$12,719.09 /Each

Login or enter your email to be instantly sent the price!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove

Selected Hinge: Right Hinge

Left HingeLeft Hinge
Garren Anderson User Image
Ask a Foodservice Equipment Specialist

Norlake KODB7766-C Description

Ideal for businesses unable to dedicate space to an indoor walk-in cooler, the Norlake KODB7766-C Kold Lockerâ„¢ walk-in cooler is designed for outdoor placement. It comes with a Capsule Pakâ„¢ refrigeration system to generate and maintain a 35-degree-Fahrenheit interior temperature. To enhance the refrigeration system's efficiency, it shouldn't be stored in settings exceeding 90 degrees Fahrenheit. This system is for top-mounted installation and is pre-charged with refrigerant.

This 6-foot-wide by 6-foot-deep by 7-foot-7-inch-tall unit includes a weather protection kit featuring a one-piece 35-millimeter white membrane roof that doesn't require seaming or gluing and a metal trim for the roof's flashing. To ease installation, its wall, ceiling, and floor panels can be locked together with the cam action locking system to create a sturdy, airtight seal, while its male and female mating rails keep the panels aligned during setup. Polyurethane insulation measuring 4 inches thick is foamed in place into each panel to create a rigid structure and provide an R-25 thermal resistance value for the walls, ceilings, and doors. Interior and exterior panels are finished with a stucco-embossed, corrosion-resistant 26-gauge coated-steel finish.

Great for bulk storage, the Norlake KODB7766-C indoor walk-in cooler's smooth aluminum floor can accommodate a uniformly distributed 800 pounds per square foot. Inside the unit, a vapor-proof LED is positioned above the door to brighten the area, and a light switch is conveniently mounted beneath the digital thermometer. To minimize energy consumption, users can determine if the light has been left on with the exterior pilot light indicator. So employees can enter and exit the unit with ease, its right-hinged door features two field-adjustable cam-rise hinges to enhance the smoothness with which the door opens and closes. To ensure secure closure, it's built with a spring-actuated door closer and magnetic gasket, and to prevent employees from becoming locked inside the unit, they can unlock the door from the interior with the safety release mechanism. Operators can lock the deadlock handle and padlock after business hours to deter trespassing and theft.

  • Part of the Kold Locker and Standard series
  • Interior capacity: 168 cu. ft.
  • Outdoor model
  • Modular wall, floor, and ceiling panels with cam locking fasteners
  • Male and female mating rails properly align panels during setup
  • Continuous panel gaskets along outer perimeter
  • Foamed-in-place edge caps for end of floor and ceiling panels
  • Each panel features foamed-in-place 4-in.-thick polyurethane insulation
  • Insulation provides R-25 value
  • Interior and exterior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
  • Smooth aluminum flooring accommodates a load of 800 lbs. per square foot when evenly distributed
  • 26-in.-wide x 78-in.-tall left-hinged, self-closing door with in-fitting, flush-mounted design
  • 2 field-adjustable cam-lift hinges include locking set screw
  • Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket
  • Deadbolt locking handle with independent key/padlock
  • Inside safety release
  • Vapor-proof LED light fixture mounted above door
  • Light switch includes exterior pilot indicator light
  • Digital thermometer
  • Replaceable perimeter heater wire

  • Top mount
  • Holding temperature: 35 degrees F
  • Pre-charged condensing unit
  • Factory-assembled evaporator coil
  • Flush evaporator coil keeps refrigeration components outside the walk-in box
  • Evaporator enclosure with foamed-in-place polyurethane insulation
  • High-efficiency evaporator fan motors

  • 6 ft. W x 6 ft. D x 7 ft. 7 in. H
  • 120 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Norlake KODB7766-C within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Kold Locker™, Outdoor +35°F Cooler, 6' x 6' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall, locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPB050JC-E-0-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

Warranty Icon
18-month Limited Parts & Labor; 15-year Panel

Norlake KODB7766-C Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
