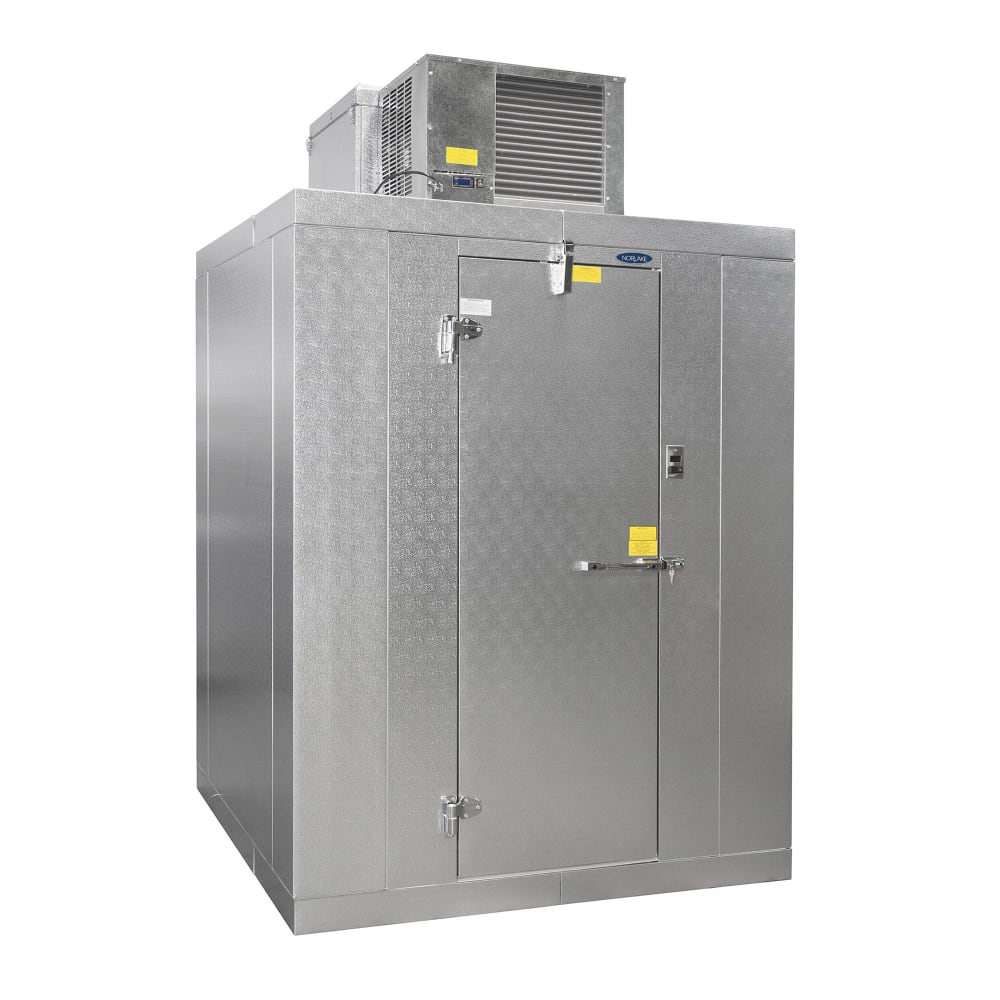

Norlake KLF77610-C 6' x 10' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Right-Hinged Door, Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,335.12 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Right Hinge
Norlake KLF77610-C Description
With its included top-mounted refrigeration system, the Norlake KLF77610-C walk-in freezer preserves food products in commercial kitchens and stores. Its constructed of 26-gauge, corrosion-resistant coated steel on all surfaces except its floor, which is made of smooth aluminum capable of supporting as much as 800 pounds per square foot. For simple installation, it doesn't require a drain line. To seal in cool air, its panels are foamed in place with moisture-resistant polyurethane insulation. It also features a stucco-embossed design to enhance durability and hide wear and tear.
The Norlake KLF77610-C indoor walk-in freezer has a flush-mounted, self-closing door to prevent users from leaving it open. It includes a NL 9800 deadbolt locking handle, which includes an independent key and padlock, to ensure the unit is secured during unsupervised hours. For energy efficiency, it has a stepped profile that blocks airflow from escaping the unit and keep its temperature contained. To prevent users from getting trapped inside, it has an inside safety release, and overall, this model measures 6 feet wide by 10 feet deep by 7 feet 7 inches high.
- Part of the Kold Locker™ collection
- For indoor use
- 344-cu.-ft. interior space
- Ceiling-mounted Capsule Pak™ refrigeration
- Holding temperature: -10 degrees F
- Pre-charged condenser and factory-assembled evaporator coil
- Flush evaporator coil keeps refrigeration components outside the walk-in box
- Evaporator enclosure with foamed-in-place polyurethane insulation
- High-efficiency evaporator fan motors
- 26-ga. stucco-embossed, corrosion-resistant coated steel on all surfaces except interior floor
- Full, 4-in.-thick panels with foamed-in-place moisture-resistant polyurethane insulation
- Polyurethane foam enables thinner walls for optimized storage space
- Interior floor constructed of smooth aluminum
- Floor endures maximum of 800 lbs. per sq. ft.
- No drain line required for indoor models
- Overall dimensions: 6 ft. W x 10 ft. D x 7 ft. 7 in. H
-
Centered on short side (6 ft.)
-
NL 9800 deadbolt locking handle with independent key/padlock
-
Inside safety release
-
NL 2400 adjustable spring loaded door hinge attached on the right
-
Stepped profile design serves as an airflow barrier for enhanced energy efficiency
-
Flush-mounted, self-closing door
-
Heavy-duty, molded ABS breaker permanently foamed in place
-
2 field-adjustable cam-lift hinges with locking set screw
-
Frame panel includes:
-
Replaceable perimeter heater wire
-
Magnetic stainless steel trim
-
Digital thermometer
-
Vapor-proof LED light fixture
-
Switch with exterior pilot indicator light
-
Door section is pre-wired with concealed conduit inside of door frame panel
-
Hinges and door handle mounted to 1⁄2-in. synthetic insulated tapping plates
-
Each door section complete with a fiberglass-reinforced, plastic, heated threshold
-
Magnetic gasket
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KLF77610-C within the 48 contiguous states.
From The Manufacturer
Norlake KLF77610-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Right |
| Length (ft) | 10 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1609.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
Its overall dimensions are 6 ft. W x 10 ft. D x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes a Capsule Pak refrigeration system.
It uses a top-mounted Capsule Pak refrigeration system.
It is designed to hold at -10ｰF.
Yes, it has a self-closing door.
A digital thermometer provides the temperature readout.
Yes, it includes interior lighting.
The door is right-hinged.
Yes, the door has a locking handle.
Yes, it includes an interior safety release.
It uses embossed coated steel panels on the interior and exterior.
Yes, it has heated door protection.
It uses R-290 refrigerant.
The floor supports 800 pounds per square foot.
