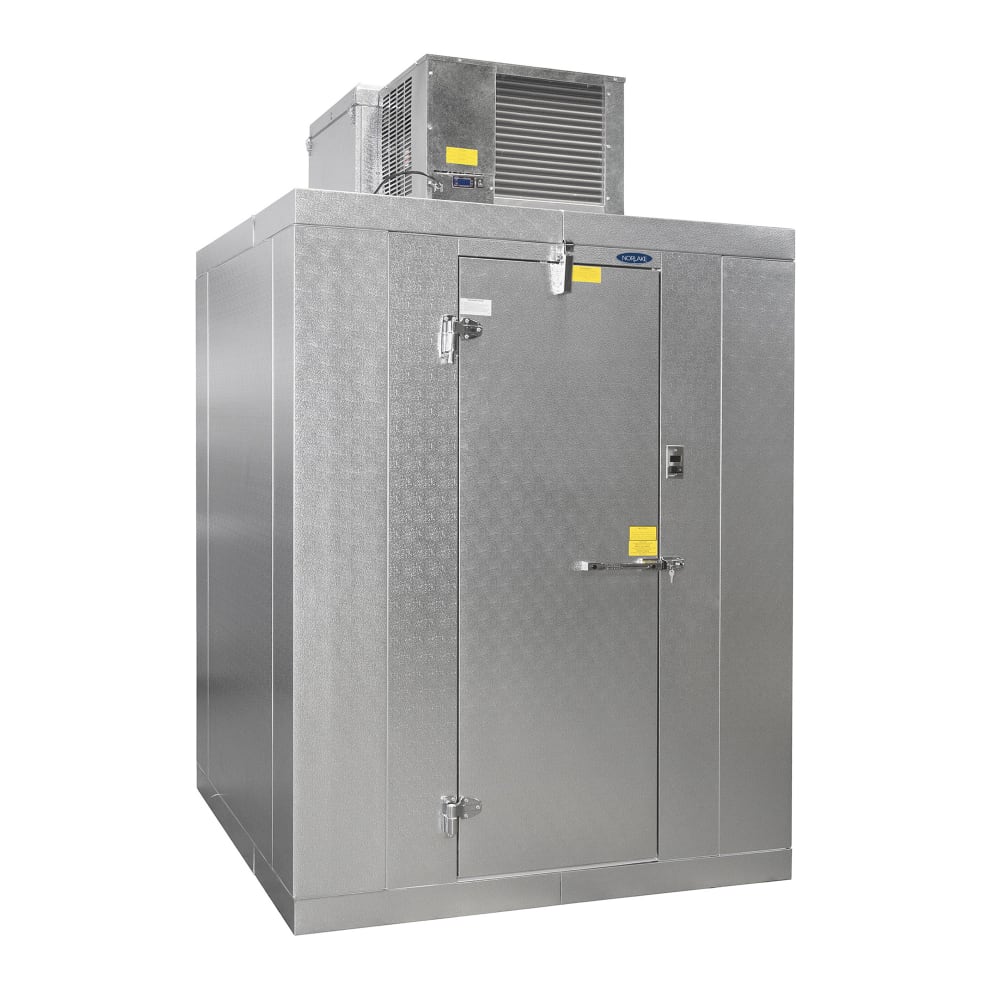

Norlake KLF66-C 6' x 6' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

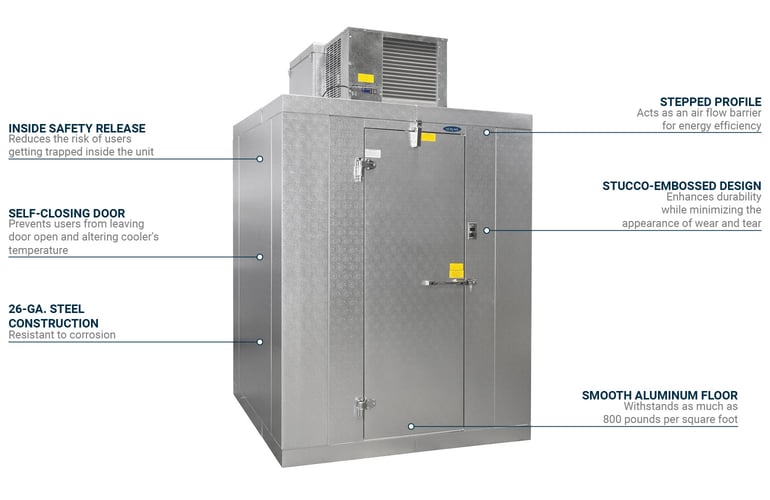

The Norlake KLF66-C walk-in freezer is designed to properly freeze prepped items and inventory with an included top-mounted refrigeration system. It's constructed of 26-gauge steel—a corrosion-resistant metal—and flaunts a stucco-embossed design to enhance durability and hide wear and tear over time. It features full, 4-inch-thick panels that are foamed in place with polyurethane insulation to resist moisture and seal in cool air, and to accommodate as much as 800 pounds per square foot, this unit's floor is made of smooth aluminum.

For security purposes, the Norlake KLF66-C indoor walk-in freezer includes a NL 9800 deadbolt locking handle with an independent key and padlock. Its NL 2400 adjustable spring-loaded door hinge is attached on the right side of the flush-mounted self-closing door. To prevent users from getting trapped inside the unit, it provides an inside safety release. It also includes an LED light to illuminate the space for simple product viewing, and it measures 6 feet wide by 6 feet deep by 6 feet 7 inches tall.

Product Details

• Part of the Kold Locker™ collection
• For indoor use
• 168-cu.-ft. interior space
• 26-ga. stucco-embossed, corrosion-resistant coated steel on all surfaces except interior floor
• Full, 4-in. panels featuring foamed-in-place moisture-resistant polyurethane insulation
• Optimal walk-in storage space because polyurethane foam enables thinner walls
• Smooth aluminum interior floor construction
• Floor withstands maximum of 800 lbs. per sq. ft.
• No drain line required for indoor models
• Overall dimensions: 6 ft. W x 6 ft. D x 6 ft. 7 in. H

Capsule Pak™ Refrigeration System

• Holding temperature: -10 degrees F
• Ceiling-mount placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Door Details

• NL 9800 deadbolt locking handle with independent key/padlock
• Inside safety release
• NL 2400 adjustable spring loaded door hinge attached on the right
• Stepped profile design serves as an air flow barrier for energy efficiency
• Flush-mounted, self-closing door
• Heavy-duty, molded ABS breaker permanently foamed in place
• 2 field adjustable cam-lift hinges with locking set screw
• Magnetic gasket
• Frame panel includes:
• Replaceable perimeter heater wire
• Magnetic stainless steel trim
• Digital thermometer
• Vapor-proof LED light fixture
• Switch with exterior pilot indicator light
• Door section is pre-wired with concealed conduit inside of door frame panel
• Hinges and door handle are mounted to ¹/₂-in. synthetic insulated tapping plates
• Each door section complete with a fiberglass-reinforced, plastic, heated threshold

Product Features

*Free shipping on Norlake KLF66-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor -10°F Freezer, 6' x 6' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall, locking deadbolt handle, R290 Capsule Pak Refrigeration CPF075PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLF66-C Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Brochure
