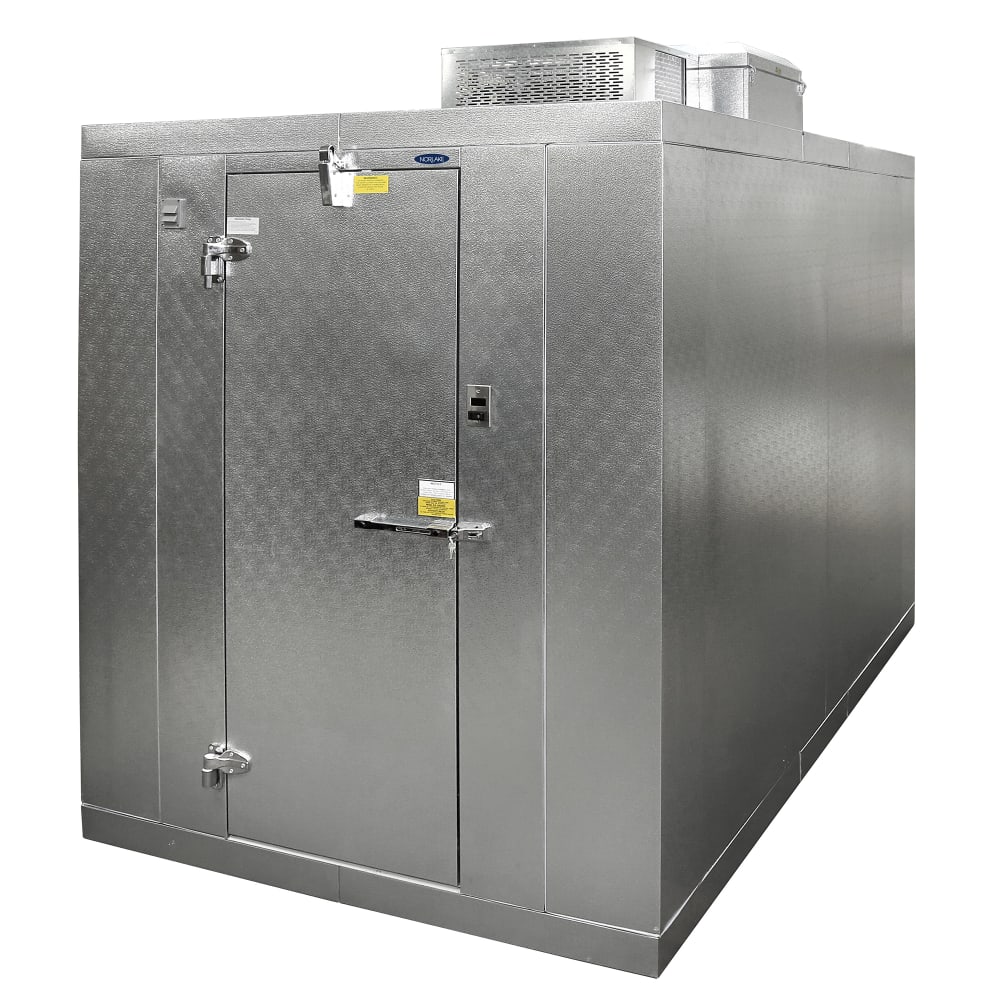

Norlake KLB77614-C 6' x 14' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

The Norlake KLB77614-C Kold Locker™ cooler box is an indoor unit with smooth aluminum flooring that supports as much as 800 pounds of evenly distributed weight. It offers 490 cubic feet of interior space and measures 6 feet wide by 14 feet deep by 7 feet 7 inches high overall. Its right-hinged door measures 26 inches wide by 78 inches high and is flush mounted to establish a smooth, streamlined presentation. To preserve cold air and create a tight seal, this unit is insulated with foamed-in-place polyurethane and features continuous panel gaskets along its outer perimeter.

To hold bulk amounts of refrigerated goods, a Capsule Pak™ refrigeration system is ceiling mounted on the Norlake KLB77614-C walk-in cooler. While its digital thermometer offers a readout of the current temperature, the LED light fixture illuminates the interior to ease product retrieval. This unit's door is right hinged and self-closing; to prevent employees from becoming stuck in the cooler, a safety release mechanism is built into the interior. This model requires assembly and features a replaceable perimeter heater wire.

Product Details

• Part of the Kold Locker and 77 collections
• 490-cu.-ft. interior space
• Indoor model
• Smooth aluminum flooring can support an evenly distributed load of 800 lbs. per square foot
• Modular panels with male and female mating rails and foamed-in-place cam locking fasteners

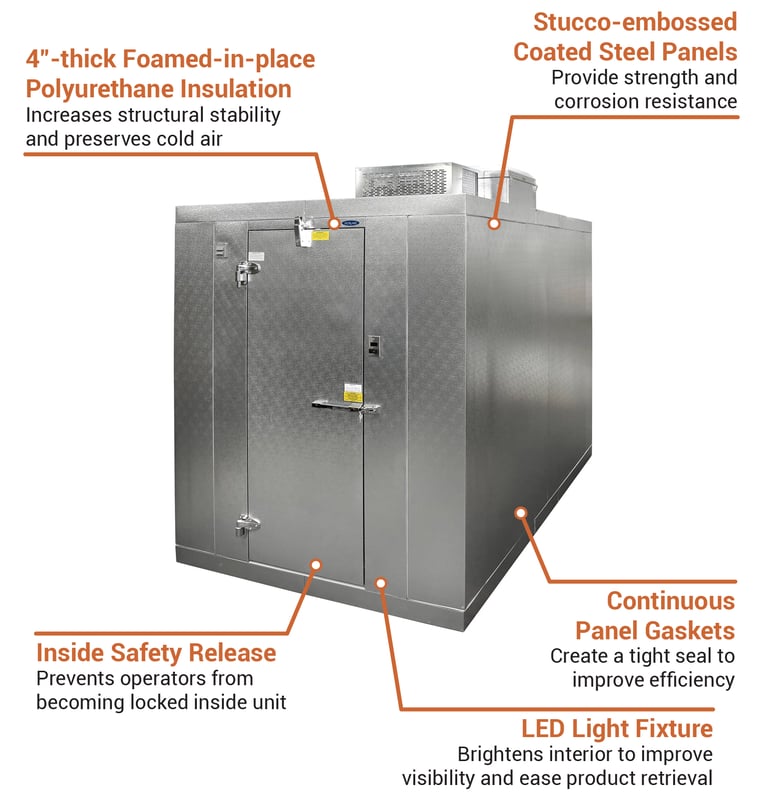

• 4-in.-thick foamed-in-place polyurethane insulation and foamed-in-place edge caps for end of floor and ceiling panels
• Continuous panel gaskets along outer perimeter
• Exterior and interior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
• 26-in.-wide x 78-in.-tall flush-mounted, right-hinged, self-closing door
• Door is centered on the short side of the unit
• Inside safety release prevents users from being locked inside unit
• Digital thermometer
• 2 field-adjustable cam-lift hinges with locking set screw
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Vapor-proof LED light fixture and switch with exterior pilot indicator light
• Replaceable perimeter heater wire
• Assembly required

Capsule Pak Refrigeration System

• Holding temperature: 35 degrees F
• Ceiling mounted with flush evaporator coil to keep refrigeration components outside the storage area
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 14 ft. D x 7 ft. 7 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB77614-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 14' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLB77614-C Specifications
