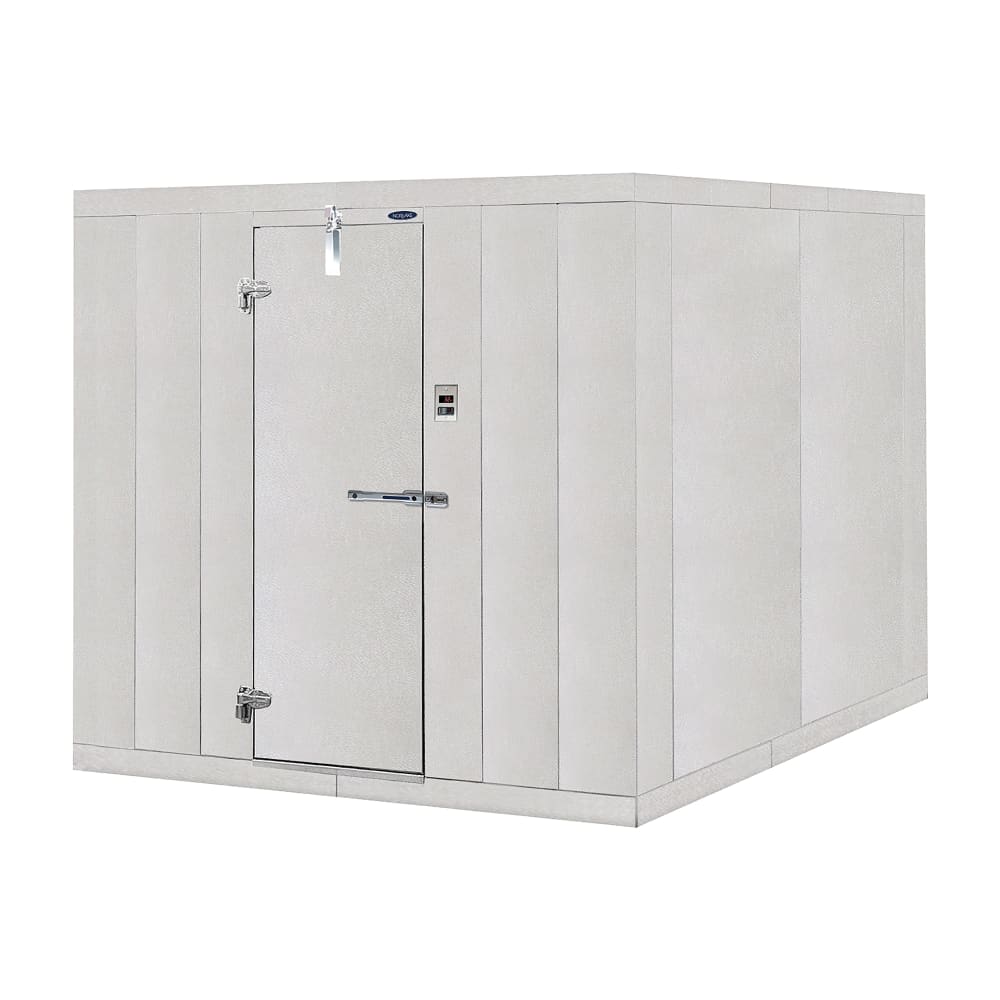

Norlake FTOF771011-CX-M 10' x 11' Fast-Trak® Outdoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$20,197.85 /Each
Norlake FTOF771011-CX-M Description
The Norlake FTOF771011-CX-M Fast-Trak® outdoor walk-in freezer provides frozen storage capacity in a 10-foot by 11-foot footprint suited for commercial foodservice and institutional facilities. Designed for outdoor operation, the unit combines 4-inch-thick, insulated panels with a Capsule Pak ECO™ top-mounted refrigeration system to maintain a -10-degree Fahrenheit operating temperature. Foamed-in-place polyurethane insulation helps improve thermal efficiency, while continuous perimeter gaskets and airtight cam-lock construction support temperature retention. The included floor creates a complete insulated enclosure for dependable long-term cold storage.
Built to streamline installation and daily use, the Norlake FTOF771011-CX-M walk-in freezer features a modular panel design with field-configurable door placement. Corrosion-resistant, stucco-embossed coated steel panels provide durability, while the smooth aluminum interior floor withstands frequent loading and unloading. The 26-inch-wide, self-closing door incorporates a deadbolt locking handle, inside safety release, magnetic gasket, perimeter heater wire, and heated air vent to support freezer performance. A high-output LED fixture mounted above the entrance improves visibility, and a combination digital thermometer and light switch simplify monitoring.
- Fast-Trak series
- 4-in.-thick, foamed-in-place polyurethane insulation
- 26-ga. corrosion-resistant, stucco-embossed coated steel panels
- Smooth aluminum interior floor
- 26-in.-wide, self-closing door
- Deadbolt locking handle with inside safety release
- 2 heavy-duty cam-lift hinges
- Spring-loaded hinge and spring-actuated door closer
- Magnetic door gasket
- Combination digital thermometer and light switch
- Floor double-sweep gasket
- Perimeter door heater wire
- Heated air vent in freezer door section
- High-output LED light above door
- Field-configurable door placement
- Modular cam-lock panel construction
- Overall dimensions: 10 ft. W x 11 ft. D x 7 ft. 7 in. H
- 115 V/60 Hz/1 ph, cord with a NEMA 6-15P plug
- Capsule Pak ECO refrigeration system
- R290 refrigerant
- Top-mounted configuration
- Air-cooled condensing unit
- Factory-assembled condensing unit and evaporator coil
- LogiTemp electronic controller
- Automatic defrost controls
- Flush evaporator design keeps components outside storage area
- High-efficiency EC evaporator fan motors
- Outdoor crankcase heater for low-ambient operation
- -10 degrees F operating temperature
- Rigid insulated evaporator enclosure
- Minimum installation clearance: 4 in. above and 24 in. sides
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake FTOF771011-CX-M within the 48 contiguous states.
From The Manufacturer
Fast-Trak® 10' × 11' × 7'7" Outdoor Freezer with Floor, Capsule Pak ECO™ Self-Contained, 26" Std Door w/ Roof & Trim
Watch a video about this product
Norlake FTOF771011-CX-M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 10 |
| NEMA | 6-15P |
| Phase | 1 |
| Product | Walk-In Freezers |
| Weight | 1783.00 |
