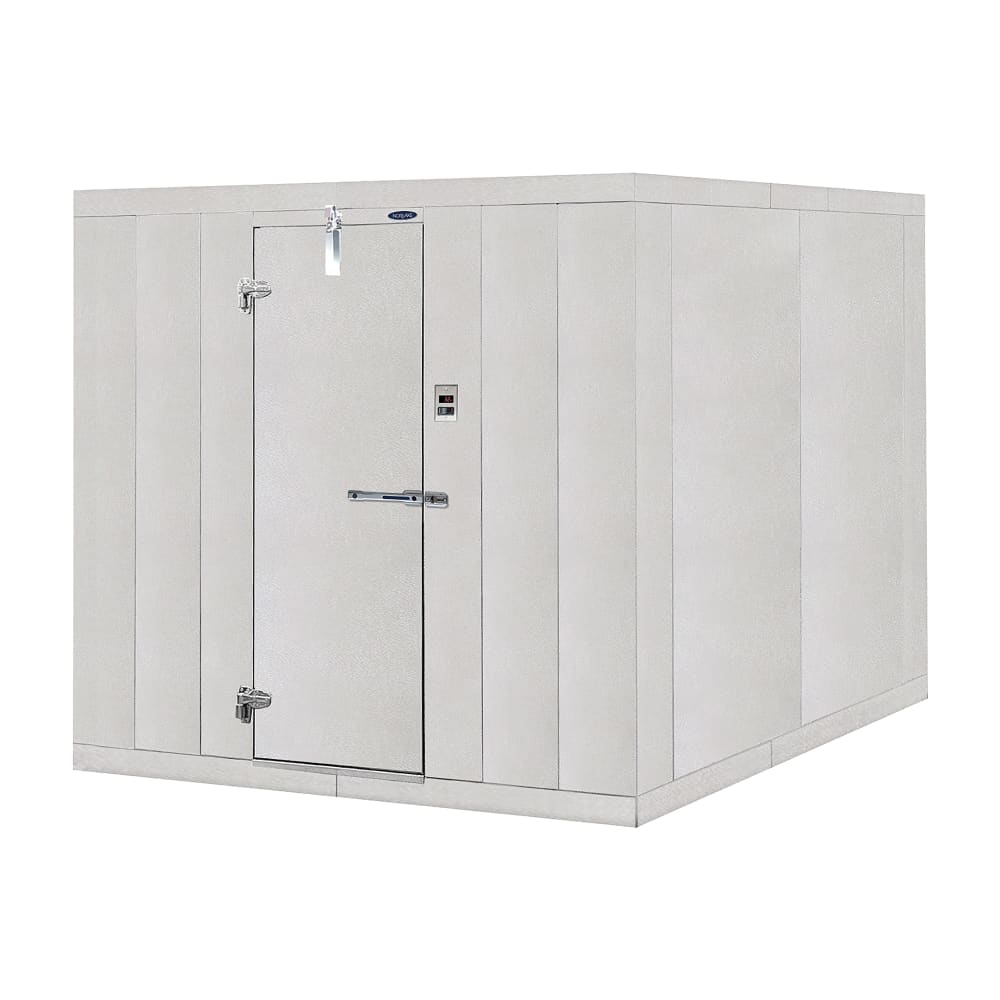

Norlake FTOF771010-CX-M 10' x 10' Fast-Trak® Outdoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$19,718.75 /Each
Norlake FTOF771010-CX-M Description
The Norlake FTOF771010-CX-M Fast-Trak® outdoor walk-in freezer combines a 10-foot by 10-foot footprint with a complete insulated floor system to provide frozen storage for commercial foodservice and institutional facilities. Designed for outdoor applications, the unit utilizes a Capsule Pak ECO™ top-mounted refrigeration package to maintain a -10-degree Fahrenheit environment. Foamed-in-place polyurethane insulation is housed within 4-inch-thick, insulated panels, while continuous perimeter gaskets and airtight cam-lock construction help preserve interior temperatures and support energy-efficient operation.
Supporting long-term durability, the Norlake FTOF771010-CX-M walk-in freezer features corrosion-resistant, stucco-embossed coated steel panels and a smooth aluminum interior floor. The modular Fast-Trak panel design enables field-configurable door placement, providing installation flexibility as facility layouts change. A 26-inch-wide, self-closing door is equipped with a deadbolt locking handle, inside safety release, magnetic gasket, heated air vent, and perimeter heater wire. A high-output LED fixture mounted above the entrance improves visibility, while a combination digital thermometer and light switch simplify daily monitoring.
- Fast-Trak series
- 4-in.-thick, foamed-in-place polyurethane insulation
- 26-ga. corrosion-resistant, stucco-embossed coated steel panels
- Smooth aluminum interior floor
- 26-in.-wide, self-closing door
- Deadbolt locking handle with inside safety release
- 2 heavy-duty cam-lift hinges
- Spring-loaded hinge and spring-actuated door closer
- Magnetic door gasket
- Combination digital thermometer and light switch
- Floor double-sweep gasket
- Perimeter door heater wire
- Heated air vent in freezer door section
- High-output LED light above door
- Field-configurable door placement
- Modular cam-lock panel construction
- Overall dimensions: 10 ft. W x 10 ft. D x 7 ft. 7 in. H
- 115 V/60 Hz/1 ph, cord with a NEMA 6-15P plug
- Capsule Pak ECO refrigeration system
- R290 refrigerant
- Top-mounted configuration
- Air-cooled condensing unit
- Factory-assembled condensing unit and evaporator coil
- LogiTemp electronic controller
- Automatic defrost controls
- Flush evaporator design keeps components outside storage area
- High-efficiency EC evaporator fan motors
- Outdoor crankcase heater for low-ambient operation
- -10 degrees F operating temperature
- Rigid insulated evaporator enclosure
- Minimum installation clearance: 4 in. above and 24 in. sides
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake FTOF771010-CX-M within the 48 contiguous states.
From The Manufacturer
Fast-Trak® 10' × 10' × 7'7" Outdoor Freezer with Floor, Capsule Pak ECO™ Self-Contained, 26" Std Door w/ Roof & Trim
Watch a video about this product
Norlake FTOF771010-CX-M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 10 |
| NEMA | 6-15P |
| Phase | 1 |
| Product | Walk-In Freezers |
| Weight | 1664.00 |
