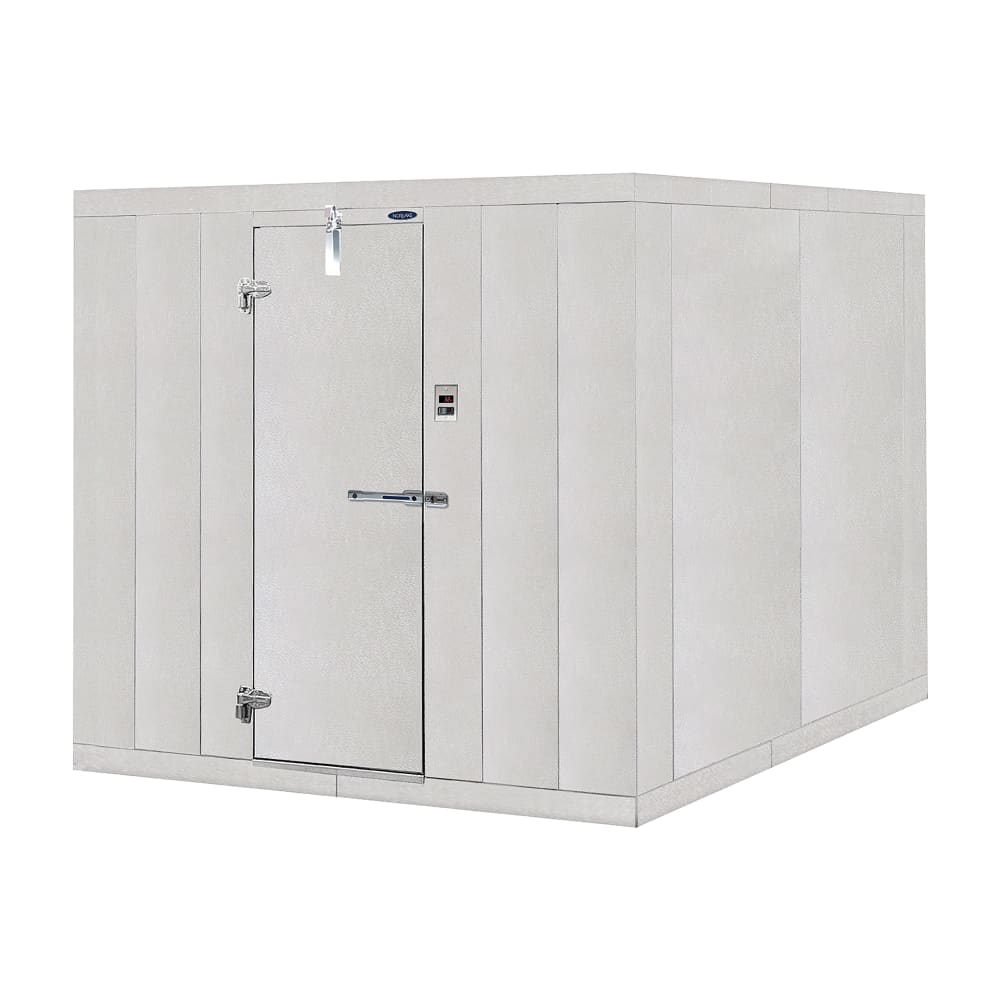

Norlake FTOB87611-CX-M 6' x 11' Fast-Trak® Outdoor Walk-in Cooler w/ Top-Mounted Compressor - Floor
$14,219.41 /Each
Norlake FTOB87611-CX-M Description
The Norlake FTOB87611-CX-M Fast-Trak® outdoor walk-in cooler is configured with a top-mounted Capsule Pak ECO™ refrigeration system that maintains a 37-degree Fahrenheit storage environment while leaving the interior compartment free of refrigeration hardware. The self-contained package combines a factory-assembled condensing unit and evaporator coil in a single housing mounted above the enclosure, maximizing available storage space within the 6-foot by 11-foot footprint. 4-inch-thick polyurethane-insulated panels, continuous perimeter gaskets, and foamed-in-place cam-lock fasteners work together to create a tightly sealed structure that supports efficient temperature retention. An insulated floor further enhances refrigerated holding performance.
Ease of use begins with the modular Fast-Trak construction, which enables installers to determine door placement during setup. The Norlake FTOB87611-CX-M walk-in cooler features corrosion-resistant, stucco-embossed coated steel panels for outdoor durability and an aluminum interior floor that withstands routine inventory movement. A 26-inch-wide self-closing door is equipped with a magnetic gasket, deadbolt-locking handle, inside safety release, and spring-assisted closing components. Above the entrance, a high-output LED fixture improves product visibility, while the combination digital thermometer and light switch provide convenient access to operational controls.
- Fast-Trak series
- 4-in.-thick, foamed-in-place polyurethane insulation
- 26-ga. corrosion-resistant, stucco-embossed coated steel panels
- Aluminum interior floor
- 26-in.-wide, self-closing door
- Deadbolt-locking handle with inside safety release
- 2 heavy-duty cam-lift hinges
- Spring-loaded hinge and spring-actuated door closer
- Magnetic door gasket
- Combination digital thermometer and light switch
- Floor double-sweep gasket
- Above-door LED light
- Field-configurable door placement
- Modular cam-lock panel construction
- Overall dimensions: 6 ft. W x 11 ft. D x 8 ft. 7 in. H
- 115 V/60 Hz/1 ph, cord with a NEMA 5-20P plug
- Capsule Pak ECO refrigeration system
- R290 refrigerant
- Top-mounted configuration
- Air-cooled condensing unit
- Factory-assembled condensing unit and evaporator coil
- LogiTemp electronic controller
- Automatic defrost controls
- Flush evaporator design keeps components outside storage area
- High-efficiency EC evaporator fan motors
- 37 degrees F operating temperature
- Insulated evaporator enclosure
- Minimum 4-in. top and 24-in. side clearance required
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake FTOB87611-CX-M within the 48 contiguous states.
From The Manufacturer
Fast-Trak® 6' × 11' × 8'7" Outdoor Cooler with Floor, Capsule Pak ECO™ Self-Contained, 26" Std Door w/ Roof & Trim
Watch a video about this product
Norlake FTOB87611-CX-M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 8.58 |
| Hertz | 60 |
| Length (ft) | 6 |
| NEMA | 5-20P |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Weight | 1386.00 |
