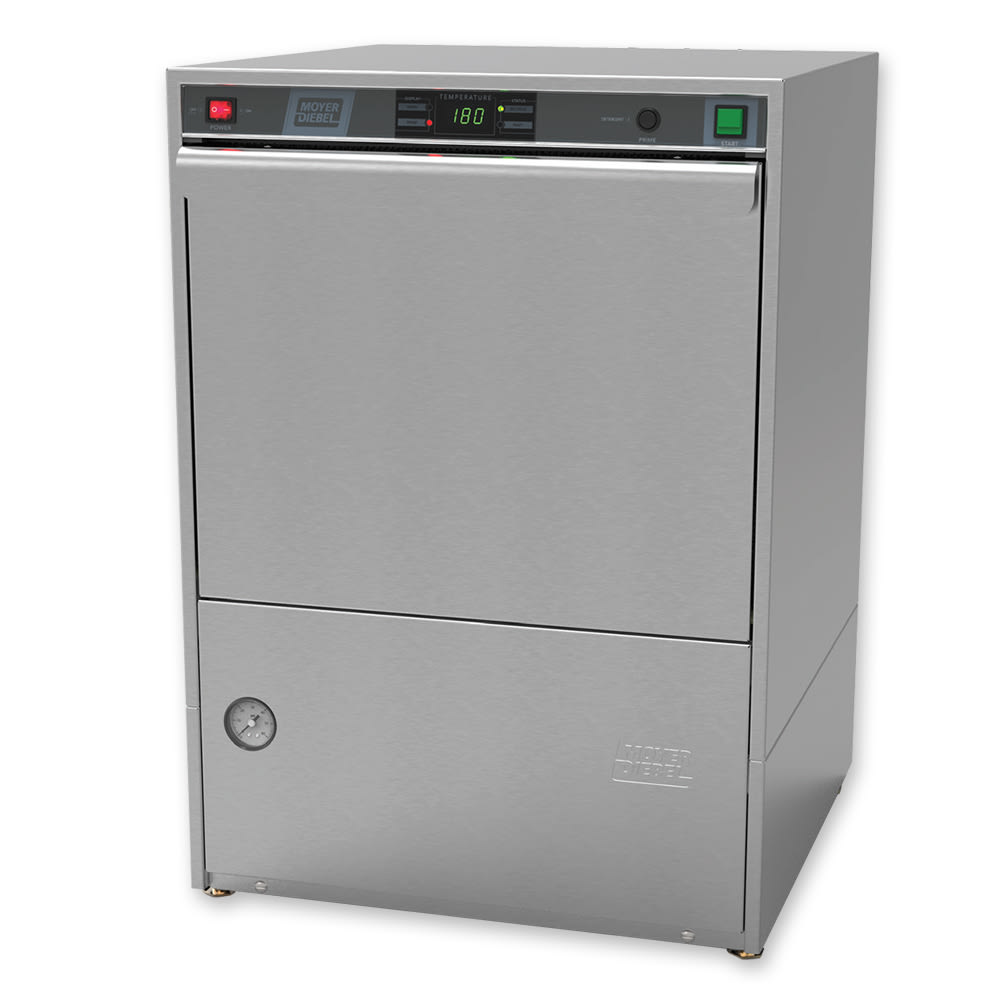

Moyer Diebel 383HT-70 High Temp Rack Undercounter Dishwasher w/ 27 Racks/hr Capacity, 208-240v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$7,075.48 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
Moyer Diebel 383HT-70 Description
The Moyer Diebel 383HT high-temp rack undercounter dishwasher processes up to 30 racks per hour with a 120-second cycle. Its StemSure™ soft start helps protect glasses and dishes from chipping and breaking as washing begins. A built-in booster heater raises water temperature for sanitizing, while the Rinse Sentry ensures a final rinse temperature of at least 180 degrees Fahrenheit. The machine includes one peg rack and one flat-bottom rack to accommodate different types of dishware.
The Moyer Diebel 383HT dishwasher has an LCD display that shows temperature and cycle time for monitoring, while service diagnostics provide troubleshooting information. The Fill Sentry monitors incoming water pressure to support filling and rinsing, while the Drain Sentry checks for proper drainage. Built-in peristaltic pumps dispense liquid detergent and rinse aid, reducing manual chemical handling. A counterbalanced double-skin door provides chamber access. The automatic pumped drain eliminates the need for a standpipe, and the auto-clean function washes the chamber at shutdown to simplify cleanup.
- Undercounter design
- 30-rack capacity per hour
- 120-second total cycle
- Uses 7⁄8 gal. of water per rack
- Stainless steel construction
- Counterbalanced double-skin door
- Front leveling feet
- Built-in peristaltic liquid detergent and rinse aid pumps
- Automatic pumped drain without standpipe
- Includes 1 peg rack and 1 flat-bottom rack
- Flexible fill and drain hoses included
- Water strainer and pressure-regulating valve included
- Recommended minimum incoming water temperature: 140 degrees F
- Required flow pressure: 18-22 PSI
- Solid-state controls
- LCD display shows temperature and cycle time
- Cycle progress indicators
- Advanced service diagnostics
- Built-in fill, drain, and rinse sentry features
- Automatic fill at startup
- Auto-clean feature
- High-temperature sanitizing with freshwater rinse
- StemSure soft start
- Built-in booster heater for 70-degree F temperature rise
- Minimum wash temperature: 150 degrees F
- Minimum final rinse temperature: 180 degrees F
- Racks: (2) 20 in. W x 20 in. D
- Overall: 24 in. W x 25 in. D x 33 1⁄2 in. H
- 24 A
- 240 V/60 Hz/1 ph, hardwiring required
*Image may not depict product color, inclusions or accessories.
*Free shipping on Moyer Diebel 383HT-70 within the 48 contiguous states.
From The Manufacturer
Moyer Diebel 383HT-70 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Moyer Diebel |
| Depth (in) | 25 |
| Design | Rack |
| For Use With | Dish and Glass |
| Height (in) | 33.5 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 27 |
| Rating | Better |
| Special Features | Built In Booster |
| Special Features | Cleaning Cycle |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 24 |
| Weight | 165.00 |
Important Prop 65 information for California residents.
- Moyer Diebel 383HT402401
- 5
- 4
- 3
- 2
- 1
Review this product!
The total cycle time is 120 seconds.
Yes. The Rinse Sentry verifies 180°F final rinses.
It provides 14 1⁄4 in. door clearance.
Yes. The Auto Clean cycle washes the chamber.
This unit uses the Fill Sentry system.
No. An automatic pumped drain is included.
A Drain Sentry system monitors draining performance.
Its double-wall tank reduces operating noise.
