Amerikooler QF101277**FBRF-O 10' x 12' Outdoor Walk-in Freezer w/ Remote Compressor - Floor

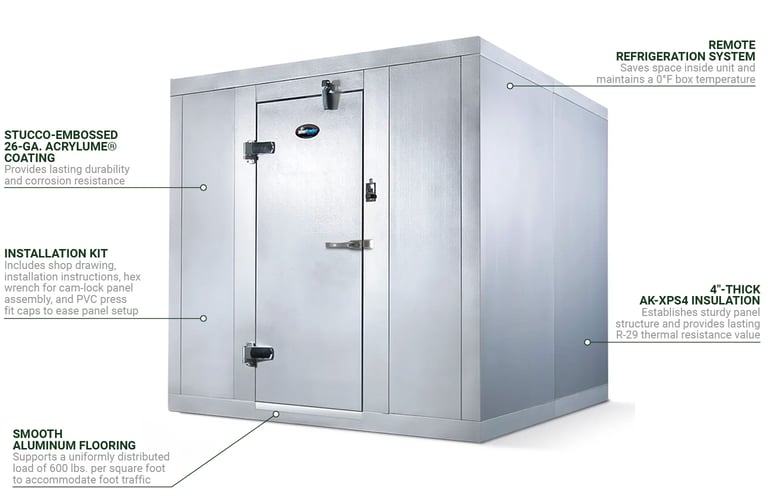

The Amerikooler QF101277**FBRF-O walk-in freezer can be placed outdoors—a great option for establishments with limited storage space. Although it ships unassembled, its hardware and installation instruction kit and modular wall, ceiling, and floor panels facilitate setup. The panels can be secured together with the corrosion-resistant cam-action locking system, while the compression gaskets establish an airtight seal. While the wall and ceiling panels are laminated with stucco-embossed, corrosion-resistant Acrylume®, the floor panels are finished with smooth aluminum. To accommodate regular foot traffic, the floor can support an evenly distributed load of 600 pounds per square foot.

The freezer's 76-inch-tall entrance door is built with spring-assisted super cam-rise hinges and a door closer for smooth opening and closing, and to reduce the chance of the door's seal frosting over, a temperature-controlled heater wire is built into the door. Operators can lock the door's deadbolt keyed handle after business hours, and to enhance user safety, an interior safety release mechanism provides a way to exit the unit if staff become locked inside. An LED light above the door jamb illuminates the storage area, while a digital thermometer displays an easy-to-read LED temperature readout.

The Amerikooler QF101277**FBRF-O indoor walk-in freezer comes with the Heatcraft Bohn BCH0019LBACHA0200-BEL0100BS6EEAB0400 refrigeration unit, which can be installed remotely to save space inside the unit. For best results, it should be installed in ambient temperatures no hotter than 95 degrees Fahrenheit, and to ease setup, it ships prewired and preassembled. This system can produce and maintain a box temperature of 0 degrees Fahrenheit.

Product Details

• For outdoor placement
• Quick-ship configuration
• Hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
• Modular tongue-and-groove ceiling, wall, and floor panels with cam-action locking system
• Panels insulated with 4-in.-thick AK-XPS4 rigid foam
• R-32 thermal resistance value
• Stucco-embossed, corrosion-resistant 26-ga. Acrylume coating on wall and ceiling panels
• Floor panels finished with smooth aluminum
• Floor can support uniformly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer with accurate LED temperature readout
• Heated pressure relief vent mounted on door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn BCH0019LBACHA0200-BEL0100BS6EEAB0400 remote refrigeration system
• Includes electronically commutated motor
• Produces and maintains 0-degrees-F temperatures
• Withstands ambient temperatures as hot as 95 degrees F
• Microchannel coil technology
• Ships fully assembled, evacuated, charged, run tested, and wired for simple installation

Dimensions & Utilities

• Walk-in freezer: 11 ft. 9¹⁄₄ in. W x 9 ft. 9³⁄₄ in. D x 7 ft. 7 in. H
• 2 HP
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF101277**FBRF-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Freezer, 9'-9 3/4" W x 11'-9 1/4" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, Bohn outdoor remote refrigeration, 0°F, 2 HP, BCH0019LBACHA0200-BEL0100BS6EEAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
