Amerikooler QF060677**FBSM-O 6' x 6' Outdoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

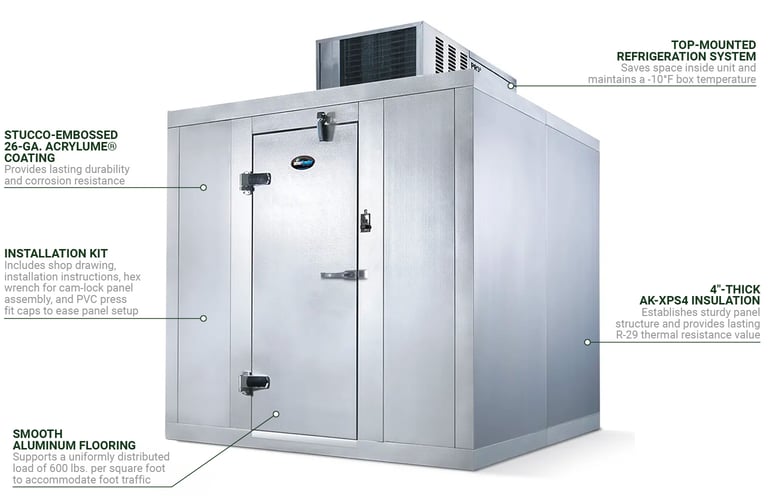

For businesses unable to dedicate an indoor area for bulk refrigeration, the Amerikooler QF060677**FBSM-O quick-ship walk-in freezer is designed to survive outdoor use. This 5-foot- 10¹⁄₈-inch-wide by 5-foot-10⁵⁄₈-inch-deep by 7-foot-7-inch-tall unit is comprised of modular wall, ceiling, and floor panels made of 4-inch-thick AK-XPS4 insulation that provides R-32 thermal resistance and establishes a sturdy structure. For simple setup, these panels can be secured together with the cam-action locking system and compression gasket. Stucco-embossed, corrosion-resistant 26-gauge Acrylume® is laminated on the wall and ceiling panel interiors and exteriors for durability. To accommodate regular foot traffic and establish an even surface, the flooring is finished with smooth aluminum that can accommodate 600 pounds per square foot when weight is evenly distributed.

The 76-inch-tall entrance door is built with super cam-rise hinges that can be adjusted to ensure smooth movement as staff enter and exit the unit. To ensure the door self-closes, it's equipped with a door closer, three-sided magnetic gasket, and a flexible double wiper. Its keyed deadbolt handle can be locked after business hours, while an inside safety release mechanism ensures employees can always exit the unit from the inside. Inside the freezer, a center-mounted LED light above the door jamb brightens the space, while a digital thermometer provides temperature readout. The door also features a heater cable with a heat-sensing regulating thermostat and heated pressure relief vent.

The Amerikooler QF060677**FBSM-O walk-in freezer includes the Heatcraft Bohn PT0042LBTEMSA PRO³ refrigeration unit, which can be mounted to the top of the unit to conserve storage space inside the freezer. By combining the mechanics of a unit cooler and condensing unit, it minimizes the required refrigerant charge and is simple to assemble. To achieve a consistent box temperature of -10 degrees Fahrenheit, it uses R-448A refrigerant, and it shouldn't be used in areas that exceed 90 degrees Fahrenheit. This unit is built with a two-speed evaporator fan motor, electronic defrost, and microchannel coil technology to enhance efficiency. To simplify installation, it ships fully assembled, evacuated, charged, run tested, and wired.

Product Details

• For outdoor placement
• Includes hardware and installation instruction kit (shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps)
• Modular floor, wall, and ceiling panels made of 4-in.-thick AK-XPS4 rigid foam insulation
• R-32 thermal resistance value
• Cam-action locking system and compression gaskets create airtight seal
• Stucco-embossed, corrosion-resistant 26-ga. Acrylume coating on interior and exterior of wall and ceiling panels
• Smooth aluminum finish on floor panels
• Floor accommodates uniformly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door
• 2 adjustable, super cam-rise spring-assisted hinges
• Door closer, 3-sided magnetic gasket, and flexible double wiper ensure self-closing quality
• Deadbolt key/padlock handle
• Safety inside release mechanism
• Center-mounted LED light
• Safety pilot light switch
• Digital thermometer
• Conduit between switch box and outlet junction box
• Heated pressure relief vent on door jamb
• Temperature-controlled heater wire on door

Refrigeration System

• Heatcraft Bohn PT0042LBTEMSA refrigeration unit combines a unit cooler and condensing unit
• Top-mounted, air-cooled configuration
• Produces and maintains box temperature of -10 degrees F
• Maximum ambient temperature: 90 degrees F
• R-448A refrigerant
• Ships fully assembled, evacuated, charged, run tested, and wired
• 2-speed EC evaporator fan motor
• Microchannel coil technology reduces energy and refrigerant consumption
• Electric defrost

Dimensions & Utilities

• Refrigeration system: 58 in. W x 39 in. D x 37³⁄₄ in. H
• Walk-in freezer: 5 ft. 10¹⁄₈ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 10.42 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF060677**FBSM-O within the 48 contiguous states.

From The Manufacturer

Quick Ship Outdoor Walk-In Freezer, 5'-10 5/8" W x 5'-10 1/8" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, Outdoor refrigeration, PT0042LBTEMSA, sized at 90°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
