Amerikooler QC101277**FBRC-O 10' x 12' Outdoor Walk-In Cooler w/ Remote Compressor - Floor

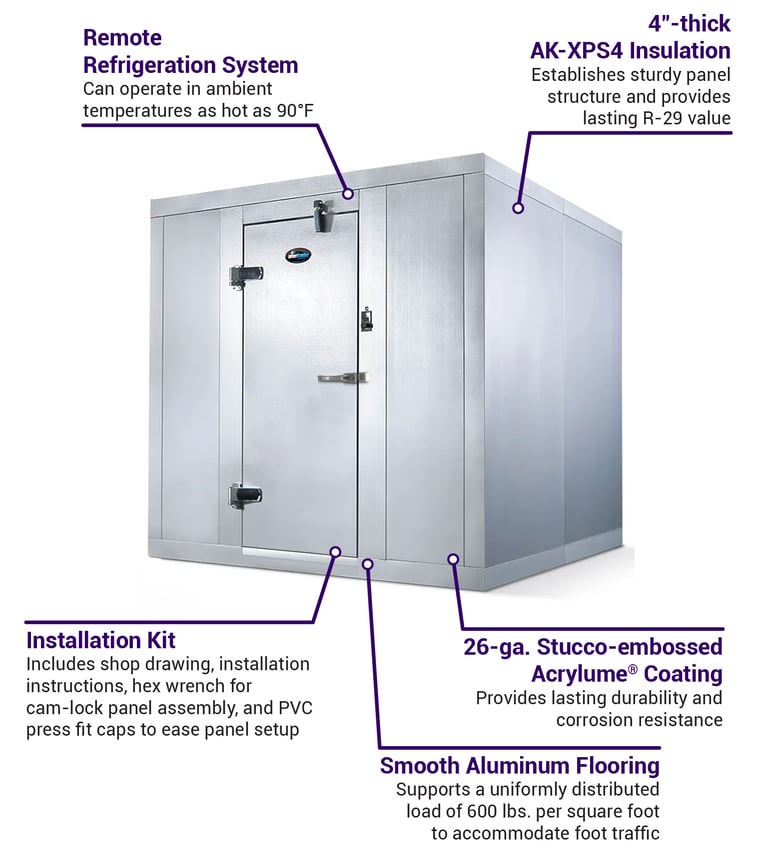

The Amerikooler QC101277**FBRC-O walk-in cooler is a quick-ship unit, meaning it's constructed to a predetermined size with standard features. While this unit ships disassembled, it includes an installation instruction kit with hardware to ease setup. Its modular ceiling, wall, and floor panels feature cam-action locking systems and compression gaskets that create airtight joints; all panels are made of 4-inch-thick AK-XPS4 rigid foam insulation that's permanently bonded to primed metal surfaces. The interior and exterior surfaces are laminated with 26-gauge, stucco-embossed, corrosion-resistant Acrylume®. Designed to support foot traffic, the smooth, ¹⁄₂₀-inch-thick aluminum flooring accommodates an evenly distributed load of 600 pounds per square foot, and because it's an outdoor unit, it comes with a rain roof package.

To ensure the door opens and closes smoothly, it's fitted with cam-rise spring-assisted hinges, a spring-actuated door closer, and a three-sided magnetic gasket. Its deadbolt keyed handle latch enables operators to lock the unit to deter tampering and theft, and to prevent anyone from becoming locked inside the unit, it features an interior safety lock release handle. An LED light fixture is mounted on the door jamb's center to brighten the interior, and operators can use the corresponding pilot switch to turn the light on or off. The digital LED thermometer provides a clear view of interior temperatures.

To maintain an interior temperature of 35 degrees Fahrenheit, the Amerikooler QC101277**FBRC-O outdoor walk-in cooler operates with the included Heatcraft Bohn BCH0008MBACZA0000 air-cooled condensing unit. This ³⁄₄-horsepower unit can be remotely installed in areas that don't exceed ambient temperatures hotter than 90 degrees Fahrenheit. To ease maintenance, its cabinet can be removed for component access.

Product Details

• For outdoor placement
• Includes a hardware and installation instruction kit
• Modular tongue-and-groove wall, ceiling, and floor panels
• Cam-action locking system and compression gaskets
• 4-in.-thick AK-XPS4 rigid foam insulation permanently molded into panels
• R-29 thermal resistance value
• 26-ga. stucco-embossed, corrosion-resistant Acrylume laminate
• ¹⁄₂₀-in.-thick smooth aluminum flooring accommodates an evenly distributed load of 600 lbs. per square foot
• 76-in.-tall entrance door
• 2 heavy-duty super cam-rise spring-assisted door hinges
• 3-sided magnetic gasket, spring-actuated door closer, and double wiper
• Deadbolt keyed handle latch with interior safety lock release handle
• Center-mounted LED light fixture
• Digital LED thermometer
• Safety pilot light on/off switch
• Conduit between switch box and outlet junction box
• Rain roof package included
• Ships unassembled

Refrigeration System

• Includes Heatcraft Bohn BCH0008MBACZA0000 remote air-cooled condenser
• R-404A refrigerant
• Can maintain 35-degree-F interior temperature
• Maximum ambient temperature: 90 degrees F
• Removable cabinet provides access to serviceable components

Dimensions & Utilities

• Refrigeration system: 24⁶³⁄₁₀₀ in. W x 28¹⁄₄ in. D x 19³⁄₄ in. H
• Walk-in cooler: 9 ft. 9¹⁄₄ in. W x 11 ft. D x 7 ft. 7 in. H
• 35 A, ³⁄₄ HP
• 208-230 V/60 Hz/1 ph, NEMA 6-15R plug

Product Features

*Free shipping on Amerikooler QC101277**FBRC-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Cooler, 9'-9 3/4" W x 11'-9 1/4" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, Bohn outdoor remote refrigeration, 35°F, 3/4 HP, BCH0008MBACZA0000-BEL0095AS6AMAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-5

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
