Amerikooler QC080877**FBSC 8' x 8' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
Amerikooler QC080877**FBSC Description

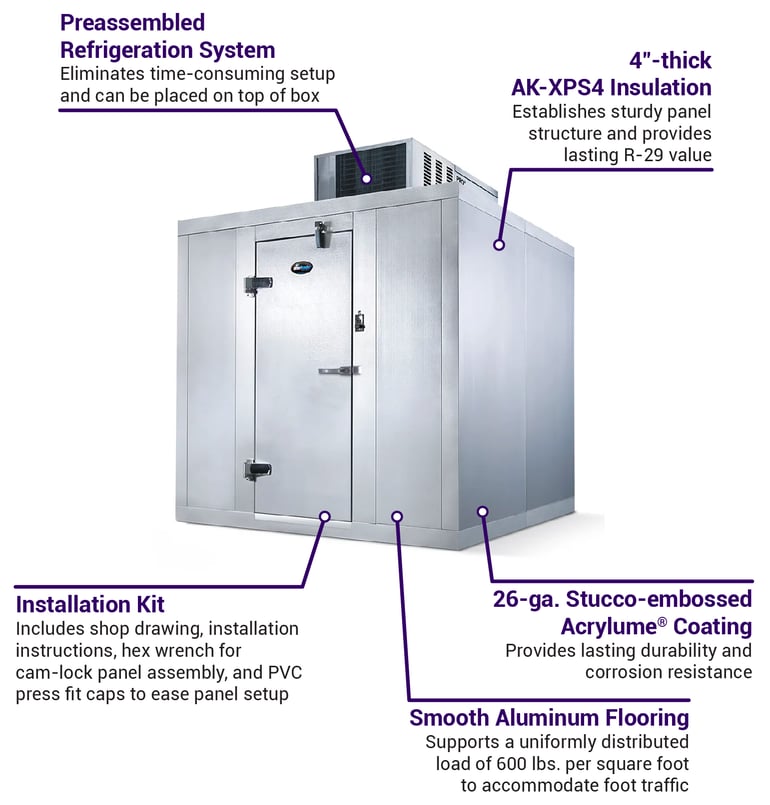

Although the Amerikooler QC080877*FBSC quick-ship indoor walk-in cooler ships unassembled, it's simple to set up with the included installation kit, and its wall, ceiling, and floor panels can be attached with the integrated cam-action locking system and compression gaskets. These panels are made of 4-inch-thick AK-XPS4 rigid foam insulation that provides R-29 thermal resistance, enhances structural rigidity, and retains generated temperatures. Once installed, it measures 7 feet 10 1⁄8 inches wide by 7 feet 10 inches deep by 7 feet 7 inches tall.
For a sleek appearance, lasting durability, and corrosion resistance, the interior and exterior surfaces are laminated with 26-gauge stucco-embossed Acrylume®—zinc-aluminum coated steel. Staff can press the swing-type 76-inch-tall swing-type door to access the interior, which is illuminated by the door jamb's center-mounted LED light fixture. This indoor cooler's floor is made of smooth 1⁄20-inch-thick aluminum rated to accommodate an evenly distributed load of 600 pounds per square foot—enough for safe foot traffic. Operators can quickly monitor interior temperatures with the digital thermometer, which features a safety pilot light on/off switch and a conduit between the switch box and outlet junction box. To prevent unnecessary energy loss, the door self-closes, and to ensure a tight seal, it features a three-sided magnetic gasket and a door closer.
The Amerikooler QC080877*FBS indoor cooler relies on the Heatcraft Bohn PT0068MBNAMSA PRO3 packaged top-mount refrigeration system and R-448A refrigerant to generate temperatures as cool as 35 degrees Fahrenheit. Because this 55-inch-wide by 36-inch-deep by 32 2⁄5-inch-tall unit is designed to be mounted on top of the cooler, it can increase storage space inside the unit. To reduce ice buildup through high-volume use, it boasts an air-defrost mechanism, and this unit shouldn't be used in ambient temperatures hotter than 90 degrees Fahrenheit.
- For indoor placement
- Modular wall, floor, and ceiling tongue-and-groove panels
- Corrosion-resistant thermoplastic cam-action locking system
- Compression gasket forms rigid, airtight joints
- Installation kit expedites setup
- 4-in.-thick AK-XPS4 insulation permanently bonded to interior and exterior metal skin
- Provides R-29 thermal resistance at a 55-degree-F mean temperature
- 26-ga. stucco-embossed, corrosion-resistant Acrylume laminate
- Smooth 1⁄20-in.-thick aluminum floor that accommodates an evenly distributed load of 600 lbs. per square foot
- 76-in.-tall self-closing entrance door
- 2 adjustable spring-assisted hinges, magnetic gasket, and door closer
- Door's bottom edge features double-sweep wiper
- Deadbolt key/padlock handle features inside release for safety
- Center-mounted LED light fixture on door jamb
- Digital thermometer with safety pilot light on/off switch
- Conduit between switch box and outlet junction box
- Ships unassembled
- Heatcraft Bohn PT0068MBNAMSA PRO3 top-mounted refrigeration system with condensing unit (included)
- Ships packaged, fully assembled, and wired
- Self-contained
- Can be mounted on top of walk-in cooler
- R-448A refrigerant
- Can maintain 35-degree-F interior temperature
- Maximum ambient temperature: 90 degrees F
- Air defrost system
- Refrigeration system: 55 in. W x 36 in. D x 32 2⁄5 in. H
- Walk-in cooler: 7 ft. 10 1⁄8 in. W x 7 ft. 10 in. D x 7 ft. 7 in. H
- 7.98 A
- 208-230 V/60 Hz/1 ph, includes NEMA 6-15R plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC080877**FBSC within the 48 contiguous states.
From The Manufacturer
Amerikooler QC080877**FBSC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 7.84 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal |
| Width (ft) | 7.83 |
| Weight | 1577.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The overall dimensions are 7 ft. 10 in. W x 7 ft. 10 1⁄8 in. L x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes a refrigeration system.
It uses self-contained, top-mounted refrigeration.
It is designed to maintain 35°F.
It requires 208-230V/60 Hz/1 ph, includes NEMA 6-15R.
It uses R448A refrigerant.
It uses 4-in. thick AK-XPS4 insulation AK-XPS4 insulation, rated R-29 for coolers and R-32 for freezers.
Yes, the door is self-closing.
Staff can monitor the interior temperature with the digital LED thermometer.
Yes, it includes LED interior lighting.
The refrigeration system is sized for 90°F ambient temperature.
It uses 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume panels on the interior and exterior.
It uses air defrost.
