Amerikooler QC060877**FBSC 6' x 8' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

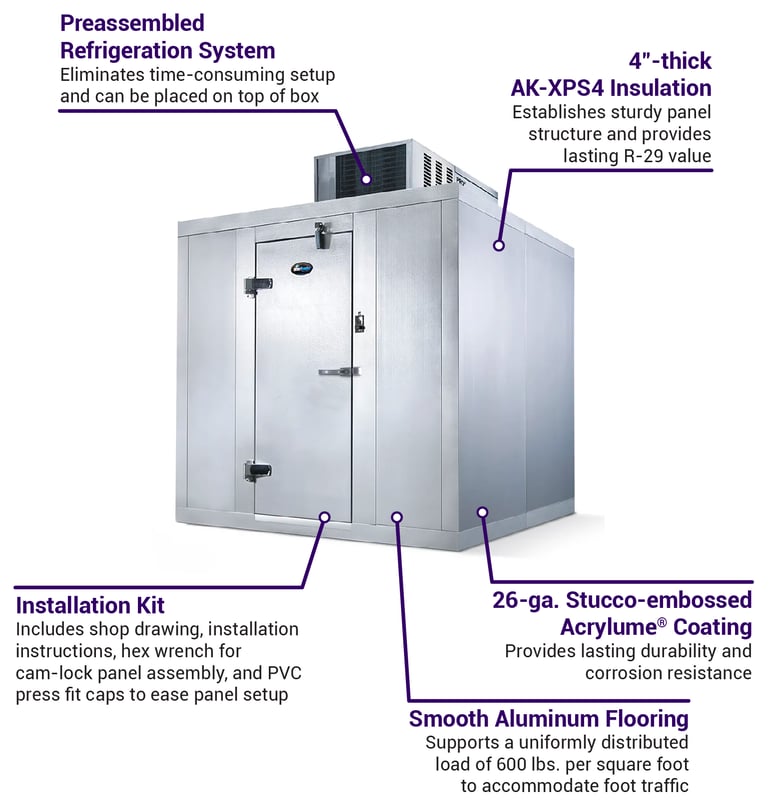

The Amerikooler QC060877**FBSC indoor walk-in cooler is a standard quick-ship model measuring 5 feet 10⁵⁄₈ inches wide by 7 feet 9¹⁄₄ inches deep by 7 feet 7 inches tall. This unit maintains an interior temperature of 35 degrees Fahrenheit with the Heatcraft Bohn PT0068MBNAMSA PRO³ packaged refrigeration system, which can be mounted on the cooler's top to save interior space. To reduce the change of premature failure, it shouldn't be used in ambient settings exceeding 90 degrees Fahrenheit. This unit uses R-448A refrigerant and features an air defrost mechanism.

Staff can assemble the modular ceiling, wall, and floor panels with the included installation kit and hardware. These tongue-and-groove panels sport cam-action locking systems and compression gaskets to ensure airtight joints. For a sturdy structure that retains an R-29 thermal resistance value, each panel is made up of 4-inch-thick AK-XPS4 insulation that's permanently molded into the primed metal surfaces. While the interior and exterior surfaces are laminated with 26-gauge stucco-embossed Acrylume®, the floor is made of ¹⁄₂₀-inch-thick smooth aluminum. To support standard foot traffic, this flooring can accommodate a uniformly distributed load of 600 pounds per square foot.

The Amerikooler QC060877**FBSC walk-in indoor cooler's 76-inch-tall door is fitted with cam-rise spring-assisted hinges that enable smooth opening and closing. To ensure it's fully closed, it features a spring-actuated door closer and three-sided magnetic gasket. Staff can access the interior with the deadbolt keyed handle latch, and to reduce the chance of employees becoming trapped inside a locked unit, it's built with an interior safety lock release handle. The center-mounted LED light fixture brightens the interior, and to conserve energy, the light can be turned off with the pilot switch. Operators can monitor interior temperature with the digital LED thermometer.

Product Details

• For indoor applications
• Includes hardware and installation instruction kit to ease setup
• Modular, tongue-and-groove wall, ceiling, and floor panels
• Cam-action locking system and compression gaskets for airtight joints
• Closed-cell 4-in.-thick AK-XPS4 rigid foam insulation built into ceiling, wall, and floor panels
• R-29 thermal resistance value
• Interior and exterior surfaces laminated with 26-ga. corrosion-resistant Acrylume with stucco embossment
• Smooth, ¹⁄₂₀-in.-thick aluminum flooring accommodates an evenly distributed 600 lbs. per square foot
• 76-in.-tall entrance door
• 2 heavy-duty super cam-rise spring-assisted door hinges
• 3-sided magnetic gasket, door closer, and double wiper
• Deadbolt keyed handle latch features interior safety lock release handle
• Center-mounted LED light
• Digital LED thermometer
• Safety pilot light power switch
• Conduit between switch box and outlet junction box
• Ships unassembled

Refrigeration System

• Includes Heatcraft Bohn PT0068MBNAMSA top-mounted refrigeration system
• Ships packaged, fully assembled, evacuated, charged, run tested, and wired to simplify installation
• Can be installed on top of walk-in cooler
• Self-contained
• R-448A refrigerant
• Can maintain 35-degree-F interior temperature
• Maximum ambient temperature: 90 degrees F
• Air defrost system

Dimensions & Utilities

• Refrigeration system: 55 in. W x 36 in. D x 32²⁄₅ in. H
• Walk-in cooler: 5 ft. 10⁵⁄₈ in. W x 7 ft. 9¹⁄₄ in. D x 7 ft. 7 in. H
• 7.98 A
• 208-230 V/60 Hz/1 ph, NEMA 6-15R plug

Product Features

*Free shipping on Amerikooler QC060877**FBSC within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Cooler, 5'-10 5/8" W x 7'-9 1/4" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, 35°F, top mount, self-contained, indoor refrigeration, PT0068MBNAMSA, sized at 90°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
