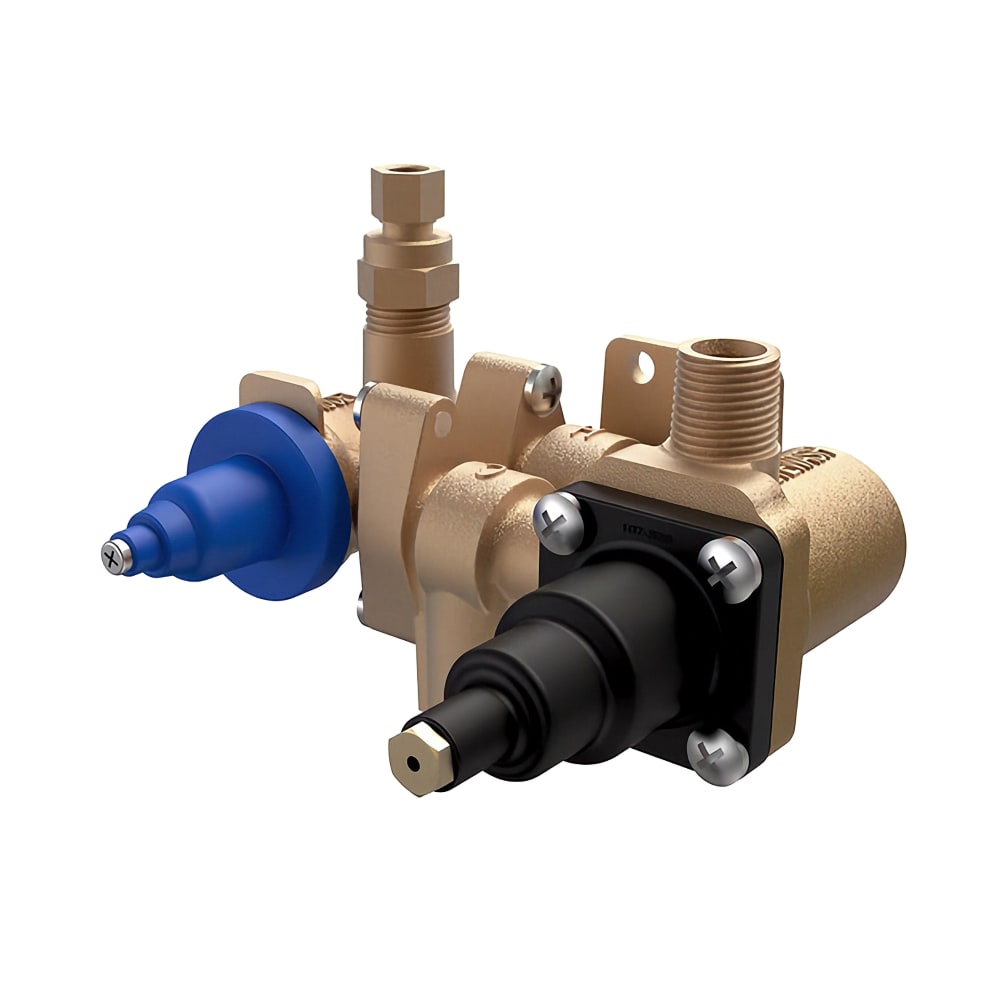

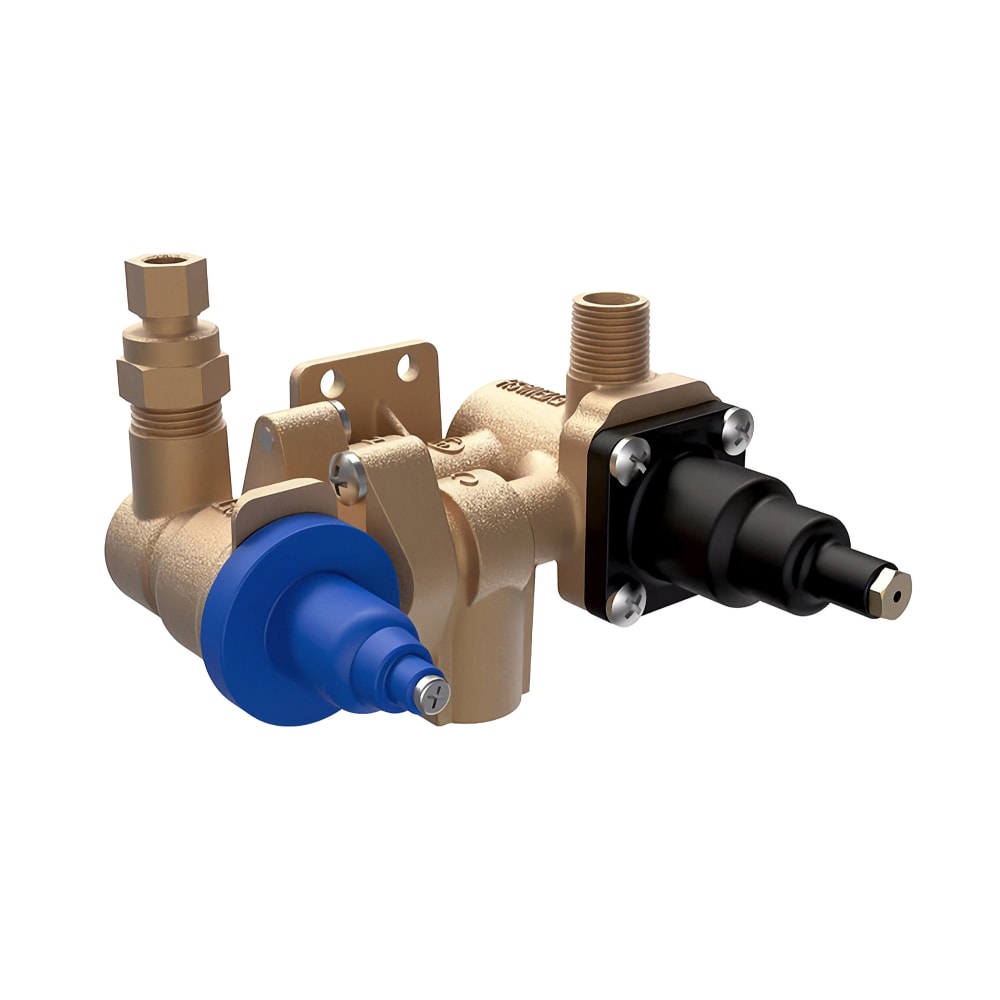

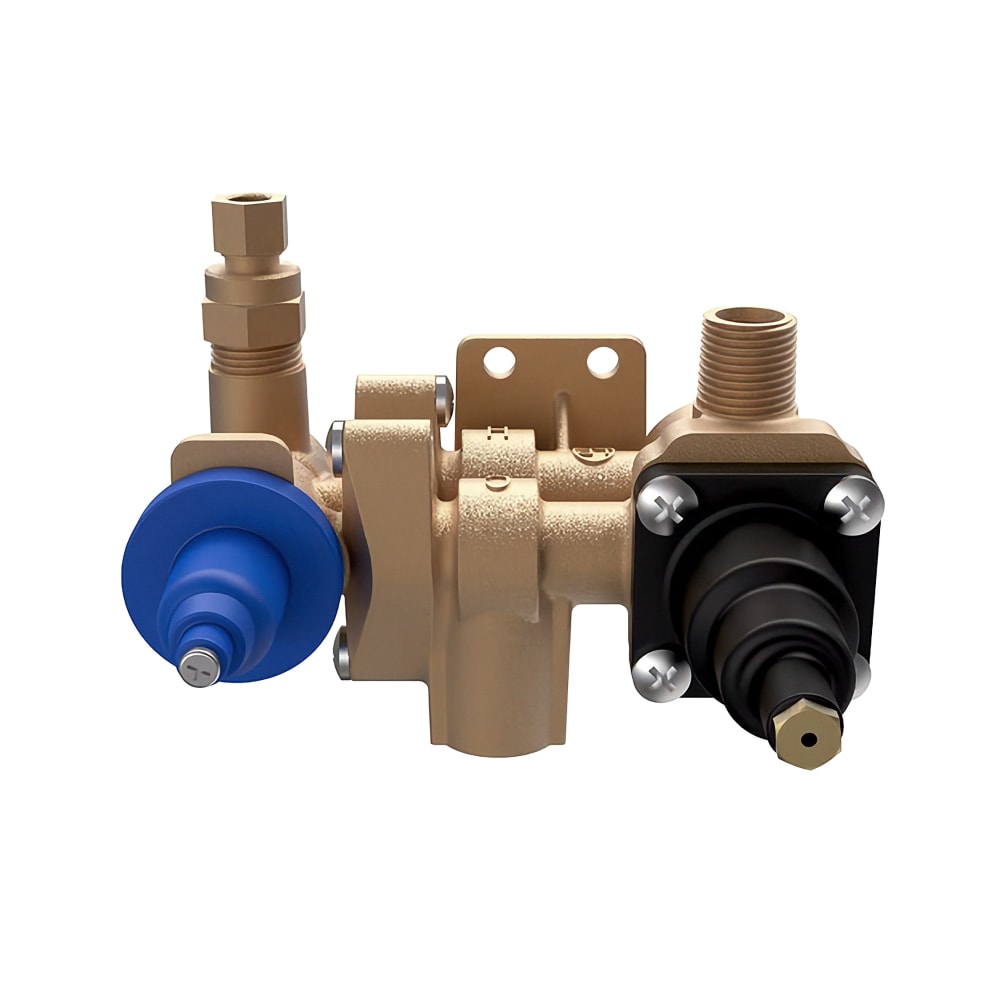

Bradley S19-2010 Navigator® Thermostatic Mixing Valve for Eyewash Stations & Faucets
$1,157.10 /Each
Login or add to cart for more information!
Bradley S19-2010 Description
The Bradley S19-2010 Navigator® thermostatic mixing valve is designed to supply tempered water to faucets and tepid water to eyewash stations in commercial and industrial safety applications. Built of brass, the assembly combines two thermostatic valves into a single compact unit to reduce under-sink installation space and simplify plumbing integration. A liquid-filled thermostat regulates the eyewash outlet between 65 and 95 degrees Fahrenheit, while a wax-filled thermostat controls faucet outlet temperatures from 95 to 120 degrees Fahrenheit. Adjustable temperature set points enable customized operation, and integrated check valves on the hot and cold supply inlets help prevent crossflow between water lines. The built-in cold water bypass on the eyewash outlet maintains cold water flow if hot water is interrupted, while positive hot water shutoff activates if the cold supply is lost.
Factory assembled and tested, the Bradley S19-2010 mixing valve incorporates dirt- and lime-resistant internal components to support long-term performance in demanding wash station environments. The valve can be mounted in any orientation and includes 1⁄2-inch NPT inlet and outlet connections along with a 3⁄8-inch compression fitting for faucet installation. Separate outlets provide tempered water delivery to the faucet and tepid water delivery to the eyewash station, supporting combination emergency wash setups beneath sinks and laboratory fixtures.
- Part of the Navigator series
- Brass thermostatic mixing valve construction
- Single hot and cold water inlets
- Tempered water outlet for faucet connection
- Tepid water outlet for eyewash connection
- Liquid-filled eyewash thermostat
- Wax-filled faucet thermostat
- Adjustable temperature set point
- Built-in cold water bypass on eyewash outlet
- Positive hot water shutoff when cold supply is lost
- Dirt- and lime-resistant internal components
- Factory assembled and tested
- Faucet outlet temperature range: 95-120 degrees F
- Eyewash outlet temperature range: 65-95 degrees F
- 1⁄2-in. NPT inlet and outlet connections
- 3⁄8-in. compression fitting to faucet included
- Overall dimensions: 6 1⁄4 in. W x 4 1⁄4 in. D x 6 in. H
- Dual thermostatic valve assembly
- Compact under-sink installation design
- Check valves on supply inlets
- Mountable in any orientation
- Separate faucet and eyewash outlet configuration
- Brass body construction
*Image may not depict product color, inclusions or accessories.
*Bradley S19-2010 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Navigator® Thermostatic Mixing Valve, 6 1/4"W x 4 1/4"D x 6"H, brass, single cold and hot water inlets, two outlets: tempered water to faucet, tepid water to eyewash, faucet range 95 - 120°F, eyewash range 65 - 95°F, adjustable temperature set point, liquid-filled eyewash thermostat, wax-filled faucet thermostat, check valves on supply inlets, cold bypass on eyewash, positive shutoff of hot supply when cold supply is lost, dirt and lime resistant, 1/2" NPT connections, 3/8" compression fitting to faucet included, ASSE 1070/1071, cUPC, NSF/ANSI 372, lead-free, ANSI Z358.1 compliant
Bradley S19-2010 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Bradley |
| Depth (in) | 4.25 |
| For Use With | Eyewash Stations & Faucets |
| Height (in) | 6 |
| Material | Brass |
| Part Type | Mixing Valve |
| Product | Parts & Accessories |
| Product Type | Safety |
| Series | Navigator® |
| Warranty | 10-year Limited Repair or Replacement |
| Width (in) | 6.25 |
| Weight | 4.50 |
