American Panel AP7BCF70-2-P 32 5/16" HURRiCHiLL™ Floor Model Blast Chiller/Shock Freezer - 14 Pan Capacity, 208v/1ph
Typically ships in 4 - 8 Business Days
$25,004.20 /Each
Contact us for details!
American Panel AP7BCF70-2-P Description

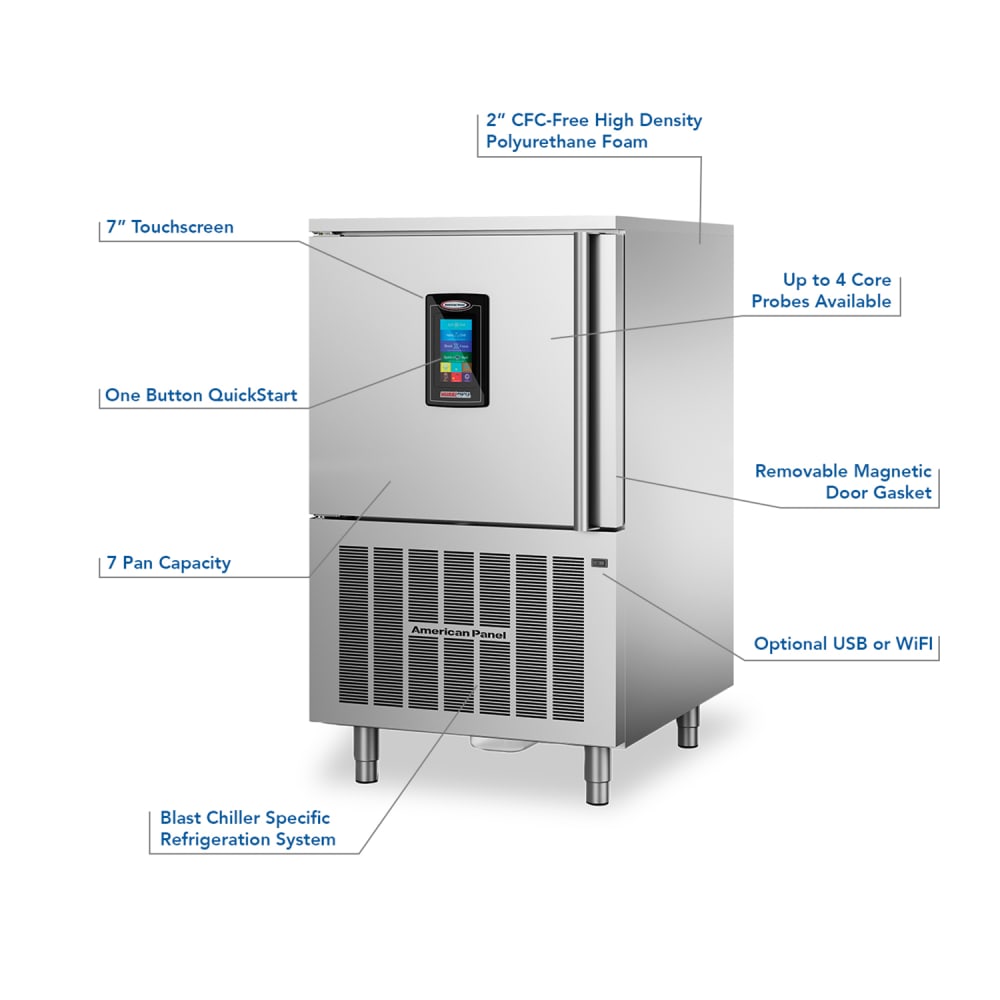

The American Panel AP7BCF70-2-P HURRiCHiLL™ reach-in blast chiller/shock freezer's, R290-powered, bottom-mounted system defrosts automatically and includes a 7-inch LCD touchscreen to simplify cycle management. Designed for rapid batch processing, it pulls 70 pounds of food from 160 to 38 degrees Fahrenheit in 90 minutes. A heated food probe logs temperature data for accurate HACCP record keeping, while the A La Carte and quick start functions deliver immediate activation and focused chilling.
Made of stainless steel, the American Panel AP7BCF70-2-P self-contained blast chiller/shock freezer prevents warping and scratches through constant handling. Its 32 5⁄16-inch-wide by 41 1⁄8-inch-deep by 57 1⁄16-inch-high frame sits on 6-inch adjustable legs for comfortable loading and retrieval. Lined with dense polyurethane to boost thermal retention, the cabinet enables steady holding after each cycle and accommodates (14) 12-inch by 20-inch or seven 18-inch by 26-inch pans.
- HURRiCHiLL series
- Reach-in design
- Holds (14) 12-in. x 20-in. or (7) 18-in. x 26-in. pans
- Chills 70 lbs. from 160 to 38 degrees F in 90 min.
- Stainless steel construction
- Polyurethane insulation
- Heated food probe
- 6-in. adjustable legs
- Self-contained
- Bottom-mounted condenser
- R290 refrigerant
- Automatic defrost
- 7-in. LCD display
- Quick start
- A La Carte functionality
- Holding mode
- HACCP record keeping
- 32 5⁄16 in. W x 41 1⁄8 in. D x 57 1⁄16 in. H
- 5.7 A, 1 1⁄2 HP
- 208 V/60 Hz/1 ph, 6-ft. cord with NEMA 6-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on American Panel AP7BCF70-2-P within the 48 contiguous states.
From The Manufacturer
American Panel AP7BCF70-2-P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | American Panel |
| Also Known As | AP7BCF70-2 |
| Compressor Location | Bottom |
| Depth (in) | 41.13 |
| Height (in) | 57.06 |
| Hertz | 60 |
| NEMA | 6-15P |
| Pan Capacity | 14 |
| Phase | 1 |
| Product | Blast Chillers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Series | HURRiCHiLL™ |
| Special Features | Auto Defrost |
| Special Features | HACCP Record Keeping |
| Special Features | Probe |
| Special Features | Programmable |
| Special Features | Shock Freezer Performance |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 32.31 |
| Weight | 650.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It holds 14 pans per cycle.
It accommodates 14 12 in. x 20 in. pans or seven 18 in. x 26 in. pans.
It uses self-contained refrigeration.
It uses a 7-in. LCD touchscreen controller.
Yes, it includes a food probe.
It uses automatic defrost.
It requires 208V, 60 Hz, 1 ph, and 5.7 A with a NEMA 6-15P plug.
It uses R290 refrigerant.
It is UL-EPH certified.
Yes, it also operates as a shock freezer.
Yes, it has programmable controls.
Yes, it supports HACCP record keeping.
Yes, it includes a heated food probe.
It freezes 70 lb. from 160°F to 0°F in 240 minutes.
It freezes 70 lb. from 160°F to 0°F in 240 minutes.
It chills 70 lb. from 160°F to 38°F in 90 minutes.
It chills 70 lb. from 160°F to 38°F in 90 minutes.
