Vulcan EV48SS-8FP240 48" EV Series Electric Range w/ (8) French Hot Plates, 240v/1ph/3ph

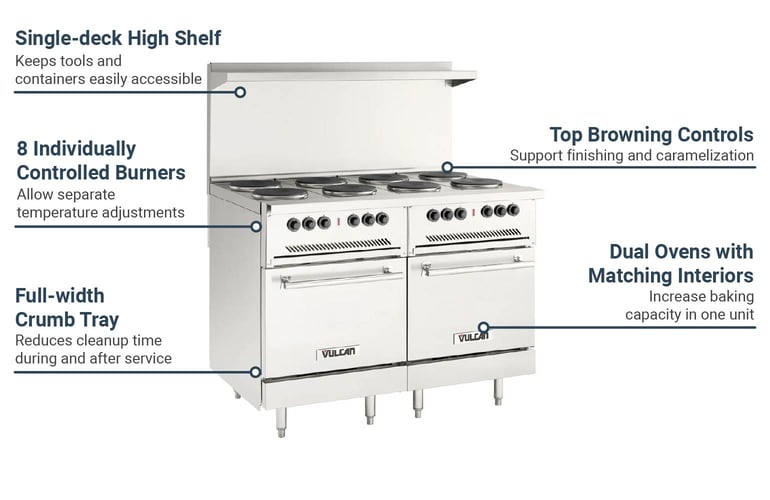

Outfitted with a single-deck high shelf, the Vulcan EV48SS-8FP240 electric range provides convenient overhead space for cookware or small tools in high-volume kitchens. Below, a 48-inch-wide cooktop includes (8) 9¹⁄₂-inch round French hot plates, each independently controlled with infinite heat switches. The unit's full-width crumb tray simplifies maintenance by collecting food debris during service. Its frame is fully MIG welded from aluminized steel for structural support, while stainless steel throughout the front, sides, riser, shelf, and legs enhances corrosion resistance.

The Vulcan EV48SS-8FP240 range also includes two standard ovens, each equipped with a top browning control and a thermostat that can be set between 200 and 500 degrees Fahrenheit. Both ovens measure 20 inches wide by 26¹⁄₂ inches deep by 14 inches high and accommodate 18-inch by 26-inch sheet pans loaded front to back. Inside each cavity is one rack with three adjustable positions. For installation on uneven floors, the range rests on 6-inch stainless steel legs that can be adjusted to improve balance and stability.

Product Details

• EV Series
• 48-in.-wide electric range
• Stainless steel construction
• Welded aluminized steel frame
• (8) 9¹⁄₂-in. French plates
• Infinite heat control switches
• Two standard ovens with top browning controls

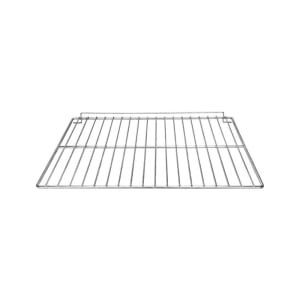

• 1 rack with 3 positions per oven
• Full-width pull-out crumb tray
• Cool-to-the-touch control knobs
• Single-deck high shelf
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Overall: 48 in. W x 34 in. D x 58 in. H
• Interior (each oven): 20 in. W x 26¹⁄₂ in. D x 14 in. H
• 240 V/60 Hz/1 or 3 ph (convertible phase)

Product Features

*Free shipping on Vulcan EV48SS-8FP240 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 48", (8) 2.0 kW French hotplates, 9-1/2" round, infinite controls, (2) standard ovens, stainless steel front, sides, single-deck high shelf & 6" legs, 240v

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV48SS-8FP240 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
